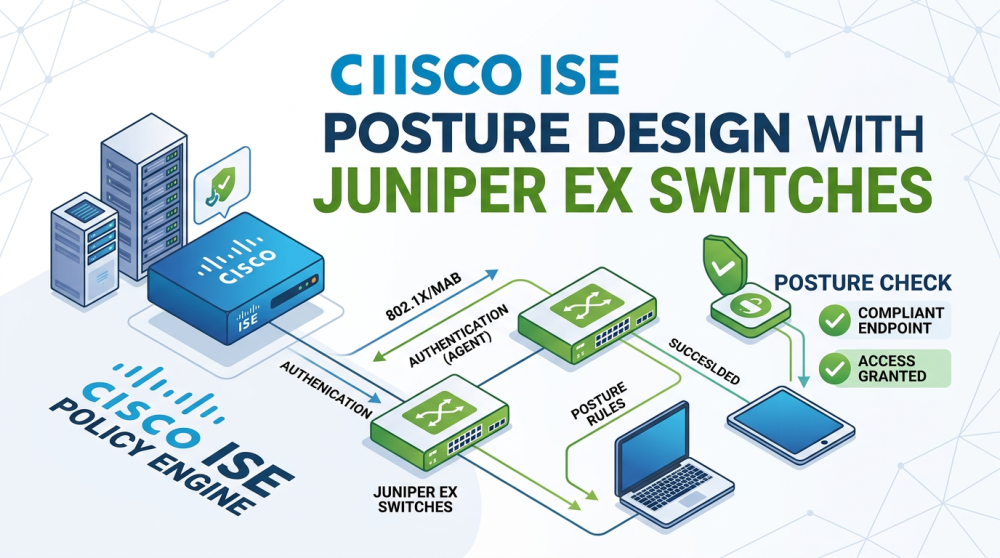

Designing Enterprise NAC Architecture: Cisco ISE Posture, Protocol Engineering, and Multi-Vendor Access Security

Modern enterprise network security is evolving toward identity-driven access control models. Network Access Control (NAC) platforms such as Cisco Identity Services Engine (ISE) serve as centralized policy decision engines that translate identity, device posture, and compliance status into network access policies. In multi-vendor environments that include switching platforms such as Juniper EX Series Switches, NAC deployment becomes an exercise in protocol engineering rather than simple configuration. The real challenge is not authentication, but state synchronization across identity, security, and network control planes.

Table of Contents

1. Part 1: NAC Architecture Reality
2. Part 2: RADIUS Attribute Translation
3. Part 3: Posture Redirect Engineering
4. Part 4: Change of Authorization Control
5. Part 5: Zero Trust NAC Design Principles
6. Part 6: Infrastructure Performance Scaling
7. FAQ

Part 1: NAC Architecture Reality

Enterprise NAC is not just an authentication mechanism. It is a policy enforcement framework designed to control network access based on dynamic security intelligence. Typical NAC decision inputs include user identity, endpoint posture, and security compliance verification.

Modern NAC architectures support Zero Trust security models where network access is continuously validated rather than only verified during login events.

Part 2: RADIUS Attribute Translation Between Cisco and Juniper

RADIUS is the core communication protocol in NAC architectures. Correct attribute mapping is critical for successful policy enforcement between Cisco ISE and Juniper EX switches.

For dynamic VLAN assignment, use standard IETF RADIUS attributes:

Example RADIUS configuration parameters:

Tunnel-Type = 1:13
Tunnel-Medium-Type = 1:6
Tunnel-Private-Group-ID = VLAN_ID

These attributes allow Cisco ISE to dynamically assign network segmentation policies without vendor-specific dependencies.

Juniper switches interpret NAC enforcement rules using firewall filter policy strings rather than Cisco-style downloadable ACL models.

Part 3: Posture Redirect Architecture and Web Authentication

Posture remediation workflows rely on Central Web Authentication (CWA) portals. The typical posture authentication flow is:

1. Authentication Success
2. Posture Evaluation
3. Portal Redirect
4. Compliance Remediation
5. Access Policy Upgrade

Cisco ISE commonly uses Cisco AV-Pair attributes for redirect control:

cisco-av-pair=url-redirect

Juniper environments may require custom Vendor Specific Attributes such as:

Juniper-CWA-Redirect-URL = https://ISE-IP/portal/gateway?sessionId=XXX

Posture portals must remain reachable before restrictive access policies are applied.

Part 4: Change of Authorization (CoA) Session Control

CoA is critical for Zero Trust security models because it allows dynamic policy updates after posture validation.

When endpoint status changes:

1. Unknown
2. Compliant
3. Full Network Access

ISE sends CoA packets using UDP port 3799.

Example CLI command to verify CoA behavior:

switch# show authentication sessions

Network devices must be configured to accept CoA requests from ISE policy nodes.

Part 5: Zero Trust NAC Design Principles

Modern NAC architecture should follow role-based security models rather than device-based rules. Policy design should be based on user role, device security posture, and behavioral context.

Recommended policy hierarchy:

1. User Identity Role
2. Device Security Posture
3. Network Access Permission Level

This model aligns with Zero Trust security frameworks and improves long-term policy scalability.

Part 6: Infrastructure Performance Scaling

Identity-based security workloads increase network device processing requirements. Large enterprise environments should deploy high-performance access layer hardware.

Recommended enterprise platforms include:

• Cisco Catalyst 9300 Series
• Juniper EX4100 Series

Example CLI command to verify device software version:

Example CLI command to verify software version:

switch# show version

Infrastructure procurement planning should align with security architecture deployment cycles.

FAQ

Q1.Why does posture redirect sometimes fail on Juniper switches?

This usually occurs when required RADIUS attributes or firewall filters are not properly configured. Ensure both redirect URL attributes and allow rules for ISE PSN traffic are present.

Q2.How does CoA improve Zero Trust security?

CoA enables real-time session policy updates without requiring endpoint reconnection, improving user experience and security enforcement consistency.

Q3.Do I need Cisco-specific attributes for Juniper NAC integration?

No. Use standard IETF RADIUS attributes whenever possible, and only add vendor-specific attributes when required for portal redirection or policy enforcement.
