Cisco Firepower 9000 Series, Modular security platform for service providers
This carrier-grade next-generation firewall (NGFW) is ideal for data centers and other high-performance settings that require low latency and high throughput. Deliver scalable, consistent security to workloads and data flows across physical, virtual, and cloud environments. With tightly integrated services, the Firepower 9000 Series lowers costs and supports open, programmable networks.
Firepower 9300
1.2 Tbps clustered throughput
10/40/100 Gb Network Interfaces
57 million concurrent connections, with application control
500,000 new connections per second
Security services options: AVC, NGIPS, AMP, URL Filtering, DDos Mitigation

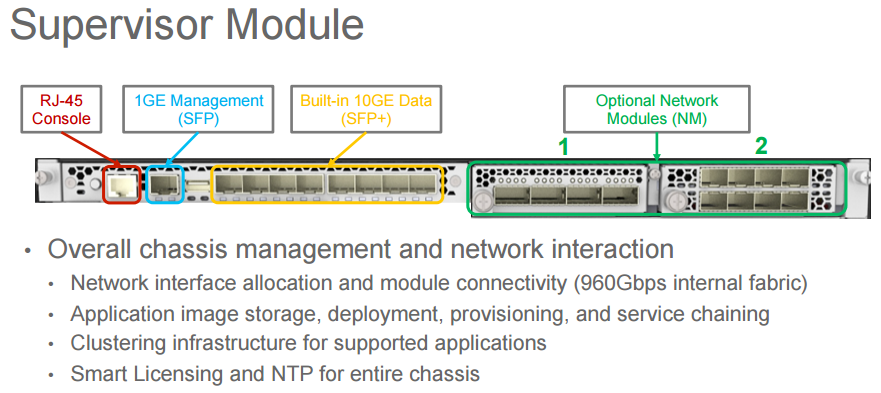

Supervisor
- 8x 10GE SFP+ ports
- Management processor: Unknown
- Management memory: 32GB DDR4 2133MHz
- Management SSD: Micron M500 mSATA 120GB
- Backplane: Broadcom StrataXGS Trident II
- Backplane model: BCM56852A0KFSBG 960Gbit/s

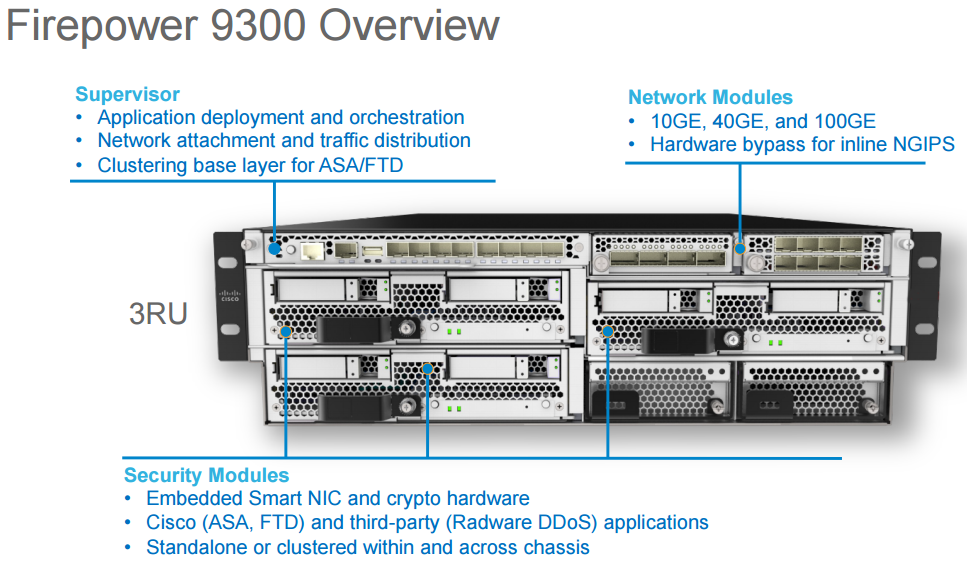

Firepower 9300 can contain one supervisor with up to two network modules, three security modules (blades) of one kind (either SM24, SM36 or SM44) and two power supply’s in the front. In the back there are 4 hot-swappable fans.

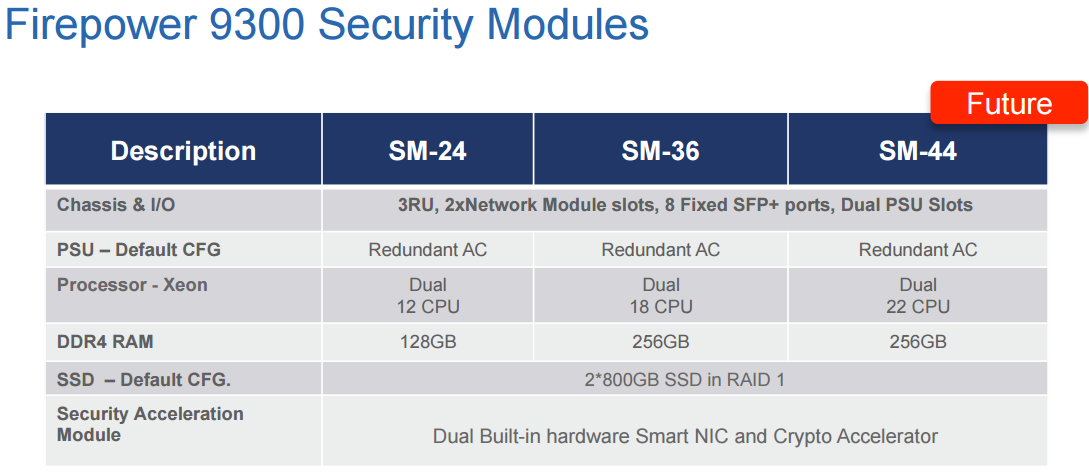

FP 9300 Security Module 24-Enterprise
- 24 physical cores (48 logical cores) Dual 12 core Xeon E5-2658v3 2.2GHz (2.9GHz turbo)
- 256GB DDR4 RAM 2133MHz RDIMM
- Two 800GB SSDs in RAID1
- Two Smart NIC–Cruz custom Cisco ASIC
- Two Crypto Accelerator-Cavium Nitrox V XL NHB PCIe Gen3 x16 (CNN55XX-NHB)
FP 9300 Security Module 36-Extreme
- 36 physical cores (72 logical cores) Dual 18 core Xeon E5-2699v3 2.3GHz (3.6GHz turbo)
- 256GB DDR4 RAM 2133MHz RDIMM
- Two 800GB SSDs in RAID1
- Two Smart NIC–Cruz custom Cisco ASIC
- Two Crypto Accelerator-Cavium Nitrox V XL NHB PCIe Gen3 x16 (CNN55XX-NHB)
FP 9300 Security Module 44
- 44 physical cores (88 logical cores) Dual 22 core Xeon E5-2699v4 2.2GHz (3.6GHz turbo)
- 256GB DDR4 RAM 2400MHz RDIMM
- Two 800GB SSDs in RAID1
- Two Smart NIC–Cruz custom Cisco ASIC
- Two Crypto Accelerator-Cavium Nitrox V XL NHB PCIe Gen3 x16 (CNN55XX-NHB)
