Cisco 7200 Series Network Processing Engine is the Cisco Network Processor Modules.
Cisco 7200 Series newest processor-the NPE-G1 addresses the need for performance and flexibility by doubling its processing capacity and enabling unprecedented LAN performance. This engine is designed to meet the increasing demands for performance while maintaining exceptional value and flexibility.

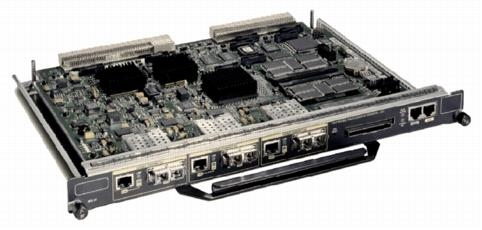

This is the appearance of NPE-G1.
NPE-G1 provides these benefits:
• Supports up to 1 million packets per second (PPS) in Cisco Express Forwarding switching (an increase of up to 250 percent over the Cisco 7200 Series NPE-400)
• Offers 3 Gigabit Ethernet/Fast Ethernet ports that do not take up bandwidth points
• Provides Doubles the amount of available DRAM (to 1 GB)
• Eliminates the requirement for an input/output (I/O) controller
• Eliminates I/O controller LAN interface bandwidth points
• Provides modular processors and the ability to upgrade
• Offers improved price performance
NPE-G1 Specification
|
Memory |
• SDRAM: 256 MB (default), 512 MB, and 1 GB. • Compact flash: 64 MB (default), 128 MB, and 256 MB. • 512 KB NVRAM or 512 KB. • 512 KB Layer 2 cache. • 16 MB packet memory on 256 MB SDRAM and 32 MB packet memory on 512 MB and 1 GB SDRAM. • ECC support (SDRAM and Layer 2 cache). |
|
Processor |
700 MHz Broadcom BCM1250 processor. |
|
Environmental Conditions |
• Storage temperature: -38 to 150°F (-40 to 70°C) • Operating temperature, nominal: 41° to 104°F (5 to 40°C) • Operating temperature, short term: 23 to 131°F (-5 to 55°C) • Storage relative humidity: 5 to 95% relative humidity (RH) • Operating humidity, nominal: 5 to 85% RH • Operating humidity, short term: 5 to 90% RH • Operating altitude: -60 to 4000 m |
|
Physical Specifications |
• Height: 1.40 in. (3.556 cm) • Width: 15.15 in. (38.481 cm) • Depth: 11.12 in. (28.245 cm) • Weight: 3.25 lb (1.49 kg) |
|
Product Regulatory Approvals |
• Safety and Electromagnetic Emissions • Underwriters Laboratories (UL) for the United States • Underwriters Laboratories, Canada (cUL) or Canadian Standards Association (CSA) • European Norm (EN) • International Electrotechnical Commission (IEC) • Australia/New Zealand Standard (AS/NZS) |
|
Product Regulatory Compliance |
• FCC Part 15 Class A device for electromagnetic interference limits • FCC Part 68 for connection to the public telephone network • Electrostatic Discharge EN61000-4 |
