Cisco Catalyst 4948 10GE
The Cisco Catalyst® 4948 10 Gigabit Ethernet Switch is a wire-speed, low-latency, Layer 2 to 4, 1-rack-unit (1RU), fixed-configuration switch for rack-optimized server switching.
The Cisco Catalyst 4948 10 Gigabit Ethernet Switch offers 48 ports of wire-speed 10/100/1000BASE-T with 2 ports of wire-speed 10 Gigabit Ethernet (X2 optics). Exceptional reliability and serviceability are delivered with optional internal AC or DC 1+1 hot-swappable power supplies and a hot-swappable fan tray with redundant fans.

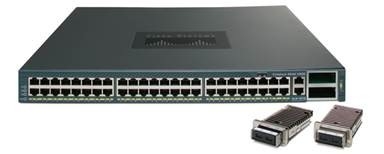

Cisco Catalyst 4948 10 Gigabit Ethernet Switch
Features of 4948 10 GE Switch
Wire-Speed Performance in All Directions
The Cisco Catalyst 4948 10 Gigabit Ethernet Switch delivers wire-speed throughput with low latency for data-intensive applications using a 136-Gbps switching fabric with a forwarding rate of 102 million packets per second (mpps) in hardware for Layer 2 to 4 traffic. High-performance switching is maintained regardless of the number of route entries or Layer 3 and 4 services enabled.
Power-Supply Redundancy for Nonstop Operation
The Cisco Catalyst 4948 10 Gigabit Ethernet Switch provides reliability for critical applications with 1+1 redundant, hot-swappable internal AC or DC power supplies. The 1+1 power supply design provides A-to-B failover when power supplies are connected to different circuits. AC and DC power supplies can be mixed in the same unit for outstanding deployment flexibility.
Models of 4948 10 GE Switch
|
Model |
Description |
|
Cisco Catalyst 4948-10GE, IP Base Image (RIP, static routes,), one AC power supply, fan tray |
|
|
Cisco Catalyst 4948-10GE, Enterprise Services Image (OSPF, EIGRP, IS-IS, BGP, IPX, AppleTalk), one AC power supply, fan tray |
|
|
Cisco Catalyst 4948-10GE, optional software image, optional power supplies, fan tray |
Cisco Catalyst 4900M
The Cisco® Catalyst® 4900M Switch is designed for data center network top-of-rack switching and midmarket collapsed core and aggregation layer deployment. Optimized for ultimate deployment flexibility for the data center, the Cisco Catalyst 4900M can be deployed for 10/100/1000 or 1/10GBASE-T server access with 1:1 uplink-to-downlink oversubscription and environments with a mix of 10/100/1000 and 10 Gigabit Ethernet servers or all 10 Gigabit Ethernet servers.

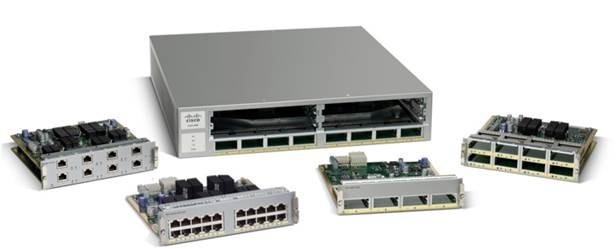

Cisco Catalyst 4900M Switch
Features of 4900M Switch
Features at a glance
- 5 MB shared buffers
- Up to 320 Gbps and 250 mpps wire-speed performance with low latency
- Wire-speed uplinks
- Choice of Gigabit Ethernet and 10 Gigabit Ethernet interfaces
- Choice of copper or fiber 1G/10G Ethernet interfaces
- Online insertion and removal of cards
- Cisco TwinGig Converter Module support
- Dual AC or DC power
Models of 4900M Switch
|
Model |
Description |
|
Cisco Catalyst 4900M 8-port base system |
Comparison: Cisco 4948 10GE vs. Cisco 4900M
|
Items |
Cisco Catalyst 4948 10 Gigabit Ethernet |
Cisco Catalyst 4900M |
|
Switching Capacity |
136 Gbps |
320 Gbps |
|
Throughput |
102 mpps |
● 250 mpps for IPv4 ● 125 mpps for IPv6 |
|
IPv6 Support |
In Software |
In Hardware |
|
Height |
1RU |
2RU |
|
Modular Half-Card Slots |
0 |
2 |
|
Maximum 10/100/1000 Ports |
48 |
40 |
|
Maximum 10 Gigabit Ethernet Ports |
2 |
24 |
|
Maximum Gigabit Ethernet (fiber) Ports |
0 |
32 (Cisco TwinGig Converter Module) |
|
Cisco TwinGig Converter Module Support |
No |
Yes (half-cards only) |
|
Uplink Optic Type |
2 X2 (10 Gigabit Ethernet) optics |
8 X2 (10 Gigabit Ethernet) optics |
|
Multilayer Switching |
IP Base and Enterprise Services options |
IP Base and Enterprise Services options |
|
Shared Buffer |
16 MB |
16 MB |
|
CPU |
666 MHz |
1.3 GHz |
|
Synchronous Dynamic RAM (SDRAM) |
256 MB |
512 MB |
|
Active VLANs |
4096 |
4096 |
|
Multicast Entries |
● 28,000 (Layer 3) ● 16,000 (Layer 2) |
● 56,000 for IPv4 ● 28,000 for IPv6 |
|
Switched Virtual Interfaces (SVIs) |
2000 |
4000 |
|
Switched Port Analyzer (SPAN) |
2 ingress and 4 egress |
8 ingress and 8 egress |
|
USB port |
No |
Yes |
|
Compact Flash Memory Support |
No |
Yes |
|
System Reset Button |
No |
Yes |
