main product photo
Name:

eSFP-LH120-SM193.90

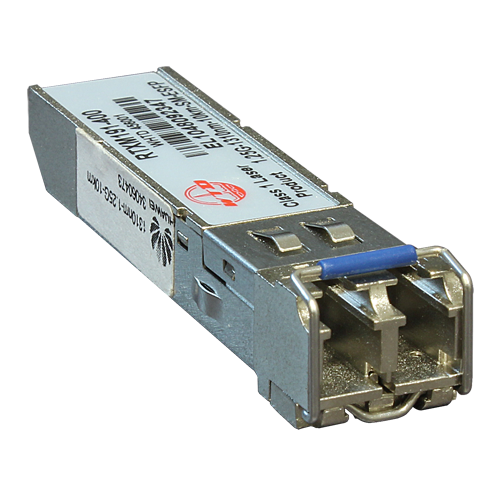

Model:eSFP-LH120-SM193.90 - Huawei OSN 7500 SFP Module
Brand: Huawei
Detail:

Optical Transceiver,eSFP,1546.12nm,125M~2.67Gbps,0~4.0dBm,-28.0dBm,LC,120km

Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

eSFP-LH120-SM193.90

Optical Transceiver,eSFP,1546.12nm,125M~2.67Gbps,0~4.0dBm,-28.0dBm,LC,120km

Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

eSFP-LH120-SM193.90 Overview

The Huawei eSFP-LH120-SM193.90 is a high-performing optical transceiver designed to facilitate seamless data transmission over long distances. Operating on a wavelength of 1546.12nm, this transceiver supports data rates ranging from 125M to 2.67Gbps and provides a transmission distance of up to 120km. With its robust performance and reliable LC interface, the eSFP-LH120-SM193.90 is an ideal choice for various networking applications.

Quick Spec

Brand Huawei
Model eSFP-LH120-SM193.90
Wavelength 1546.12nm
Data Rate 125M~2.67Gbps
Transmission Distance 120km
Connector LC

Product Features

  • ● ● Supports wide data rate ranging from 125M to 2.67Gbps.
  • ● ● Operates at 1546.12nm wavelength for optimized performance.
  • ● ● Enhanced transmission distance up to 120km.
  • ● ● Reliable and compatible LC interface.
  • ● ● High sensitivity with a received power range of 0~4.0dBm.

Product Applications

  • ● ● Long-distance data transmission in metropolitan area networks (MANs).
  • ● ● Extended reach in campus and enterprise networks.
  • ● ● Applications requiring high data throughput over large geographical areas.

Supported Options

Accessory Model
Optical Fiber Cable OC-3
Patch Panel PP-24LC
Cleaning Kit CK-40

Compare to Similar Items

Model Difference
Huawei eSFP-SX Shorter transmission distance up to 10km
Huawei eSFP-LX Medium transmission distance up to 20km
Huawei eSFP-ZX Higher transmission distance up to 80km

Get more information

Check Huawei eSFP-LH120-SM193.90 price and eSFP-LH120-SM193.90 datasheet, buy Huawei eSFP-LH120-SM193.90 with best price and fast shipping. Free Live Chat is supported. For further information about the product and its price, contact us through Live Chat or [email protected].

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

eSFP-LH120-SM193.90 Specification

eSFP-LH120-SM193.90 Specifications

Brand Huawei
Model eSFP-LH120-SM193.90
Type Optical Transceiver
Form Factor eSFP
Wavelength 1546.12nm
Data Rate 125M~2.67Gbps
Transmit Power 0~4.0dBm
Receive Sensitivity -28.0dBm
Connector Type LC
Maximum Distance 120km
Laser Type DFB
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Power Supply Voltage 3.3V
Power Consumption < 1.5W
MTP Compliance Yes
DDM/DOM Supported
Offset Automatic Fine-Tuning
EEPROM Yes
Compatibility Multi-Vendor
Warranty 3 Years
