main product photo
Name:

ES1D2SRUH000

Model:Huawei S7706/S7712,Main Control Unit H ES1D2SRUH000
Brand: Huawei
Detail:

Huawei S7706/S7712,Main Control Unit H ES1D2SRUH000

Price:US$5,691.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

You may also be interested in the following product(s)

ES1D2G48SX1E

ES1D2G48SX1E

US$7,435.00
ES1D2S04SX1E

ES1D2S04SX1E

US$8,081.00
ES1D2G48TX1E

ES1D2G48TX1E

Rating:
90%
4.5/5.0
2 Reviews
US$4,515.00
ES1D2S08SX1E

ES1D2S08SX1E

Rating:
100%
5/5.0
3 Reviews
US$11,116.00
ES1D2G48SED0

ES1D2G48SED0

ES1D2G48SFA0

ES1D2G48SFA0

US$1,634.00
ES1D2X04XED0

ES1D2X04XED0

ES1D2L02QFC0

ES1D2L02QFC0

Rating:
90%
4.5/5.0
2 Reviews
US$5,965.00
ES0D00MCUA00

ES0D00MCUA00

ES0D0G48SA00

ES0D0G48SA00

US$1,634.00
ES0D0F48TA00

ES0D0F48TA00

ES0D0T24XA00

ES0D0T24XA00

Rating:
95%
4.8/5.0
4 Reviews

ES1D2SRUH000

Huawei S7706/S7712,Main Control Unit H ES1D2SRUH000

Price: US$5,691.00
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

ES1D2SRUH000 Overview

ES1D2SRUH000 is the Huawei S7706/S7712 Main Control Unit. The ES1D2SRUH000 can be installed in: Slots 07 and 08 in an S7706 chassis, Slots 13 and 14 in an S7712 chassis.

Quick Specs

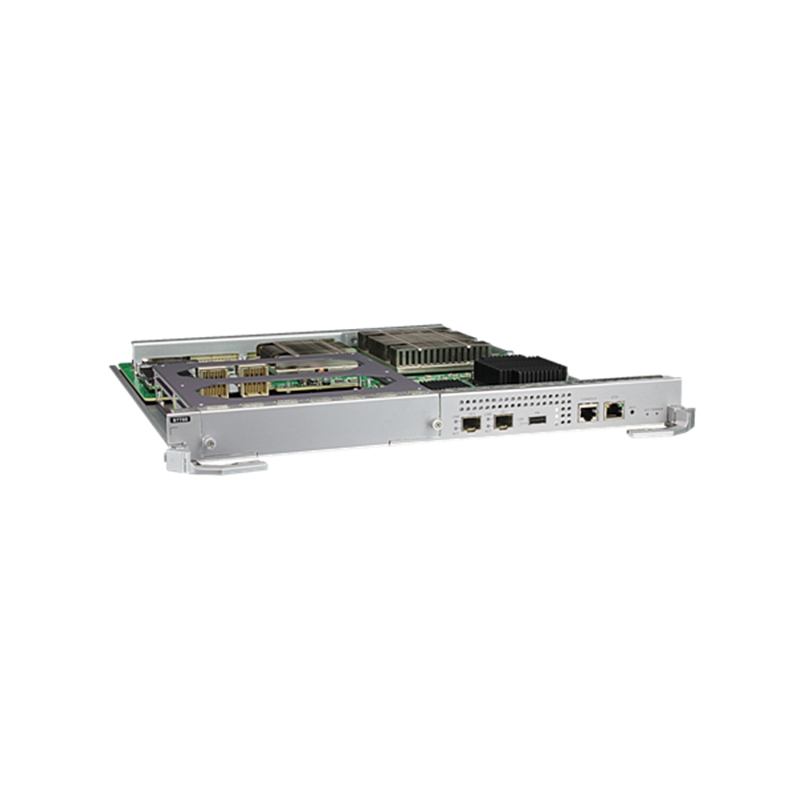

Figure 1 shows the appearance of ES1D2SRUH000.

Huawei ES1D2SRUH000 Appearance

Table 1 shows the Quick Specs.

Part Number

ES1D2SRUH000

Basic functions

Huawei S7706/S7712 Main Control Unit

Memory

4 GB

Flash

64 MB

eUSB card

2 GB

Physical specifications

Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)

Reserved subcard slot: 243.7 mm x 170.0 mm x 35.1 mm (15.5 in. x 6.7 in. x 1.4 in.)

Weight: 3.46 kg (7.63 lb)

Maximum power consumption: 183 W (including subcards)

Product Details

Figure 2 shows the ES1D2SRUH000 front ports.

Huawei ES1D2SRUH000 Front Ports

Note:

①

One subcard slot. A subcard for the main control unit can be installed in this slot.

②

Two GE ports (reserved).

③

One USB port. It is used to load software from a USB flash drive.

④

One console port. It can connect to a configuration terminal to implement onsite configuration of the S7700.

⑤

One ETH management port (10/100BASE-TX auto-sensing). It can connect to a network port of a configuration terminal or network management workstation to set up a local or remote configuration environment.

Get more information

Do you have any question about the ES1D2SRUH000

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

ES1D2SRUH000 Specification

ES1D2SRUH000 Specification

Basic functions

The ES1D2SRUH000 is the system control and management unit for the S7712 and S7706. It integrates the main control unit,

switching unit, and system maintenance unit.

Distributed forwarding

Performs concurrent data forwarding using a distributed data plane.

Memory

4 GB

Flash

64 MB

eUSB card

2 GB

The system configuration data, startup files, system software package, and system logs are saved in the eUSB card by default.

CSS

The ES1D2SRUH000 can have the ES1D2VS04000 installed to support the CSS function in V200R009C00 and later versions.

OAM

The ES1D2SRUH000 can have ES0D00FSUA00 installed to provide enhanced services such as Operation, Administration and

Maintenance (OAM) and Bidirectional Forwarding Detection (BFD).

802.1ag: identifies, detects, and sends continuity check (CC) packets.

Multiprotocol Label Switching (MPLS OAM): identifies, detects, and sends MPLS OAM packets.

OAM UNCFG_MEP.

Redundancy backup

Supported

Main control board is mandatory for switches. Each switch must be configured with one or two main control boards. When one

main control board is configured for a switch, the main control board can be installed in either main control board slot of the switch.

When two main control boards are configured, the two main control boards work in hot standby mode to improve reliability of the

switch. The active and standby main control boards monitor the status of each other. If the active main control board fails, the

standby main control board automatically becomes active to ensure uninterrupted services.

Hot swap

Supported

Before removing the active ES1D2SRUH000, perform an active/standby switchover.

Physical specifications

Dimensions (W x D x H): 394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.)

Reserved subcard slot: 243.7 mm x 170.0 mm x 35.1 mm (15.5 in. x 6.7 in. x 1.4 in.)

Weight: 3.46 kg (7.63 lb)

Maximum power consumption: 183 W (including subcards)

Environment parameters

Operating temperature: 0°C to 45°C (32°F to 113°F)

Operating relative humidity: 5% RH to 95% RH (noncondensing)

Storage temperature: -40°C to +70°C (-40°F to +158°F)

Storage relative humidity: 5% RH to 95% RH (noncondensing)

EMC compliance

CISPR22 Class A

CISPR24

EN55022 Class A

EN50024

ETSI EN 300 386 Class A

CFR 47 FCC Part 15 Class A

ICES 003 Class A

AS/NZS CISPR22 Class A

VCCI Class A

IEC61000-6-2

IEC61000-6-4

IEC61000-4-2

ITU-T K 20

ITU-T K 21

ITU-T K 44

CNS13438 CLASS A

KN 22 CLASS A

Environmental standards compliance

RoHS

REACH

WEEE

Safety standards compliance

IEC 60950-1

EN 60950-1

UL 60950-1

CSA C22.2 No 60950-1

AS/NZS 60950.1

BS EN 60950-1

Quality Certifications

Q&A

Questions & Answers

What accessories are available for the Huawei ES1D2SRUH000 Main Control Unit?

Accessories include power supplies, additional line cards, and expansion modules specific to the Huawei S7700 Series switches.

How does the Huawei ES1D2SRUH000 compare with other similar products?

The Huawei ES1D2SRUH000 stands out for its high throughput, scalability, and advanced security features compared to other main control units.

What common troubleshooting steps should be taken for Huawei ES1D2SRUH000?

For troubleshooting, verify connectivity, ensure proper firmware is installed, and check for any configuration errors or hardware malfunctions.

What are the main features of the Huawei ES1D2SRUH000 Main Control Unit?

Features include high-speed data processing, robust traffic management, enhanced security controls, and compatibility with S7706/S7712 Huawei Switch models.
