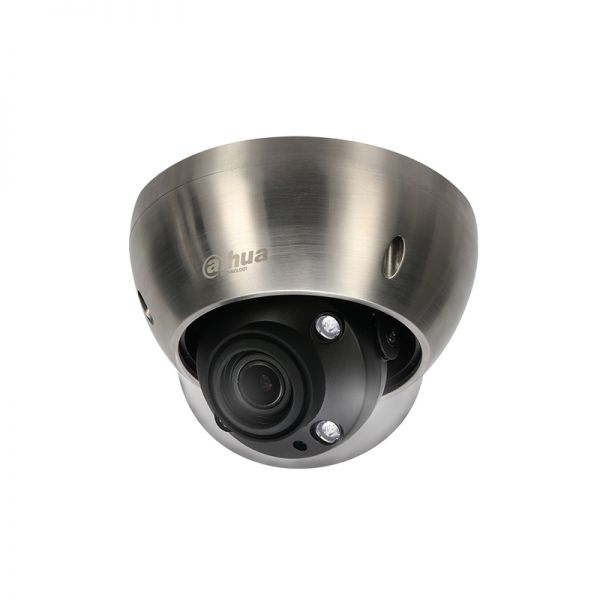

DH-IPC-HDBW8232EN-Z-SL, Dahua DH Series Network Camera, 2MP, IR, Vari-focal

DH-IPC-HDBW8232EN-Z-SL Specification

Camera

Image Sensor

1/1.9-in. 2 MP Progressive Scan CMOS

Effective Pixels

1920(H) x 1080(V)

RAM/ROM

1024 MB / 128 MB

Scanning System

Progressive

Minimum Illumination

Color: 0.002 lux at F1.53

0 lux at F1.53 with IR on

S/N Ratio

More than 50 dB

IR Distance

50.0 m (164.04 ft)

IR On/Off Control

Auto, Manual

IR LEDs

Three (3)

Lens

Lens Type

Motorized, Auto Iris (HALL)

Mount Type

Board-in

Focal Length

4.1 mm to 16.4 mm

Max. Aperture

F1.53

Angle of View

Horizontal: 32° to 92°

Vertical: 18° to 53°

Optical Zoom

4x

Focus Control

Motorized

Close Focus Distance

1000 mm (39.37 in.)

Pan/Tilt/Rotation

Range

Pan: 0˚ to 355˚

Tilt: 0˚ to 65˚

Rotation: 0˚ to 355˚

Video

Compression

Smart H.265+, H.265, Smart H.264+, H.264

Streaming Capability

Three (3) Streams

Resolution

1080p (1920 x 1080), 1.3 MP (1280 x 960),

720p (1280 x 720), D1 (704 x 480),

VGA (640 x 480), CIF (352 x 240)

Frame Rate

Main Stream: 1080p at 60 fps

Sub Stream 1: D1 at 60 fps

Sub Stream 2: 1080p at 60 fps

Bit Rate Control

CBR, VBR

Bit Rate

H.264: 24 to 10240 Kbps

H.265: 14 to 6144 Kbps

Day/Night

Auto (ICR), Color, B/W

BLC Mode

BLC, HLC, True WDR (120 dB), SSA

White Balance

Auto, Natural, Street Lamp, Outdoor, Manual

Gain Control

Auto, Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Advanced Features

Electronic Image Stabilization (EIS), Smart IR, Defog

Digital Zoom

16x

Flip

0°, 90°, 180°, 270°

Mirror

Off, On

Privacy Masking

Off, On (4 Area, Rectangle)

Audio

Compression

G.711a, G.711Mu, AAC, G.726

Network

Ethernet

RJ-45 (100/1000 Base-T)

Protocol

HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,

FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,

UPnP,NTP, Bonjour, 802.1x, MulƟ cast, ICMP, IGMP, SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast, Multicast

Max. User Access

Access 10 Users / 20 Users

Edge Storage

Network Attached Storage (NAS)

Local PC for Instant Recording

MicroSD Card Slot, maximum 128 GB

Web Viewer

IE, Firefox, Safari

Management Software

Smart PSS, DSS

Smart Phone

IOS, Android

Certifications

Safety

EN 60950:2000

UL 60950-1

Electromagnetic Compatibility (EMC)

FCC Part 15 Subpart B

Interface

Audio

In: One (1) Channel, RCA

Out: One (1) Channel, RCA

Alarm

In: One (1) Channel

Out: One (1) Channel

Electrical

Power Supply

12 VDC, 24 VAC, or PoE+ (802.3at Class 4)

Power Consumption

< 18 W

Environmental

Operating Conditions

–40° C to +60° C (–40° F to +140° F),Less than 95% RH

Strorage Conditions

–40° C to +60° C (–40° F to +140° F),Less than 95% RH

Ingress Protection

IP67

Impact Protection

IK10

Enclosure Rating

Conforms to NEMA 4X

Construction

Casing

316L Stainless Steel

Dimensions

ø162.50 mm x 118.10 mm (ø6.40 in. x 4.65 in.)

Intelligence

IVS triggers an alarm and takes a defined action for the following events:

Standard Features

• Tampering with the camera.

• Camera loses or changes focus drastically.

• Error writing to an onboard Micro SD card.

• Error sending or receiving data over the network.

• Unauthorized access to the camera.

Premium Features

Motion

An object moves through any part of the scene.

Tripwire

A target crosses a user-defined line.

Intrusion

A target enters or exits a defined perimeter.

Scene Change

A person or object moves the camera to change the scene or covers the camera to obscure the scene.

Abandoned/Missing Object

A target leaves an object in designated area, or a target removes an object from the same designated area.

Advanced Features

Facial Detection

Detects and captures a snapshot of a human face in a defined area within a scene.

People Counting

Measure the number of customers, visitors or passengers in a surveillance scene.

Heat Map

Generates a visual representation of data.
