CR5B0BKPCA50, Huawei NE5000E Router, Cluster AC Chassis/High reliability/Carrier-grade

100% Genuine Ready to Ship

$241,428.57

90% OFF

$25,292.00

Overview

Huawei CR5B0BKPCA50 Overview

The Huawei CR5B0BKPCA50 is a carrier-grade NE5000E core router designed for high-reliability backbone and data center networks. With non-block switch fabric and multi-chassis support, this Huawei router delivers system capacity up to 819Tbps across 64 chassis and 15Tbps per single chassis. It supports rich interface options from GE to 100GE, comprehensive IPv4 and IPv6 routing protocols, and advanced high-availability features such as NSF, NSR, FRR, and in-service software upgrade, making it ideal for service providers and large enterprises.

Product Highlights

819Tbps

Sys Fabric

15Tbps

Per Chassis

GE-100GE

Flex Ports

Product Applications Scenarios

Data Center

Non-block switch fabric and 819Tbps multi-chassis capacity make it ideal as a DC core, consolidating large east-west and north-south traffic while reducing overprovisioning costs.

Service Providers

Carrier-grade routing, rich POS/GE/100GE interfaces, and fast FRR capabilities secure backbone and metro aggregation, lowering outage risk and improving SLA compliance.

Enterprise Network

Advanced IPv4/IPv6, BGP, and multicast support enable large enterprises to build scalable WAN cores, simplifying multi-site connectivity and cutting backbone upgrade cycles.

Product Features Comparison


Model	CR5B0BKPCA50, Huawei NE5000E Router, Cluster AC Chassis/High reliability/Carrier-grade	CR5P5KBTBD61, Huawei NetEngine5000E-X16A Router, 100G Throughput/BTB Basic Config/DC	CR5S5KBS8700, Huawei NetEngine5000E Router, VRP8 software/V800R007/Base SW	ME0P16BASD32, Huawei ME60 Router, ME60-X8 chassis/2+1 redundant SRU/SFU/4 DC power
Brand	Huawei	Huawei	Huawei	Huawei
Routing Throughput	n/a	n/a	Max Throughput: 200Tbps	n/a
Interface Configuration	Interface Types: GE銆?0GE銆?55M POS銆?22M POS銆?.5G POS銆?0G POS銆?0G POS銆?0GE銆?00GE	Interface Types: GE銆?0GE銆?55M POS銆?22M POS銆?.5G POS銆?0G POS銆?0G POS銆?0GE銆?00GE	Ports: 40 x 10GE, 4 x 100GE	Interface Types: OC-192c/STM-64c POS; OC-48c/STM-16c POS; OC-3c/STM-1c POS; OC-12c/STM-4c ATM; OC-3c/STM-1c ATM; 100GE WAN/LAN; 10GE WAN/LAN; GE/FE; E3/CT3; CE1/CT1
Supported Protocol	Routing protocol: IPv4 static route, OSPF, IS-IS, BGP, PIM, MSDP, MBGP; IPv6: IPv4 & IPv6 dual stack; BGP4+, RIPng, OSPFv3, IS-ISv6; MPLS and multicast not specified	Routing protocol: IPv4 static route, OSPF, IS-IS, BGP, PIM, MSDP, MBGP; IPv6: IPv4 & IPv6 dual stack; BGP4+, RIPng, OSPFv3, IS-ISv6; MPLS and multicast not specified	Network Protocols: IPv4, IPv6, MPLS	IPv4: RIP, OSPF, IS-IS, BGP-4; IPv6: RIPng, OSPFv3, IS-ISv6, BGP4+; MPLS: LDP, VPLS, H-VPLS, MPLS L2VPNs, MPLS/BGP L3VPN, MPLS-TP
VPN Capability	n/a	n/a	Security Features: Firewall, VPN, ACL	MPLS/BGP L3VPN; MPLS L2VPNs; NAT444, NAT64; IPSec-based services not explicitly listed
Integrated Features	High Availability: 1:1 MPU, 3+1 fabric, 8+8 PSU, 2+2 fans, NSF, NSR, BFD, TE FRR, ISSU, automatic fault diagnosis, hot patching	High Availability: 1:1 MPU, 3+1 fabric, 8+8 PSU, 2+2 fans, NSF, NSR, BFD, TE FRR, ISSU, automatic fault diagnosis, hot patching	QoS features, security features, virtualization (VRF, VPN), AC/DC power, redundancy, SNMP/NETCONF management	BRAS with PPPoE/IPoE, L2TP, CGN (NAT444/NAT64), QoS (H-QoS, WRED), DAA subscriber accounting

Optional Add-ons

Model Number	Description

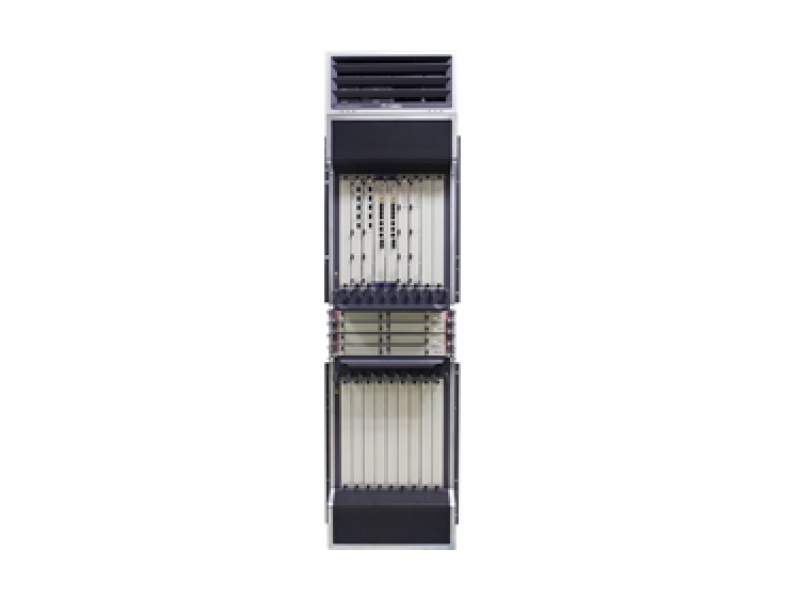

CR5P5KBTBD61	Huawei NetEngine5000E-X16A chassis bundle for clustered deployment with CR5B0BKPCA50 in large cores
CR5S5KBS8700	Huawei NetEngine5000E base software license, VRP8 V800R007, for advanced IP/MPLS features
ME0P16BASD32	Huawei ME60-X8 BRAS router to complement NE5000E in broadband edge and aggregation layers

Quality Certifications

Specification

Huawei CR5B0BKPCA50 Specification

Model

CR5B0BKPCA50

Brand

Huawei

Throughput capability

Non-block switch fabric, support multi Chassis The maximum system capacity: 819Tbps/64 Chassis (400G)

Port capacity

15Tbps/ single Chassis (480G)

Interface Types

GE銆?0GE銆?55M POS銆?22M POS銆?.5G POS銆?0G POS銆?0G POS銆?0GE銆?00GE

Routing protocol

IPv4 static route, OSPF, IS-IS, BGP, PIM, MSDP, MBGP

IPv6

IPv4 & IPv6 dual stack; IPv6 line speed forwarding based on hardware IPv6 static route, BGP4+, RIPng, OSPFv3, IS-ISv6 IPv6 peer discovery, PMTU discovery, TCP6, ping IPv6, Tracert IPv6, socket IPv6, TFTP IPv6 client, IPv6 policy route , IPv6 NetStream, etc Manually configured tunnel, automatic tunnel, 6 to 4 tunnel

High Availability

1:1 standby for MPU, 3+1 backup switching fabric, 8+8 backup for power supply and 2+2 back for fan hot swappable based on state锛孨on-stop Forwarding (NSF) and Non-stop Routing (NSR) BFD for VRRP/BGP/OSPF/ISIS/TE LSP/LDP/ LSP/TE and PIM IGP/BGP/Multicast Fast Convergence IP/LDP/BGP/TE Fast Re-Route (FRR), BGP/ISIS Auto FRR, ETH Trunk, IP Trunk In-Service Software Upgrade (ISSU), Automatic fault diagnosis function, Hot Patching Configuration Management Bi-Direction Compatible

Weight

280 kg

Get more information

Discover unbeatable prices and fast shipping for the CR5B0BKPCA50, Huawei NE5000E Router, Cluster AC Chassis/High reliability/Carrier-grade . Access the detailed CR5B0BKPCA50, Huawei NE5000E Router, Cluster AC Chassis/High reliability/Carrier-grade datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for the NE5000E CCC-A Cluster AC Chassis?

Accessories include power supply units, interface cards, rack mounting kits, and additional cooling modules for the NE5000E CCC-A Cluster AC Chassis.

How does the NE5000E CCC-A Cluster AC Chassis compare to other similar products?

The NE5000E CCC-A Cluster AC Chassis offers superior scalability and performance compared to many competitors, making it a preferred choice for high-demand environments.

Is the NE5000E CCC-A Cluster AC Chassis robust enough for my network needs?

Yes, the NE5000E CCC-A Cluster AC Chassis is designed for robust performance, supporting high bandwidth and providing reliable network connectivity for critical applications.

Is router-switch.com a reliable distributor?

Absolutely. As a multi-brand authorized distributor, router-switch.com is directly certified by leading technology manufacturers. We guarantee 100% genuine products, competitive pricing, and full manufacturer warranties and support.

Learn More

How cost-effective is the NE5000E CCC-A Cluster AC Chassis?

The NE5000E CCC-A Cluster AC Chassis offers a high-performance, scalable solution at a competitive price, ensuring excellent ROI for system integrators and distributors.

What are the key features of the NE5000E CCC-A Cluster AC Chassis?

The NE5000E CCC-A Cluster AC Chassis features high reliability, scalability, and advanced routing capabilities, making it ideal for large-scale enterprise networks.

In what scenarios is the NE5000E CCC-A Cluster AC Chassis best used?

The NE5000E CCC-A Cluster AC Chassis is ideal for data centers, service providers, and enterprise backbones requiring high throughput and reliability.

How do I install the NE5000E CCC-A Cluster AC Chassis?

Installation involves mounting the chassis in a standard 19-inch rack and connecting the power supply, interface cards, and network cables. Detailed instructions are provided in the user manual.

Does the NE5000E CCC-A Cluster AC Chassis need regular upgrades?

Regular firmware and software updates are recommended to ensure optimal performance and security of the NE5000E CCC-A Cluster AC Chassis.

Are there alternative products to the NE5000E CCC-A Cluster AC Chassis?

Alternative products include other high-performance chassis from Huawei's NE series, as well as similar offerings from Cisco and Juniper.

What are common troubleshooting steps for the NE5000E CCC-A Cluster AC Chassis?

Common troubleshooting steps include checking power connections, verifying interface card status, and consulting the system logs for error messages.
