    Huawei CE12816D-B01 Overview

    CE12816D-B01 is CE12816 DC Bundle1 (DC Assembly Chassis, 2*MPUA, 5*SFU16A, 8*PDC-2200WA).

    Quick Specs

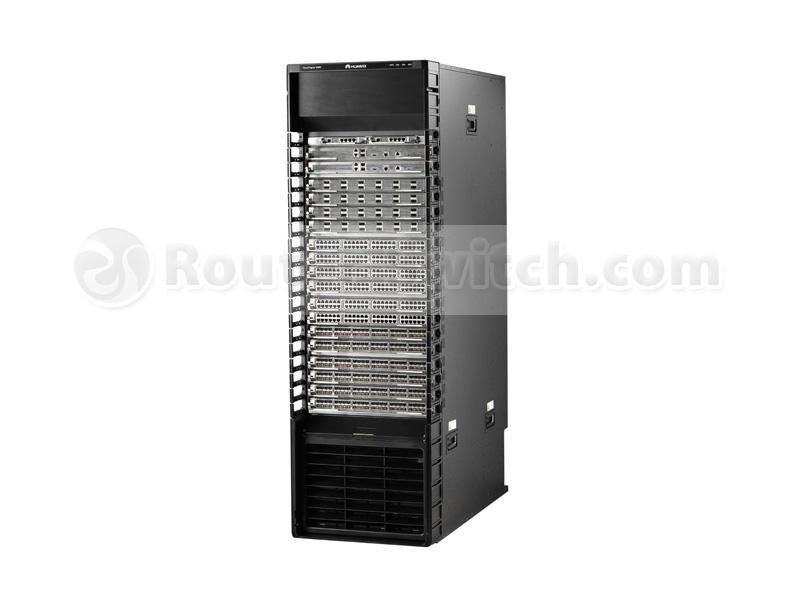

    Figure 1 shows the appearance of CE12816D-B01.

    CE12816A-B00 Appearance

    Table 1 shows the Quick Specs.

    Product Code

    CE12816D-B01

    Switching Capacity?
    (Tbit/s)

    178/
    1,032

    Forwarding Rate?
    (Mpps)

    69,120

    Service Slots

    16

    Switching Fabric?
    Module Slots

    6

    LPU slots

    16 (slot IDs: 01 to 16)

    MPU slots

    2 (slot IDs: 17 to 18)

    CMU slots

    2 (slot IDs: 19 to 20)

    SFU slots

    6 (slot IDs: 21 to 26)

    Power slots

    20 (slot IDs: PM1 to PM20)

    Fan slots

    23 (slot IDs: FAN1 to FAN23)

    UOM

    PCS

    Pack Weight(kg)

    355.2

    Pack Volume(m^3)

    2.388

    Pack Dimension(D*W*H mm)

    1000*1200*1990

    Net Dimension(D*W*H mm)

    1150*750*1850

    Typic Power(W)

    699

    Product Details

    Figure 2 shows the front panel of CE12816D-B01.

    the front panel of CE12816A-B00

    Note:

    ①

    CE12800 series switches?chassis header, showing the following:

    Product series name:

    ·For the CE12816 chassis, the series name is CloudEngine 12800.
    ·Huawei Logo
    ·PWR, FAN, SFU, and MPU indicators

    ②

    Two?CMUs

    ③

    Cable management frame

    ④

    Front ESD jack

    ⑤

    Power modules

    ⑥

    Indicators

    ⑦

    Two MPUs

    ⑧

    LPU

    ⑨

    Air intake area for SFUs in the CE12816 chassis

    ⑩?

    Two power switches

    * CE12816D-B01 is CE12816 DC Bundle1 (DC Assembly Chassis, 2*MPUA, 5*SFU16A, 8*PDC-2200WA), the other modules or cards must be purchased separately.

    Figure 3 shows the back panel of CE12816D-B01.

    the back panel of CE12816A-B00

    Note:

    ①

    Serial number label

    ②

    Rear ESD jack

    ③

    ?Handle

    ④

    Power distribution unit

    ⑤

    MAC address label

    ⑥

    ?Fan modules

    ⑦

    ?SFU

    ⑧

    Two ground points for a dual-hole ground lug, with a yellow grounding label attached

    * CE12816D-B01 is CE12816 DC Bundle1 (DC Assembly Chassis, 2*MPUA, 5*SFU16A, 8*PDC-2200WA), the other modules or cards must be purchased separately.

    The Modules, Cards

    Table 2 shows the recommended elements for the CE12816D-B01.

    Model

    Description

    AC&high-voltage DC power module

    PHD-3000WA

    3000W HVDC Power Module

    DC power module

    PDC-2200WA

    2200W DC Power Supply

    AC power module

    PAC-2700WA

    2700W AC Power Supply

    FE-SFP optical transceiver

    eSFP-FE-LX-SM1310

    Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC)

    eSFP-FE-LX-SM1310

    Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC)

    S-SFP-FE-LH40-SM1310

    Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC)

    GE-SFP optical transceiver

    eSFP-GE-SX-MM850

    Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC)

    SFP-GE-LX-SM1310

    Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC)

    S-SFP-GE-LH40-SM1310

    Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC)

    S-SFP-GE-LH40-SM1550

    Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC)

    10G-SFP+ optical transceiver

    SFP-10G-USR

    10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC)

    OMXD30000

    Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC)

    40GE CFP optical transceiver

    CFP-40G-LR4

    High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,10km,stright LC)

    CFP-40G-ER4

    High Speed Transceiver,CFP,40G,Single-mode Module(1310nm band,41.25G,40km,stright LC)

    40GE QSFP+ optical transceiver

    QSFP-40G-eSR4

    40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)

    QSFP-40G-ER4

    40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC)

    100GE CFP optical transceiver

    CFP-100G-SR10

    High Speed Transceiver,CFP,100G,Multimode Module(850nm,10*10G,0.1km,MPO)

    CFP-100G-LR4

    CFP, 100G, Single-mode Module(1310nm band,4*25G,10km,stright LC)

    CFP-100G-ER4

    High Speed Transceiver,CFP,100G,Single-mode Module(1310nm band,4*25G,40km,stright LC)

    GE copper transceiver

    SFP-1000BaseT

    Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

    100GE interface card

    CE-L12CF-EG

    12-Port-100GE Interface Card(EG,CFP2)

    CE-L08CC-EC

    8-Port-100G Interface Card(EC,CXP)

    10GE interface card

    CE-L48XT-EC

    Huawei 48-port 100M/1000M/10G Base-T Interface Card(EC,RJ45) CE-L48XT-EC

    CE-L48XS-EC

    48-Port-10GE Interface Card(EC,SFP+)

    40GE interface card

    CE-L24LQ-EC1

    24-Port-40G Interface Card(EC1,QSFP+)

    CE-L12LQ-EF

    12-Port-40G Interface Card(EF,QSFP+)

    Firewall module

    CE-FWA

    Huawei CE12800 NGFW Module A CE-FWA, with HW General Security Platform Software

    GE interface card

    CE-L48GT-ED

    48-Port 10/100/1000BASE-T Interface Card(ED,RJ45)

    CE-L48GS-ED

    48-Port 100/1000BASE-X Interface Card(ED,SFP)

    Fan module

    FAN-16A

    CE12800 Fan Box

    Compare to Similar Items

    Table 3 shows the comparison of CE12816D-B00?and CE12812A-B01.

    Product Code

    CE12816D-B01

    CE12812A-B00

    Switching Capacity?
    (Tbit/s)

    178/
    1,032

    134/
    774

    Forwarding Rate?
    (Mpps)

    69,120

    51,840

    Service Slots

    16

    12

    Switching Fabric?
    Module Slots

    6

    6

    LPU slots

    16 (slot IDs: 01 to 16)

    12 (slot IDs: 01 to 12)

    MPU slots

    2 (slot IDs: 17 to 18)

    2 (slot IDs: 13 to 14)

    CMU slots

    2 (slot IDs: 19 to 20)

    2 (slot IDs: 15 to 16)

    SFU slots

    6 (slot IDs: 21 to 26)

    6 (slot IDs: 17 to 22)

    Power slots

    20 (slot IDs: PM1 to PM20)

    12 (slot IDs: PM1 to PM12)

    Fan slots

    23 (slot IDs: FAN1 to FAN23)

    17 (slot IDs: FAN1 to FAN17)

    Get more information

    Do you have any?question about?the CE12816D-B01

    Contact us now via Live Chat or [email protected].

    Quality Certifications

    • ISO 14001
    • ISO 9001
    • RoHS
    • REACH
    • CE
    • FCC
    Specification

    Huawei CE12816D-B01 Specification

    CE12816A-B01 Specifications

    Switching Capacity
    (Tbit/s)

    178/
    1,032

    Forwarding Rate
    (Mpps)

    69,120

    Service Slots

    16

    Switching Fabric
    Module Slots

    6

    Fabric Architecture

    Clos architecture, cell switching, VoQ, and distributed large buffer

    Airflow Design

    Strict front-to-back

    Device Virtualization

    Virtual System (VS)

    Cluster Switch System (CSS)2

    Super Virtual Fabric (SVF)3

    Network Virtualization

    M-LAG

    TRILL

    VxLAN routing and bridging

    EVPN

    QinQ in VXLAN

    VM Awareness

    Agile Controller

    Network Convergence

    FCoE

    DCBX, PFC, and ETS

    Data Center Interconnect

    BGP-EVPN

    Ethernet Virtual Network (EVN) for inter-DC Layer 2 network interconnections

    Programmability

    OpenFlow

    ENP programming

    OPS programming

    Puppet, Ansible, and OVSDB plug-ins released on open source websites

    Linux container for open source and customization programming

    Traffic Analysis

    NetStream

    Hardware-based sFlow

    VLAN

    Adding access, trunk, and hybrid interfaces to VLANs

    Default VLAN

    QinQ

    MUX VLAN

    GVRP

    MAC Address

    Dynamic learning and aging of MAC addresses

    Static, dynamic, and blackhole MAC address entries

    Packet filtering based on source MAC addresses

    MAC address limiting based on ports and VLANs

    IP Routing

    IPv4 routing protocols, such as RIP, OSPF, IS-IS, and BGP

    IPv6 routing protocols, such as RIPng, OSPFv3, ISISv6, and BGP4+

    IP packet fragmentation and reassembling

    IPv6

    IPv6 over VXLAN

    IPv6 over IPv4

    IPv6 Neighbor Discovery (ND)

    Path MTU Discovery (PMTU)

    TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6

    Multicast

    IGMP, PIM-SM, PIM-DM, MSDP, and MBGP

    IGMP snooping

    IGMP proxy

    Fast leave of multicast member interfaces

    Multicast traffic suppression

    Multicast VLAN

    MPLS

    Basic MPLS functions

    MPLS VPN/VPLS/VPLS over GRE

    Reliability

    Link Aggregation Control Protocol (LACP)

    STP, RSTP, VBST, and MSTP

    BPDU protection, root protection, and loop protection

    Smart Link and multi-instance

    Device Link Detection Protocol (DLDP)

    Ethernet Ring Protection Switching (ERPS, G.8032)

    Hardware-based Bi-directional Forwarding Detection (BFD)

    VRRP, VRRP load balancing, and BFD for VRRP

    BFD for BGP/IS-IS/OSPF/Static route

    In-Service Software Upgrade (ISSU)

    Segment Routing (SR)

    QoS

    Traffic classification based on Layer 2, Layer 3, Layer 4, and priority information

    Actions include ACL, CAR, and re-marking

    Queue scheduling modes such as PQ, WFQ, and PQ + WRR

    Congestion avoidance mechanisms, including WRED and tail drop

    Traffic shaping

    O&M

    IEEE 1588v2

    Packet Conservation Algorithm for Internet (iPCA)

    Dynamic Load Balancing (DLB)

    Dynamic Packet Prioritization (DPP)

    Network-wide path detection

    Microsecond-level buffer detection

    Configuration
    and Maintenance

    Console, Telnet, and SSH terminals

    Network management protocols, such as SNMPv1/v2c/v3

    File upload and download through FTP and TFTP

    BootROM upgrade and remote upgrade

    Hot patches

    User operation logs

    Zero-Touch Provisioning (ZTP)

    Security
    and Management

    802.1x authentication

    RADIUS and HWTACACS authentication for login users

    Command line authority control based on user levels, preventing unauthorized users from using commands

    Defense against MAC address attacks, broadcast storms, and heavy-traffic attacks

    Ping and traceroute

    Remote Network Monitoring (RMON)

    Dimensions
    (W x D x H, mm)

    442 x
    905 x
    1,597.4
    (36 U)

    Chassis Weight (empty)

    < 290 kg
    (639 lb)

    Operating Voltage

    AC: 90V to 290V
    DC: -38.4V to -72V
    HVDC: 240V

    Max. Power Supply

    30,000W

    Quality Certifications

    Need Help? Technical Experts Available Now.

    • +1-626-655-0998 (USA)
      UTC 15:00-00:00
    • +852-2592-5389 (HK)
      UTC 00:00-09:00
    • +852-2592-5411 (HK)
      UTC 06:00-15:00
    Get a Quote
    Live Chat
    Need Help? Technical Experts Available Now.
    Q&A

    Questions & Answers

    What accessories are available for the CE12816D-B01?

    Available accessories include additional power modules, fan units, and cable management aids to enhance and customize the installation.

    How does the CE12816D-B01 compare to similar products?

    The CE12816D-B01 offers superior scalability and performance compared to similar models, making it ideal for future-proofing large data centers.

    What is included in the CE12816D-B01 bundle?

    The CE12816D-B01 bundle includes a DC Assembly Chassis, 2 MPUA modules, 5 SFU16A modules, and 8 PDC-2200WA power modules, providing a comprehensive solution.

    Is router-switch.com a reliable distributor?

    Absolutely. As a multi-brand authorized distributor, router-switch.com is directly certified by leading technology manufacturers. We guarantee 100% genuine products, competitive pricing, and full manufacturer warranties and support.

    Learn More
    Warranty

    • Your Trusted Global ICT Partner

      Delivering reliable, cross-border fulfillment with 20+ years of expertise, backed by rigorous QC, fast logistics, and worldwide warehousing.
      Global warehousing
      Global warehousing
      10+ hubs positioned for fast international dispatch and stable availability.
      Seamless cross-border
      Seamless cross-border
      QC-verified packing and predictable delivery via FedEx, DHL, UPS.
      Your Trusted Global ICT Partner
    • ICT Tools Hub for Confident Monitoring

      ICT Tools Hub for Confident Monitoring

      Stay informed on product lifecycle status and real-time inventory availability—supporting confident planning, sourcing, and operational execution.
      EOL/EOSL Checker
      EOL/EOSL Checker
      Verify product lifecycle status to plan purchases and avoid EOL/EOSL risks.
      Request VIP Inventory Portal Access
      Request VIP Inventory Portal Access
      Connect via live chat for VIP access to real-time inventory on priority SKUs.

    • Certified Experts Across Leading Vendors

      Professional guidance for network, security & data center builds, delivered by certified experts with extensive, hands-on deployment experience.
      Multi-vendor engineering
      Multi-vendor engineering
      Certified expertise across Cisco, HPE, Aruba, Dell, Juniper, Huawei and Fortinet.
      Deployment-ready guidance
      Deployment-ready guidance
      Faster, safer rollouts with project-focused engineering guidance.
      Certified Experts Across Leading Vendors

    The Choice of 21,500 +Global Customers

    • Ford
    • Disney
    • Nestle
    • Toyota
    • Walmart
    • Philips
    • Ups
    • Huatt
    • Hsbc
    • Novartis
    • Siemens Healthineers
    • Bt
    • Reference Johnson
    • T
    • Att
    • Lgu
    • Sk Telecom
    • Veerizon
    Industry-Leading Warranty Coverage You Can Trust
    • 100% Low Price Guarantee
      100% Low Price Guarantee
      Router-switch.com offers genuine, high-quality ICT products at competitive wholesale prices—ensuring exceptional value without compromising quality.
    • 100% Quality Assurance
      100% Quality Assurance
      All items are brand new, original, and factory-sealed.
      Upon request, each unit can be fully tested and verified by a Huawei-certified engineer to ensure perfect working condition before shipment.
    • 100% Money-Back Guarantee
      100% Money-Back Guarantee
      If you are not satisfied with your purchase, you may request an exchange or full refund. Our customer service team will guide you through the return process quickly and smoothly.
      Visit Return Policy page for more information.
    • Free Huawei Technical Support
      Our Huawei-certified experts provide free professional support via phone, email, online chat, or remote login—helping you deploy and troubleshoot with confidence.
    • Flexible & Secure Payment and Shipping
      Flexible & Secure Payment and Shipping
      We support multiple secure payment and logistics options, backed by industry-leading verification:
      • Pay by wire transfer.
      • Pay with your paypal.
      • Pay with your Visa credit card.
      • Pay with your Mastercard credit card.
      • Pay with your Discover Card.
      • Pay by American Express.
      More
      Trusted & Secure Payments ×
      100% Trusted, Secure Purchase at Router-switch.com
      • 120+ Local Currencies120+ Local Currencies
      • Multiple Payment OptionsMultiple Payment Options
      • 100% Secure Payments100% Secure Payments

      Choose the payment method that works for you—local options, multiple currencies, or bank transfers. Every payment is protected by SSL encryption, PCI DSS-level security, McAfee Secure, and VeriSign Secured for complete peace of mind.

      • tt
      • paypal
      • visa
      • mastercard
      • echeck
      • webmoney
      • discover
      • american-express
      • jcb
      • bank-transfer
      • western-union
      • qiwi
      • apple Pay
      • google pay
      Guaranteed Safe Checkout
      • ssl-encryption
      • pci-dss
      • mcafee-secure
      • verisign-secured
      View Payment Options
      • mcafee-secure
      • verisign-secured
      • pci-dss
      • ssl-encryption
      Visit How to Pay page for more information
    Warranty Coverage & RMA Instructions
    • Extended, Worry-Free Warranty Coverage
      Extended, Worry-Free Warranty Coverage
      • Factory New Sealed Enterprise Hardware: 3 Years
      • Factory New Sealed Consumer Devices: 1 Year
      Visit Warranty Policy page for more information
    • How to Get Support
      How to Get Support
      If you encounter issues with products, please reach out to your dedicated sales representative. They will assist with diagnostics, remote troubleshooting, and RMA processing if necessary.
      Visit Contact Us page for more support options.

    Best-Fit Solutions for Your Network

    Deploy DeepSeek-V3/R1: Powerful AI, Low Cost

    Deploy DeepSeek-V3/R1: Powerful AI, Low Cost

    Expert-configured AI solution: Same power, 90% savings—multi-scenario flexibility with Dell/Huawei/Lenovo options.

    AI
    Beyond Bandwidth: The 100G+ Data Center Architecture

    Beyond Bandwidth: The 100G+ Data Center Architecture

    The must-have 100G foundation - AI-ready growth, zero-latency performance

    Data Center
    400G/800G Ethernet Switch: Maxmize Margins via AI-Ready Solutions

    400G/800G Ethernet Switch: Maxmize Margins via AI-Ready Solutions

    High-Profit data center switches from Cisco, Huawei, Mellanox & Juniper.

    Ethernet Switch
    Download
    Model Datasheet

    Product Tags

    Log in
    Register
