Brocade BR-G610-8-32G-0 Datasheet & Price Guide

Skip to the beginning of the images gallery

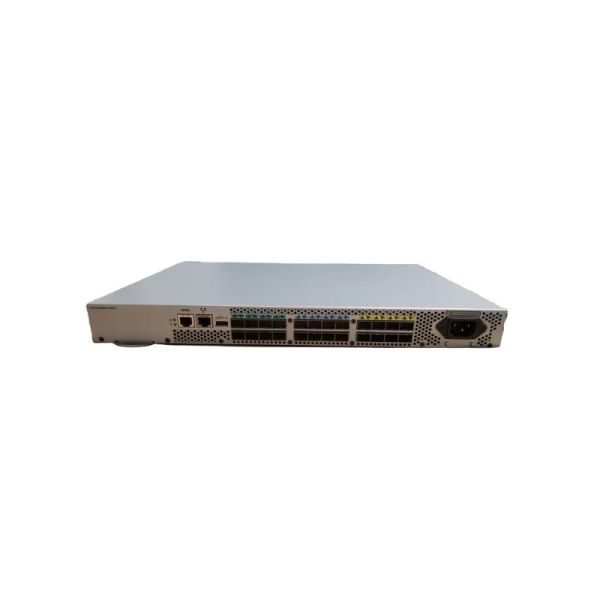

Name:	BR-G610-8-32G-0
Model:	Brocade BR-G610-8-32G-0-Switch
Brand:	Brocade
Detail:	Brocade G610 series 24 port switch, 8 port activation, including 8 Brocade 32Gb/s shortwave multi-mode modules, port side exhaust
	10 Questions
Price:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED US$6,020.00
Coupon	Up to $80 Coupons Get Now $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Availability:	In Stock at Global Warehouses. United States United Kingdom Germany United Arab Emirates Singapore India Hong Kong
Condition:	New Factory Sealed

Shipping:

Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.

Ships to:

Payment:

Pay by wire transfer.
Pay with your paypal.
Pay with your webmoney.
Pay with your onafriq.
Pay with your Visa credit card.
Pay with your Mastercard credit card.
Pay with your Discover Card.
Pay by Western Union.

Support:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

BR-G610-8-32G-0

Brocade G610 series 24 port switch, 8 port activation, including 8 Brocade 32Gb/s shortwave multi-mode modules, port side exhaust

Price: US$6,020.00

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

BR-G610-8-32G-0 Overview

The Brocade G610 series, model BR-G610-8-32G-0, is a high-performance 24-port switch designed for optimal data center connectivity. This model comes pre-activated with 8 ports and includes 8 Brocade 32Gb/s shortwave multi-mode modules. Ideal for engineers and procurement teams, it ensures reliable, high-speed connections for scalable networking in enterprise environments.

BR-G610-8-32G-0 Product Highlights

Provides exceptional price/performance value, combining flexibility, simplicity, and enterprise-class functionality in a 48-port
Enables fast, easy, and cost-effective scaling from 24 to 48 ports
Leverages Brocade Fabric Vision technology’s powerful monitoring, management, and diagnostic tools to simplify administration, increase uptime, and reduce costs
Helps pinpoint problems faster and simplify SAN configuration and management with Brocade Network Advisor
Simplifies deployment with the Brocade EZSwitchSetup wizard and supports high-performance fabrics by using Brocade ClearLink D_Ports to identify optic and cable issues
Maximizes availability with redundant, hot-pluggable components and nondisruptive software upgrades

Product Features Comparison

Features	BR-G610-8-32G-0	BR-G720	BR-6505	BR-6520	BR-G620	BR-300
Port Capacity	24	40	24	96	48	8
Active Ports	8	24	8	48	20	4
Speed	32Gb/s	32Gb/s	16Gb/s	16Gb/s	32Gb/s	8Gb/s
Modules Included	8	12	4	16	10	2
Cooling	Port Side Exhaust	Rear Exhaust	Front to Back	Rear Exhaust	Port Side Exhaust	None

BR-G610-8-32G-0 Product Application Scenarios

Data center networking
Enterprise storage network
Scalable LAN implementation

Optional Add-ons

Model	Description
BR-POE-48V	Power over Ethernet Module
BR-SW-4X10G	4-Port 10GbE Module
BR-SFP-32G-SW	32Gb/s Shortwave SFP+

Get More Information

Discover unbeatable prices and fast shipping for the Brocade BR-G610-8-32G-0. Access the detailed BR-G610-8-32G-0 datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at sales@router-switch.com.

Quality Certifications

Specification

BR-G610-8-32G-0 Specification

BR-G610-8-32G-0 Specification
Fibre Channel ports	Switch mode (default): 8-, 16-, and 24-port configurations (8-port increment through Ports on Demand [PoD] license); E_Ports, F_Ports, M_Ports, and D_Ports Brocade Access Gateway default port mapping: 16 F_Ports, 8 N_Ports
Scalability	Full-fabric architecture with a maximum of 239 switches
Certified maximum	6,000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; larger fabrics certified as required
Performance	Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds.
ISL trunking	Frame-based trunking with up to eight 32G SFP+ ports per ISL trunk; up to 256Gb/s per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS fabrics
Aggregate bandwidth	768 Gbps end-to-end full duplex
Maximum fabric latency	Latency for locally switched ports is 700 ns; Forward Error Correction (FEC) adds 400 ns between E_Ports (enabled by default).
Maximum frame size	2,112-byte payload
Frame buffers	2000 dynamically allocated
Classes of service	Class 2, Class 3, Class F (inter-switch frames)
Port types	F_Port, E_Port, M_Port, D_Port (ClearLink Diagnostic Port) on 24 SFP+ ports Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
Data traffic types	Fabric switches supporting unicast
Size	Width: 428.80 mm (16.88 in.) Height: 42.90 mm (1.69 in.) Depth: 306.60 mm (12.07 in.)
System weight	4.20 kg (9.26 lb) with one integrated power supply and fans, without transceivers 4.80 kg (10.58 lb) with one integrated power supply and fans, fully populated with transceivers
Operating environment	Temperature: 0°C to 40°C/32°F to 104°F Humidity: 10% to 85% (non-condensing)
Non-operating environment	Temperature: –25°C to 70°C/–13°F to 158°F Humidity: 10% to 90% (non-condensing)
Operating altitude	Up to 3,000 m (9,843 ft)
Storage altitude	Up to 12 km (39,370 ft)
Power supply	Base switch includes a single, hot-swappable power supply with integrated system cooling fans. Optional dual redundant hot-swappable power supply.
AC input	90V to 264V, maximum input current: 2.2A
Input line frequency	47 Hz to 63 Hz
Power consumption	76.52W with all 24 ports populated with 32G SWL optics 55.83W for idle configuration (all optics loaded but not initialized)

Quality Certifications

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What troubleshooting steps can be taken for BR-G610-8-32G-0?

In case of any issues with BR-G610-8-32G-0, perform basic troubleshooting such as power cycling the switch, checking cables and connections, and verifying configurations. Contact customer support for further assistance if needed.

What accessories are available for BR-G610-8-32G-0?

Various accessories such as additional modules, power supplies, rack mounting kits, and cables are available for BR-G610-8-32G-0 to enhance its functionality and customization options.

How does BR-G610-8-32G-0 compare to other similar switches?

Compared to other switches in its class, BR-G610-8-32G-0 stands out with its 32Gb/s shortwave multi-mode modules, port side exhaust design, and scalable port activation options, providing superior performance and flexibility in demanding networking environments.

Can BR-G610-8-32G-0 support future network requirements?

BR-G610-8-32G-0 is equipped to handle evolving network demands with its high-speed connectivity, modular design for upgrades, and compatibility with advanced networking technologies, ensuring long-term compatibility and scalability for future expansion.

Learn More

How cost-effective is BR-G610-8-32G-0 compared to similar switches?

BR-G610-8-32G-0 offers exceptional value with its 24 port switch, 8 port activation, and 8 Brocade 32Gb/s shortwave multi-mode modules, providing high performance and scalability at a competitive price point. It stands out in terms of cost-efficiency among its counterparts.

What are the key features of BR-G610-8-32G-0?

BR-G610-8-32G-0 is a Brocade G610 series switch with 24 ports, 8 port activation, and includes 8 Brocade 32Gb/s shortwave multi-mode modules. It is designed with port side exhaust for efficient cooling and optimal performance.

What are the application scenarios suitable for BR-G610-8-32G-0?

BR-G610-8-32G-0 is ideal for data centers, enterprises, and cloud environments where high-speed and reliable connectivity is crucial. It is well-suited for storage area networks (SANs) and mission-critical applications that require low latency and high bandwidth.

How to install and use BR-G610-8-32G-0?

Installing BR-G610-8-32G-0 is easy, simply plug in the switch and connect your devices. The user-friendly interface allows for straightforward configuration and management. Utilize the user manual for detailed installation and usage instructions.

Does BR-G610-8-32G-0 require any upgrades?

BR-G610-8-32G-0 is designed to meet current high-performance networking needs but can be upgraded with additional modules or firmware updates in the future to adapt to evolving requirements.

Are there alternative products to BR-G610-8-32G-0?

While BR-G610-8-32G-0 excels in its performance and features, alternative options from the Brocade G610 series or other manufacturers may be considered based on specific requirements and budget constraints.
