BC1M04SRSC, Huawei RH2285V2 Server, 2xE5-2407 CPU/2x8GB Mem/2x300GB SAS

Brand: Huawei
Model: BC1M04SRSC

$1,284.00

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Express Shipping to United States
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Track Your Order

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

BC1M04SRSC, Huawei RH2285V2 Server, 2xE5-2407 CPU/2x8GB Mem/2x300GB SAS

100% Genuine Ready to Ship

$1,284.00

Overview

Huawei BC1M04SRSC Overview

The Huawei BC1M04SRSC RH2285V2 is a 2U rack server built for enterprise and data center workloads, combining dual Intel Xeon E5-2400 processors with scalable DDR3 memory for reliable performance. Flexible internal storage options support high-capacity SAS/SATA HDDs or SSDs, while comprehensive RAID levels with cache and power-off protection enhance data security. Dual onboard GE ports, multiple PCIe 3.0 expansion slots, and broad OS compatibility make this Huawei server a solid choice for regional integrators and end users.

Product Highlights

384GB

Max Memory

38TB

Max Storage

PCIe Slots

Product Components Breakdown

Front Panel of the Product:

①

USB port

②

UID button/indicator

③

Power button/indicator

④

VGA port

⑤

Built-in DVD-ROM (configured when eight hard disks are required)

⑥

Label (including ESN label)

⑦

Hard disk (numbered 0 to 7 from left to right)

Product Applications Scenarios

Data Center

Dual Intel Xeon CPUs, dense DDR3 memory, and flexible SAS/SATA storage let data centers consolidate mixed workloads while reducing footprint.

Cloud Services

High-capacity drive bays and robust RAID options support virtualized cloud nodes, improving resource utilization and service uptime.

Enterprise Network

As an application or database server, it delivers stable performance for ERP, mail, and collaboration platforms across branches.

Product Features Comparison

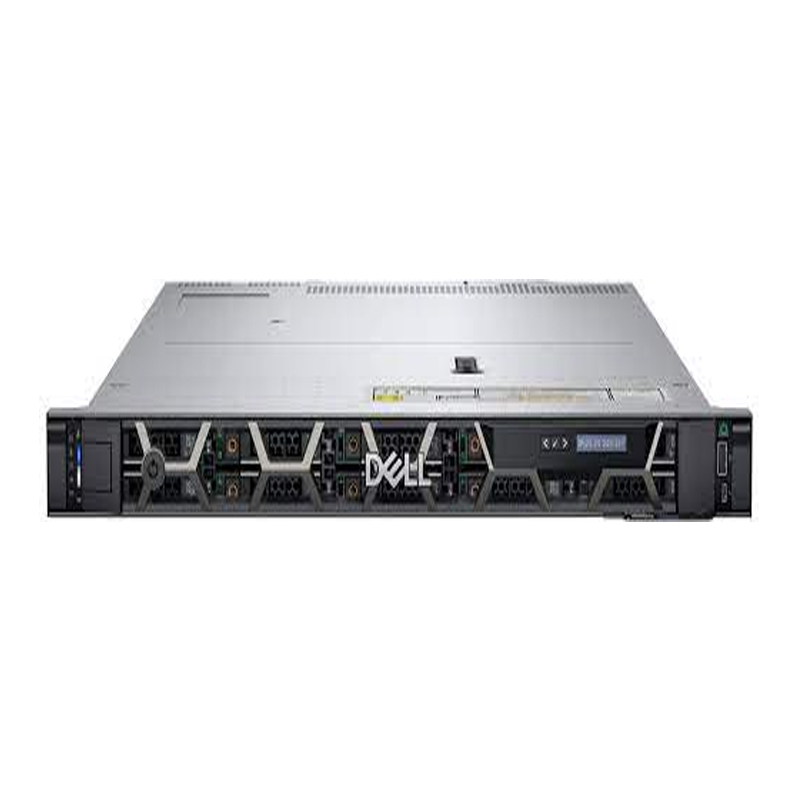

Model	BC1M04SRSC, Huawei RH2285V2 Server, 2×E5-2407 CPU/2×8GB Mem/2×300GB SAS	T560, Dell T560 Rack Server, 1×4509Y/1×32G/2×960G SAS SSD	U18Z01DCEQ, Huawei eSpace U1900 Series Unified Gateway, 1 SCU/1 MTU/DC Integrated Host	DELL 1U R650xs 4310/32G/480G
Brand	Huawei	Dell	Huawei	Dell
Processor Model	Intel® Xeon® E5-2400 series	1×4509Y	n/a	Up to two 3rd Generation Intel Xeon Scalable processors, up to 32 cores
Memory Capacity	12 DDR3 RDIMMs/LRDIMMs, up to 384GB	1×32GB	n/a	16 DDR4 DIMM slots, supports RDIMM up to 1 TB
Drive Bay Configuration	8/12/26 x SAS/SATA HDDs or SSDs, up to 38TB	2×960GB SAS SSD	n/a	Front: up to 10 x 2.5-inch; Rear: up to 2 x 2.5-inch
Expansion Slots	Up to 5 PCIe 3.0 slots	n/a	n/a	Up to 3 x PCIe Gen4 slots
Power Supply	2 hot-swappable 1+1 redundant PSUs: AC 460W or 800W; –48 V DC 800W	n/a	AC 100–240 V; DC –38.4 to –60 V; 2 modules 1+1 backup	600W/800W/1400W/1100W hot swap redundant

Optional Add-ons

Model Number	Description
BC1M04SRSC-PSU800	Huawei 800W AC/DC redundant power supply module for RH2285V2 server
RH2285V2-8SFF-BK	Huawei 8-bay 2.5" SAS/SATA HDD/SSD cage kit for RH2285V2 chassis
RH2285V2-RAID1G	Huawei 1GB cache RAID controller with BBU for RH2285V2 server

Quality Certifications

Specification

Huawei BC1M04SRSC Specification

Model

BC1M04SRSC

Brand

Huawei

Form factor

2U rack server

Number of processors

1 or 2

Processor

Intel® Xeon® E5-2400 series Core options: 4, 6, or 8 Maximum dominant frequency: 2.4GHz(6 Cores) or 2.3GHz (8 Cores) L3 cache: 20MB

Memory

12 DDR3 RDIMMs/LRDIMMs, up to 384GB

Internal storage

Options: • 8 x 2.5" SAS/SATA HDDs or SSDs, up to 8TB • 12 x 3.5" SAS/SATA HDDs and 2 x 2.5" SAS/SATA HDDs or SSDs, up to 38TB • 26 x 2.5" SAS/SATA HDDs or SSDs, up to 26TB

RAID support

RAID 0, 1, 10, 5, 50, 6, and 60 RAID cache: 512MB or 1GB Power-off protection: • BBU (3 x 24 hours) • Supercapacitor

LOM network port

2 onboard GE ports

Expansion slot

Up to 5 PCIe 3.0 slots 1 processor: • 1 PCIe 3.0 x8 •1 PCIe 3.0 x4 • 1 PCIe slot for a RAID controller card 2 processors: • 1 PCIe 3.0 x8 • 1 PCIe 3.0 x4 • 1 PCIe slot for a RAID controller card • (Optional) 1 PCIe 3.0 x16 • (Optional) 1 PCIe 3.0 x8

USB port

6 (front: 2 , rear: 2, built-in: 2)

Fan module

4 hot-swappable counter-rotating fan modules in N+1 redundancy mode

PSU

2 hot-swappable 1+1 redundant PSUs: • AC: 460W or 800W • –48 V DC: 800W

Management

UEFI Huawei iMana, support IPMI, SOL, KVM over IP, and virtual media One 10/100 Mbit/s RJ45 management network port

Operating systems supported

Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server CentOS Solaris Oracle Enterprise Linux / Oracle Server VM Citrix XenServer VMware ESX / VMware ESX i

Power supply

110 V/220 V AC or –48 V DC

Operating temperature

5ºC–40ºC (41ºF–104ºF)

Dimensions

Height: 87.5mm (3.44in.) Width: 447mm (17.60in.) Depth: 740mm (29.13in.)

Weight

19.73 kg

Get more information

Discover unbeatable prices and fast shipping for the BC1M04SRSC, Huawei RH2285V2 Server, 2×E5-2407 CPU/2×8GB Mem/2×300GB SAS . Access the detailed BC1M04SRSC, Huawei RH2285V2 Server, 2×E5-2407 CPU/2×8GB Mem/2×300GB SAS datasheet and ensure you're getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].

Quality Certifications

Need Help? Technical Experts Available Now.

+1-626-655-0998 (USA)
UTC 15:00-00:00
+852-2592-5389 (HK)
UTC 00:00-09:00
+852-2592-5411 (HK)
UTC 06:00-15:00

Get a Quote

Live Chat

Need Help? Technical Experts Available Now.

Customer Reviews

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Q&A

Questions & Answers

What accessories are available for BC1M04SRSC?

Accessories include additional RAM modules, SAS drives, RAID controllers, and power supply units.

How does BC1M04SRSC compare with similar products?

The BC1M04SRSC offers a balanced mix of performance and efficiency compared to similar servers in the same category.

Can the BC1M04SRSC be used in a virtualized environment?

Yes, the BC1M04SRSC is well-suited for virtualized environments due to its robust CPU and memory configurations.

Is router-switch.com a reliable distributor?

Absolutely. As a multi-brand authorized distributor, router-switch.com is directly certified by leading technology manufacturers. We guarantee 100% genuine products, competitive pricing, and full manufacturer warranties and support.

Learn More

How cost-effective is the BC1M04SRSC?

The Huawei BC1M04SRSC is cost-effective for system integrators needing a balance of performance and scalability with its 2* E5-2407 CPUs and 8GB memory.

What are the key features of BC1M04SRSC?

Key features include 2*E5-2407 CPU, 2*8GB Mem, 2*300GB SAS storage, 6 GE ports, and dual 460W AC power supplies.

What is the ideal application scenario for BC1M04SRSC?

The BC1M04SRSC is ideal for medium-scale enterprise applications, data center consolidations, and virtualization projects.

How do I install the BC1M04SRSC?

Installation involves mounting the server in a rack, connecting power and network cables, and configuring BIOS and RAID settings.

Does the BC1M04SRSC require regular upgrades?

Regular firmware upgrades are recommended to ensure optimal performance and security of the BC1M04SRSC.

Are there alternatives to the BC1M04SRSC?

Alternatives include other servers in the Huawei RH2285V2 series, depending on specific performance and capacity needs.

How to troubleshoot common issues with BC1M04SRSC?

Common issues can be troubleshooted by checking the event logs, ensuring power supply connections, and updating firmware.
