Model: WS-C4510R-E Cisco 4500 Switch
Detail: Cat4500 E-Series 10-Slot Chassis, fan, no ps,Red Sup Capable
Replacement: WS-C4510R+E
List Price: US$12,495.00
Price: $4,749.00
You save: US$7,746.00 (62% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Newark, NJ, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 4,749.00 In stock Brand New Sealed
OR

WS-C4510R-E SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (WS-C4510R-E)

The 10-slot Cisco Catalyst 4510R-E chassis is ideal for Power over Ethernet (PoE) or non-PoE high-density enterprise wiring closets and branch offices that require the highest level of resiliency. The Cisco Catalyst 4510R-E supports redundant supervisors to minimize downtime. This chassis also support all Cisco Catalyst 4500 Series classic and E-Series line cards.

Quick Specs

Table 1 shows the Quick Specs.

Product Code

WS-C4510R-E

Supervisor engine slot

2

Line-card slots

8

Redundant power supplies

2

Backplane

24 Gbps full duplex per slot on five slots, plus 12 Gbps full duplex

per slot on three slots (276 Gbps) with Supervisor Engine 6-E

Dimensions (H x W x D)

61.84 x 43.97 x 31.70 cm

Rack Units (RU)

14 RU

Weight

24.77 Kg – 45.4 Kg

Airflow

Chassis fan tray: Right to left

Power supply fan: Front to back

Product Details

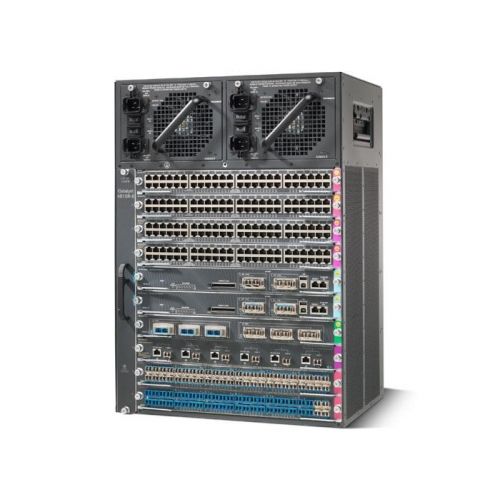

Figure 1 shows the front view of WS-C4510R-E with installed supervisor engines and cards. These supervisor engines and cards should be ordered separately.

WS-C4510R-E Front View

Note:

Power Supplies

Supervisor engines (primary in slot 5 and secondary in slot 6)

Switching modules (slots 1–4 and 7–10)

Fan tray assembly

Table 2 shows the Cisco Catalyst WS-C4510R-E Switch Features

Feature

Description

Chassis

Three horizontal slots. Slots are numbered from 1 (top) to 10 (bottom).

Supervisor engines

Supports the following supervisor engines:

- Supervisor Engine 8-E

- Supervisor Engine 7L-E

- Supervisor Engine 7-E

Modules

Supports up to 8 Catalyst 4500 series modules.

Backplane

24 Gbps full duplex per slot on five slots, plus 12 Gbps full duplex

per slot on three slots (276 Gbps) with Supervisor Engine 6-E

Fan tray

The chassis supports one hot-swappable fan tray.

Power supply

Supports one or two power supplies.

All Catalyst 4500 series AC-input power supplies require single-phase source AC.

The Accessories

Table 3 shows the recommended elements for the WS-C4510R-E.

Category

Model

Description

AP License

L-LIC-CTIOS-1A

1 AP Adder License for the IOS based Wireless Controller (e-delivery)

Primary Supervisor

WS-X45-SUP8-E

Catalyst 4500 E-Series Supervisor 8-E

WS-X45-SUP7-E

Catalyst 4500 E-Series Supervisor, 848Gbps

WS-X45-SUP7L-E

Catalyst 4500 E-Series Supervisor LE, 520Gbps

Redundant Supervisor

WS-X45-SUP7-E/2

Catalyst 4500 E-Series Supervisor Engine 7-E/2 - 848Gbps - redundant engine

10/100/1000/MGig Line Cards

WS-X4748-RJ45-E

Cisco 4500 Line Card WS-X4748-RJ45-E Catalyst 4500 E-Series 48-Port 10/100/1000 Non-Blocking

WS-X4748-UPOE+E

Cisco 4500 Line Card WS-X4748-UPOE+E Catalyst 4500E 48-Port UPOE 10/100/1000(RJ45)

WS-X4748-RJ45V+E

Cisco 4500 Line Card WS-X4748-RJ45V+E Catalyst 4500E 48-Port PoE 802.3at 10/100/1000(RJ45)

1 G Fiber Line Cards

WS-X4724-SFP-E

Catalyst 4500 E-Series 24-Port GE (SFP)

WS-X4748-SFP-E

Catalyst 4500 E-Series 48-Port GE (SFP)

WS-X4712-SFP-E

Catalyst 4500 E-Series 12-Port GE (SFP)

10 G Fiber Line Cards

WS-X4606-X2-E

Catalyst 4500 E-Series 6-Port 10GbE (X2)

WS-X4712-SFP+E

Catalyst 4500 E-Series 12-Port 10GbE (SFP+)

Power Supply

PWR-C45-1400AC

Catalyst 4500 1400W AC Power Supply (Data Only)

PWR-C45-1400DC

C4500 1400W DC Triple Input SP Power Supply-data only

Supervisor Software License

L-C4500E-IP-ES=

Cisco Catalyst 4500E IP Base to Enterprise Services IOS upgrade license

Compare to Similar Items

Table 4 shows the comparison of WS-C4507R-E and WS-C4510R-E.

Model

WS-C4507R-E

WS-C4510R-E

Supervisor engine slot

2

2

Line-card slots

5

8

Redundant power supplies

2

2

Supervisor engines

- Supervisor Engine 8-E

- Supervisor Engine 7L-E

- Supervisor Engine 7-E

- Supervisor Engine 8-E

- Supervisor Engine 7L-E

- Supervisor Engine 7-E

Backplane

24 Gbps full duplex per slot (240 Gbps).

24 Gbps full duplex per slot on five slots, plus 12 Gbps full duplex

per slot on three slots (276 Gbps) with Supervisor Engine 6-E

Get More Information

Do you have any question about the WS-C4510R-E?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (WS-C4510R-E)

WS-C4510R-E Specification

Total number of slots

10

Line-card slots

8

Supervisor engine slots

2

Dedicated supervisor engine slot numbers

5 and 6

Supervisor engine redundancy

Yes
Supervisor Engines V-10GE, 6-E, 7-E, and 8-E)

Supervisor engines supported

Supervisor Engines 8-E, 7E, and 6-E

Maximum PoE per slot

1500W slots 1 and 2; 750W slots 3, 4, and 7-10

Bandwidth scalability per line-card slot

Up to 48 Gbps on all slots5

Number of power supply bays

2

AC input power

Yes

DC input power

Yes

Integrated PoE

Yes

Minimum number of power supplies

1

Power supplies supported

  • 1400W AC
  • 2800W ACV
  • 4200W ACV
  • 6000W ACV
  • 9000W ACV
  • 1400W DC (triple input)
  • 1400W-DC-P

Number of fan-tray bays

1

Location of 19-inch rack-mount

Front

Location of 23-inch rack-mount

Front (option)

Q&A

Faq (WS-C4510R-E)

Are the E-Series line cards supported in non-E-Series chassis?

No. The classic Cisco Catalyst 4000 and 4500 chassis maximum per slot capacity is 6 gigabits per slot.

Is local switching supported on the E-Series line cards?

No. It is not supported on the Cisco 4500-E line cards.

Are there any visual differentiators between the E-Series line cards and the classic line cards?

Yes, of course. The E-Series line cards will have a subtle cross-hatch pattern and a yellow circle on the right end tab, visually identifying them as E-Series line cards. This will be useful in a mixed E-Series/classic line-card configuration.

Are the E-Series line cards supported in non-E-Series chassis?

No. The classic Cisco Catalyst 4000 and 4500 chassis maximum per slot capacity is 6 gigabits per slot.

Is local switching supported on the E-Series line cards?

No. It is not supported on the Cisco 4500-E line cards.

Are there any visual differentiators between the E-Series line cards and the classic line cards?

Yes, of course. The E-Series line cards will have a subtle cross-hatch pattern and a yellow circle on the right end tab, visually identifying them as E-Series line cards. This will be useful in a mixed E-Series/classic line-card configuration.
