WS-C4500X-24X-IPB is Catalyst 4500-X 24 Port 10GE IP Base, Front-to-Back Cooling, No P/S.

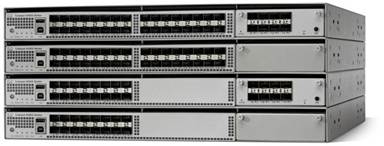

Figure 1 shows the appearance of WS-C4500X-24X-IPB.
Table 1 shows the Quick Specs.
16 x 10 Gigabit Ethernet Ports
1 x 8-Port Uplink Module included
1 x console - RJ-45, 1 x 10/100/1000 Gigabit Ethernet, 1 x SD port, 1 x USB (Type A), 1 x USB (Type B)
1 x AC Power Supply C4KX-PWR-750AC-R, Dual Capable
5 x C4KX-FAN-R Catalyst 4500-X Front-to-Back Cooling Fan
Internal power supply - hot-plug
1.75 x 17.25 x 21 in. (4.4 x 43.8 x 53.3 cm) (H x W x D)
Figure 2 shows the front panel of WS-C4500X-24X-IPB.
① LEDs Area ② USB ports (2 ports) Top port is a Type A connector; bottom port is a Type B connector ③ 16 × Ethernet ports
④ 8-port uplink module slot(Purchased alone)
Figure 3 shows the back panel of WS-C4500X-24X-IPB.
① SECURE DIGITAL port ② CONSOLE port ③ 10/100/1000 MGT port ④ Fan assemblies (5 assemblies) ⑤ Chassis ground pad
⑥ Power supply bay (AC-input power supply shown installed) ⑦ Power supply bay (AC-input power supply shown installed)
Table 2 shows the recommended elements for the WS-C4500X-24X-IPB.
AC Power Supplies
Catalyst 4500X 750W AC front to back cooling 2nd PWR supply
Catalyst 4500X 750W AC front to back cooling power supply
Catalyst 4500X 8 Port 10G Network Module
Console Cable 6ft with RJ45 and DB9F
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
1000BASE-BX SFP, 1310NM
10GBASE-SR SFP Module
10GBASE-CU SFP+ Cable 1 Meter
Get More Information
Do you have any question about the WS-C4500X-24X-IPB?
Contact us now via Live Chat or email@example.com.
Expansion Module (Optional)
8x10 GE SFP+/SFP - C4KX-NM-8SFP+
Type A (storage and boot) up-to 4 GB
Dual Power Supply
Field Replaceable Fans
Yes (5 fans)
No performance impact with single fan failure
Up to 800 Gbps
IPv4 Routing in Hardware
Up to 250 Mpps
IPv6 Routing in Hardware
Up to 125 Mpps
L2 Bridging in Hardware
Up to 250 Mpps
Media Access Control (MAC) Entries
Flexible Netflow Entries
Switched Port Analyzer (SPAN), Remote Switched Port Analyzer (RSPAN)
8 line rate bidirectional sessions (ingress and egress)
Total Switched Virtual Interfaces (SVIs)
Dynamic Host Configuration Protocol (DHCP) Snooping Entries
12K (DHCP snooping bindings)
Spanning Tree Protocol Instances
Jumbo Frame Support for Bridged and Routed Packets
Up to 9216 bytes
High Availability and Resiliency
High Availability Solution
Virtual Switching System (VSS)
Number of stackable switches in VSS
Up to 2
Up to 1.6 Tbps
Virtual Switch Link
1GE or 10GE
Max number of Virtual Switch Links
In-Service Software Upgrade
Across the switches
Nonstop Forwarding with Stateful Switchover
Across the switches
CPU and Memory
Onboard Memory (SRAM DDR-II)
32-MB Shared Memory
Dual Core 1.5 GHz
Optional External Memory (SD Card)
128K (64K ingress and 64K in egress) Shared with ACL
Ingress port or VLAN and egress VLAN or Layer 3 port
Rate-Limiting Level Types
Committed Information Rate (CIR), Peak Information Rate (PIR)
Aggregate Traffic Rate-Limiting Policers (1K=1024)
Flow-Based Rate-Limiting Method; Number of Rates
Supported using flow-records in the classification criteria and policing action
Qos Policy Enforcement
Per Port or Per Vlan or Per Port, Per VLAN Granularity
Class of Service (CoS)
Differentiated Services Code Point (DSCP)
IEEE 802.1x and 802.1x Extensions
VLAN, Router, and Port ACLs
Security ACL Entries (1K=1024)
128K (64K ingress and 64K in egress) Shared with QoS
Unicast Reverse Path Forwarding (uRPF) Check in Hardware
CPU Rate Limiters (DoS Protection) Includes Control Plane Policing
Micro Flow Policer
Yes. Supported using flow records in the class-map
CPU HW Rate Limiters by Packet Per Second (pps) and Bit Rate Policers (bps)
Supported in hardware control-plane policing (CoPP)
Control Plane Policing (CoPP) for Multicast
Traffic Storm Control (formally known as Broadcast/Multicast Suppression)
Easy Virtual Network (EVN) Scalability
0°C to 40°C (RH to 90%)
-40°C to 70°C (RH 93%)
60m below sea level to 3000m above sea level
Nonoperating Humidity: 95% RH
Acoustic Noise Measured per ISO 7779 and Declared per ISO 9296 Bystander Positions Operating to an Ambient Temperature of 25°C
Industrial Product: 65 dBA maximum
Reduction of Hazardous Substances (ROHS) 5
AC Power Max Rating
System Power Consumption
330W nominal/400W max
Input-Voltage Range and Frequency
AC 100 to 240 VAC 50-60 Hz/DC -72 VDC to -40 VDC
DC Power Max Rating
AC to DC failover and vice versa
Total Output BTU (Note: 1000 BTU/hr = 293W)
1122 BTU/hr (330 W) nominal/1365 BTU/hr (400 W) max
AC 11A @ 110VAC, 6 A @ 200VAC/DC 25A Max
12V @ 62A & 3.3V @ 3A
Output Holdup Time
AC = 16 ms; DC = 4 ms @ maximum load
Power-Supply Input Receptacles
AC IEC 60320 C15/DC Custom detachable screw terminal (supplied)
Power Cord Rating
AC 15A/DC 25A
L10 Life 60,000 at 40C
Regulatory Standards Compliance
EMI and EMC Compliance
47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
KN22 Class A
CNS13438 Class A
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
Industry EMC, Safety, and Environmental Standards
GR-63-Core Network Equipment Building Systems (NEBS) Level 3
GR-1089-Core Level 3
SMARTnet Support Quick Guide
Cisco SMARTnet Overview - Cisco SMARTnet Service Codes - Cisco SMARTnet Types
Cisco SMARTnet F.A.Q
WS-C4500X-24X-IPB SMARTnet Service Tool
Product Name Detail Price CON-3SNT-WSC450X2 3YR SNTC 8X5XNBD Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-3SNTP-WSC450X2 3YR SNTC 24X7X4 Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-3OSP-WSC450X2 3YR SNTC 24X7X4OS Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-SNT-WSC450X2 SNTC-8X5XNBD Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-SNTE-WSC450X2 SNTC-8X5X4 Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-SNTP-WSC450X2 SNTC-24X7X4 Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-OS-WSC450X2 SNTC-8X5XNBDOS Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-OSE-WSC450X2 SNTC-8X5X4OS Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-OSP-WSC450X2 SNTC-24X7X4OS Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCD2-WSC450X2 CMB SVC 24X7X2 NCD2 Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCD2P-WSC450X2 CMBSV 24X7X2OS NCD2P Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCD4P-WSC450X2 CMBSV 24X7X4OS NCD4P Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCD4S-WSC450X2 CMB SV 8X5X4OS NCD4S Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCDCS-WSC450X2 CBSV 8X5XNBDOS NCDCS Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCDE-WSC450X2 CMB SVC 8X5X4 NCDE Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCDP-WSC450X2 CMB SVC 24X7X4 NCDP Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCDT-WSC450X2 CMBSVC 8X5XNBD NCDT Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCDW-WSC450X2 CMB SPT SVC SW NCDW Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCF2-WSC450X2 CMB SPT SVC 24X7X2 Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCF2P-WSC450X2 CMB SPT SVC 24X7X2OS Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCF4P-WSC450X2 CMB SPT SVC 24X7X4OS Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCF4S-WSC450X2 CMB SPT SVC 8X5X4OS Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCFCS-WSC450X2 CMB SPT SVC 8X5XNBDO Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCFE-WSC450X2 CMB SPT SVC 8X5X4 Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCFP-WSC450X2 CMB SPT SVC 24X7X4 Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCFT-WSC450X2 CMB SPT SVC 8X5XNBD Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCFW-WSC450X2 CMB SPT SVC SW Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCH2-WSC450X2 CMB SVC 24X7X2 NCH2 Cat 4500-X 24 Prt 10G IP Base.Front to Inquiry CON-NCH2P-WSC450X2 CMBSV 24X7X2OS NCH2P Cat 4500-X 24 Prt 10G IP Base Front to Inquiry CON-NCH4P-WSC450X2 CMBSV 24X7X4OS NCH4P Cat 4500-X 24 Prt 10G IP BaseFront to Inquiry CON-NCH4S-WSC450X2 CMB SV 8X5X4OS NCH4S Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCHCS-WSC450X2 CBSV 8X5XNBDOS NCHCS Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCHE-WSC450X2 CMB SVC 8X5X4 NCHE Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCHP-WSC450X2 CMB SVC 24X7X4 NCHP Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCHT-WSC450X2 CMBSVC 8X5XNBD NCHT Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCHW-WSC450X2 CMB SPT SVC SW NCHW Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCJ2-WSC450X2 CMB SVC 24X7X2 NCJ2 Cat 4500-X 24 Prt 10G IP Base.Front to Inquiry CON-NCJ2P-WSC450X2 CMBSV 24X7X2OS NCJ2P Cat 4500-X 24 Prt 10G IP Base Front to Inquiry CON-NCJ4P-WSC450X2 CMBSV 24X7X4OS NCJ4P Cat 4500-X 24 Prt 10G IP BaseFront to Inquiry CON-NCJ4S-WSC450X2 CMB SV 8X5X4OS NCJ4S Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCJCS-WSC450X2 CBSV 8X5XNBDOS NCJCS Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCJE-WSC450X2 CMB SVC 8X5X4 NCJE Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCJP-WSC450X2 CMB SVC 24X7X4 NCJP Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCJT-WSC450X2 CMBSVC 8X5XNBD NCJT Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-NCJW-WSC450X2 CMB SPT SVC SW NCJW Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-PREM-WSC450X2 SNTC-24X7X2OS Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-S2P-WSC450X2 SNTC-24X7X2 Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-SMBS-WSC450X2 SMBS 8X5XNBD Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry CON-SSC2P-WSC450X2 SOLN SUPP 24X7X2OS Catalyst 4500-X 24 Port 10G IP Base. Fron Inquiry CON-SSC4P-WSC450X2 SOLN SUPP 24X7X4OS Catalyst 4500-X 24 Port 10G IP Base Fron Inquiry CON-SSC4S-WSC450X2 SOLN SUPP 8X5X4OS Catalyst 4500-X 24 Port 10G IP Base. Front Inquiry CON-SSCS-WSC450X2 SOLN SUPP 8X5XNBDOS Catalyst 4500-X 24 Port 10G IP Base. Fro Inquiry CON-SSS2P-WSC450X2 SOLN SUPP 24X7X2 Catalyst 4500-X 24 Port 10G IP Base. Front- Inquiry CON-SSSNE-WSC450X2 SOLN SUPP 8X5X4 Catalyst 4500-X 24 Port 10G IP Base. Front-t Inquiry CON-SSSNP-WSC450X2 SOLN SUPP 24X7X4 Catalyst 3750V2 24 10 100 + 2 SFP Standard Inquiry CON-SSSNT-WSC450X2 SOLN SUPP 8X5XNBD Catalyst 4500-X 24 Port 10G IP Base. Front Inquiry CON-SW-WSC450X2 SNTC-NO RMA Cat 4500-X 24 Prt 10G IP Base. Front to Inquiry
What is a universal image?
The universal image contains all feature packages: LAN Base, IP Base, and Enterprise Services feature sets. The level of functionality available is determined by the license applied to the device. A software activation license (SAL) enables specific functionality. For example, an IP Base package license enables IP Base functionality in the Cisco IOS Software universal image.
What is a product authorization key?
A product authorization key (PAK) is an 11-digit alphanumeric key created by Cisco manufacturing which defines the feature set associated with the PAK. A PAK is not tied to a specific device until the license is created.
How is a PAK delivered?
Delivery of PAKs can be paper based or electronic. Paper-based PAKs begin with L- for feature package licenses. Paper-based PAKs are sent on a piece of paper by postal mail to customers.
What is an e-delivery PAK?
E-delivery is Cisco’s process for electronic fulfillment and subsequent asset management of customer orders for software license entitlement documentation. With e-delivery, users will be able to manage and download their PAKs. After a customer has placed an order for an e-delivery product, they receive an email containing a link to the e-delivery application. Customers access the application using their Cisco.com user profile, user ID and password, and download a claim certificate in pdf format. The claim certificate contains the PAK number.
Do I need to install licenses for software purchased with a Supervisor Engine 7-E, 7L-E or a Cisco Catalyst 4500-X Series system?
Cisco installs licenses where possible. If a spare Supervisor7-E is purchased, it will ship with the default license enabled (LAN Base) and a PAK for IP Base.
When will a customer need to install licenses on a Supervisor Engine 7-E, 7L-E or a Cisco Catalyst 4500-X Series system?
Upgrade of Cisco IOS Software functionality on an already purchased switch system will require the customer to purchase and activate license(s). For example, adding IP Base functionality to an already deployed LAN Base Supervisor Engine 7-E will require the customer to install an IP Base license on the device.
What is required to obtain a license?
A PAK, the product ID (PID), and the serial number of the chassis are required for key generation functions.
What are the PID and serial number, and where can I find them?
The serial number is an 11-digit key that uniquely identifies a Cisco Catalyst 4500E or 4500-X chassis. Product ID identifies the product family to which the product belongs: for example, WS-C4510R+E. This information can be found using the “show license UDI” command. A label tray on the chassis provides barcode-scannable labels for PID and serial number as well.
How is the time remaining on temporary licenses calculated?
Temporary licenses are usage based and are valid for 60 days. For example, if a customer uses the temporary license for 40 days and then shuts down the router, that customer will still have 20 days left on the temporary license.
Do temporary licenses get removed automatically when a permanent license is installed? Or does the temporary license have to be removed before the permanent license can be activated and installed?
Temporary licenses will remain after the permanent license is installed and activated. If a permanent license is activated in the router, then the temporary license will automatically become inactive.
