Overview

Overview (WS-C3650-24PS-L)

Cisco Catalyst WS-C3650-24PS-L supports 24 * 10/100/1000 POE+ Ethernet ports with 4*1G SFP uplink ports and provides up to 390W POE power with up to 30W per port.

Quick Specs

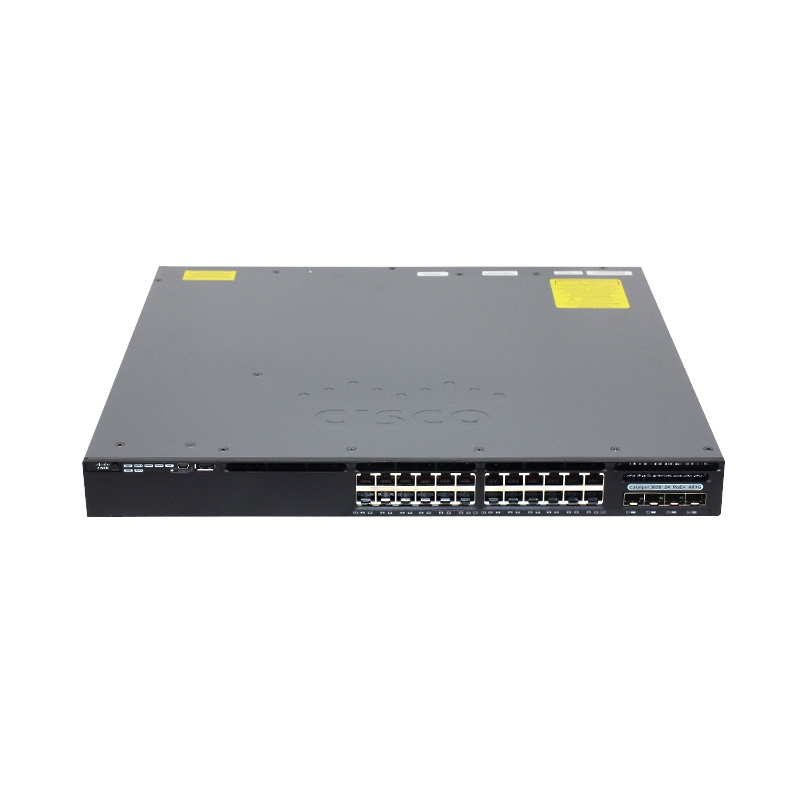

Figure 1 shows the appearance of the C3650-24PS-L switch.

WS-C3650-24PS-L

Table 1 shows the Quick Specs.

Product Code

WS-C3650-24PS-L

Enclosure Type

Rack-mountable - 1U

Feature Set

LAN base

Uplink Interfaces

4 x 1G SFP

Ports

24 x 10/100/1000 POE+ Ethernet ports

Available PoE Power

390 W

Maximum stacking number

9

Stack bandwidth

160 Gpbs

Forwarding Bandwidth

41.66Mpps

Switching Capacity

88 Gbps

RAM

4 G

Flash Memory

2G

Number of AP per switch/stack

25

Number of wireless clients per switch/stack

1000

Dimensions

4.4 cm x 44.5 cm x 44.8 cm

Package Weight

17.49 Kg

Product Details

Figure 2 shows the front panel of Cisco Catalyst WS-C3650-24PS-L.

WS-C3650-24PS-L Front Panel

Note:

①Mode button                                                             ④USB Type A storage port

②Status LEDs                                                             ⑤24 x 10/100/1000 Ports

③USB mini-Type B (console) port                           ⑥Uplink ports

·The Statue LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, PoE, SYST (system) and ACTV (active).

Figure 3 shows the back panel of Cisco Catalyst WS-C3650-24PS-L.

WS-C3650-24PS-L Back Panel

Note:

①Ground connector

②CONSOLE (RJ-45 console port)

③MGMT (RJ-45 10/100/1000 management port)

④Fan module

⑤Power supply modules

Figure 4 shows the StackWise-160 Kit.

The Cisco Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology which allows stacking up to 9 switches.

StackWise

The Modules, Licenses and Accessories

Table 2 shows some modules,licenses and accessories of this switch.

Models

Description

C3650-STACK-KIT=

Cisco Catalyst 3650 Stack Module Spare

L-C3650-24-L-E

C3650-24 LAN Base to IP Services Electronic RTU License

L-C3650-24-L-S=

C3650-24 LAN Base to IP Base Electronic RTU License

PWR-C2-1025WAC=

1025W AC Config 2 Secondary Power Supply

PWR-C2-640WDC=

640W DC Config 2 Secondary Power Supply

CAB-CONSOLE-RJ45

Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Console Cable 6 ft with USB Type A and mini-B

Datasheet Download

Cisco Switch Catalyst 3650 Series.pdf

Get more information

Do you have any question about the Cisco C3650-24PS-L switch?

Contact us now via Live Chat or cisco@router-switch.com.

Specification

Specification (WS-C3650-24PS-L)

WS-C3650-24PS-L Specification

Model info:

WS-C3650-24PS-L

Enclosure type

Rack-mountable - 1U

Ports

24 x 10/100/1000 (POE+) + 4 x 1G SFP

Network management Interface

● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling

● Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power

390W

Switching Capacity

88Gbps

Maximum stacking number

9

Stack Bandwidth

160Gbps

Forwarding Performance

41.66Mpps

FNF entries

24000

Maximum VLANs IDs

4,094

Maximum VLANs IDs

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Wireless

Number of AP per switch/stack

25

Number of wireless clients per switch/stack

1000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 20Gbps

Supported Aironet AP series

3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

 power redundant slot

Accessory & Rack Moubt Kits

●ACC-KIT-T1: Accessory kit

●RACK-KIT-T1: Rack mount kit

●4PT-KIT-T1:Extension rails and brackets for four-point mounting

Stacking module & cable

●C3650-STACK-KIT: Stack Module

●STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length

●STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length

●STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length

Power supply

PWR-C2-640WAC

Power Device

Power supply - redundant - plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone (in Watts)

65.9 (max)

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

17.625 Inches (44.8 cm)

Height

1.73 Inches (4.4 cm)

Weight

16 Pounds (7.26 Kg)

Rack Mounting Kit

optional

 MTBF in hours

528,280

Compliant Standards

●IEEE 802.1D Spanning Tree Protoco

● IEEE 802.1p CoS Prioritization

● IEEE 802.1Q VLAN

● IEEE 802.1s

● IEEE 802.1w

● IEEE 802.1X

● IEEE 802.1X-Rev

●IEEE 802.11

● IEEE 802.1ab (LLDP)

● IEEE 802.3ad

● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T

● IEEE 802.3u 100BASE-TX

● IEEE 802.3ab 1000BASE-T

● IEEE 802.3z 1000BASE-X

● RMON I and II standards

● SNMP v1, v2c, and v3

System software / license

System software

IOS LAN Base (Upgradable)

EnergyWise license

ENERGY-MGMT, ENERGY-MGT-100-K9

Access Point Licenses

●L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery)

●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)

●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)

●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

features

●EEM ● RPS Support  ● IP service-level agreements (SLAs)  ● Advanced IP unicast routing protocols

● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+

● 802.1W/802.1S ●Port Fast/Uplink Fast  ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override

● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues

● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues

● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps

● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server

● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM  OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4

● VRF-lite  ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow

Advanced Network security

●Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)

● Bidirectional data support on a SPAN ● User authentication

● Private VLAN  ●Router and VLAN ACLs  ● complete identity and security

● Multidomain authentication ● MAC address notification

● IGMP filtering ● Cisco security VLAN ACL

● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)

● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae

● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs

●  Bridge protocol data unit (BPDU) Guard

● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security

Management

●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB
●CISCO-BGP4-MIB, BGP4-MIB ●CISCO-BRIDGE-EXT-MIB
●CISCO-BULK-FILE-MIB ●CISCO-CABLE-DIAG-MIB
●CISCO-CALLHOME-MIB ●CISCO-CEF-MIB
●CISCO-CIRCUIT-INTERFACE-MIB
●CISCO-ENTITY-VENDORTYPE-OID-MIB
●CISCO-CONTEXT-MAPPING-MIB
●CISCO-DEVICE-LOCATION-MIB ●CISCO-DHCP-SNOOPING-MIB
●CISCO-EIGRP-MIB
●CISCO-EMBEDDED-EVENT-MGR-MIB
●CISCO-ENTITY-FRU-CONTROL-MIB ●CISCO-ENTITY-SENSOR-MIB
●ENTITY-MIB ●CISCO-ERR-DISABLE-MIB
●CISCO-CONFIG-COPY-MIB ●CISCO-FLOW-MONITOR-MIB
●CISCO-FTP-CLIENT-MIB ●CISCO-HSRP-EXT-MIB
●CISCO-HSRP-MIB ●CISCO-IETF-ISIS-MIB
●CISCO-IF-EXTENSION-MIB ●CISCO-IGMP-FILTER-MIB
●CISCO-CONFIG-MAN-MIB ●CISCO-IP-CBR-METRICS-MIB
●CISCO-IPMROUTE-MIB ●CISCO-IP-STAT-MIB
●CISCO-IP-URPF-MIB ●CISCO-L2L3-INTERFACE-CONFIG-MIB
●CISCO-LAG-MIB ●CISCO-LICENSE-MGMT-MIB
●CISCO-MAC-AUTH-BYPASS-MIB ●CISCO-MAC-NOTIFICATION-MIB
●CISCO-MDI-METRICS-MIB ●CISCO-FLASH-MIB ●CISCO-OSPF-MIB
●CISCO-OSPF-TRAP-MIB ●CISCO-PAE-MIB ●CISCO-PAGP-MIB
●CISCO-PIM-MIB ●CISCO-PING-MIB ●CISCO-PORT-QOS-MIB
●CISCO-PORT-SECURITY-MIB●CISCO-PORT-STORM-CONTROL-MIB
●CISCO-POWER-ETHERNET-EXT-MIB ●CISCO-PRIVATE-VLAN-MIB
●CISCO-PROCESS-MIB ●CISCO-PRODUCTS-MIB●CISCO-RF-MIB
●CISCO-RTP-METRICS-MIB ●CISCO-RTTMON-MIB
●CISCO-SMART-INSTALL-MIB
CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB
●CISCO-MEMORY-POOL-MIB ●CISCO-STP-EXTENSIONS-MIB
●CISCO-SYSLOG-MIB ●CISCO-TCP-MIB ●CISCO-UDLDP-MIB
●CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB ●CISCO-VLAN-MEMBERSHIP-MIB ●CISCO-VTP-MIB ●EtherLike-MIB

●HC-RMON-MIB ●IEEE8021-PAE-MIB ●IEEE8023-LAG-MIB
●IF-MIB ●IGMP-MIB ●IGMP-STD-MIB ●IP-FORWARD-MIB
●IP-MIB ●IPMROUTE-STD-MIB ●LLDP-EXT-MED-MIB
●LLDP-MIB ●NOTIFICATION-LOG-MIB
●OLD-CISCO-MEMORY-MIB ●CISCO-CDP-MIB
●POWER-ETHERNET-MIB ●RMON2-MIB
●RMON-MIB ●SNMP-COMMUNITY-MIB ●SNMP-FRAMEWORK-MIB
●SNMP-MPD-MIB ●SNMP-NOTIFICATION-MIB ●SNMP-PROXY-MIB
●SNMP-TARGET-MIB ●SNMP-USM-MIB ●SNMPv2-MIB
●SNMP-VIEW-BASED-ACM-MIB ●TCP-MIB ●UDP-MIB
●CISCO-IMAGE-MIB ●CISCO-STACKWISE-MIB
●AIRESPMACE-WIRELESS-MIB ●CISCO-LWAPP-IDS-MIB
●CISCO-LWAPP-AP-MIB ●CISCO-LWAPP-CCX-RM-MIB
●CISCO-LWAPP-CLIENT-ROAMING-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
●CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
●CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
●CISCO-LWAPP-DOT11-CLIENT-MIB ●CISCO-LWAPP-DOT11-MIB
●CISCO-LWAPP-DOWNLOAD-MIB ●CISCO-LWAPP-LINKTEST-MIB
●CISCO-LWAPP-MFP-MIB ●CISCO-LWAPP-MOBILITY-EXT-MIB
●CISCO-LWAPP-QOS-MIB ●CISCO-LWAPP-REAP-MIB
●CISCO-LWAPP-ROGUE-MIB ●CISCO-LWAPP-RRM-MIB
●CISCO-LWAPP-SI-MIB ●CISCO-LWAPP-TSM-MIB
●CISCO-LWAPP-WLAN-MIB ●CISCO-LWAPP-WLAN-SECURITY-MIB

Technical Support and Services

● Cisco SMARTnet Service ● Cisco Smart Foundation Service
● Cisco SP Base Service ● Cisco Focused Technical Support Services

Environmental Ranges

With AC power supply
Operating environment and altitude

Operating temperature up to 5000 ft (1500 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception up to 5000 feet (1500 m)

23ºF to 122ºF (-5ºC to 50ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 113ºF (-5ºC to 45ºC)

With DC power supply
Operating environment and altitude (NEBS)

Operating temperature up to 6000 ft (1800 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Operating temperature up to 13,000 ft (4000m)

23ºF to 95ºF (-5ºC to 35ºC)

Short-term exception up to 6,000 feet (1800 m)

23ºF to 131ºF (-5ºC to +55ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 122ºF (-5ºC to +50ºC)

Short-term exception up to 13,000 feet (4000 m)

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45º)

Storage environment

 -40ºF to 160ºF (-40ºC to 70ºC)

Operating altitude

Up to 16,400 Feet (Up to 5000m)

Storage altitude

Up to 16,400 Feet (Up to 5000m)

Operating relative humidity

5% to 96% noncondensing

Storage relative humidity

5% to 96% noncondensing

Short-term exception at sealevel with single fan failure

23ºF to 113ºF

Storage environment

 -40ºF to 160ºF

Q&A

Faq (WS-C3650-24PS-L)

Does WS-C3650-24PS-L support PoE?

Yes.

How to upgrade to IP Services?

You can use C3650-24 LAN Base to IP Services Electronic RTU License -L-C3650-24-L-E to upgrade.

Can this switch support Access Points?

Yes, it supports 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 AP series.

What licensing model does the Cisco Catalyst 3650 use?

The Cisco Catalyst 3650 uses a right-to-use (RTU) licensing model.

Does this switch support 802.1ae on downlink ports?

The Cisco Catalyst 3650 is hardware capable for 802.1ae on all ports on the switch. Software support will be available later. Check release notes for availability.

Does the switch support Energy Efficient Ethernet (802.3az)?

Yes

Does the switch support front-to-back airflow?

Yes. The Cisco Catalyst 3650 supports front-to-back airflow.

How many fans does the WS-C3650-24PS-L have?

The Cisco Catalyst 3650 has three FRU fans for thermal management.

Are the software images for the Cisco Catalyst 3650 and the Cisco Catalyst 3850 the same?

The software images are different but support the same software features and services.

How do I manage the Cisco Catalyst 3650?

The Cisco Catalyst 3650 can be managed using the Cisco IOS Software CLI, web GUI, Cisco Prime Infrastructure 2.0.1, or the Cisco Network Assistant Software.

Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews

4.8 5
4.8 (11 reviews)
5 Stars
9
4 Stars
2
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 10/29/2016
Verified Buyer
55
Need better price

The device is OK. Looking forward to a better price next time

Posted on 10/12/2016
Verified Buyer
55
Super servicio

No las importaciones antes, tantas preguntas, Nancy me ayudó mucho. Muy buen servicio

Posted on 10/10/2016
Verified Buyer
55
Layer 3 switch, 24 ports POE

Layer 3 switch, with 24 ports POE, and 4x1G Uplink; good function, and reasonable price.

Posted on 10/8/2016
Verified Buyer
45
Envío Rápido

Conseguimos la mercancía en Chile 5 días después de ordenado. Muy muy rápido.

Posted on 10/7/2016
Verified Buyer
55
3650 24 Puerto PoE

Soy de Venezuela, necesito interruptor 3650 con 24 puertos POE. WS-C3650-24PS-L OK para mí.

Posted on 5/24/2016
Verified Buyer
45
Good on line support

I got problem for on line payment, talked with their sales on livechat, they help to solve the problem soon.very good service

Posted on 4/11/2016
Verified Buyer
55
payment convenient

I found this company on linkedin, checked website, can accept Paypal, Credit card payment, easy to handle, Satisfied.

Posted on 1/11/2016
Verified Buyer
55
Cisco 3650 series switches

We purchased a old one, the 3560 series switch. It was end-of-life product. So we bought this new series, the 3650 switch.

Posted on 12/26/2015
Verified Buyer
55
Patient service

Meet trouble for customs. They helped me to pass it smoothly finally.

Posted on 11/9/2015
Verified Buyer
55
Fast delivery

They ship the goods fast.

Posted on 9/17/2015
Verified Buyer
55
Service is good

Want to buy a switch, Frances suggest this model and introduced the features. It's a good choice

You may also be interested in the following product(s)

Product Tags

Register now to get updates on promotions and coupons

We’ll never share your email address with a third-party.

Router-switch.com is neither a partner of nor an affiliate of Cisco Systems. Logos remain the property of the corresponding company.
Copyright @ 2002-2017 Router-switch Ltd. | HongKong Yejian Technologies Co., Ltd | All Rights Reserved.
