U16Z02CFG3

Model: U16Z02CFG3 eSpace U1900 Series Unified Gateways
Detail: U16Z02CFG3 eSpace U1900 Series Unified Gateways eSpace U1960 (AC,1 SCU,1 MTU,16G SD Card,1E1 with cable,100 Voice Subscriber,6 Voice Mail Concurrent,30 Voice Conference Concurrent Subscribers)
Price: $4,865.00
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 4,865.00 In stock Brand New Sealed
OR

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (U16Z02CFG3)

Huawei eSpace U1900 series gateways UC colution, eSpace u1910, eSpace U1930, eSpace U1960, eSpace U1980. eSpace U1900 series gateways are suited to be as core gateways in Huawei eSpace IP telephony solution and as access gateways for branch node in eSpace UC solution.

eSpace U1960 is a medium-capacity product in eSpace U1900 series which is suitable fot the medium-sized enterprises and branches less than 1,000 users. eSpace U1960 has MTU board for media resources and E1/T1 interfaces different from U1910 and U1930. Each MTU board provides 128 channels for media resources and two E1/T1 ports. Several MTU boards can be adopted according to the user capacity. CF cards can be inserted into MTU board to store voice messages. eSpace U1960 applies to medium and large-sized enterprises and supports centralized deployment where eSpace U1900 small capacity gateways can be used as access gateway in branches.

Quick Specs

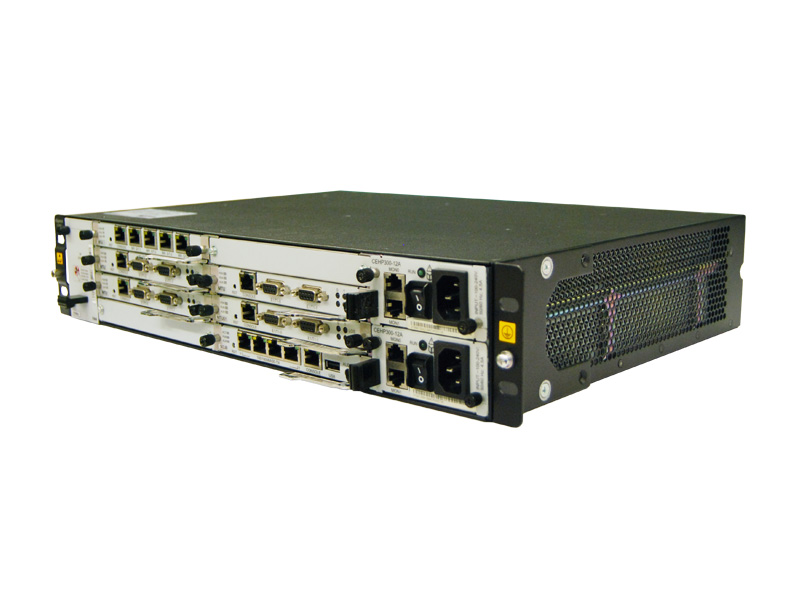

Figure 1 shows the appearance of U16Z02CFG3.

 U16Z02CFG3 Appearance

Table 1 shows the Quick Specs.

Product Code

U16Z02CFG3

Part Number

02359990

Description

eSpace U1960 (AC,1 SCU,1 MTU,16G SD Card,1E1 with cable,100 Voice Subscriber,6 Voice Mail Concurrent,30 Voice Conference Concurrent Subscribers)

Attributes

Hardware

Category

Hardware

Product Line

Unified Communications and Collaboration

Product Family

Unified Communications

Product Series

eSpace U1960(CRS V3)

UOM

PCS

Pack Weight(kg)

14.1

Pack Volume(m^3)

0.0513

Pack Dimension(D*W*H mm)

600*450*190

Net Dimension(D*W*H mm)

310*442*86

Typic Power(W)

80

Product Details

Figure 2 shows the typical applications of U1960.

U1960 is a small/medium-capacity voice gateway and applies to small, medium, and large-sized voice communication scenarios. It provides a wide range of voice services and supports two-node cluster deployment and geographical redundancy.

IPT application scenarios

When being deployed at the headquarters, U1960 provides call control services for network-wide users as a core voice gateway. The branches, according to their user capacities, can use different models of Huawei U1900 series gateways as local voice gateways. These local voice gateways support local regeneration to ensure service continuity. Using narrowband and broadband trunks, local voice gateways can be connected to external networks, such as PSTN, to implement communication between internal and external (mobile and fixedline) users. In this case, SIP phones can be connected directly. Analog phones and fax machines can be connected through integrated access devices (IADs).

IPT application scenarios

UC application scenarios

Based on IPT application scenarios, U C a p p l i c a t i o n s e r v e r s ( e n h a n c e d communication suites) can be deployed at the same time to enrich communication channels and improve communication efficiency with a wide range of UC services, including presence, instant messaging, and multimedia conferencing.

UC application scenarios

Compare to Similar Items

Table 2 shows the comparison of U11Z11CFG2 and U16Z02CFG3.

Product Code

U11Z11CFG2

U16Z02CFG3

Part Number

02359988

02359990

Description

eSpace U1911(AC,1 SCU,1 MTU,16G SD Card,1E1 with cable, 50 Voice Subscriber,4 Voice Mail Concurrent,16 Voice Conference Concurrent Subscribers)

eSpace U1960 (AC,1 SCU,1 MTU,16G SD Card,1E1 with cable,100 Voice Subscriber,6 Voice Mail Concurrent,30 Voice Conference Concurrent Subscribers)

Product Line

Unified Communications and Collaboration

Unified Communications and Collaboration

Product Family

Unified Communications

Unified Communications

Product Series

eSpace U1911(CRS V3)

eSpace U1960(CRS V3)

Typic Power(W)

70

80

Get More Information

Do you have any question about the U16Z02CFG3?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (U16Z02CFG3)

eSpace U1960 Specifications

Maximum number of users

1,000(a maximum of 192 FXS ports for analog users or 1,000 SIP users)

Terminal type

Analog phones, IP phones, video phones and soft clients

Port

72 FXO ports or 14 E1/T1 ports

Trunk protocol

SS7, R2, PRI, QSIG, SIP

Codec

G.711A/μ, G.729a/b/ab, iLBC, G.722/G.722.1/G.722.2

Number of meeting participants

A maximum of 360 meeting participants which can be allocated to 120 meeting halls (each hall can support up to 60 participants by maximum)

Built-in voice mail(optional)

30 channels concurrently
Built-in 16G SD storage card

Power supply

AC: 100 V to 240 V, 50 Hz/60 Hz
DC: –38.4 V to –60 V (typical value: –48 V)
Redundancy: 1+1 backup

Maximum power consumption

220 W (full configuration)

Dimensions (H * W * D)

Standard 19-inch 2 U subrack
86.1 mm * 442 mm * 310 mm

Weight

10 kg (full configuration)

Environment

Temperature

Storage temperature: –40° C to +70° C
Long-term operating temperature: 0° C to 45° C
Short-term operating temperature: –5° C to +55° C

Relative humidity

5% to 95% (without condensation)

Dustproof

Less than 180 mg/m³ dust in the air (Dustproof measures should be taken in the work environment)

System Reliability

99.995%

Maintainability

Remote maintenance, automatic configuration, log collection, and Daylight Saving Time (DST)

Manageability

Centralized/remote equipment management, signaling tracing, resource management, alarm management, and quick deployment
