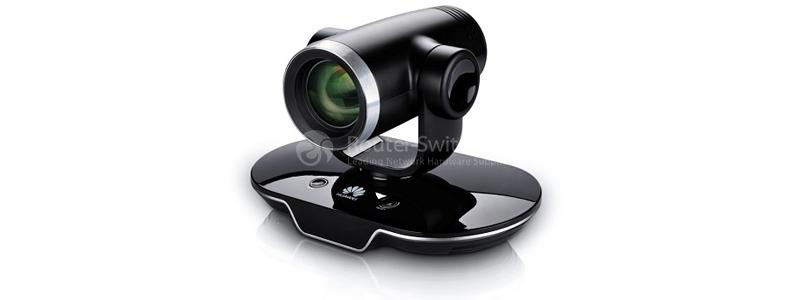

TE30-C-720P, Huawei TE30-C Series Videoconferencing Terminal, 720P HD, Integrated Design, Video Terminal

TE30-C-720P Specification

H.221, H.225, H.230, H.231, H.235, H.241, H.242, H.243, H.245, H.281, H.350, H.460, T.140, and DTMF

TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS with SSL/TLS, PPPoE, RTP, RTCP, SNTP, ARP, 802.1X, 802.1P, and 802.1Q

1080p30 from 512 Kbit/s (Optional)

720p50/60 from 512 Kbit/s (Optional)

720p25/30 from 384 Kbit/s

4SIF/4CIF from 128 Kbit/s

SIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 Kbit/s

Input: VGA (640 x 480) @ 60/72/75/85 fps, SVGA (800 x 600) 56/60/72/75/85 @ fps, XGA (1,024 x 768) @ 60/70/75/85 fps, 1,152 x 864 @ 60/75/85 fps, 1,280 x 600 @ 60 fps, WXGA (1,280 x 768) @ 60/75/85 fps, WXGA (1,280 x 800) @ 60/75/85 fps, 1,280 x 960 @ 60/75/85 fps, SXGA (1,280 x 1,024) @ 50/60/72/75/85 fps, 1,360 x 768 @ 60 fps, 1,366 x 768 @ 60 fps, 1,440 x 900 @ 60 fps, XGA+ (1,400 x 1,050) @ 60 fps, 720p60/75/85, 1080p60, 1,600 x 900 @ 60 fps, 1,600 x 1,200 @ 60 fps, 1,680 x 1,050 @ 60 fps, 1,920  x 1,200 @ 60 fps

Coding/Decoding resolution: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080 Output: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080

Built-in camera

Video output pixels: 1080p50/60

Lens: 2-megapixel and 1/3-inch CMOS imaging chip

Zoom: 12x optical

Number of preset positions: 30

Maximum horizontal angle: 72° horizontal field of view

Panning/Tilting angle: +/-30° tilt, +/-100° pan

Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)

Far-end camera control

Upside-down mounting with automatic flipping of picture

Intelligent Face Detection

Picture-in-Picture

Picture-outside-Picture

Video Motion Enhancement (VME)

Video Intensifier

View Processing

Dual-channel AAC-LD Stereo HWA-LD Stereo:

Huawei Audio Broadband Low Delay Stereo

Acoustic Echo Cancellation (AEC)

Acoustic Noise Suppression (ANS) 12 dB

Automatic Gain Control (AGC) ±6 dB

Voice Clear, Audio Enhancer

Lip synchronization

Dual-stack IPv6 and IPv4

IP Precedence, Diffserv

Uniform Resource Identifier (URI) dialing

Super Error Concealment (SEC), Intelligent Rate Control (IRC)

Automatic Repeat-reQuest (ARQ), Forward Error Correction (FEC), and PLC

H.235 signaling and media stream encryption

AES media stream encryption, dual-stream encryption

TLS and SRTP for SIP signaling and media stream encryption

Conference access password, conference control password

Administrator password, SSH/HTTPS

IP: 10/100 Base-T, 1 x RJ45

Wireless: Built-in Wi-Fi

Non-encrypted conference: 4-way HD (receive 576P, send 720P)/SD video sites+ 3-way VoIP

Encrypted conference: 4-way HD (receive 576P, send 720P)/SD video sites

Max bandwidth: 6M

Auto CP on each port, voice activation, chairman token, broadcast site, H.239 and BFCP

HD/SD endpoints compliant with H.323/ SIP in the same conference, tolerant of different bandwidth consumption and audio/video protocols

Voice Dialing in English and Chinese

Installation from a USB disk, Plug nd-play

Integration with Microsoft Lync2010™/Lync2013™ and OCS2007R2

Hybrid with IMS network

Wi-Fi

Air content sharing

Wireless MIC VPM220W access

Upside-down mounting

HD SiteCall

Lock content sharing

Web-based conference management

Web-based image monitoring and cture snapshot

16:9 and 4:3 mixed display

PIP: 1/16 picture size, optional position

Split output: Bi-screen and tri-screen display

LDAP/Network address book

API for integration

Caption banner, body text and information bar

Rolling display mode of the speech draft

Modifiable front background color, caption size and transparency

64 optional colors

Editable caption and auto zone adjustment

Caption rolling mode setting

Site name display and position shift

Text input through remote control

External character generator

Powerful caption SMS function

Remote control: 3D Effects and GUI Animation

Endpoints Network Management: SNMP

Wireless touch panel (optional)

Embedded Web server, GUI interface

Command line mode: Telnet/SSH

Endpoint IP and number are displayed on the front panel

Auto sleep, wake-up by remote control or remote module

Event log record, query, display, and export query results

IP network test, default settings restoration

Local and remote loopback

Test signals: providing sound test and standard test stripes

Codec dimensions (L x W x H): 235 mm x 167 mm x 157 mm

Package dimensions (L x W x H): 402 mm x 232 mm x 237 mm

Net weight: 2.1 kg; Package Weight: 3.3 kg

Working frequency: 50 Hz to 60 Hz

Power consumption: 60W

Operating Temperature: 0°C to 40ºC

Operating Humidity: 10% to 80%

Non-Operating Temperature: -40ºC to -70ºC

Non-Operating Humidity (non-condensing): 0% to 95%

Peripheral noise: < 46 dBA SPL Lowest luminance: 7 lux

Recommended luminance: > 300 lux
