- Product Overview
-

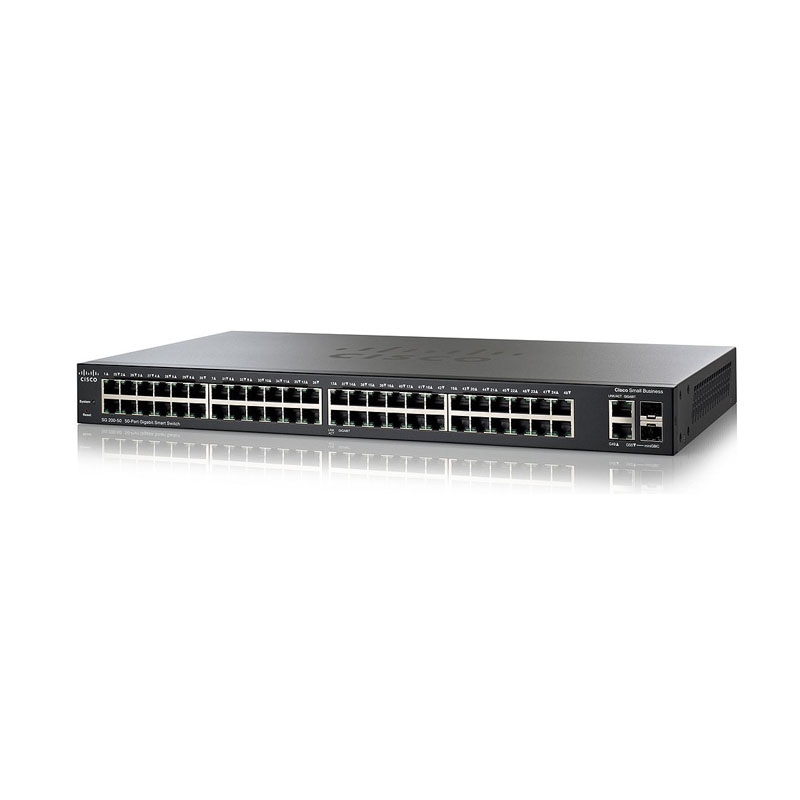

Overview (SG200-50)
- Specification
-
Specification (SG200-50)
Feature Description Performance Switching capacity and Model Capacity in Millions of Packets per Second (mpps) (64-byte packets) Switching Capacity in Gigabits per Second (Gbps) forwarding rate SG200-50 (SLM2048T-CN) 74.41 100.0 DoS prevention DoS attack prevention Quality of Service Priority levels 4 hardware queues Scheduling Strict priority and weighted round-robin (WRR) Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS) Class of service Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/type of service (ToS)/DSCP based, Differentiated Services (DiffServ) Rate limiting Ingress policer, per VLAN and per port Standards Standards IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad LACP, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 922, RFC 920, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1350, RFC 1533, RFC 1541, RFC 1542, RFC 1624, RFC 1700, RFC 1867, RFC 2030, RFC 2616, RFC 2131, RFC 2132, RFC 3164, RFC 2618 IPv6 IPv6 IPv6 host mode IPv6 over Ethernet Dual IPv6/IPv4 stack IPv6 neighbor and router discovery (ND) IPv6 stateless address auto-configuration Path maximum transmission unit (MTU) discovery Duplicate address detection (DAD) Internet Control Message Protocol (ICMP) version 6 IPv6 over IPv4 network with Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) support IPv6 QoS Prioritize IPv6 packets in hardware Multicast Listener Discovery (MLD) snooping Deliver IPv6 multicast packets only to the required receivers IPv6 applications Web, ping, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), RADIUS, syslog, DNS client IPv6 RFCs supported RFC 2463: ICMP version 6 RFC 3513: IPv6 address architecture RFC 4291: IPv6 addressing architecture RFC 2460: IPv6 specification RFC 2461: Neighbor discovery for IPv6 RFC 2462: IPv6 stateless address auto-configuration RFC 1981: Path maximum transmission unit (MTU) discovery RFC 4007: IPv6 scoped address architecture RFC 3484: Default address selection mechanism RFC 4214: ISATAP tunneling RFC 4293: MIB IPv6: Textual conventions and general group RFC 3595: Textual conventions for IPv6 flow label Management Web user interface Built-in switch configuration utility for easy browser-based device configuration (HTTP). Supports configuration, system dashboard, system maintenance, and monitoring Simple Network Management Protocol (SNMP) SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM) Standard MIBs draft-ietf-bridge-8021x-MIB rfc2011-MIB draft-ietf-bridge-rstpmib-04-MIB draft-ietf-entmib-sensor-MIB draft-ietf-hubmib-etherif-MIB-v3-00-MIB lldp-MIB draft-ietf-syslog-device-MIB lldpextdot1-MIB ianaaddrfamnumbers-MIB lldpextdot3-MIB ianaifty-MIB lldpextmed-MIB ianaprot-MIB p-bridge-MIB inet-address-MIB q-bridge-MIB ip-forward-MIB rfc1389-MIB ip-MIB rfc1493-MIB RFC1155-SMI rfc1611-MIB RFC1213-MIB rfc1612-MIB SNMPv2-MIB rfc1850-MIB SNMPv2-SMI rfc1907-MIB SNMPv2-TM rfc2571-MIB RMON-MIB.my rfc2572-MIB dcb-raj-DCBX-MIB-1108-MIB rfc2574-MIB rfc1724-MIB rfc2576-MIB RFC-1212.my_for_MG-Soft rfc2613-MIB rfc1213-MIB rfc2665-MIB rfc1757-MIB rfc2668-MIB RFC-1215.my rfc2737-MIB SNMPv2-CONF.my rfc2925-MIB SNMPv2-TC.my rfc3621-MIB rfc2674-MIB rfc4668-MIB rfc2575-MIB rfc4670-MIB rfc2573-MIB trunk-MIB rfc2233-MIB tunnel-MIB rfc2013-MIB udp-MIB rfc2012-MIB Private MIBs CISCOSB-lldp-MIB CISCOSB-ip-MIB CISCOSB-brgmulticast-MIB CISCOSB-iprouter-MIB CISCOSB-bridgemibobjects-MIB CISCOSB-ipv6-MIB CISCOSB-bonjour-MIB CISCOSB-mnginf-MIB CISCOSB-dhcpcl-MIB CISCOSB-lcli-MIB CISCOSB-MIB CISCOSB-localization-MIB CISCOSB-wrandomtaildrop-MIB CISCOSB-mcmngr-MIB CISCOSB-traceroute-MIB CISCOSB-mng-MIB CISCOSB-telnet-MIB CISCOSB-physdescription-MIB CISCOSB-stormctrl-MIB CISCOSB-Poe-MIB CISCOSB-ssh-MIB CISCOSB-protectedport-MIB CISCOSB-socket-MIB CISCOSB-rmon-MIB CISCOSB-sntp-MIB CISCOSB-rs232-MIB CISCOSB-smon-MIB CISCOSB-SecuritySuite-MIB CISCOSB-phy-MIB CISCOSB-snmp-MIB CISCOSB-multisessionterminal-MIB CISCOSB-specialbpdu-MIB CISCOSB-mri-MIB CISCOSB-banner-MIB CISCOSB-jumboframes-MIB CISCOSB-syslog-MIB CISCOSB-gvrp-MIB CISCOSB-TcpSession-MIB CISCOSB-endofmib-MIB CISCOSB-traps-MIB CISCOSB-dot1x-MIB CISCOSB-trunk-MIB CISCOSB-deviceparams-MIB CISCOSB-tuning-MIB CISCOSB-cli-MIB CISCOSB-tunnel-MIB CISCOSB-cdb-MIB CISCOSB-udp-MIB CISCOSB-brgmacswitch-MIB CISCOSB-vlan-MIB CISCOSB-3sw2swtables-MIB CISCOSB-ipstdacl-MIB CISCOSB-smartPorts-MIB CISCO-SMI-MIB CISCOSB-tbi-MIB CISCOSB-DebugCapabilities-MIB CISCOSB-macbaseprio-MIB CISCOSB-CDP-MIB CISCOSB-policy-MIB CISCOSB-vlanVoice-MIB CISCOSB-env_mib CISCOSB-EVENTS-MIB CISCOSB-sensor-MIB CISCOSB-sysmng-MIB CISCOSB-aaa-MIB CISCOSB-sct-MIB CISCOSB-application-MIB CISCO-TC-MIB CISCOSB-bridgesecurity-MIB CISCO-VTP-MIB CISCOSB-copy-MIB CISCO-CDP-MIB CISCOSB-CpuCounters-MIB CISCOSB-eee-MIB CISCOSB-Custom1BonjourService-MIB CISCOSB-ssl-MIB CISCOSB-dhcp-MIB CISCOSB-qosclimib-MIB CISCOSB-dlf-MIB CISCOSB-digitalkeymanage-MIB CISCOSB-dnscl-MIB CISCOSB-tbp-MIB CISCOSB-embweb-MIB CISCOSMB-MIB CISCOSB-fft-MIB CISCOSB-secsd-MIB CISCOSB-file-MIB CISCOSB-draft-ietf-entmib-sensor-MIB CISCOSB-greeneth-MIB CISCOSB-draft-ietf-syslog-device-MIB CISCOSB-interfaces-MIB CISCOSB-rfc2925-MIB CISCOSB-interfaces_recovery-MIB Remote Monitoring (RMON) Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis IPv4 and IPv6 dual stack Coexistence of both protocol stacks to ease migration Firmware upgrade Web browser upgrade (HTTP) and TFTP Port mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 4 source ports can be mirrored to one destination port. A single session is supported. VLAN mirroring Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 4 source VLANs can be mirrored to one destination port. A single session is supported. Dynamic Host Configuration Protocol (DHCP) (options 66 and 67) (DHCP) options facilitate tighter control from a central point (DHCP server) to obtain IP address and perform auto-configuration (with configuration file download) Text-editable config files Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment Smartports Simplified configuration of QoS and security capabilities Auto Smartports Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero touch deployments. Cloud services Support for FindIT Network Discovery Utility and Cisco OnPlus technology Localization Localization of GUI and documentation into multiple languages Other management HTTP, RADIUS, port mirroring, TFTP upgrade, DHCP client, BOOTP, SNTP, ping, syslog Power Efficiency EEE compliant (802.3az) Supports 802.3az on all copper Gigabit Ethernet ports (SG200-xx models) Not supported on SG200-08 and SG200-08P models Energy Detect mode Automatically turns off power on Gigabit Ethernet RJ-45 port when the switch detects a link down Active mode is resumed without loss of any packets when the switch detects that the link is back up Cable length detection Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter than 10 m. General Jumbo frames Frame sizes up to 10 KB supported on 10/100 and Gigabit Ethernet interfaces (9 KB for SG200-08 and SG200-08P) MAC table Up to 8000 MAC addresses Discovery Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-MED extensions LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices, which store the data in an MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones. Cisco Discovery Protocol The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics via this protocol. Auto Smartports Automatically applies the intelligence delivered through the Smartports roles to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This capability facilitates zero-touch deployments. Bonjour The switch advertises itself using the Bonjour protocol Power over Ethernet (PoE) IEEE 802.3af PoE delivered on half of the RJ-45 ports within the listed power budgets Maximum power of 15.4W to any 10/100 or Gigabit Ethernet base port supporting PoE. The total power available for PoE per switch is as follows: Model Power Dedicated to PoE Number of Ports That Support PoE SG200-50 - - Power consumption Model Power Savings Mode Power Consumption: Heat Dissipation (BTU/hr) Worst Case SG200-50 Short reach plus Energy Detect 110V/0.569A/61.8W 209.6 220V/0.296A/61.4W Ports Model Name Total System Ports RJ-45 Ports Combo Ports (RJ-45 + SFP) SG200-50 50 Gigabit Ethernet 48 Gigabit Ethernet 2 Gigabit Ethernet combo Buttons Reset button Cabling type Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5 Ethernet or better for 1000BASE-T LEDs System, Link/Act, PoE, Speed Flash 16 MB (8 MB in SG200-08 and SG200-08P) CPU memory 128 MB (32 MB in SG200-08 and SG200-08P) Supported Small Form-Factor Pluggable (SFP) Modules Product Ordering Number Media Speed Typical Distance MFEFX1 Multimode fiber 100 Mbps 2 km MFELX1 Single-mode fiber 100 Mbps 10 km MFEBX1 Single-mode fiber 100 Mbps 20 km MGBBX1 Single-mode fiber 1000 Mbps 40 km MGBSX1 Multimode fiber 1000 Mbps 300 m MGBLH1 Single-mode fiber 1000 Mbps 40 km MGBLX1 Single-mode fiber 1000 Mbps 10 km Environmental Dimensions (W x H x D) Model Metric (mm) Inches SG200-50 440 x 44 x 257 17.35 x 1.73 x 10.1 Unit weight Model Kilograms Pounds SG200-50 3.96 8.73 Power Model Power SG200-50 (external) 100V-240V, 0.5A, 50-60 HZ Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A Operating temperature 32° to 104°F (0° to 40°C) Storage temperature -4° to 158°F (-20° to 70°C) Operating humidity 10% to 90%, relative, noncondensing Storage humidity 10% to 90%, relative, noncondensing - Shipping Payment
-
Delivery
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Delivery Options Estimated Delivery Time
DHL2-4 business days
Fedex2-4 business days
Hong Kong EMS5-10 business days
Hong Kong Air Parcel10-20 business days
By Sea10-20 business days Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.Deliver to door:
Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.Payment Methods
Paypal Master Card Visa Discover American
ExpressJCB Wire Transfer eCheck WestUnion Paypal Master Card Visa Discover American
ExpressJCB Wire Transfer eCheck WestUnion - Warranty
-
Warranty
100% Low Price Guarantee:
Router-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.Free CCIE Technical Support:
Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed Cisco product: 1 Year
Used Cisco product: 3 MonthThe Support Contacts:
If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
