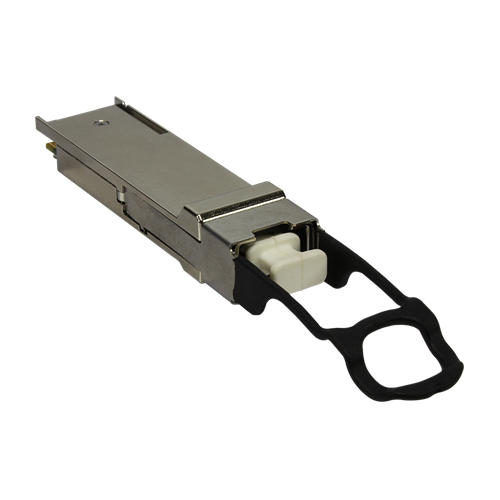

main product photo
Name:

QSFP-40G-eSM4

Model:Huawei QSFP-40G-eSM4 Optical Transceiver
Brand: Huawei
Detail:
40GBase-eSM4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,10km,MPO)(Connect to four SFP+ Optical Transceiver)
Rating:
100%
5/5.0
1 Review
Price:US$799.00
Coupon
Up to $80 Coupons
Get Now
$10.00
Order Over $100
RS10
$20.00
Order Over $2000
RSTW
$50.00
Order Over $5000
RSFI
$80.00
Order Over $8000
RSEI
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

You may also be interested in the following product(s)

SFP-10G-BXD1

SFP-10G-BXD1

Rating:
89%
4.5/5.0
11 Reviews
US$139.00
eSFP-GE-SX-MM850

eSFP-GE-SX-MM850

Rating:
98%
4.9/5.0
24 Reviews
US$41.00
SFP-GE-LX-SM1310

SFP-GE-LX-SM1310

Rating:
94%
4.7/5.0
33 Reviews
US$40.00
SFP-10G-BXU1

SFP-10G-BXU1

US$120.00
SFP-10G-USR

SFP-10G-USR

Rating:
100%
5/5.0
5 Reviews
US$49.00
OSX010N08

OSX010N08

Rating:
100%
5/5.0
1 Review
US$869.00
OMXD30000

OMXD30000

Rating:
98%
4.9/5.0
32 Reviews
US$59.00

QSFP-40G-eSM4

40GBase-eSM4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,10km,MPO)(Connect to four SFP+ Optical Transceiver)

Price: US$799.00
Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

QSFP-40G-eSM4 Overview

Introducing the QSFP-40G-eSM4, a 40GBase-eSM4 Optical Transceiver from Huawei. This QSFP+ module is designed for single-mode networks, supporting transmission distances of up to 10 kilometers at 1310nm wavelength. With its MPO connector, it allows for easy connectivity to four SFP+ Optical Transceivers.

Quick Spec

Table 1 shows the quick spec of QSFP-40G-eSM4.

Module Type 40GBase-eSM4 Optical Transceiver
Interface QSFP+
Fiber Type Single-mode
Transmission Distance 10km

Product Features

  • ● ● High-speed 40G transmission
  • ● ● Compatible with QSFP+ interface
  • ● ● Supports single-mode fiber networks
  • ● ● Long-distance transmission up to 10km
  • ● ● MPO connector for easy connection to SFP+ modules

Product Applications

  • ● ● Data centers
  • ● ● Telecommunication networks
  • ● ● Enterprise networks

Supported Options

Table 2 shows the supported options of QSFP-40G-eSM4.

Accessories Model
QSFP+ to SFP+ Converter Module QSA-40G-CU5M

Compare to Similar Items

Table 3 shows the comparison to similar items of QSFP-40G-eSM4.

Model Differences
QSFP-40G-SR4 Supports multi-mode fiber networks
QSFP-40G-ER4 Supports longer transmission distance up to 30km
QSFP-40G-LR4 Supports longer transmission distance up to 40km

Get more information

Do you have any questions about the QSFP-40G-eSM4 price

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

QSFP-40G-eSM4 Specification

QSFP-40G-eSM4 Specifications
Product Model QSFP-40G-eSM4
Brand Huawei
Module Type 40GBase-eSM4 Optical Transceiver
Form factor QSFP+
Optical fiber type SMF
Connector type MPO/APC (8-strand or 12-strand, type B, female connector)
Maximum Distance 10km
Transmission rate [bit/s] 40 Gbit/s
Target transmission distance [km] Single-mode fiber: 10 km
Center wavelength [nm] 1310 nm
Maximum Tx optical power [dBm] 0.5 dBm
Minimum Tx optical power [dBm] -8.2 dBm
Minimum extinction ratio [dB] 3.5 dB
Rx sensitivity [dBm] -12.6 dBm
Overload power [dBm] 0.5 dBm
Compatible Devices Huawei switches and routers

Quality Certifications

Q&A

Questions & Answers

What should I do if the QSFP-40G-eSM4 isn't working?

If the QSFP-40G-eSM4 isn't working, check the physical connections, ensure the firmware is up-to-date, and refer to the troubleshooting section in the Huawei documentation.

What accessories are available for the QSFP-40G-eSM4?

Accessories for the QSFP-40G-eSM4 include MPO/MTP fiber optic cables, cleaning kits, and compatible SFP+ transceivers for connecting different network segments.

How does the QSFP-40G-eSM4 compare to other transceivers?

The QSFP-40G-eSM4 offers superior long-distance performance (up to 10km) at 40Gbps, with the advantage of connecting to four SFP+ optical transceivers for flexible network configurations.

What are the dimensions and weight of the QSFP-40G-eSM4?

The QSFP-40G-eSM4 has standardized dimensions and weight typical of QSFP+ transceivers, making it easy to integrate into existing network infrastructure. Refer to product specs for exact measurements.
