H835VDGE

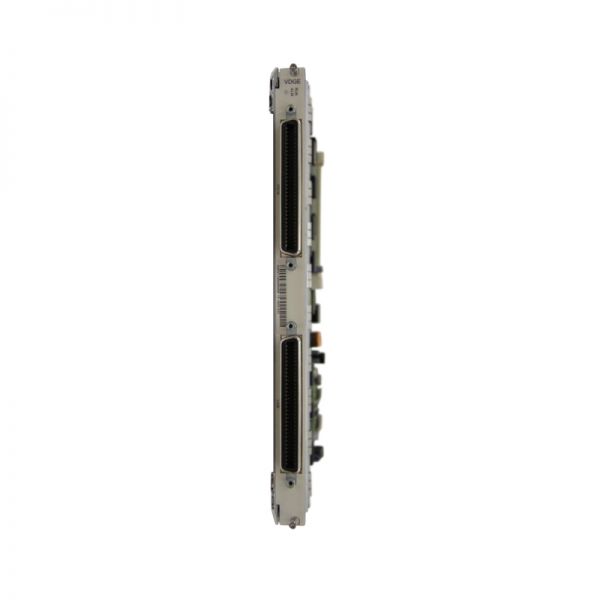

Huawei SmartAX MA5616 16-channel VDSL2 over POTS service board

Stable Global Supply Chain for Thriving Businesses.

$4,000,000 Inventory
500+ Reliable Vendors
Certified Partnerships
Collaborating with FedEx, UPS, DHL

100,000+ Diverse Products for All Your Needs

Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.

Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.

Projects and Technical Support
Easy Purchasing Supply
Product Lifecycle Protection
Exclusive F4 Team Support

Overview

H835VDGE Overview

H835VDGE is a 16-channel VDSL2 over POTS service board. It has a 600-ohm built-in real impedance splitter and is used for VDSL2 over POTS access.

Quick Spec

Table 1 shows the quick spec.

Model	H835VDGE
Connector	Champ 64-pin
Built-in splitter	600 ohms
Maximum frame size	PTM: 1600 bytes ATM: 1800 bytes

Product Details

H835VDGE provides these benefits:

Supports single ended loop testing (SELT).

Supports board power-off for energy conservation.

H835VDGE provides these external interfaces:

24 VDSL2 Lines:

- G.997.1 (physical layer management)

- G.998.2 (Ethernet-based multi-pair bonding)

- G.998.4 (INP for DSL)

- G.994.1 (handshake procedures)

- BF TR-129 (protocol-independent management model)

- BF TR-159 (management framework for xDSL bonding)

Compare to Similar Item

Table 2 shows the comparison.

Model	H835ADLE	H835VDGE
Connector	Champ 64-pin	Champ 64-pin
Built-in splitter	600 ohms	600 ohms
Maximum frame size	2000 bytes (CCUC, or CCUE) 1900 bytes (with CCUB)	PTM: 1600 bytes ATM: 1800 bytes

Get More Information

Do you have any question about the H835VDGE

Quality Certifications

Specification

H835VDGE Specification

H835VDGE Specification
Connector	Champ 64-pin
Built-in splitter	600 ohms
Maximum frame size	PTM: 1600 bytes ATM: 1800 bytes
Operating temperature	-40° C to +65° C
Power consumption	For 17a profiles: • Static: 15 W •Typical: 23 W • Maximum: 29 W For 8b profiles: • Static: 15 W •Typical: 25 W • Maximum: 34 W
Automatic shutdown at high temperature	Supported
Power-on and power-off through the CLI	Supported
Annex	G.992.1 (Annex A) G.992.3 (Annex A/L/M) G.992.5 (Annex A/M) G.993.2 (Annex A/B)
Profile	8a/8b/8c/8d/12a/12b/17a/30a
Vectoring	Not supported
Bonding	Supports the bonding of any four ports on the MA5616 equipped with a CCUE control board. And supports 8-pair bonding when being connected to the MA5694.
SRA	Supported
RFI notching	Supported
UPBO	Supported
DPBO	Supported
G.INP	Supported
INM	Supported
Virtual noise	Supported
Built-in MELT	Not supported
Built-in SELT	Supported
IPv6	Supported
1:1 VMAC	Supported
