- Product Overview

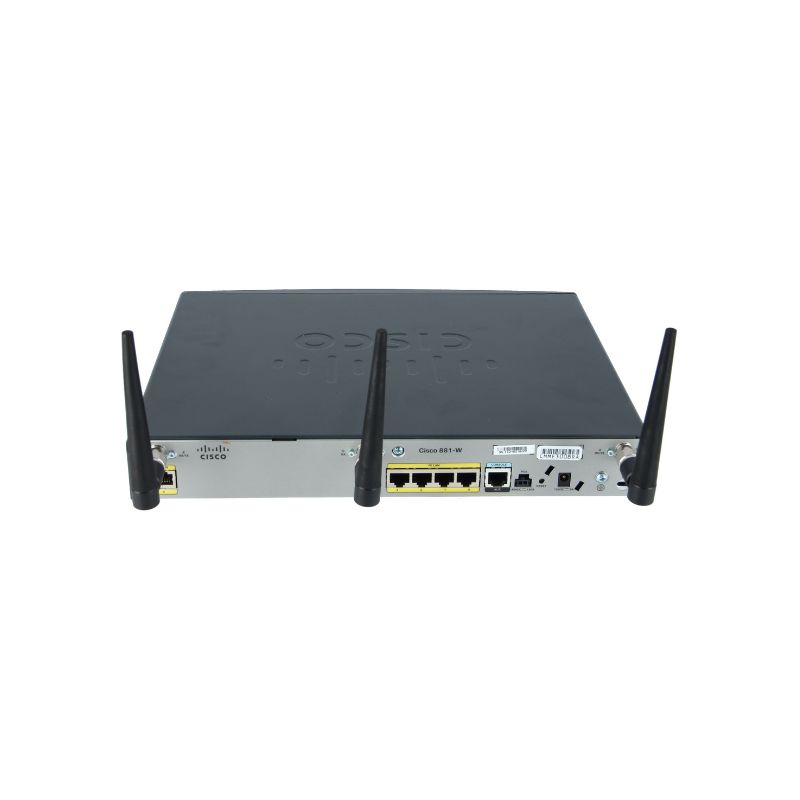

The 10/100-Mbps fast Ethernet models of the Cisco 881 Integrated Services Routers combine Internet access, security and wireless services onto a single, secure device. This router offers broadband speeds and simplified management to small businesses, and enterprise small branch and teleworkers.
Cisco 880 Series Integrated Services Routers
Universal Cisco IOS Image
SecurityCisco IOS Firewall,IPS,IPsec (3DES and AES),SSL VPN
IP BaseEntry-Level Cisco IOS Software Function
- Four-port 10/100 Fast Ethernet managed switch with VLAN support; two ports support Power over Ethernet (PoE) for powering IP phones or external access points
- Secure 802.11g/n access-point option based on draft 802.11n standard with support for autonomous or Cisco Unified WLAN architectures
- CON/AUX port for console or external modem
- One USB 1.1 port for security eToken credentials, booting from USB, and loading configuration
- Easy setup, deployment, and remote-management capabilities through web-based tools and Cisco IOS® Software
The Cisco 880 Series provides:
- Content filtering
- VPNs, and WLANs, at broadband speeds to small offices
- Easy deployment
- Centralized management features
Available options on the Cisco 881 Integrated Services Router include:
- Survivable Remote Site Telephony for teleworker and small branch voice
- Built-in advanced security, including intrusion prevention, GET VPN, dynamic multipoint VPN (DMVPN) for up to 20 site-to-site VPN tunnels
- Cisco Configuration Professional for simplified management
- WAN connection with multiple access options
- Business continuity with primary and backup connections on the Cisco 880 router, including third-generation wireless and ISDN
CISCO881-SEC-K9 data sheet Manufacturer Cisco Systems, Inc Manufacturer Part Number CISCO881-SEC-K9 Product Type Router - 4-port switch (integrated) Form Factor Desktop Connectivity Technology Wired Data Link Protocol Ethernet, Fast Ethernet Capacity IPSec VPN tunnels : 20 Network / Transport Protocol L2TP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS Routing Protocol OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, PIM-SM, GRE Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, SSH Encryption Algorithm LEAP, DES, Triple DES, SSL, PEAP, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES Authentication Method RADIUS, TACACS+ Features NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, Stateful Packet Inspection (SPI), content filtering, DiffServ support, MAC address filtering, IPv6 support, High Availability, Intrusion Prevention System (IPS), URL filtering, Stateful Failover, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), WAN failover, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, Bidirectional Forwarding Detection (BFD) Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x DRAM Memory 256 MB (installed) / 768 MB (max) Flash Memory 128 MB LED Status Lights Indicators Port status, power Connectivity Slots Router Interfaces LAN : 4 x 10Base-T/100Base-TX - RJ-45
Management : 1 x console - RJ-45
WAN : 1 x 10Base-T/100Base-TX - RJ-45
USB : 1 x 4 PIN USB Type A
Power Supply Power Device Power adapter - external - 60 Watt Voltage Required AC 120/230 V ( 50/60 Hz ) Dimensions / Weight / Miscellaneous Width 32.5 cm Depth 24.9 cm Height 4.4 cm Weight 2.5 kg Compliant Standards CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, AS/NZ 3548 Class B, EN 60555-2, FCC CFR47 Part 15, EN300-386, FCC CFR47 Part 15 B, VCCI V-3 System Software IOS Software Included Cisco IOS Advanced IP Service
- Shipping Payment
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Delivery Options Estimated Delivery Time DHL 2-4 business days Fedex 2-4 business days Hong Kong EMS 5-10 business days Hong Kong Air Parcel 10-20 business days By Sea 10-20 business days
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.
Paypal Master Card Visa Discover American
JCB Wire Transfer eCheck WestUnion Paypal Master Card Visa Discover American
JCB Wire Transfer eCheck WestUnion
100% Low Price Guarantee:
Router-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.
Free CCIE Technical Support:
You can contact our customer service team to exchange or return any product that you bought from us.
100% Money Back Guarantee:
Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month
The Support Contacts:
If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Product FAQ (CISCO881-SEC-K9)
Q: Can you please recommend a low-cost Cisco VPN solution for us. The VPN routers will be used in 10 branches + 1HQ
A: 11* CISCO881-SEC/K9 would meet small offices’ need.
