CISCO1941/K9

Model: CISCO1941/K9 Cisco 1941 Router ISR G2
Detail: Cisco 1941 Router w/2 GE,2 EHWIC slots,256MB CF,512MB DRAM,IP Base
Price: US$590.15
List Price: US$1,595.00
You save: US$1,004.85 (63% OFF)
Condition: Brand New Sealed
Availability: In stock
US$ 590.15 In stock
OR
Product Overview

Overview (CISCO1941/K9)

The Cisco 1941 Router, modular router, is designed for branch offices.

Quick Specs

Figure 1 shows the front view of Cisco Router 1941/K9.

CISCO1941/K9

Table 1 shows the Quick Specs of the CISCO1941/K9.

Product Code

CISCO1941/K9

Rack Units

2 RU

Interfaces

2 integrated 10/100/1000 Ethernet ports: GE0/0&GE0/1

Expansion Slot(s)

2 enhanced High-Speed WAN Interface Card slots

1 Internal Services Module slot

RAM

512 MB (installed) / 2.5 GB (max)

Flash Memory

256 MB (installed) / 8 GB (max)

Dimensions

34.3 cm x 29.2 cm x 8.9 cm

Package Weight

10.48 Kg

Product Details

Figure 2 shows the statue LEDs, on the front panel of the 1941/K9, including three statues: SYS, ACT and PoE.

CISCO1941/K9 Front LED

Table 2 shows the front panel LEDs area description.

LED

Color

Description

SYS

Solid green

Solid green indicates normal operation.

Blinking green

System is booting or is in ROM monitor mode.

Amber

System error.

Off

Power is off or system board is faulty.

ACT

Green

Solid or blinking when any packets are transmitted or received on any WAN or LAN, or when monitoring system activity.

PoE

Green

PoE is available.

Amber

Power supply is not supplying PoE power.

Figure 3 shows the back panel of this router with LEDs.

CISCO1941/K9 Back LED

Note:

Kensington security slot

EN (Enable USB console)

CF 1

EN (Enable RJ-45 console)

CF 0

S (Speed)

ISM or WLAN

L (Link)

Table 3 shows the back panel LEDs area description.

LED

Color

Description

Location

CF 1

Green

Flash memory is busy.

Back Panel

Amber

Initialized with error.

Blinking Green then turns off

CompactFlash is ready for removal.

CF 0

Green

Flash memory is busy.

Back Panel

Amber

Initialized with error.

Blinking Green then turns off

CompactFlash is ready for removal.

S (Speed)

1 blink + pause

GE port operating at 10 Mb/s.

Back Panel

2 blink + pause

GE port operating at 100 Mb/s.

3 blink + pause

GE port operating at 1000 Mb/s.

L (Link)

Green

GE link is established.

Back Panel

Off

No GE link is established.

EN (RJ-45 console port)

Green

The RJ-45 console port is active.

Back Panel

EN (USB serial console port)

Green

The USB console port is active.

Back Panel

Figure 4 shows the ports and slots on the back panel of Cisco 1941/K9.

CISCO1941/K9 Back Slot

Note:

On/Off switch

Compact flash 2

HWIC slot 1

HWIC slot 2

Input power connector

USB serial port

AUX port

GE 0/1

GE 0/0

USB ports

Compact flash 1



·Cisco 1941/K9 supports 2 integrated EHWIC slots for flexible configurations. It supports two modules: 1 double wide HWIC-D or single wide EHWIC/HWIC module or a 2nd single wide E-HIC/HWIC module.

·2 high-speed USB 2.0 ports enable another mechanism secure token capabilities and storage.

·The 1941 has 2 external Compact Flash slots supporting to extend up to 8GB.

Figure 5 shows the internal view of the Cisco 1941.

There is a blank Memory slot inside the device, supporting to extend memory.

CISCO1941/K9 Internal view

Modularity Features

The Cisco 1941 provides significantly enhanced modular capabilities offering investment protection for customers.

Table 4 shows interfaces and modules for this router.

Models

Description

ISM-SRE-300-K9

Internal Services Module (ISM) with Services Ready Engine

MEM-CF-256U1GB

256MB to 1GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U2GB

256MB to 2GB Compact Flash Upgrade for Cisco 1900,2900,3900

MEM-CF-256U512MB

256MB to 512MB CF Upgrade for Cisco 1900,2900,3900 ISR

MEM-CF-256U4GB

256MB to 4GB Compact Flash Upgrade for Cisco 1900,2900,3900

EHWIC-1GE-SFP-CU

Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU

EHWIC-4ESG

Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card  for Cisco 1900 2900 3900 Routers

HWIC-2FE

HWIC two routed port Cisco Router High-Speed WAN Interface card

HWIC-1T

1-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

HWIC-2T

2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card

VWIC3-1MFT-T1/E1

Cisco Voice/WAN Card VWIC3-1MFT-T1/E1

VWIC3-2MFT-T1/E1

Cisco Voice/WAN Card VWIC3-2MFT-T1/E1

VWIC3-1MFT-G703

Cisco Voice&WAN T1/E1 interface moudle VWIC3-1MFT-G703

VWIC3-2MFT-G703

Cisco Voice/WAN Card VWIC3-2MFT-G703

The Licenses

The Cisco 1941/K9 router supports IOS Technology Package Licenses.

Table 5 shows the models of these licenses.

Licenses

Description

L-SL-19-DATA-K9

Cisco 1900 IOS License L-SL-19-DATA-K9= Data E-Delivery PAK for Cisco 1900

L-SL-19-SEC-K9

Security License for Cisco 1900

L-SL-19-APP-K9

AppX License with; DATA and WAAS for Cisco 1900 Series

Compare to Similar Routers

Table 6 shows the comparison between Cisco 1921 router and 1941 router.

Model

CISCO1921/K9

CISCO1941/K9

Price

$478.00

$623.00

Interface

w/2 GE

2 GE

EHWIC slot

2

2

SIM Slot

0

1

Memory

512 MB (installed) / 512 MB (max)

512 MB (installed) / 2 GB (max)

Flash Memory

256 MB (installed) / 256 MB (max)

256 MB (installed) / 8 GB (max)

Rack Unit

1U

2U

Get More Information

Do you have any question about the Cisco 1941/K9 router?

Contact us now viaLive Chat or cisco@router-switch.com.

Specification

Specification (CISCO1941/K9)

Cisco 1941 Router details
Manufacturer Cisco Systems, Inc
Manufacturer Part Number CISCO1941/K9
Product Type Router
Form Factor External - modular - 2U
Dimensions (WxDxH) 34.3 cm x 29.2 cm x 8.9 cm
Weight 5.8 kg
DRAM Memory 512 MB (installed) / 2 GB (max)
Flash Memory 256 MB (installed) / 8 GB (max)
Routing Protocol OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol IPSec
Remote Management Protocol SNMP, RMON
Features Cisco IOS IP Base , firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED)
Compliant Standards IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag
Power AC 120/230 V ( 50/60 Hz

  Cisco 1941 Router Specification

Services and Slot Density

Embedded hardware-based crypto acceleration (IPSec + SSL)

Yes

Total Onboard LAN 10/100/1000

2

RJ-45-Based Ports

2

SFP-Based Ports

0

SM Slots

0

Double-Wide SM Slots

0

EHWIC Slots

2

Double-Wide EHWIC slots (use of a double-wide EHWIC slot will consume two EHWIC slots)

1

ISM Slots

1 (0 on the Cisco 1941W)

Memory (DDR2 Error Correction Code [ECC] ECC DRAM) - Default

512 MB

Memory (DDR2 ECC DRAM) - Maximum

2.0 GB

Compact Flash (external) - Default

slot 0: 256 MB

slot 1: none

Compact Flash (external) - Maximum

slot 0: 4 GB

slot 1: 4 GB

External USB flash memory slots (Type A)

2

USB Console Port (Type B) (up to 115.2 kbps)

1

Serial Console Port (up to 115.2 kbps)

1

Serial Auxiliary Port (up to 115.2 kbps

1

Power Supply Options

AC, POE

Redundant Power Supply Support

No

Power Specifications

AC Input Voltage

100-240 V ~

AC Input Frequency

47-63 Hz

AC Input Current range AC Power Supply (Max) (Amps)

1.5-0.6

AC Input Surge Current

<50 A

Typical Power (No Modules)

35 W

Maximum Power capacity with AC power supply

110 W

Maximum Power capacity with PoE power supply (platform only)

110 W

Maximum PoE device power capacity with PoE power supply

80 W

Physical Specifications

Dimensions (H x W x D)

3.5 in x 13.5 in x 11.5 in

Rack Height

2 RU

Rack-mount 19in. (48.3 cm) EIA

Included

Wall-mount (refer to installation guide for approved orientation)

Yes

Weight-with AC power supply (no modules)

12 lbs

Weight-with POE power supply (no modules)

12.8 lbs

Maximum Weight-Fully Configured

14 lbs

Airflow

Front to Side

Environmental Specifications

Operating Condition



Temperature-5906 feet (1800 m) max. altitude

0-40°C (32-104°F)

Temperature-9843 feet (3000 m) max. altitude

0-25°C (32-77°F)

Altitude

3000 m (10000 ft)

Humidity

10 to 85% RH

Acoustic: Sound Pressure (Typ/Max)

26/46 dBA

Acoustic: Sound Power (Typ/Max)

36/55 dBA

Transporation/Storage Condition

Temperature

-40 - 70 oC (-40 - 158 oF)

Humidity

5 to 95%RH

Altitude

4570m (15000 ft)

Regulatory Compliance

Safety

UL 60950-1

CAN/CSA C22.2 No. 60950-1

EN 60950-1

AS/NZS 60950-1

IEC 60950-1

EMC

47 CFR, Part 15

ICES-003 Class A

EN55022 Class A

CISPR22 Class A

AS/NZS 3548 Class A

VCCI V-3

CNS 13438

EN 300-386

EN 61000 (Immunity)

EN 55024, CISPR 24

EN50082-1

Telecom

TIA/EIA/IS-968

CS-03

ANSI T1.101

ITU-T G.823, G.824

IEEE 802.3

RTTE Directive

Shipping Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa Discover American
Express
JCB Wire Transfer eCheck WestUnion
Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

You can contact our customer service team to exchange or return any product that you bought from us.

100% Money Back Guarantee:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews 5 item(s)

cisco 1941 K9

It\'s no doubt that Cisco 1941 k9 is one of the best Cisco device. Easy to configure and pretty price! Wonderful!

55
by poxriug / (Posted on 2/25/2014)
CISCO1941/K9

solid Cisco router, very well built. Expandable to do almost everything you could want it to. Cisco 1941, easy to upgrade.

55
by Vivi7 / (Posted on 9/28/2013)
Nice product

good product, fast delivery

55
by khawaj / (Posted on 7/13/2013)
cisco 1941/k9

Be Solid, reliable and simple to use. This cisco router owns 2 EHWIC slots,256MB CF,512MB DRAM,IP Base and none have failed me yet so far!

55
by Maruti / (Posted on 9/13/2012)
THATS REALLY GOOD

It was a very good bussines .I recoment this seller because is better than others making offer about this type ios equipement

55
by faustony27 / (Posted on 7/26/2011)

Product FAQ (CISCO1941/K9)

Q: Which CISCO router is suitable as gateway router for medium size organization of about 80 client computers connected to the internet?

A: Cisco1900 Series Router is OK.

Q: 1941/K9 that I would wish to make to support for VPN?

A: That depends, if you want to setup IPSec VPN, you would need SL-19-SEC-K9 or l-sl-19-sec-k9 license; if you want to use SSL VPN, you should buy a fl-sslvpn**-k9, the number depends on your SSL users.

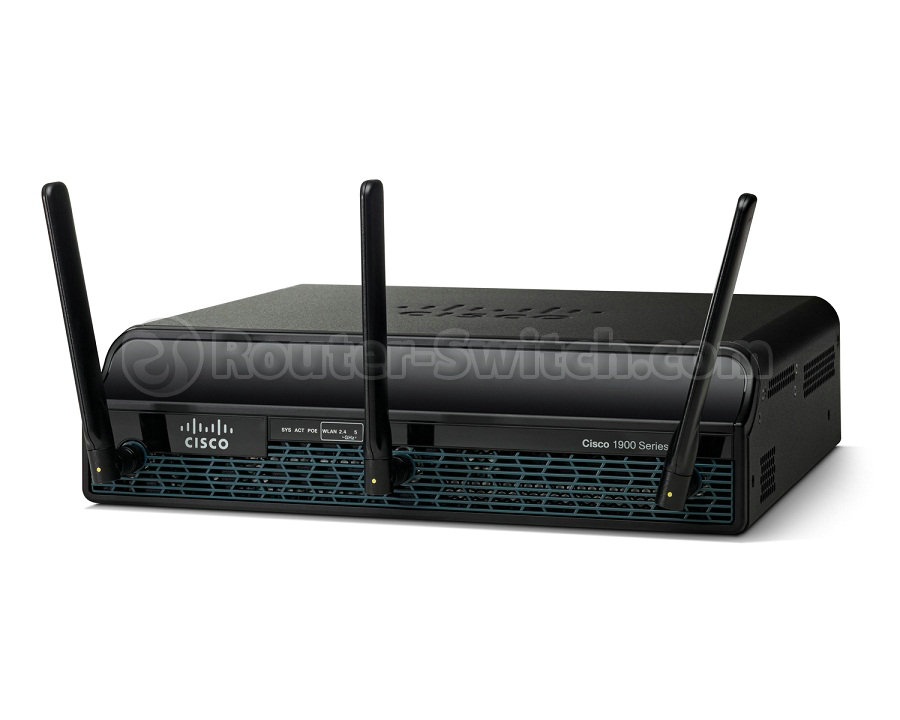

Q: I am looking at the pictures of Cisco1941-k9, but on the back of the router, I don't see a Fiber input from my ISP Provider and Fiber output for my switch.Well, this is what I am going to get from my ISP. They will provide me a dedicated internet connection with a Fiber cable into my office. And it will be Internet only or data only. So, input in router will be Fiber and output from router should also be Fiber to my switch.

A: Do not worry, HWIC-1GE-SFP GigE High Speed WIC with One SFP Slot and EHWIC-1GE-SFP-CU are designed for your problem. They can add SFP ports to 1900 2900 & 3900 Series Routers.

Q: I bought a 1941W but i bought it with just IPBASE license and now in need of the securityk9 and SSL VPN for it. I just want to confirm that what Im purchasing is for an IOS with payload encryption. I’m just looking for SSL for upto 10 users.

A: SL-19-SEC-K9 & FL-SSLVPN10-K9 are either needed.

Q: In site to site VPN, we know both end IP address, we assigned set peer cmd. If the interface are configured with DHCP(ISP), we don't know the interface IP address. At this scenario, how to configure site to site vpn. In remote VPN, how to configure remote VPN in cisco router. How to provide IP address dynamically to client host.

A: Don't know if it can be used with a single site-to-site VPN, but DMVPN can use NHRP to support non-hub with dynamic tunnel IPs. The client is configured with a hub's IP, and it uses NHRP to register its public IP with the hub. The hub then "knows" the remote IP. (NB: it also supports the remote IP being changed.)

Q: What is the basic setup required to configure 3 ISPs on a router interface?

A: I would say that these are the basic steps for setting up 3 ISP on a single router. - decide which interface will be for which ISP. - obtain IP addressing information from each ISP. - configure appropriate IP address and subnet mask on each of the ISP interfaces. - configure address translation for each of the 3 ISP interfaces. - determine what approach you will use for routing. Will it be static routes or some dynamic routing protocol, or some mix of these? - implement the appropriate routing solution for each of the ISP.

Q: We are receiving low internet upload speed (6-8Mps) at our office location. The download speed is good (50Mbps).

Got in contact with the ISP Comcast and tried testing it bypassing our internal n/w i.e. connecting my laptop directly to Cienna (Comcast GW) and both speeds were around 50Mbps. Testing the same through my router the speed goes down. Just the Upload speed. Could there be a configuration in our router thats causing this? FYI on the internet interface the settings are 'Duplex full 'Speed auto

A: Clear the counters and change the speed and duplex to auto/auto.

Q: We are looking to put Cisco routers into some client sites. Was looking at 1841's but they are end of life now I believe, can someone recommend an alternative / or it's replacement?

A: The 1941 is the successor to the 1841. However, new devices are faster, so you might be able to "downsize". For example, an 1841 is rated at 75 Kpps while a 890 is rated at 100 Kpps. Conversely, many new WAN circuits provide much more bandwidth then we usually obtained via TDM. If using such, you might need the faster successor or even a faster device.

In other words, you may want to re-examine your needs rather then just using a successor platform becuase it's the successor platform.



Q: I have bought new 1941 router and i have installed a new EHWIC-4ESG card to it, but unfortunately it is not being detected.

Please suggest, i have tried with all the supported ios images. But still it is not working.



A: What IOS are you using? You need a minimum of 15.1(2)T.

Q. If I purchased a Cisco ISR G2 router on Cisco IOS Software Release 15.0(1) M before the limitation was imposed, what should I do? And should I need to upgrade my Cisco IOS Software?

A: Assuming that you already have purchased the securityk9 package for encryption, you must purchase a HSEC-K9 license as a spare.

Q.Why do I need to purchase the SEC-K9 license as a spare?

A. If you purchase a Cisco ISR G2 chassis and later decide to turn on security features, you must buy a SEC-K9 license. The administrator must download the license to the router and follow the license installation instructions that come with the license to be able to use the security features on the router.

Q. On the Cisco ISR G2 routers with the SEC-K9 license, what tunnel count and performance throughput are available?

A. The SEC-K9 permanent licenses apply to the Cisco 1900, 2900, and 3900 ISR G2 platforms; these licenses limit all encrypted tunnel counts to 225 tunnels maximum for IP Security (IPsec), Secure Sockets Layer VPN (SSL VPN), a secure time-division multiplexing (TDM) gateway, and secure Cisco Unified Border Element (CUBE) and 1000 tunnels for Transport Layer Security (TLS) sessions. The SEC-K9 license limits encrypted throughput to less than or equal to 85-Mbps unidirectional traffic in or out of the ISR G2 router, with a bidirectional total of 170 Mbps. This requirement applies for the Cisco 1900, 2900, and 3900 ISR G2 platforms.

Q. What countries are classified license-free zones?

A. Countries belonging to the EU license-free zone include Australia, Austria, Belgium, Bulgaria, Canada, Cypress, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Malta, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom, and the United States.

You may also be interested in the following product(s)

Product Tags
