The Cisco 1921 Router, which Memory and Flash Memory can't upgrade, is designed for branch offices.

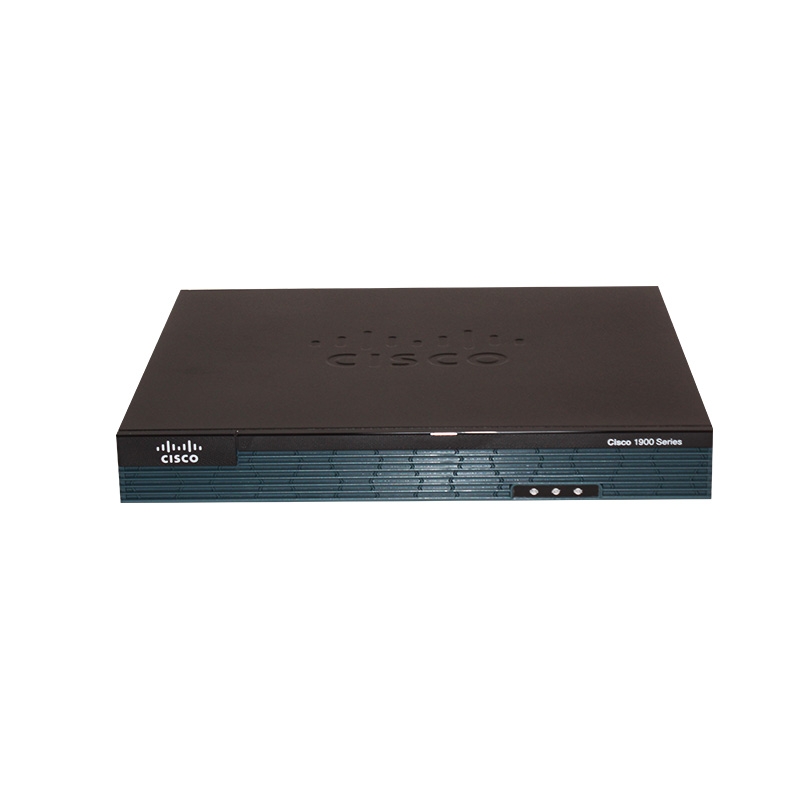

Figure 1 shows the front view of Cisco Router 1921/K9.
Table 1 shows the Quick Specs of the CISCO1921/K9.
2 integrated 10/100/1000 Ethernet ports: GE0/0&GE0/1
2 enhanced High-Speed WAN Interface Card (EHWIC) slots
512 MB/512 MB
256 MB/256 MB
1.75 x 13.5 x 11.5 in.
Figure 2 shows the statue LEDs, on the front panel of the 1921/K9, including three statues: SYS, ACT and PoE.
Table 2 shows the front panel LED area description.
Solid green indicates normal operation.
System is booting or is in ROM monitor mode.
Power is off or system board is faulty.
Solid or blinking when any packets are transmitted or received on any WAN or LAN, or when monitoring system activity.
PoE is available.
Power supply is not supplying PoE power.
Figure 3 shows the back panel of the CISCO1921/K9.
① Flash LED ⑥ Baud reset
② EN (USB serial console port) ⑦ Ground connector
③ EN(RJ-45 console port) ⑧ On/Off switch
④ S (Speed) ⑨ USB port
⑤ L (Link) ⑩ Kensington security slot
Table 3 shows the back panel LED area description.
Blinking means software is accessing the internal USB Flash (eUSB) device.
Initialized with error.
EN (USB serial console port)
The USB console port is active.
The RJ-45 console port is active.
1 blink + pause
GE port operating at 10 Mb/s.
2 blink + pause
GE port operating at 100 Mb/s.
3 blink + pause
GE port operating at 1000 Mb/s.
GE link is established.
No GE link is established.
Figure 4 shows the ports and slots on the back panel of Cisco 1921/K9.
① EHWIC slot ⑤ USB serial port
② Auxiliary port ⑥ RJ-45 serial console port
③ GE 0/0（down）and 0/1(up) ⑦ USB port
④ Input power connector ⑧ POE
* Cisco 1921/K9 supports 1 integrated EHWIC slots for flexible configurations. It supports two modules:
1. 1 double wide HWIC-D or single wide EHWIC/HWIC module or 2 single wide EHWIC/HWIC module.
2. High-speed USB 2.0 ports enable another mechanism secure token capabilities and storage.
Figure 5 shows the unboxing view of CISCO1921/K9.
Recommended Cards and Licenses
Table 4 shows recommended EHWIC, HWIC, VWIC cards and licensesfor this router.
Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU
Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers
HWIC two routed port Cisco Router High-Speed WAN Interface card
1-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card
2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card
Cisco Voice/WAN Card VWIC3-1MFT-T1/E1
Cisco Voice/WAN Card VWIC3-2MFT-T1/E1
Cisco Voice & WAN T1/E1 interface moudle VWIC3-1MFT-G703
Cisco Voice/WAN Card VWIC3-2MFT-G703
Cisco 1900 IOS License L-SL-19-DATA-K9= Data E-Delivery PAK for Cisco 1900
Security License for Cisco 1900
AppX License with; DATA and WAAS for Cisco 1900 Series
Get More Information
Do you have any question about the Cisco 1921/K9 router?
Contact us now via Live Chat or email@example.com.
Services and Slot Density
Embedded hardware-based cryptography acceleration (IPsec + SSL)
RJ-45 onboard LAN/WAN 10/100/1000 ports
Doublewide EHWIC slots (use of a doublewide EHWIC slot will consume 2 EHWIC slots)
Cisco Integrated Services Module (ISM) slots
Memory (DDR2 DRAM): Default/maximum
512 MB/512 MB
USB flash memory (internal): Default/maximum
256 MB/256 MB
External USB flash-memory slots (Type A)
USB console port (mini-Type B) (up to 115.2 kbps)
Serial console port (up to 115.2 kbps)
Serial auxiliary port (up to 115.2 kbps
Integrated power supply
AC and DC power-supply models
POE (external) - on AC models only
AC input voltage
AC input frequency
AC input current range AC power supply (maximum) (amps)
AC input surge current
Typical power (no modules)
Maximum power capacity with AC power supply
Maximum power capacity with PoE power supply (platform only)
Maximum PoE device power capacity with PoE power supply
DC power input
32-60 VDC, 4A, positive or negative, single source
DC input wire size
AWG 14 (2.0 mm2)
Safety ground-wire size
AWG 14 (2.0 mm2), minimum
Wire terminal (lug)
Dimensions (H x W x D)
1.75 x 13.5 x 11.5 in. (4.45 x 34.29 x 29.21 cm)
1 rack unit (1RU)
Rack-mount 19 in. (48.3 cm) EIA
Wall-mount (refer to installation guide for approved orientation)
11.9 lb (5.41 Kg)
Weight: With AC power supply (no modules)
6.75 lb (3.06 Kg)
Weight: With PoE power supply (no modules)
7.5 lb (3.4 Kg)
Back to sides
Temperature: 5906 ft (1800m) maximum altitude
Temperature: 9843 ft (3000m) maximum altitude
10,000 ft (3,000m)
10 to 85% relative humidity (RH)
Acoustic: Sound pressure (typical/maximum)
Acoustic: Sound power (typical/maximum)
Transportation and Storage Conditions
-40 to 158°F (-40 to 70°C)
5 to 95% RH
15,000 ft (4,570m)
CAN/CSA C22.2 No. 60950-1
47 CFR, Part 15
ICES-003 Class A
EN55022 Class A
CISPR22 Class A
AS/NZS 3548 Class A
EN 61000 (Immunity)
EN 55024, CISPR 24
Please urgently confirm that this Router CISCO1921/K9 has BGP (Border Gateway Protocol).
YES, BGP is supported by almost all Cisco Routers.
Cisco 1921 CAN support Vwic2-2MFT-T1/E1?
The 1900 series routers which IOS supports IP SLA?
The dedicated or SLAs router is used exclusively for Cisco IOS IP SLA operations and is connected to the edge routers to simulate the customer network traffic. It is typically a Cisco 1900, 2800, 2900, 3800, 3900 or 7200 Series Router.
I have a 1921 router. Using usb cable I can connect to the console but cannot get the router into rommon mode. I saw a post for a 1941 router where you can remove the flash to get it into rommon mode, but the 1921 flash cannot be removed. I am using Mac terminal and screen command but am not able to send break signal. would love to know if it’s possible.
I think you can. The CF is "hidden" behind a dust cover. The slots are located at the BACK of the unit, to the left. The back is where the ports and EHWIC slots are.
The problem i'm running into is all the sample configs for Cisco 1921 sample working config for VDSL with a VA-DSL-A card, i'm finding are for much older code, i need it for a 1921 with version 15.2(3)T.
Hi, I believe you have an EHWIC-VA-DSL-A card installed on the C1921 device. The sample configuration for the same would be as follows, 1. Configure the Controller, 2. Configure the Ethernet interface & its sub-interface, 3. Configure the Dialer interface and as per you requirements, you can configure the Authentication, IP addressing etc.
If I purchased a Cisco ISR G2 router on Cisco IOS Software Release 15.0(1) M before the limitation was imposed, what should I do? And should I need to upgrade my Cisco IOS Software?
Assuming that you already have purchased the securityk9 package for encryption, you must purchase a HSEC-K9 license as a spare.
Why do I need to purchase the SEC-K9 license as a spare?
If you purchase a Cisco ISR G2 chassis and later decide to turn on security features, you must buy a SEC-K9 license. The administrator must download the license to the router and follow the license installation instructions that come with the license to be able to use the security features on the router.
On the Cisco ISR G2 routers with the SEC-K9 license, what tunnel count and performance throughput are available?
The SEC-K9 permanent licenses apply to the Cisco 1900, 2900, and 3900 ISR G2 platforms; these licenses limit all encrypted tunnel counts to 225 tunnels maximum for IP Security (IPsec), Secure Sockets Layer VPN (SSL VPN), a secure time-division multiplexing (TDM) gateway, and secure Cisco Unified Border Element (CUBE) and 1000 tunnels for Transport Layer Security (TLS) sessions. The SEC-K9 license limits encrypted throughput to less than or equal to 85-Mbps unidirectional traffic in or out of the ISR G2 router, with a bidirectional total of 170 Mbps. This requirement applies for the Cisco 1900, 2900, and 3900 ISR G2 platforms.
