Model: Cisco Catalyst 6807-XL Modular Switch
Detail: Cisco Catalyst 6800 switch chassis, 10RU, Super 2T Engine, 880Gbps/slots, 11.4Tbps system bandwidth, no PS, no Fan Tray
List Price: US$15,000.00
Price: $9,450.00
You save: US$5,550.00 (37% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Worldwide
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 9,450.00 In stock Brand New Sealed
OR

C6807-XL SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (C6807-XL)

Catalyst 6807-XL 7-slot chassis, 10RU (spare).This C6807-XL is similar with the C6807-XL=. The C6807-XL= is a spare one.

Quick Specs

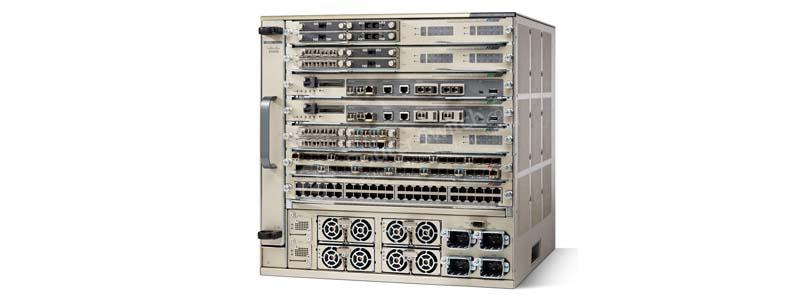

Figure 1 shows the appearance of C6807-XL.

C6807-XL Appearance

Table 1 shows the Quick Specs.

Product Code

C6807-XL

Number of slots

7

Number of Supervisor Engine Slots

2

Number of Module Slots

5

redundant supervisor engines

Yes

system bandwidth capacity

up to 11.4 terabits per second (Tbps)

 per-slot bandwidth for all slots

440 Gbps

Rack units (RU)

10

Power Supply Compatibility

AC: 3000W (up to 4 power supplies)

Operating temperature (T-T)

32 - 104  °F

redundant power supply modules

Yes(AC input)

Input Voltage

100 to 240 VAC

-48 to -60 VDC

Physical Dimensions (H x W x D)

·Inches:17.45 x 17.37 x 18.1
·Centimeters:44.3 x 44.1 x 46

Weight

·Chassis Only (lbs):62
·Fully Configured (lbs):185

Product Details

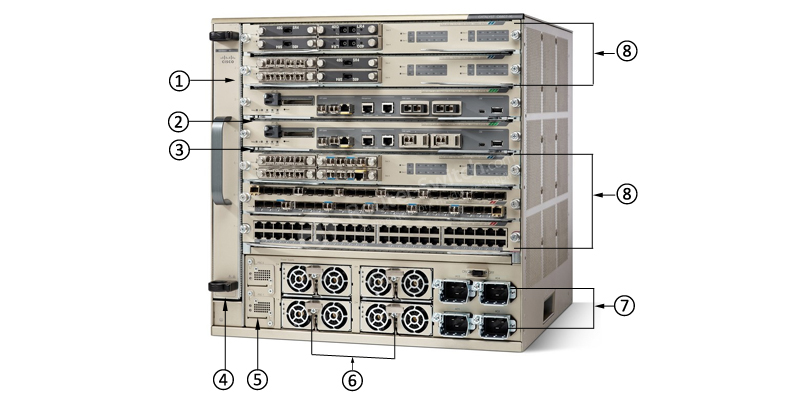

Figure 2 shows the Cisco Catalyst 6807-XL Front Panel.

C6807-XL Front Panel

Note:

Fan tray

Supervisor engine slot

Supervisor engine slot

System ground connector

Power supply converter (PSC), labeled PSC1 and PSC2

Power supply modules (PSMs), labeled 1 through 4

Power entry modules (PEMs), labeled AC1 through AC4

Module slots (line cards) 1, 2, 5,6, and 7


·Fan Tray, Sup6T and 2 Power Supplies are provided in the C6807-XL, other module are not included in the C6807-XL; they are ordered separately.

The Power

Table 2 shows the recommended elements for the C6807-XL.

Category

Model

Description

Power

C6800-XL-3KW-AC

Catalyst 6807-XL 3000W Power Supply

Compare to Similar Items

Table 3 shows the comparison of C6807-XL and C6880-X-LE.

Product Code

C6807-XL

C6880-X-LE

Product Type

Switch Chassis

Switch Chassis

Rack units

10RU

5RU

Supervisor engines

Super 2T Engine

Super 2T Engine

redundant power supply modules

Yes(AC input)

Yes

Input Voltage

100 to 240 VAC

-48 to -60 VDC

110 V AC
220 V AC

Get More Information

Do you have any question about the C6807-XL?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (C6807-XL)

C6807-XL= Specification

Number of Slots

7

Number of Supervisor Engine Slots

2

Number of Module Slots

5

Supervisor Compatibility

C6800-SUP6T

C6800-SUP6T-XL

VS-S2T-10G

VS-S2T-10G-XL

Module Compatibility

C6800-32P10G

C6800-32P10G-XL

C6800-16P10G

C6800-16P10G-XL

C6800-8P10G

C6800-8P10G-XL

WS-X6904-40G-2T

WS-X6904-40G-2TXL

WS-X6908-10G-2T

WS-X6908-10G-2TXL

WS-X6816-10G-2T

WS-X6816-10G-2TXL

WS-X6816-10T-2T

WS-X6816-10T-2TXL

WS-X6848-SFP-2T

WS-X6848-SFP-2TXL

WS-X6824-SFP-2T

WS-X6824-SFP-2TXL

WS-X6848-TX-2T

WS-X6848-TX-2TXL

WS-X6704-10GE (with CFC or DFC4)

WS-X6748-GE-TX (with CFC or DFC4)

WS-X6748-SFP (with CFC or DFC4)

WS-X6724-SFP (with CFC or DFC4)

WS-X6716-10G-3C (with DFC4)

WS-X6716-10G-3CXL (with DFC4XL)

WS-X6716-10T-3C (with DFC4)

WS-X6716-10T-3CXL (with DFC4XL)

NAM3

ASA-SM

WiSM2

ACE30

Performance

The chassis is capable of up to 440 Gbps per slot

The performance of the individual modules is available in the module data sheets.

Power Supply Compatibility

AC: 3000W (up to 4 power supplies)

Reliability and Availability

Online Insertion and Removal (OIR)

OIR of the following components: supervisor engines, line card modules, power supplies, and fan tray

MIBs

Check the supervisor engine data sheet

Network Management

Check the supervisor engine data sheet

Physical Dimensions (H x W x D)

Inches

17.45 x 17.37 x 18.1

Centimeters

44.3 x 44.1 x 46

Rack units (RU)

10

Weight

Chassis Only (lbs)

62

Fully Configured (lbs)

185

Input Voltage

100 to 240 VAC

-48 to -60 VDC

Safety

UL 60950 Second Edition

CAN/CSA-C22.2 No. 60950 Second Edition

EN 60950 Second Edition

IEC 60950 Second Edition

AS/NZS 60950

EMC

FCC Part 15 (CFR 47) Class A

VCCI Class A

EN55022 Class A

CISPR 22 Class A

CE marking

AS/NZS 3548 Class A

ETS300 386

EN55024

EN61000-6-1

EN50082-1

ETSI

ETS 300 019 Storage Class 1.1

ETS 300 019 Transportation Class 2.3

ETS 300 019 Stationary Use Class 3.1

Operating Environment

Operating Temperature

32°F to 104°F (0 to 40°C)

Storage Temperature

-4 to 149°F (-20 to 65°C)

Thermal Transition

0.5°C per minute (hot to cold)

0. 33°C per minute (cold to hot)

Relative Humidity

Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Operating Altitude

Certified for operation: 0 to 6500 ft (0 to 2000 m)

Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)
