ASA5516-FPWR-K9

4.9 11
4.9/5.0
11 Review(s)
Model: Cisco ASA 5500-X Series Next-Generation Firewalls with firepower services
Detail: Cisco ASA 5500-X Next Generation, ASA5516-FPWR-K9, 8*GE ports, 1GE Mgmt, AC, 3DES/AES, AVC, FirePower, FireSIGHT, unlimited user nodes, 300 IPsec VPN, Active/Active, 100G SSD
List Price: US$5,995.00
Price: $1,958.00
You save: US$4,037.00 (67% OFF)
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to United States Ashburn VA,
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 1,958.00 In stock Brand New Sealed
OR

ASA5516-FPWR-K9 SMARTnet Service Tool

Order Cisco SMARTnet Warranty? Fast Quote Now

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (ASA5516-FPWR-K9)

ASA5516-FPWR-K9 firewall is the entry-level next-generation firewall system. It is designed for mid-size enterprise or branch offices. The next-generation firewall combine with FirePower services which offers greater visibility and automation with superior response to protect the network.

ASA5516-FPWR-K9 provides 8 Gigabit Ethernet interfaces, 100GB SSD, supports up to 300 IPsec VPN peers, 100,000 concurrent connections and 1.8 Gbps thoughtput.

 Quick Specs

Figure 1 shows the appearance of ASA5516-FPWR-K9.

ASA5516-FPWR-K9

Table 1 shows the Quick Specs.

Product Code

ASA5516-FPWR-K9

Stateful inspection throughput (maximum1)

1.8 Gbps

Stateful inspection throughput (multiprotocol2)

900 Mbps

Triple Data Encryption Standard / Advanced Encryption

Standard (3DES/AES) VPN throughput3

250 Mbps

Users/nodes

Unlimited

IPsec site-to-site VPN peers

300

Power (AC or DC)

AC Only

Height (rack units)

1RU

Dimensions (H x W x D)

1.67 x 16.7 x 15.6 in. (4.24 x 42.9 x 39.5 cm)

Package Weight

18.87 lb (8.56 Kg)

Product Details

Figure 2 shows the front panel of ASA5516-FPWR-K9.

ASA5516-FPWR-K9 Front Panel

Table 2 shows the description of Status LED on the front panel.

Number

LED

Color

Description

Power

Unlit

Power supply off

Solid Green

Power supply on

Status

Green

Normal system function.

Amber

Critical alarm indicating one or more of the following:

 ·Major failure of a hardware or software component.

 ·Over-temperature condition.

 ·Power voltage outside the tolerance range.

Active

Solid Green

Failover pair operating normally.

Unlit

Failover is not operational.

SSD

Unlit

No SSD present.

Green

Activity on the drive.

Figure 3 shows the back panel of ASA5516-FPWR-K9.

ASA5516-FPWR-K9 Back Panel

Note:

Power switch

SSD LED

Power cord socket

SSD bay

Status LEDs

USB port

Console ports

Management port

Reset button

Network data ports

· Console ports are two serial ports, a mini USB Type B, and a standard RJ-45 (8P8C).
· Management port connects with an RJ-45 cable.
· Network data ports include eight Gigabit Ethernet RJ-45 (8P8C) network I/O interfaces.

The Licenses

Table 3 shows the recommended licenses for ASA5516-FPWR-K9.

Category

Licenses

Cisco ASA5516 FirePOWER IPS and Apps 3YR Subscription

L-ASA5516-TA=

L-ASA5516-TA-3Y

Cisco ASA5516 FirePOWER IPS, Apps and URL 3YR Subscription

L-ASA5516-TAC=

L-ASA5516-TAC-3Y

Cisco ASA5516 FirePOWER IPS, Apps and AMP 3YR Subscription

L-ASA5516-TAM=

L-ASA5516-TAM-3Y

Cisco ASA5516 FirePOWER IPS, Apps, AMP and URL 3YR Subscription

L-ASA5516-TAMC=

L-ASA5516-TAMC-3Y

Cisco ASA5516 FirePOWER URL Filtering 3YR Subscription

L-ASA5516-URL=

L-ASA5516-URL-3Y

Compare to Similar Items

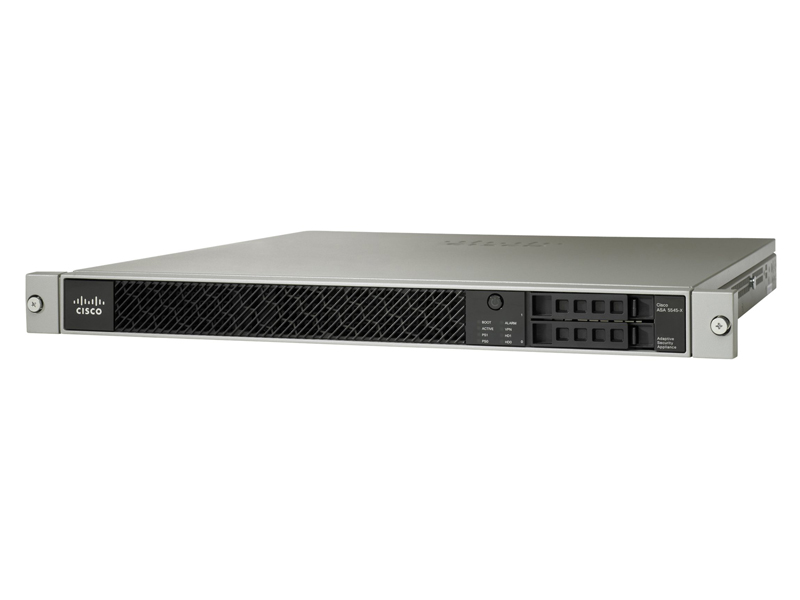

Table 4 shows the comparison of ASA5516-FPWR-K9 and ASA5545-FPWR-K9.

Model

ASA5516-FPWR-K9

ASA5545-FPWR-K9

Stateful inspection throughput (maximum)

1.8 Gbps

3 Gbps

3DES/AES VPN throughput

250 Mbps

400 Mbps

IPsec VPN peers

300

2,500

Get More Information

Do you have any question of ASA5516-FPWR-K9?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (ASA5516-FPWR-K9)

ASA5516-FPWR-K9 Specification

Stateful inspection throughput (maximum1)

1.8 Gbps

Stateful inspection throughput (multiprotocol2)

900 Mbps

Triple Data Encryption Standard/
Advanced Encryption Standard (3DES/AES) VPN throughput3

250 Mbps

Users/nodes

Unlimited

IPsec site-to-site VPN peers

300

Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections5

3005

Virtual interfaces (VLANs)

100

Security contexts5(included; maximum)

2; 5

High availability4

Active/
Active and Active/
Standby

Integrated Wireless Access Point

(See Cisco AP 702 datasheet for WiFi technical details)

N/A

Expansion slot

N/A

User-accessible Flash slot

No

USB 2.0 ports

USB port type ‘A’, High Speed 2.0

Integrated I/O

8 x 1GE

Expansion I/O

N/A

Dedicated management port

Yes (To be shared with FirePOWER Services), 10/100/1000

Serial ports

1 RJ-45 and Mini USB console

Solid-state drive

100 GB mSata6

Memory

8 GB

System flash

8GB

System bus

Multibus architecture

Temperature

32 to 104°F (0 to 40 °C)

Relative humidity

10 to 90 percent noncondensing

Altitude

Designed and tested for 0 to 10,000 ft (3048 m)

Acoustic
noise

41.6 dBA type

67.2 dBA max

Temperature7

-13 to 158ºF (-25 to 70ºC)

Relative humidity

10 to 90 percent noncondensing

Altitude

Designed and tested for 0 to 15,000 ft (4572 m)

AC range line voltage

External, 90 to 240 volts alternating current (VAC)

AC normal line voltage

92 to 240 VAC

AC current

0.25AC amps

AC frequency

50/60 Hz

Dual-power supplies

N/A

DC domestic line voltage

N/A

DC current

N/A

Steady state

51W

Maximum
peak

56W

Maximum
heat dissipation

192 Btu/hr

Form factor

1 rack unit (RU), 19-in. rack-mountable

Dimensions (H x W x D)

1.67 x 16.7 x 15.6 in. (4.24 x 42.9 x 39.5 cm)

Weight (with AC power supply)

13.39 lb (6.07 kg)

Package Weight

18.87 lb (8.56 Kg)

Shipping & Payment

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Delivery OptionsEstimated Delivery Time
DHL 2-4 business days
Fedex 2-4 business days
Hong Kong EMS 5-10 business days
Hong Kong Air Parcel 10-20 business days
By Sea 10-20 business days

Notice:

Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:

Deliver to port:

Router-switch.com is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Router-switch will recommend trustworthy local freight forwarders to you.Router-switch.com can facilitate the progress under buyer's permission and at buyer's expense.

Deliver to door:

Router-switch.com will quote all destination charge prior once we have confirmed order.
Router-switch.com is responsible for transporting goods to door after you have made the payment.

Payment Methods

Paypal Master Card Visa
Discover American
Express
JCB
Wire Transfer eCheck WestUnion
Warranty

Warranty

100% Low Price Guarantee:

Router-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance:

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed" or "Used / Refurbished".
Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support:

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee:

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment:

Verified authorization: Mcafee Secure, VeriSign Secured

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed Cisco product: 1 Year
Used Cisco product: 3 Month

The Support Contacts:

If your Cisco products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Reviews

Customer Reviews

4.9 5
4.9 (11 reviews)
5 Stars
10
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

Share your thoughts with other customers?

Posted on 8/2/2016
Verified Buyer
55
Five Stars

This firewall can not be powerful any more!

Posted on 5/21/2016
Verified Buyer
55
ASA5516-FPWR-K9

The delivery was a little slow.

Posted on 4/18/2016
Verified Buyer
45
ASA5516-FPWR-K9-Firepower Threat Defense software

the latest Cisco ngfw and customers can elect at a future date after the time of purchase, at no additional cost, to reimage supported firewall appliances from ASA to Cisco Firepower Threat Defense software.

Posted on 2/7/2016
Verified Buyer
55
bought license L-ASA5516-TA-3Y with this firwall

I bought license L-ASA5516-TA-3Y with this firwall together, very cost-effective.

Posted on 1/6/2016
Verified Buyer
55
working good

This firewall are working good.

Posted on 12/29/2015
Verified Buyer
55
that is what I need

Popular cisco ASA 5500-X Series firewalls,that is what I need.

Posted on 8/21/2015
Verified Buyer
55
give 5 stars.

Works well so far, give 5 stars.

Posted on 7/12/2015
Verified Buyer
55
Warranty

What's standard warranty ?

Router-switch.com offer 1 year warranty. Also, CCIE-Support freely always offered.

Posted on 6/22/2015
Verified Buyer
55
How many ports?

How many ge ports on ASA5516-FPWR-K9?

ASA5516-FPWR-K9 has 8 * 1 Gigabit Ethernet interface

Posted on 4/28/2015
Verified Buyer
55
FirePower, FireSIGHT

ASA5516-FPWR-K9 designes for mid-size enterprise or branch offices.The next-generation firewall combine with FirePower services which offers greater visibiltiy and automation with superior response to protect the network.

Posted on 2/22/2015
Verified Buyer
55
Ipsec VPN

How many Ipsec VPN support for ASA5516-FPWR-K9?

ASA5515-K9 Support 300 IPsec VPN peers
