main product photo
Name:

AP7110SN-GN

Model:AP7110SN-GN Huawei Dual-band Premium Indoor Access point
Brand: Huawei
Detail:

AP7110SN-GN Mainframe(11n,Enhanced AP Indoor,3x3 Single Frequency,External Antenna,No AC/DC adapter)

Rating:
100%
5/5.0
2 Reviews
Availability: Item Backordered
Condition:New Factory Sealed
Warranty:3 years warranty
Shipping:
Express Shipping to United States
2-6 Days, via DHL, FedEx, UPS, etc.
Ships to:
United States
Payment:
  • Pay by wire transfer.
  • Pay with your paypal.
  • Pay with your webmoney.
  • Pay with your onafriq.
  • Pay with your Visa credit card.
  • Pay with your Mastercard credit card.
  • Pay with your Discover Card.
  • Pay by Western Union.
More
Support:
TZS, XAF, TZS payment.
  • Safe, Fast, 100% Genuine. Your Reliable IT Partner.
    Safe, Fast, 100% Genuine. Your Reliable IT Partner.
  • Best Price Assurance, Bulk Savings, Trusted Worldwide.
    Best Price Assurance, Bulk Savings, Trusted Worldwide.
Expertise Builds Trust

Expertise Builds Trust

  • 22 Years, 200+ Countries
  • 18000+ Customers/Projects
  • CCIE, CISSP, JNCIE, NSE 7 AWS, Google Cloud Experts
Ask an Expert Now
24/7 Online Service
  • +1-626-655-0998(USA)
  • +852-25925389(HK)
  • +852-25925411(HK)
Live Chat

Join Partner Network

  • Exclusive Discounts/Service
  • Credit Terms/Priority Supply
In  United States
Partner Today

You may also be interested in the following product(s)

AP6010DN-AGN

AP6010DN-AGN

Rating:
93%
4.7/5.0
6 Reviews
US$546.00

AP7110SN-GN

AP7110SN-GN Mainframe(11n,Enhanced AP Indoor,3x3 Single Frequency,External Antenna,No AC/DC adapter)

Overview
Specification
Reviews
Q&A
Warranty
Download
Stable Global Supply Chain for Thriving Businesses.
  • $4,000,000 Inventory
  • 500+ Reliable Vendors
  • Certified Partnerships
  • Collaborating with FedEx, UPS, DHL
100,000+ Diverse Products for All Your Needs
Customized Support for Your Needs with CCIE, HCIE, HPE ASE, etc.
Personalized Service, Superior Product Maintenance for Ultimate Satisfaction.
  • Projects and Technical Support
  • Easy Purchasing Supply
  • Product Lifecycle Protection
  • Exclusive F4 Team Support
Overview

AP7110SN-GN Overview

Huawei AP7110SN-GN Series Access Point offers powerful WLAN connectivity for data forwarding speeds up to 450 Mbit/s. These top-of-the-line 802.11n APs integrate multiple Huawei-patented technologies to deliver quality wireless services in high-user density or large-scale deployment scenarios, such as enterprise offices, airports, digital trains, and sports venues. 3 x 3 MIMO high-gain omni-directional external antennas provide superior coverage and connect up to 256 users.

Quick Specs

Figure 1 shows the appearance of AP7110SN-GN.

AP7110SN-GN Appearance

Table 1 shows the Quick Specs.

Product Number

AP7110SN-GN

Power Input

12V DC ±10%

PoE: −48V DC (in compliance with IEEE 802.3af

Maximum Power Consumption

8.7W

Operating Temperature

−10℃ to 55℃

Antenna Type/Antenna Gain

Removable RP-SMA antenna/2.5 dBi

Maximum Number of Users

≤ 256

Maximum Transmit Power

25 dBm (combined power)

MIMO: Spatial Streams

3 x 3:3

Radio Protocols

802.11b/g/n

Highest Rate

450 Mbit/s

Dimensions (H x W x D)

200 mm x 200 mm x 45 mm

Weight

1.0 kg

Product Details

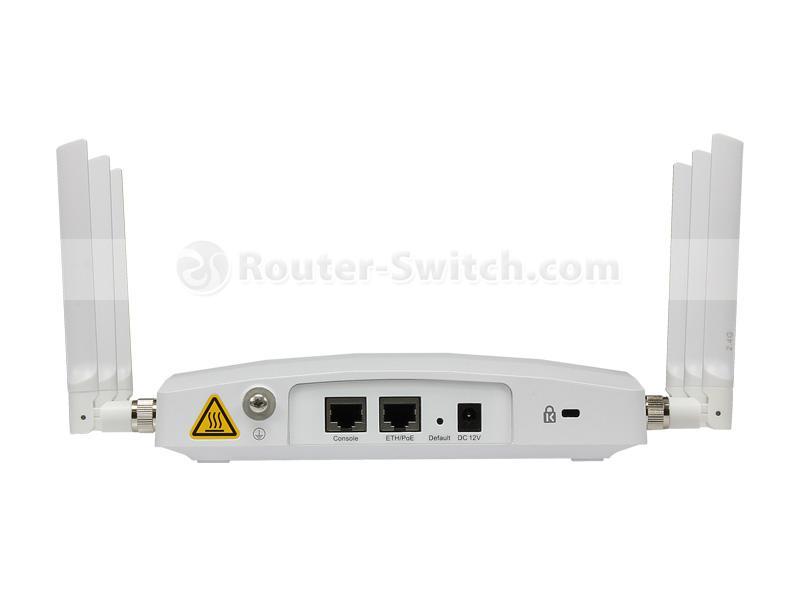

Figure 2 shows the ports of AP7110SN-GN.

AP7110SN-GN Ports

Note:

①

Ground point: Connects to a ground cable

②

Console interface

③

ETH/PoE interface: A 10/100/1,000 M interface that connects to the wired Ethernet and supports the PoE power supply

④

Default button: Restores factory settings if you hold down the button more than three seconds

⑤

Power input interface: 12 V DC

⑥

Lock interface: Protects the AP against theft

Compare to Similar Items

Table 2 shows the comparison of AP7110DN-AGN and AP7110SN-GN.

Product Number

AP7110DN-AGN

AP7110SN-GN

Power Input

12V DC ±10%

PoE: −48V DC (in compliance with IEEE 802.3at)

12V DC ±10%

PoE: −48V DC (in compliance with IEEE 802.3af

Maximum Power Consumption

15.7W

8.7W

Operating Temperature

−10℃ to 55℃

−10℃ to 55℃

Antenna Type/Antenna Gain

Removable RP-SMA antenna/2.4 GHz: 2.5 dBi, 5 GHz: 4 dBi

Removable RP-SMA antenna/2.5 dBi

Maximum Number of Users

≤ 256

≤ 256

Maximum Transmit Power

25 dBm (combined power)

25 dBm (combined power)

MIMO: Spatial Streams

3 x 3:3

3 x 3:3

Radio Protocols

802.11a/b/g/n

802.11b/g/n

Highest Rate

900 Mbit/s

450 Mbit/s

Get more information

Do you have any question about the AP7110SN-GN

Contact us now via Live Chat or sales@router-switch.com.

Quality Certifications

  • ISO 14001
  • ISO 9001
  • RoHS
  • REACH
  • CE
  • FCC
Specification

AP7110SN-GN Specification

AP7110SN-GN Specifications

Technical

Dimensions (H × W × D)

1.7 in. x 7.8 in. x 7.8 in. (45 mm x 200 mm x 200 mm)

Weight

2.2 lb. (1.0 kg)

System memory
  • 256 MB DDR3
  • 32 MB flash memory

Power

Power input

DC 12V ± 10%

POE Power: -48V DC.

PoE function IEEE compliant 802.3af and 802.3at

Maximum power consumption

8.7W

Note: Maximum power consumption depends on local laws and regulations

Environment

Operating temperature

14oF to 131oF (-10oC to 55oC)

Storage temperature

-40oF to 158oF (-4oC to 7oC)

Humidity

5% to 95% (Non-condensing)

Waterproof grade

IP41

Altitude

–60m to 5,000m

Radio frequency specifications

Antenna Type

Removable RP-SMA antenna

Antenna Gain

2.5 dBi

Maximum Number of Concurrent Users

≤ 256

Maximum Transmit Power

20 dBm

You can lower transmit power to 20 dB maximum in 1 dB increments

Note: Actual transmit power depends on local laws

Maximum Number of Non-overlapping Channels

2.4 GHz

802.11b/g

·20 MHz: 3

802.11n

·20 MHz: 3

·40 MHz: 1

Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and Channels compliance status

Channel Rates

802.11b: 1, 2, 5.5, and 11 Mbit/s

802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

802.11n data rate:  2.4 GHz

GI2 = 800 ns

GI = 400 ns

20 MHz (Mbit/s)

40 MHz (Mbit/s)

20 MHz (Mbit/s)

40 MHz (Mbit/s)

6.5 @ MCS10

13.5 @ MCS0

7.2 @ MCS0

15 @ MCS0

13 @ MCS1

27 @ MCS1

14.4 @ MCS1

30 @ MCS1

19.5 @ MCS2

40.5 @ MCS2

21.7 @ MCS2

45 @ MCS2

26 @ MCS3

54 @ MCS3

28.9 @ MCS3

60 @ MCS3

39 @ MCS4

81 @ MCS4

43.3 @ MCS4

90 @ MCS4

52 @ MCS5

108 @ MCS5

57.8 @ MCS5

120 @ MCS5

58.5 @ MCS6

121.5 @ MCS6

65 @ MCS6

135 @ MCS6

65 @ MCS7

135 @ MCS7

72.2 @ MCS7

150 @ MCS7

13 @ MCS8

27 @ MCS8

14.4 @ MCS8

30 @ MCS8

26 @ MCS9

54 @ MCS9

28.9 @ MCS9

60 @ MCS9

39 @ MCS10

81 @ MCS10

43.3 @ MCS10

90 @ MCS10

52 @ MCS11

108 @ MCS11

57.8 @ MCS11

120 @ MCS11

78 @ MCS12

162 @ MCS12

86.7 @ MCS12

180 @ MCS12

104 @ MCS13

216 @ MCS13

115.6 @ MCS13

240 @ MCS13

117 @ MCS14

243 @ MCS14

130 @ MCS14

270 @ MCS14

130 @ MCS15

270 @ MCS15

144.4 @ MCS15

300 @ MCS15

19.5 @ MCS16

40.5 @ MCS16

21.7 @ MCS16

45 @ MCS16

39 @ MCS17

81 @ MCS17

43.3 @ MCS17

90 @ MCS17

58.5 @ MCS18

121.5 @ MCS18

65 @ MCS18

135 @ MCS18

78 @ MCS19

162 @ MCS19

86.7 @ MCS19

180 @ MCS19

117 @ MCS20

243 @ MCS20

130 @ MCS20

270 @ MCS20

156 @ MCS21

324 @ MCS21

173.3 @ MCS21

360 @ MCS21

175.5 @ MCS22

364.5 @ MCS22

195 @ MCS22

405 @ MCS22

195 @ MCS23

405 @ MCS23

216.7 @ MCS23

450 @ MCS23

Note: Modulation Coding Scheme (MCS) index determines:

Spatial flow quantity

Modulation

Coding rate

Data rate

Guard Interval (GI) indicates the period in nanoseconds the radio listens for between packets

Receiver Sensitivity

802.11b (CCK)

-97 dBm @ 1 Mbit/s

-92 dBm @ 2 Mbit/s

-93 dBm @ 5.5 Mbit/s

-89 dBm @ 11 Mbit/s

802.11g (non-HT20)

-93 dBm @ 6 Mbit/s

-90 dBm @ 9 Mbit/s

-90 dBm @ 12 Mbit/s

-88 dBm @ 18 Mbit/s

-84 dBm @ 24 Mbit/s

-81 dBm @ 36 Mbit/s

-77 dBm @ 48 Mbit/s

-74 dBm @ 54 Mbit/s

802.11n (HT20):

-93 dBm @ MCS0

-90 dBm @ MCS1

-88 dBm @ MCS2

-82 dBm @ MCS3

-79 dBm @ MCS4

-75 dBm @ MCS5

-73 dBm @ MCS6

-72 dBm @ MCS7

-87 dBm @ MCS8

-86 dBm @ MCS9

-86 dBm @ MCS10

-83 dBm @ MCS11

-79 dBm @ MCS12

-75 dBm @ MCS13

-74 dBm @ MCS14

-73 dBm @ MCS15

-87 dBm @ MCS16

-86 dBm @ MCS17

-86 dBm @ MCS18

-83 dBm @ MCS19

-79 dBm @ MCS20

-75 dBm @ MCS21

-74 dBm @ MCS22

-73 dBm @ MCS23

802.11n (HT40):

-86 dBm @ MCS0

-86 dBm @ MCS1

-84 dBm @ MCS2

-80 dBm @ MCS3

-77 dBm @ MCS4

-72 dBm @ MCS5

-70 dBm @ MCS6

-68 dBm @ MCS7

-86 dBm @ MCS8

-86 dBm @ MCS9

-84 dBm @ MCS10

-80 dBm @ MCS11

-77 dBm @ MCS12

-72 dBm @ MCS13

-71 dBm @ MCS14

-70 dBm @ MCS15

-86 dBm @ MCS16

-86 dBm @ MCS17

-84 dBm @ MCS18

-80 dBm @ MCS19

-77 dBm @ MCS20

-72 dBm @ MCS21

-71 dBm @ MCS22

-70 dBm @ MCS23

Quality Certifications

Q&A

Questions & Answers

What common troubleshooting steps should I follow for the AP7110SN-GN?

Common troubleshooting steps include checking power connections, ensuring firmware is up-to-date, and verifying antenna connections.

What accessories are available for the AP7110SN-GN?

Accessories for the AP7110SN-GN include external antennas and optional power adapters, but these must be purchased separately.

Can the AP7110SN-GN be compared with similar products?

Compared to similar products, the AP7110SN-GN offers enhanced performance with its 3x3 single frequency and external antenna support.

Does the AP7110SN-GN come with an AC/DC adapter?

No, the AP7110SN-GN does not come with an AC/DC adapter; it must be purchased separately if needed.
