Overview

TP-Link AX11000 Next-Gen Tri-Band Gaming Router (Archer AX11000 V1) Overview

TP-Link Tri-Band 12-Stream AX11000 WiFi 6 Router AX11000 Next-Gen Tri-Band Gaming Router

Quick Specs

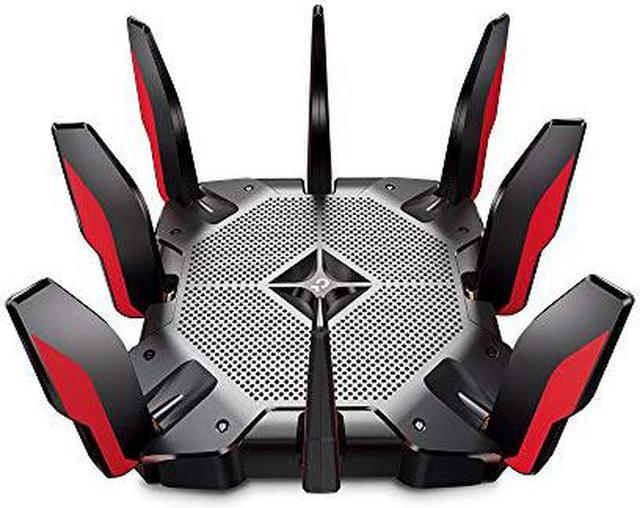

Figure 1 shows the appearance of Archer AX11000 V1.

Table 1 shows the Quick Specs.

Product Code	Archer AX11000 V1
Power	12 V, 5 A
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
Working Modes	Router Mode Access Point Mode
Protocols	IPv4 IPv6
Dimensions (W×D×H)	11.3 × 11.3 × 7.2 in (288 × 288 × 184 mm)

Product Details

Figure 2 shows the front panel of Archer AX11000 V1.

Figure 3 shows the back panel of Archer AX11000 V1.

Figure 4 shows the side panel of Archer AX11000 V1.

Archer AX11000 V1 provides these features:

● Ultra-Fast Wi-Fi for Extreme Gaming – AX11000 speed machine that delivers Wi-Fi Speeds Over 10 Gbps: 4804 Mbps (5 GHz Gaming) + 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)¹
● Game Accelerator – Detect and optimize gaming streams, to ensure your gaming stays immersive
● Game Protector – Keep your accounts and documents safe with a free lifetime subscription of Homecare security system.⁷
● Game Statistics – Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.
● Ultra Connectivity - 2.5 Gbps WAN port and eight Gigabit LAN ports, 2 USB 3.0 in Type A and Type C provide extensive connectivity.⁶
● Powerful Processing – 1.8 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.
● Highly Efficient – OFDMA increases the avg. throughput and reduces the lag.²
● Easy and Smart – Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.

Compare to Similar Items

Table 2 shows the comparison of Archer AX11000 V1.

Module	Archer AX11000 V1	Deco M9 Plus
Power	12 V 2 A	12 V 2 A
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz	Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
Working Modes	Router Mode Access Point Mode	Router Mode Access Point Mode
Protocols	IPv4 IPv6	IPv4 IPv6
Dimensions (W×D×H)	11.3 × 11.3 × 7.2 in (288 × 288 × 184 mm)	5.7 × 5.7 × 1.8 in (144 × 144 × 46 mm)

Get More Information

Do you have any question about the Archer AX11000 V1

Quality Certifications

Specification

TP-Link AX11000 Next-Gen Tri-Band Gaming Router (Archer AX11000 V1) Specification

TP-Link AX11000 Next-Gen Tri-Band Gaming Router (Archer AX11000 V1) Specification
Wireless
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX11000 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range	4-6 Bedroom Houses 8× Detachable High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity	Very High Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 12 Streams Connect your devices to more bandwidth
Working Modes	Router Mode Access Point Mode
Hardware
Processor	1.8 GHz 64 Bit Quad-Core CPU
Ethernet Ports	1× 2.5 Gbps WAN Port 8× Gigabit LAN Ports Static Link Aggregation (LAG) available with 2× LAN ports
USB Support	1× USB-C 3.0 Port 1× USB-A 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons	Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button
Power	12 V ⎓ 5 A
Security
WiFi Encryption	WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	OpenVPN PPTP
Software
Protocols	IPv4 IPv6
Game Center	Game Accelerator Detects and optimizes gaming streams to keep latency as low as possible Game Statistics Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail Game Protector Keep your accounts and system safe with HomeCare™ antivirus protection
Service Kits	HomeCare™
Parental Controls	HomeCare™ Parental Controls Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	Game Accelerator QoS QoS by Device HomeCare™ QoS QoS by Application
Cloud Service	Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link NO-IP DynDNS
Management	Tether App Webpage
Physical
Dimensions (W×D×H)	11.3 × 11.3 × 7.2 in (288 × 288 × 184 mm)
Package Contents	Wi-Fi Router Archer AX11000 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
Other
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Test Data
WiFi Transmission Power	FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
WiFi Reception Sensitivity	5 GHz_1: 11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 5 GHz_2: 11a 6Mbps：-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 2.4 GHz： 11g 6Mbps：-97dBm, 11a 54Mbps:-79dBm 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
