Cisco Catalyst Campus IOS XE Track Guide for C9500 C9300L C9200L

Cisco Catalyst Campus IOS XE Track Guide for C9500 C9300L C9200L
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

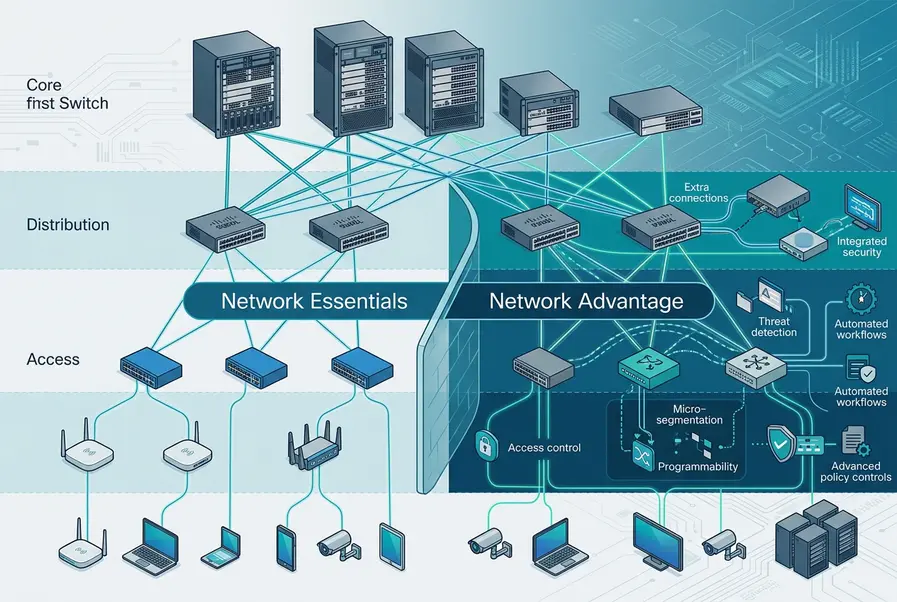

Aligning IOS-XE with Campus Strategy

Aligning IOS-XE with Campus Strategy

  • Many campus refresh projects move to Cisco Catalyst 9500, 9300L, and 9200L with a focus on speeds and feeds, only to discover later that the selected IOS-XE feature track limits segmentation, automation, or security controls. Core, distribution, and access layers end up misaligned, operational complexity increases, and budgets are locked into licenses that either under-deliver capabilities or overshoot actual needs.

    This section frames how to select the right IOS-XE track across C9500 core, C9300L access, and C9200L edge so the campus design, feature tiers, and budget work together. The following guidance focuses on mapping Network Essentials vs Network Advantage to real use cases, defining which switches drive innovation vs stability, and building a refresh path that avoids upgrade regret over the next refresh cycle.

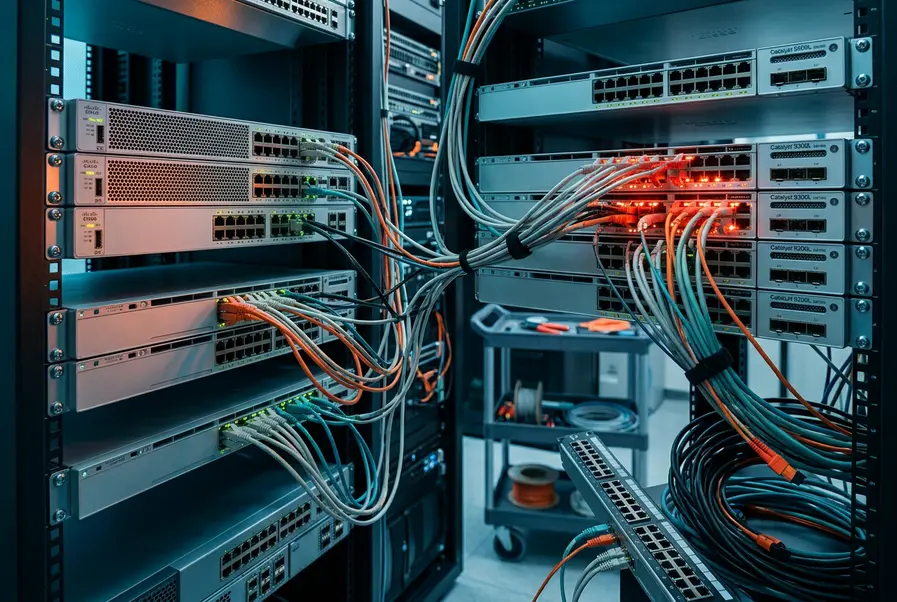

IOS-XE Track Choices That Lock In Risk

Choosing IOS-XE tiers for C9500, C9300L, and C9200L impacts scale, features, and lifecycle cost far beyond a simple hardware refresh decision.

IOS-XE Track Choices That Lock In Risk

  • Misaligned feature tiers vs. design goals

    Hard to map Network Essentials vs. Advantage to real needs like routing scale, SD-Access, and security, risking overbuy or missing key functions.

  • Inconsistent stacks and mixed-license fabrics

    Different IOS-XE tracks across core and access complicate templates, policy, and upgrades, driving operational risk in large campus domains.

  • Future evolution under budget constraints

    Need to reserve headroom for VXLAN, segmentation, and automation without paying upfront for unused features or forcing premature forklift refresh.

IOS-XE tracks for smarter campus refresh

Quickly align C9500, C9300L, and C9200L IOS-XE tracks with your campus core, access, and budget strategy.

Map tracks to campus roles

Separate core, access, and edge needs so IOS-XE tiers fit real traffic patterns.

Avoid feature lock-in

Choose Network Essentials vs Advantage by SD-Access, routing, and security needs, not guesswork.

Control TCO over lifecycles

Balance C9500, C9300L, C9200L licensing to curb overspend while keeping room to scale.

IOS-XE Track Comparison for Campus Refresh

Compare Network Essentials vs Advantage IOS-XE tracks to align C9500, C9300L, and C9200L with your campus strategy.

Feature Network Essentials Track
Network Advantage Track (hot)
 Business Impact
Deployment fit Best for straightforward Layer 2/3 access and basic core in smaller or static campuses. Optimized for distributed cores, SD-Access, and evolving multi-site campus designs. Aligns the software stack with your long-term campus topology instead of today’s minimum needs.
Routing and advanced services Provides baseline static routing and limited dynamic protocols; fewer policy-based features. Adds full dynamic routing, richer policy controls, and advanced services for complex cores. Ensures C9500 cores and uplinks can support future segmentation and WAN integration without forklift changes.
Segmentation, policy, and SD-Access Supports basic VLAN and ACL segmentation only; no full SD-Access feature set. Delivers fabric-ready features, richer segmentation, and SD-Access capabilities across C9500/C9300L. Prepares the campus for identity-based access and fabric onboarding when your security posture matures.
Automation and telemetry Enables limited programmability and monitoring; mainly CLI-centric operations. Unlocks deeper Model-Driven Telemetry, APIs, and automation hooks for NetDevOps workflows. Reduces long-term OpEx by making large C9300L and C9200L deployments easier to operate at scale.
License and cost profile Lower initial license cost; attractive for cost-contained C9200L edge refresh projects. Higher license cost but consolidates features you would otherwise bolt on later. Balances upfront spend with the cost of future upgrades, avoiding disruptive license and image changes mid-lifecycle.
Future-proofing and upgrade regret Meets current requirements but may require track change when new security or fabric features are needed. Designed to absorb growth in security, segmentation, and automation for 5–7 year lifecycles. Minimizes upgrade regret by matching C9500/C9300L/C9200L software capabilities to long-term campus strategy.
Use with specific models Typical for C9200L-24T-4X-E, C9200L-48T-4X-E and budget C9300L access roles. Preferred on C9500-24X/40X/48X and higher-end C9300L-24/48UXG when fabric or advanced routing is expected. Helps you differentiate core/aggregation vs cost-conscious edge while keeping a consistent IOS-XE strategy.
Recommended choice Choose when campus design is stable, segmentation is simple, and cost is the key driver. Choose when you anticipate growth in security, SD-Access, or multi-site integration over the switch lifetime. Guides you to invest in Advantage where architectural flexibility matters most, not everywhere indiscriminately.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Use Cases for Campus IOS-XE Track Planning

Where C9500 core and C9300L/C9200L access switches best fit when selecting the right IOS-XE feature tier for new campus designs or phased refreshes.

Large Campus Core Refresh with Segmentation and High Availability

Large Campus Core Refresh with Segmentation and High Availability

  • Use C9500-24X-E or C9500-40X-E in dual-core designs where Network Advantage is needed for SDA fabric, macro/micro segmentation, and scalable routed access.
  • Refresh legacy chassis-based cores by standardizing on C9500-48X-A with IOS-XE Network Advantage to consolidate Layer 3 services, advanced routing, and VRF-based separation.
  • Adopt C9500-16X-2Q-E as a collapsed core/distribution node in multi-building campuses that require 40G/100G uplinks, MPLS/EVPN readiness, and deterministic failover policies.
Wired Access Modernization for High-Density and IoT-Heavy Floors

Wired Access Modernization for High-Density and IoT-Heavy Floors

  • Deploy C9300L-24UXG-2Q-A at high-density office floors that require Multigigabit for Wi-Fi 6/6E APs, advanced QoS, and policy-based segmentation aligned with a Network Advantage core.
  • Standardize on C9300L-48UXG-4X-A in collaborative spaces where you need UPOE/PoE+ for phones, cameras, and collaboration endpoints plus flexible licensing for advanced telemetry and automation.
  • Use C9300L-24UXG2Q-10E or C9300L-48PF-4X-10E in mixed IoT and user access rings, aligning Network Essentials or Advantage with the chosen core to keep routing, security, and telemetry consistent end-to-end.
Cost-Optimized Edge Access for Branches and Secondary Buildings

Cost-Optimized Edge Access for Branches and Secondary Buildings

  • Leverage C9200L-24T-4X-E as a low-touch access layer in smaller branches that only need Layer 2 with static or simple Layer 3, matching IOS-XE Network Essentials on the core to avoid over-licensing.
  • Deploy C9200L-48T-4X-E at cost-sensitive teaching blocks or manufacturing edges where basic VLAN, QoS, and monitoring are required without full SDA or advanced routing overhead.
  • Create a tiered licensing strategy where C9500s run Network Advantage in the campus head-end while C9200L access stacks stay on Essentials, keeping feature sets aligned to role and budget at each edge site.
Policy-Driven Campus with DNA Center, Telemetry, and Automation

Policy-Driven Campus with DNA Center, Telemetry, and Automation

  • Align C9500-24X-A or C9500-48X-A with Network Advantage to serve as SD-Access control plane and border nodes, ensuring the IOS-XE track supports DNA Center-based provisioning and assurance workflows.
  • Deploy C9300L-24UXG-2Q-E or C9300L-48UXG-2Q-E as fabric edge nodes where Essentials is sufficient for basic automation, or uplift to Advantage when you need macro/micro segmentation and richer policy analytics.
  • Plan IOS-XE release tracks and licenses so that C9500 cores and C9300L access switches stay on compatible DNA feature sets, enabling consistent templates, telemetry, and closed-loop automation across the campus.
Staged Campus Refresh and Hybrid Legacy–IOS-XE Environments

Staged Campus Refresh and Hybrid Legacy–IOS-XE Environments

  • Introduce C9500-16X-E or C9500-24X-E into an existing campus alongside legacy Catalyst cores, selecting an IOS-XE track that supports both traditional routed access and future SDA migration phases.
  • Refresh access floors incrementally with C9300L-48UXG4X-10E where you can start on Network Essentials for basic L2/L3 and later move to Network Advantage without changing hardware as fabric features are introduced.
  • Use C9200L-24T-4X-E and C9200L-48T-4X-E at non-critical edges while keeping strategic buildings on C9300L and C9500, aligning IOS-XE feature tiers so interop with older IOS-based gear remains stable during the transition.

Frequently Asked Questions

How do I decide between Network Essentials and Network Advantage for C9500, C9300L, and C9200L in a campus refresh?

  • Use Network Essentials for stable, L2/L3 routing-centric campuses where you do not plan near-term SD-Access, advanced segmentation, or complex automation; this typically aligns well with cost-optimized C9200L edge or small C9300L access stacks.
  • Choose Network Advantage on C9300L and C9500 when you need full-stack routing, SD-Access fabric roles, advanced policy-based segmentation, or when the core must be ready for future macro/micro-segmentation and multi-site designs.
  • In mixed deployments, a common decision pattern is Network Advantage on C9500 core/distribution and key C9300L access blocks, with Network Essentials on C9200L at cost-sensitive edge ports.
  • If you are uncertain which track fits your current and 3–5 year roadmap, you can validate design and feature mapping with our CCIE team via free design and IOS-XE tier selection support. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

Can I mix C9500, C9300L, and C9200L with different IOS-XE feature tiers in the same campus without breaking interoperability?

  • Yes, you can run Network Essentials and Network Advantage in the same campus, as long as you design assuming the lowest common feature set on links where policies or routing need to be consistent.
  • Place the higher feature tier (Network Advantage) on devices that must host control-plane roles—such as C9500 core/distribution or specific C9300L access blocks that terminate SD-Access fabric or advanced routing—and reserve Network Essentials for simpler access or edge nodes like many C9200L stacks.
  • For mixed tiers, carefully check features such as EVPN, VXLAN, advanced routing options, or SD-Access roles, and ensure those functions are all hosted on Advantage-enabled nodes; Essentials nodes can still participate at the IP and VLAN level but may not support fabric roles.
  • Before deployment, validate the planned software feature mix and release versions using Cisco’s official documentation and, if needed, have our architects review your design through free CCIE support. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

How should I size C9500 core models versus C9300L and C9200L access for future 25G/40G/100G and SD-Access growth?

  • For a greenfield or major refresh aiming at multi-gig and 25G-ready access, C9500-24X-E/24X-A and C9500-40X-E/40X-A are commonly selected as aggregation and core platforms, providing SFP+ density and sufficient fabric bandwidth for 802.11ax/axE AP growth and uplinks from C9300L-24UXG/48UXG series.
  • If you foresee more uplink-heavy or distribution roles, C9500-48X-E/A and C9500-16X-2Q-E provide additional 10G ports or 40G capabilities and are better suited as collapsed core/distribution to serve multiple C9300L access blocks.
  • C9300L-24UXG-2Q/48UXG-2Q or 4X variants provide multi-gig and higher-speed uplinks while C9200L-24T-4X-E and 48T-4X-E fit cost-optimized edge areas where you primarily need 1G access with simple 10G uplinks and fewer advanced services.
  • A practical approach is to model future AP counts, PoE requirements, and expected campus backbone bandwidth over 5 years, then match to the C9500 SKU that leaves at least 30–40% headroom on uplink and fabric throughput; our team can help validate your sizing assumptions via free CCIE design consultation.

What deployment pitfalls should I avoid when upgrading IOS-XE on C9500, C9300L, and C9200L during a campus refresh?

  • Avoid mixing widely different IOS-XE trains across core and access during the cutover; plan a staged upgrade path where C9500 cores and critical C9300L blocks move first to a tested, long-lived release, followed by C9200L edge stacks.
  • Check that your selected IOS-XE release supports the exact Network Essentials/Advantage feature set you need, as well as any SD-Access, TrustSec, or automation features, before scheduling maintenance windows.
  • Use a lab or pilot ring (a small stack of C9300L/C9200L) to validate the new image against your NAC, DHCP, routing, and monitoring stack to avoid surprises with AAA, NetFlow, or telemetry once you upgrade the full campus.
  • Coordinate image uniformity within each stack or stackwise virtual pair and ensure you have rollback plans, including stable previous images and configuration snapshots, before starting production upgrades. For detailed planning questions, you can engage our experts through free CCIE support. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

How can I reduce procurement risk around stock, lead time, and lifecycle when ordering C9500, C9300L, and C9200L?

  • For key SKUs such as C9500-24X/40X/48X-E/A and high-demand C9300L-24UXG/48UXG variants, we recommend confirming real-time stock status and estimated lead time with our sales team before finalizing your migration schedule; delivery times can vary depending on product availability and destination.
  • When planning a multi-phase campus refresh, consider ordering core and first-wave access switches together so that any supply variation impacts later phases rather than your critical C9500 cutover window.
  • Use the EOL / EOSL checker to confirm that the selected C9500, C9300L, and C9200L SKUs align with your expected lifecycle and avoid building new designs on platforms that might face near-term end-of-sale/end-of-support milestones.
  • For international projects, factor in customs clearance and local regulations; estimated shipping times are always conditional and may vary for in-stock items depending on availability, carrier options, and destination. Details on delivery options are available at shipping methods.

What should I know about warranty, returns, taxes, and import when purchasing these Cisco Catalyst switches from abroad?

  • Warranty coverage and service options for C9500, C9300L, and C9200L can differ by SKU and region; you should confirm how hardware replacement, software updates, and optional services apply to your specific units by reviewing our warranty policy.
  • If you encounter a hardware issue during your deployment or early production phase, follow the documented RMA and diagnostics process described in our instructions for returning faulty goods to minimize downtime and avoid shipment rejections.
  • For cross-border projects, plan for VAT/GST and duties in your total cost of ownership; our guidance on taxes and customs duties can help you avoid surprise charges and delays at customs when shipping C9500, C9300L, and C9200L to different regions.
  • Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
