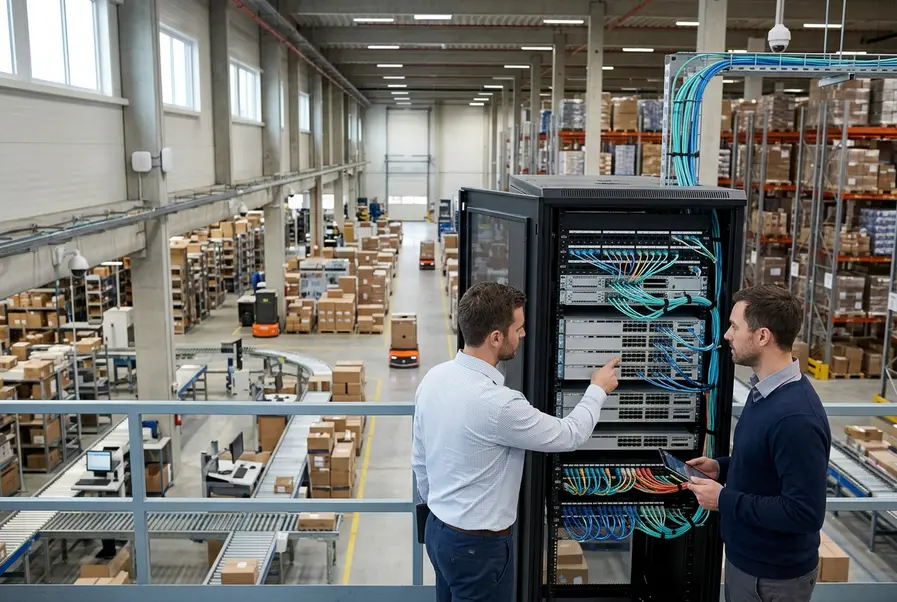

Warehouse Core Uplink Choices

Warehouse Core Uplink Choices

  • Growing warehouse and distribution sites are running into the limits of minimalist core switch designs: a pair of Cisco C9300s with just enough uplinks for today’s access rows or automation cells. As more scanners, AGVs, cameras, and IoT endpoints come online, 10G uplinks saturate, oversubscription spikes, and maintenance windows get harder to secure for disruptive core upgrades.

    This section frames when it makes more sense to extend an existing C9300-based warehouse core with higher-density uplinks, instead of redesigning the core from scratch. The following guidance focuses on how to evaluate NM-8X modular uplink expansion against 9300X/9300L options, taking into account growth forecasts, fiber topology, redundancy targets, and budget so you can choose a clear, low-risk expansion path.

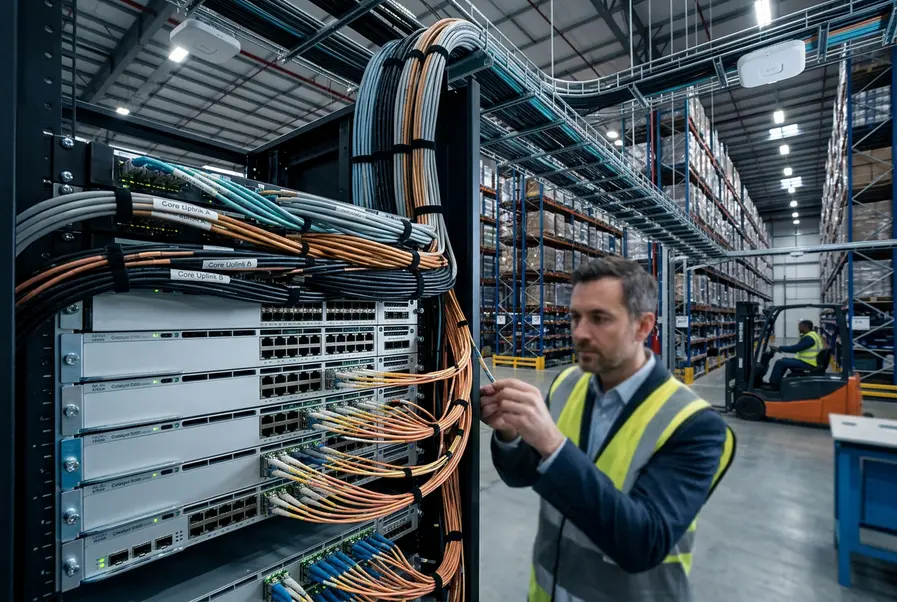

Balancing C9300 Warehouse Core Uplink Choices

Extending warehouse core uplinks on C9300 is constrained by port density, fiber cost, redundancy, and future 10/25G growth paths.

Balancing C9300 Warehouse Core Uplink Choices

  • Limited uplink density in minimal core

    Base C9300 uplinks often exhaust quickly as aisles, APs, and scanners grow, risking oversubscription and forklift-time disruptions.

  • Cost and complexity of scaling fiber and optics

    Moving from 1G to 10/25G uplinks impacts transceiver choice, fiber plant, and power budget, with tight warehouse cost constraints.

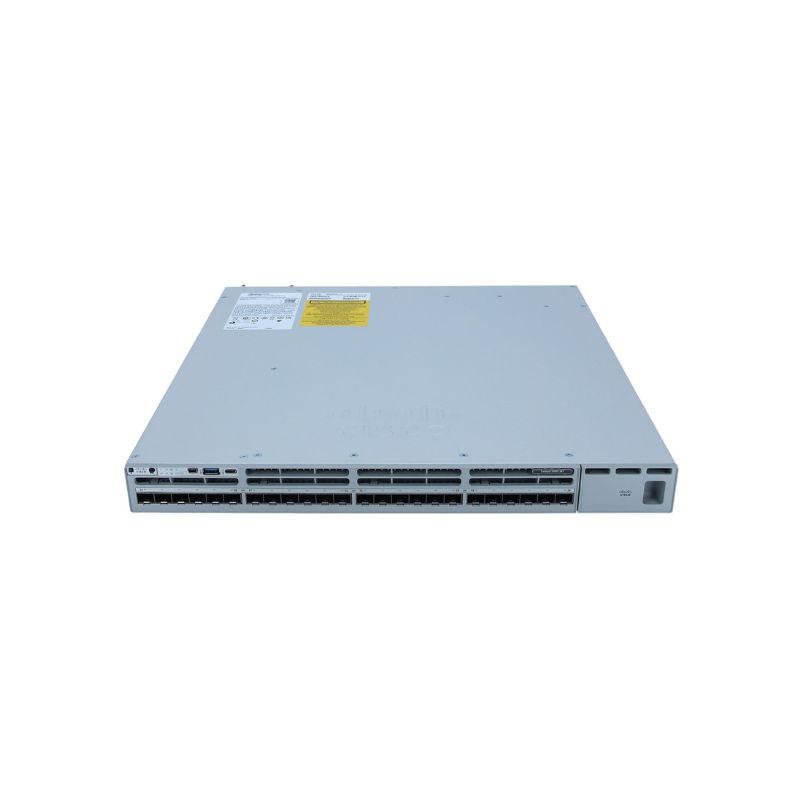

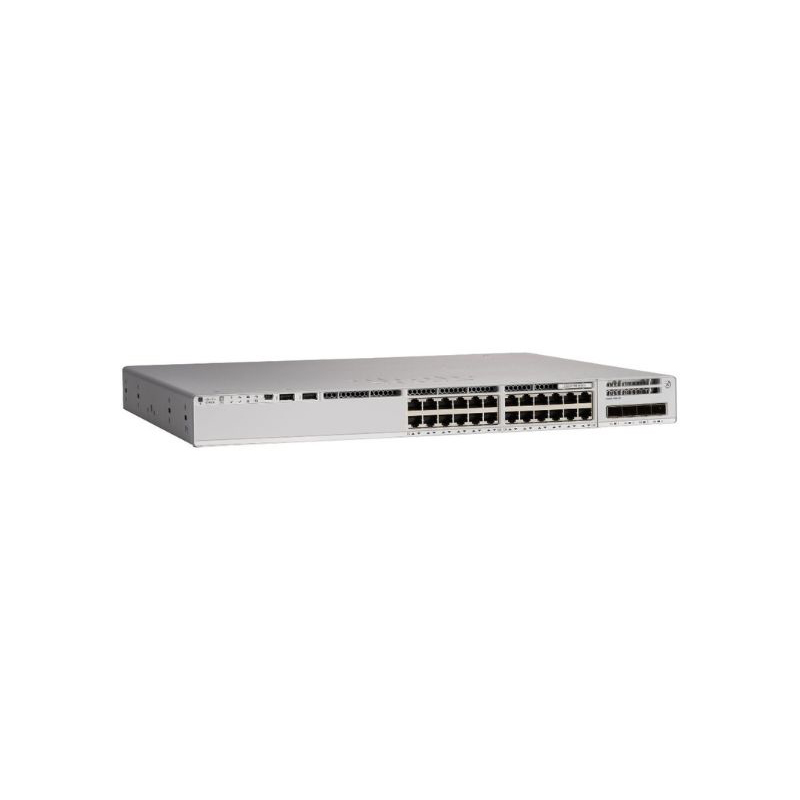

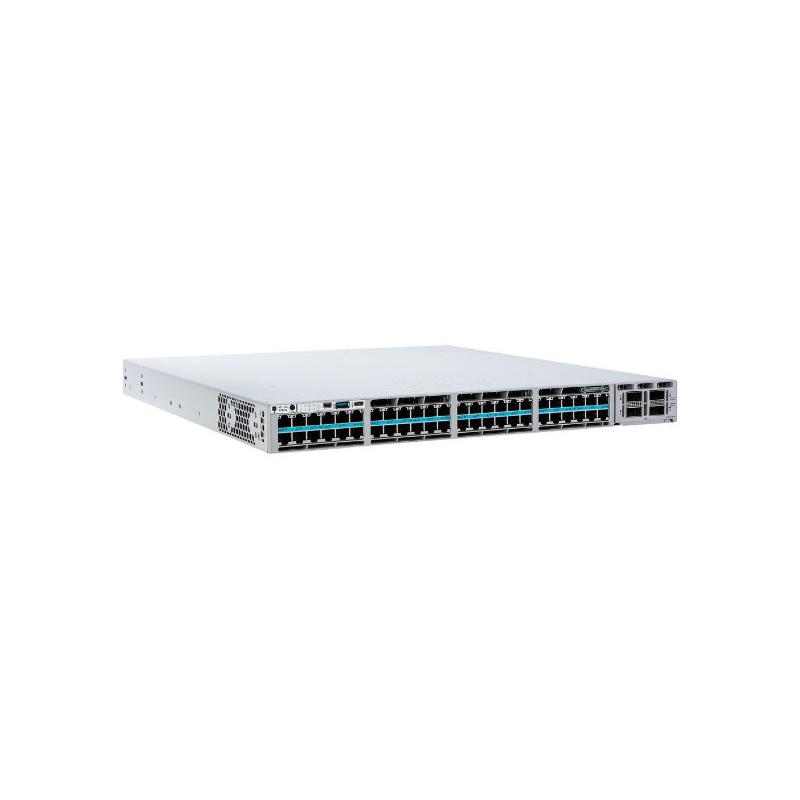

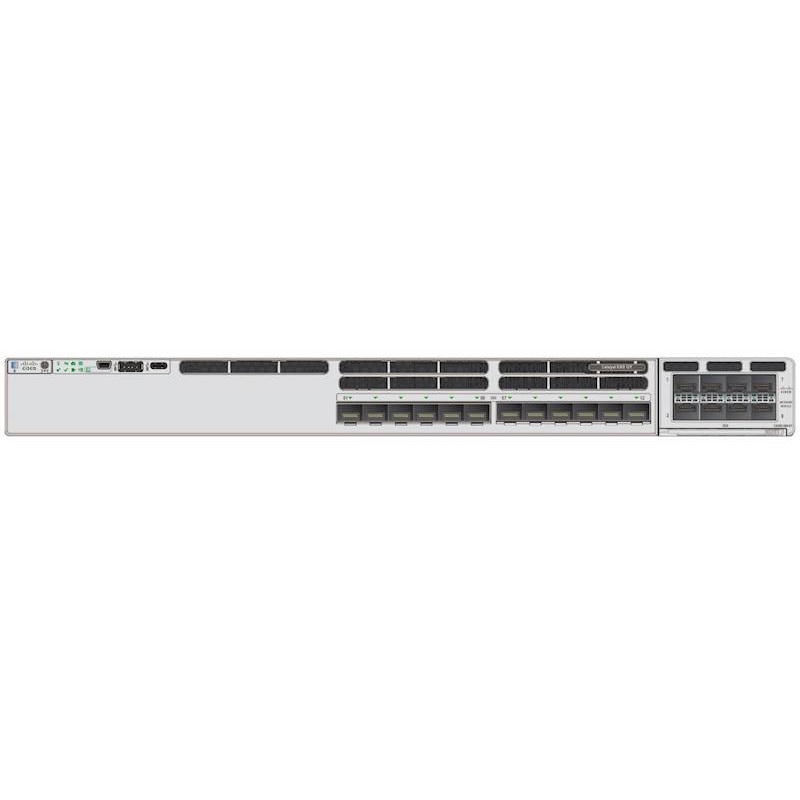

  • Unclear evolution to higher-speed aggregation

    Choosing between NM-8X, 9300X, or 9300L paths is difficult when future distribution speed, stacking, and redundancy needs are uncertain.

Warehouse C9300 Core Uplink Strategy

Frame how NM‑8X and C9300 uplink choices reshape warehouse core scalability and resilience.

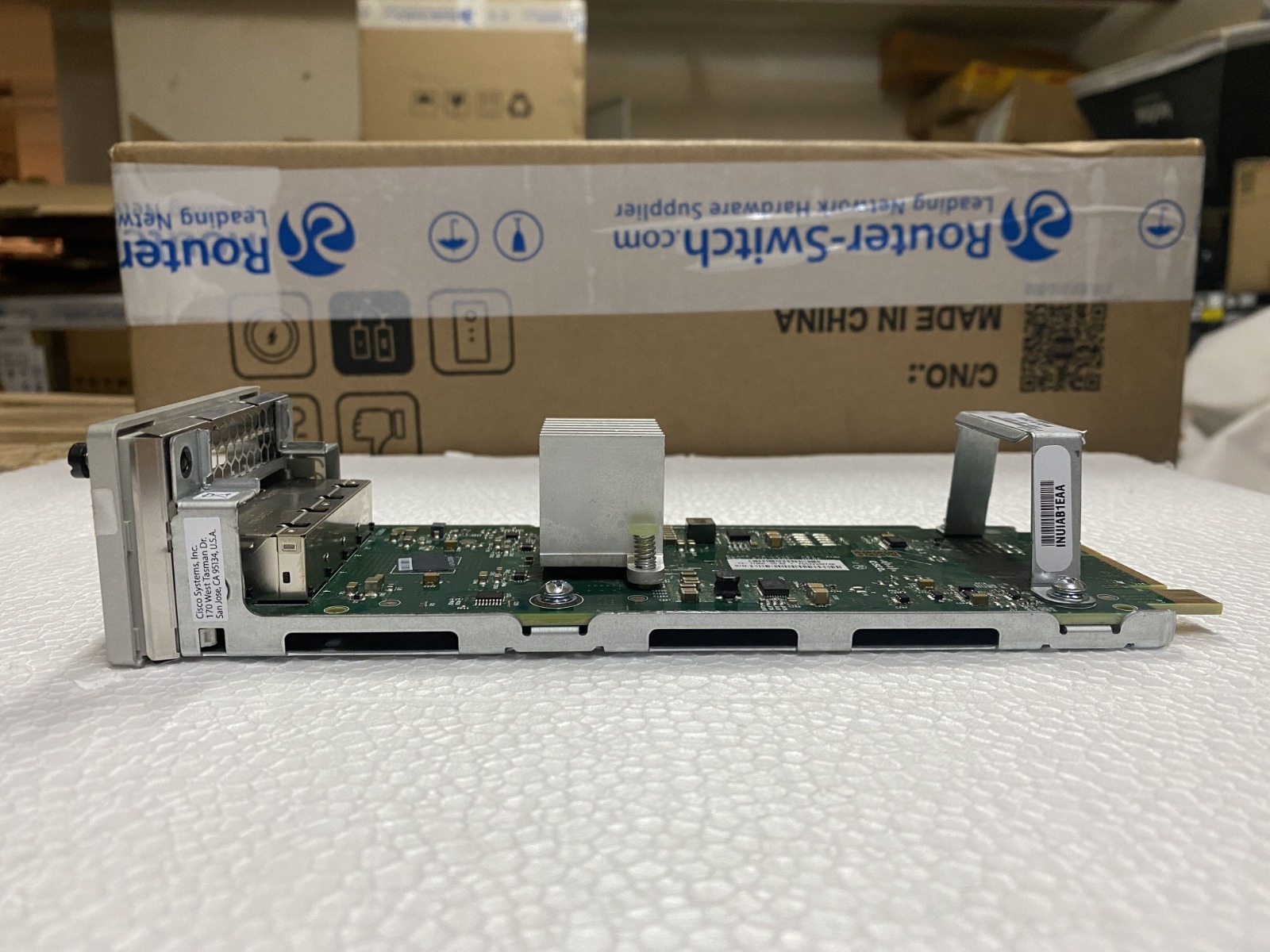

When NM-8X Is the Better Core

Use 8x10G NM to avoid premature C9500 cores while keeping growth headroom.

Design for Uplink Growth

Mix C9300/X/L with modular NMs to evolve from 1G to dense 10/25G as traffic scales.

Resilience Without Overbuilding

Build dual-homed, ring or spine-lite designs that meet SLAs without oversized chassis.

Cisco C9300 Warehouse Core Uplink Comparison

Compare fixed 10G cores, NM-based uplink expansion, and 25G-ready designs to pick the right warehouse aggregation path.

Feature Fixed 10G Core on C9300
C9300 with C9500-NM-8X (hot)
 Outcome for You
Deployment fit Use C9300-24S/48S with built-in SFP/SFP+ uplinks as a small, fixed warehouse core. Add C9500-NM-8X to C9300 stack for modular 8x10G SFP+ core uplinks and future growth headroom. Aligns warehouse core with modular growth instead of redesigning the entire core when uplink demand increases.
Uplink scalability Limited 4x10G (or similar) per chassis; scaling often means new core or additional switches. Scale to 8x10G per module and add more modules/chassis in a stack, supporting more APs, scanners, and IoT zones. Makes it easier to absorb new conveyors, racks, and AP waves without forklift upgrades or extra core layers.
Performance & resiliency Adequate for low-density warehouses; fewer uplinks can become oversubscribed during peak shifts. More 10G lanes for uplinks and inter-switch links, better ECMP/port-channel design, higher fault tolerance. Reduces congestion and single-link impact during picking/packing peaks, improving application response times.
Cost profile & lifecycle Lowest upfront spend but may force earlier migration to 9300X/9500 when traffic grows. Slightly higher initial cost, but extends life of existing C9300 core and defers chassis or 25G upgrades. Balances CapEx and longevity, lowering total cost per active port over the warehouse lifecycle.
Design flexibility Core topology largely fixed; redesign needed for new zones, mezzanines, or automation islands. Modular uplinks let you re-segment VLANs, add core rings, or dual-home new aggregation blocks easily. Supports phased expansion of aisles and automation projects with minimal rework of the core design.
Migration to higher speeds Moving to 25G typically means introducing C9300X/9500 and re-cabling key uplinks. C9500-NM-8X gives a stable 10G core now; you can later introduce 9300X/9300L at the edge first. Lets you stagger 25G adoption, starting where it matters most, while keeping the existing core stable.
Operational complexity Simpler on day one but becomes harder to manage as you bolt on extra switches to add capacity. More ports and design options, but still one C9300-based operational domain and tooling set. Keeps operations familiar for the team while enabling more structured, resilient warehouse core topologies.
Best use case Small, low-growth warehouses with predictable traffic and minimal automation plans. Medium–large warehouses expecting device, AP, and automation growth needing a scalable 10G core. Ideal if you anticipate growth but want to protect your C9300 investment before moving to a 25G-centric design.
