OnePlus 9 Pro 5G Phone

OnePlus 9 Pro 5G Phone Specification

Technology

GSM / CDMA / HSPA / LTE / 5G

2G bands

GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2

CDMA 800 / 1900

3G bands

HSDPA 800 / 850 / 900 / 1700(AWS) / 1800 / 1900 / 2100

4G bands

1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 38, 39, 40, 41, 66 - EU

1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 38, 39, 40, 41, 46, 48, 66, 71 - NA

1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 26, 34, 38, 39, 40, 41, 46 - IN

1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 26, 34, 38, 39, 40, 41 - CN

5G bands

1, 3, 5, 7, 8, 20, 28, 38, 40, 41, 66, 78 SA/NSA - EU

1, 2, 3, 7, 25, 28, 41, 66, 71, 78, 258, 260, 261 SA/NSA/mmWave - NA

41, 78 SA/NSA - IN

1, 3, 28, 41, 78, 79 SA/NSA - CN

Speed

HSPA 42.2/5.76 Mbps, LTE-A (CA) Cat20 2000/200 Mbps, 5G

Dimensions

163.2 x 73.6 x 8.7 mm (6.43 x 2.90 x 0.34 in)

Weight

197 g (6.95 oz)

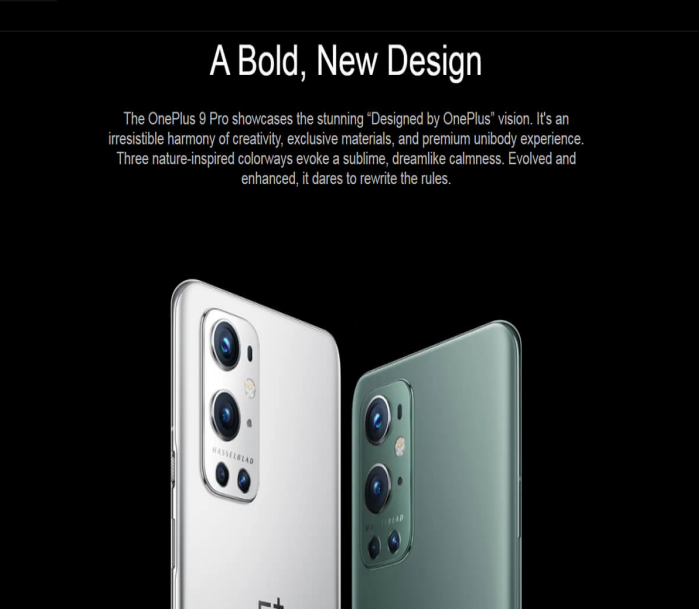

Build

Glass front (Gorilla Glass 5), glass back (Gorilla Glass 5), aluminum frame

SIM

Dual SIM (Nano-SIM, dual stand-by)

IP68 dust/water resistant (up to 1.5m for 30 mins)

Display

LTPO Fluid2 AMOLED, 1B colors, 120Hz, HDR10+, 1300 nits (peak)

Size

6.7 inches, 108.4 cm² (~90.3% screen-to-body ratio)

Resolution

1440 x 3216 pixels, 20:9 ratio (~525 ppi density)

Protection

Corning Gorilla Glass 5

Always-on display

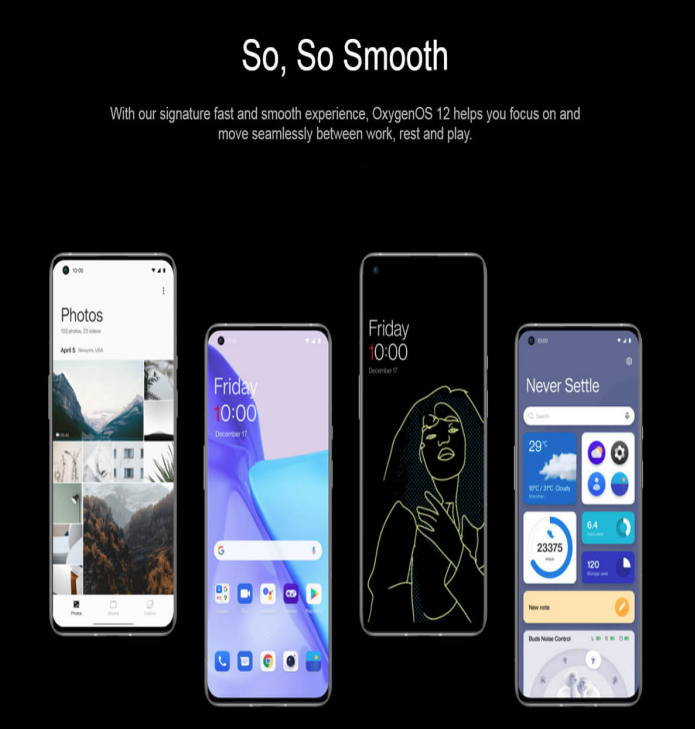

OS

Android 11, OxygenOS 11.2.5.5

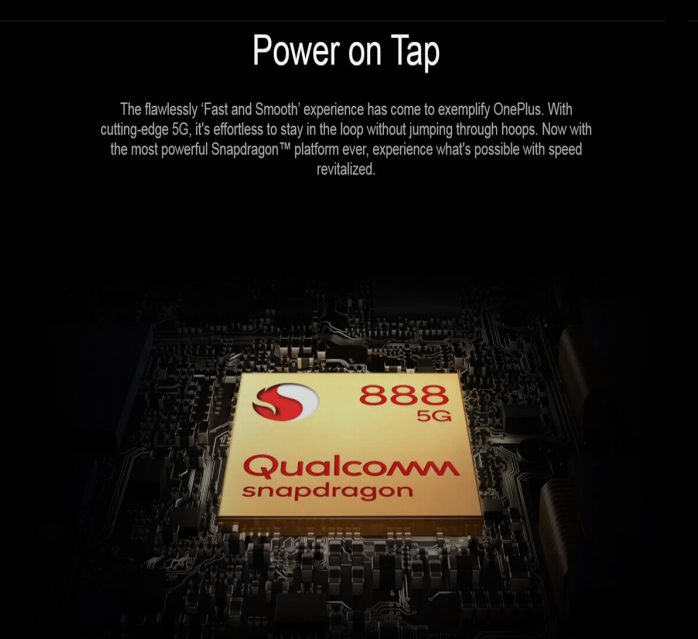

Chipset

Qualcomm SM8350 Snapdragon 888 5G (5 nm)

CPU

Octa-core (1x2.84 GHz Kryo 680 & 3x2.42 GHz Kryo 680 & 4x1.80 GHz Kryo 680

GPU

Adreno 660

Card slot

No

Internal

128GB 8GB RAM, 256GB 8GB RAM, 256GB 12GB RAM

UFS 3.1

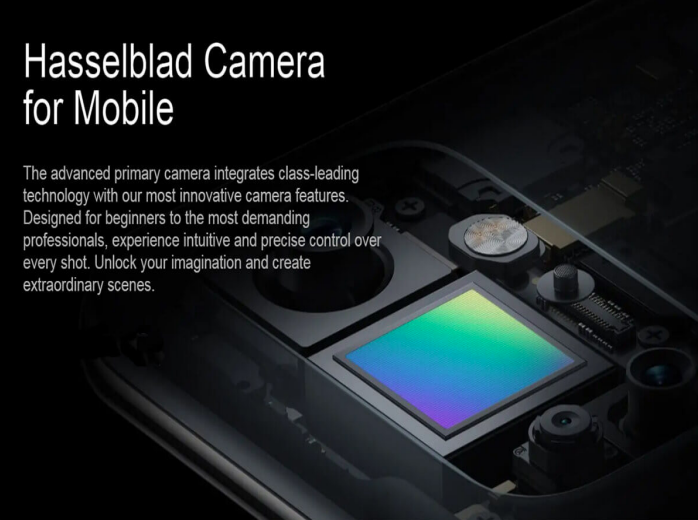

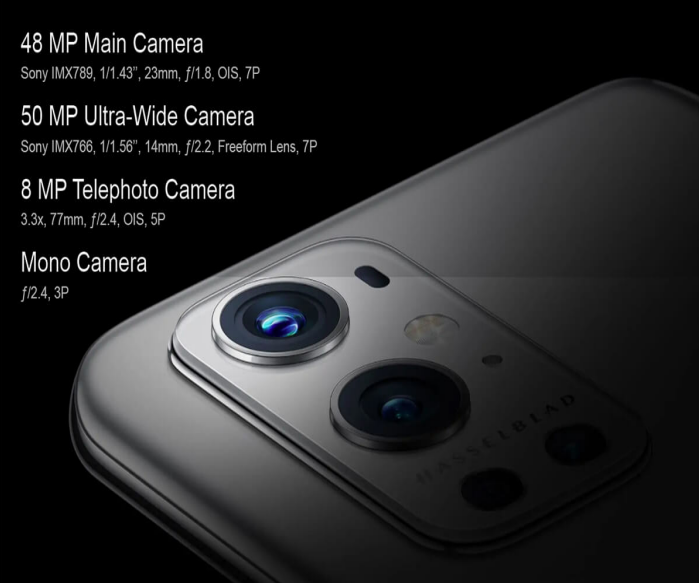

Rear Camera

48 MP, f/1.8, 23mm (wide), 1/1.43", 1.12µm, omnidirectional PDAF, Laser AF, OIS

8 MP, f/2.4, 77mm (telephoto), 1.0µm, PDAF, OIS, 3.3x optical zoom

50 MP, f/2.2, 14mm (ultrawide), 1/1.56", 1.0µm

2 MP, f/2.4, (monochrome)

Rear Camera Features

Hasselblad Color Calibration, dual-LED flash, HDR, panorama

Rear Camera Video

8K@30fps, 4K@30/60/120fps, 1080p@30/60/240fps, Auto HDR, gyro-EIS

Front Camera

16 MP, f/2.4, (wide), 1/3.06", 1.0µm

Front Camera Features

Auto-HDR

Front Camera Video

1080p@30fps, gyro-EIS

Loudspeaker

Yes, with stereo speakers

3.5mm jack

No

24-bit/192kHz audio

WLAN

Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct, DLNA, hotspot

Bluetooth

5.2, A2DP, LE, aptX HD

GPS

Yes, with dual-band A-GPS, GLONASS, BDS, GALILEO, SBAS

NFC

Yes

Radio

No

USB

USB Type-C 3.1, USB On-The-Go

Sensors

Fingerprint (under display, optical), accelerometer, gyro, proximity, compass, color spectrum

Battery

Li-Po 4500 mAh, non-removable

Charging

Fast charging 65W, 1-100% in 29 min (advertised)

Fast wireless charging 50W, 1-100% in 43 min (advertised)

USB Power Delivery
