AP6510DN-AGN

Model: AP6510DN-AGN 02354195 Huawei Industrial-grade Outdoor Wireless Access Point
Detail: AP6510DN-AGN Mainframe(11n,General AP Outdoor,2x2 Double Frequency)
Price: $520.00
Condition: Brand New Sealed
Availability: In stock
Shipping:
Express Shipping to Ashburn, VA, United States
2-6 Days, via DHL, FedEx, EMS, etc. ?
If you finish the payment today,
your order will arrive within the
estimated delivery time.
US$ 520.00 In stock Brand New Sealed
OR

Ask Our Experts

Live Chat | Email

  • +1-626-239-8066 (USA)
  • +852-3174-6166 (HK)
  • +852-3050-1066 (Fax)
Get Quotes up to
2x Faster
Project Inquiry
Overview

Overview (AP6510DN-AGN)

Huawei AP6510DN-AGN performance-enhanced 802.11n outdoor wireless AP provides dual-band connectivity for wireless throughput up to 600 Mbit/s. Industrial-grade protection includes a dustproof and waterproof hardened metal casing that is high- and low-temperature resistant. Huawei AP6510DN Access Point is designed for challenging outdoor or industrial high-demand/density environments, such as pedestrian areas and factories. They also work well in bridge and wireless backhaul applications for wireless harbor, video surveillance, and train or ground vehicle scenarios.

Quick Specs

Table 1 shows the quick specs.

Product Number

AP6510DN-AGN

Power Input

PoE: in compliance with IEEE 802.3at

Maximum Power Consumption

25.5W

Operating Temperature

−40°C to 60°C

Antenna Type

Dual-polarization antenna or common outdoor antenna

Maximum Number of Users

≤ 256

Maximum Transmit Power

29 dBm (combined power)

MIMO: Spatial Streams

2 x 2:2

Wireless Protocols

802.11a/b/g/n

Highest Rate

600 Mbit/s

Dimensions (H × W × D)

255 mm x 255 mm x 83 mm

Net Weight

4.8 lb. (2.2 kg)

Product Details

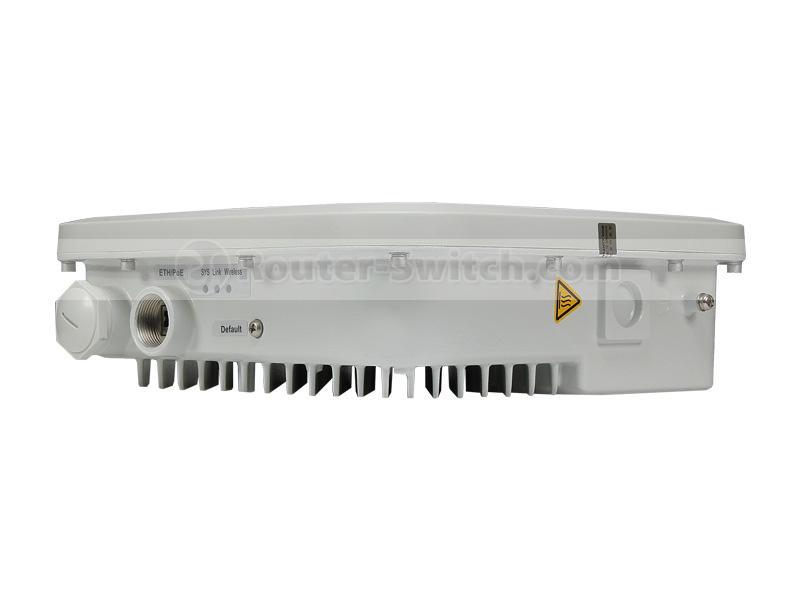

Figure 1 shows the interfaces of AP6510DN-AGN.

AP6510DN-AGN interfaces

Note:

ETH/PoE interface: a 10/100/1000M interface, which connects to the wired Ethernet and supports the PoE power supply.

Default button: restores the factory settings if you remove the screw and hold down the button more than 3s from the hole.

Ground point: connects to a ground cable.

Figure 2 shows the antennas interfaces of AP6510DN-AGN.

AP6510DN-AGN antennas interfaces

Note:

2 × 2.4 GHz antenna interface

2 × 5 GHz antenna interface

The Supported Antennas

Table 2 shows the recommended antennas of AP6510DN-AGN.

Model

Description

TQJ-2400-11-T2

Omnidirection Antenna,2400-2500MHz,11dBi,vertical,100W,2r,N Female, bracket included

TDJ-SA2400-16-120

Directional Panel Antenna,2400-2500MHz,14.5dBi,120deg,vertical,100W,N Female, bracket included

TDJ-SA2400-17-90

Directional Panel Antenna,2400-2500Mhz,17dBi,90deg,vertical,100W,N Female, bracket included

ADU451100

Directional Antenna,2400-2500MHz,12dBi,60deg,+/-45deg,0r,5W,WithBracket, 2*N-Female,250*155*60mm

ASB115G00

Directional Antenna,5150~5850MHz,>11dBi,60deg,+/-45deg,5W,with bracket,2*N-female,230*145*55mm

ASB185G00

Directional Antenna,5150~5850MHz,18dBi,15deg,+/-45deg,5W,with bracket,2*N female,250*250*25mm

AD1760500

Directional Antenna,2400~2500MHz,>17+/-0.5dBi,60deg,+/-45deg,0r,200W,N-Female*2,with bracket,875*176*63mm

AD1512000

Directional Antenna,2400~2500MHz,15+/-1dBi,120deg,Vertical polarization,0r,200W,N-Female,with bracket,1140*114*54mm

AD24145D00

Directional Antenna,2400~2500MHz,14dBi,30deg,+/-45deg,0r,5W,with bracket, N-Female*2,250*250*25mm

AD515145D00

Directional Antenna,5150~5850MHz,14dBi,30deg,+/-45deg,0r,5W,with bracket, N-Female*2

AD5151200

Directional Antenna,5150~5850MHz,15+/-1dBi,110deg,Vertical polarization,0r,200W,N-Female,with bracket,547*250*18mm

AL0800500

Isotropic Antenna,2400~2500MHz,>8dBi,Vertical polarization,Isotropic,200W,0r,N-Female,with bracket

Compare to Similar Items

Table 3 shows the comparison of AP6010DN-AGN and AP6510DN-AGN.

Models

AP6010DN-AGN

AP6510DN-AGN

Power Input

12V DC ±10%

PoE: –48V DC (in compliance with IEEE 802.3af/at)

PoE: in compliance with IEEE 802.3at

Maximum Power Consumption

10.2W

25.5W

Operating Temperature

–10℃ to 50℃

−40°C to 60°C

Antenna Type/Antenna Gain

Built-in antenna/2.4 GHz: 4 dBi, 5 GHz: 5 dBi

Dual-polarization antenna or common outdoor antenna

Maximum Transmit Power

23 dBm (combined power)

29 dBm (combined power)

MIMO: Spatial Streams

2 x 2:2

2 x 2:2

Wireless Protocols

802.11a/b/g/n

802.11a/b/g/n

Highest Rate

600 Mbit/s

600 Mbit/s

Get More Information

Do you have any question of Huawei AP6510DN-AGN outdoor access point?

Contact us now via Live Chat or sales@router-switch.com.

Specification

Specification (AP6510DN-AGN)

AP6510DN-AGN Specifications

Technical

Dimensions (H × W × D)

3.2 in. x 10 in. x 10 in. (83 mm x 255 mm x 255 mm)

Weight

4.8 lb. (2.2 kg)

System memory

128 MB DDR2

32 MB Flash

Power

Power input

PoE, in  compliance with IEEE 802.3at

Maximum power consumption

25.5W

Note: Maximum power consumption depends on local laws

Environment

Operating temperature

-40oF to 140oF (-40oC to 60oC)

Storage temperature

-40oF to 158oF (-40oC to 70oC)

Humidity

0% to 100% (Non-condensing)

Waterproof grade

IP67

Altitude

196.8 ft. to 16,404.1 ft. (-60m to 5,000m)

Radio

Antenna Type

Dual-polarization or common outdoor

Maximum Number of Concurrent Users

128

Maximum Transmit Power

2.4 GHz: 26 dBm

5 GHz: 20 dBm

You can adjust the transmit power to the maximum of 20 dB in 1 dB steps.

Note: Actual transmit power depends on local laws and regulations.

Maximum Number of Non-overlapping Channels

2.4 GHz

802.11b/g

·20 MHz: 3

802.11n

·20 MHz: 3

·40 MHz: 1

5 GHz

802.11a

·20 MHz: 5

802.11n

·20 MHz: 5

·40 MHz: 2

Note: The number of non-overlapping channels allowed varies in different countries.

Channel Rates

802.11b: 1, 2, 5.5, and 11 Mbit/s

802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s

802.11n data rate: (2.4 GHz and 5 GHz)

GI2 = 800 ns

GI = 400 ns

20 MHz (Mbit/s)

40 MHz (Mbit/s)

20 MHz (Mbit/s)

40 MHz (Mbit/s)

6.5 @ MCS10

13.5 @ MCS0

7.2 @ MCS0

15 @ MCS0

13 @ MCS1

27 @ MCS1

14.4 @ MCS1

30 @ MCS1

19.5 @ MCS2

40.5 @ MCS2

21.7 @ MCS2

45 @ MCS2

26 @ MCS3

54 @ MCS3

28.9 @ MCS3

60 @ MCS3

39 @ MCS4

81 @ MCS4

43.3 @ MCS4

90 @ MCS4

52 @ MCS5

108 @ MCS5

57.8 @ MCS5

120 @ MCS5

58.5 @ MCS6

121.5 @ MCS6

65 @ MCS6

135 @ MCS6

65 @ MCS7

135 @ MCS7

72.2 @ MCS7

150 @ MCS7

13 @ MCS8

27 @ MCS8

14.4 @ MCS8

30 @ MCS8

26 @ MCS9

54 @ MCS9

28.9 @ MCS9

60 @ MCS9

39 @ MCS10

81 @ MCS10

43.3 @ MCS10

90 @ MCS10

52 @ MCS11

108 @ MCS11

57.8 @ MCS11

120 @ MCS11

78 @ MCS12

162 @ MCS12

86.7 @ MCS12

180 @ MCS12

104 @ MCS13

216 @ MCS13

115.6 @ MCS13

240 @ MCS13

117 @ MCS14

243 @ MCS14

130 @ MCS14

270 @ MCS14

130 @ MCS15

270 @ MCS15

144.4 @ MCS15

300 @ MCS15

Note: Modulation Coding Scheme (MCS) index: Determines the spatial flow quantity, modulation, coding rate, and data rate

GI Indicates the period in nanoseconds the radio listens between packets

Receiver Sensitivity

2.4 GHz

802.11b (CCK)

·-97 dBm @ 1 Mbit/s

·-92 dBm @ 2 Mbit/s

·-92 dBm @ 5.5 Mbit/s

·-90 dBm @ 11 Mbit/ss



5 GHz

802.11a (Non-HT20)

·-90 dBm @ 6 Mbit/s

2.4 GHz

802.11g (Non-HT20)

·-92 dBm @ 6 Mbit/s

·-91 dBm @ 9 Mbit/s

·-90 dBm @ 12 Mbit/s

·-87 dBm @ 18 Mbit/s

·-83 dBm @ 24 Mbit/s

·-80 dBm @ 36 Mbit/s

·-76 dBm @ 48 Mbit/s

·-74 dBm @ 54 Mbit/s

2.4 GHz

802.11n (HT20)

·-92 dBm @ MCS0/8

·-89 dBm @ MCS1/9

·-86 dBm @ MCS2/10

·-82 dBm @ MCS3/11

·-79 dBm @ MCS4/12

·-74 dBm @ MCS5/13

·-73 dBm @ MCS6/14

·-71 dBm @ MCS7/15

2.4 GHz

802.11n (HT40)

·-89 dBm @ MCS0/8

·-86 dBm @ MCS1/9

·-83 dBm @ MCS2/10

·-79 dBm @ MCS3/11

·-76 dBm @ MCS4/12

·-72 dBm @ MCS5/13

·-70 dBm @ MCS6/14

·-68 dBm @ MCS7/15

5 GHz

802.11a (Non-HT20)

  • ·-90 dBm @ 6 Mbit/s
  • ·-89 dBm @ 9 Mbit/s
  • ·-86 dBm @ 12 Mbit/s
  • ·-84 dBm @ 18 Mbit/s
  • ·-81 dBm @ 24 Mbit/s
  • ·-77 dBm @ 36 Mbit/s
  • ·-72 dBm @ 48 Mbit/s
  • ·-71 dBm @ 54 Mbit/s

5 GHz

802.11n (HT20)

·-84 dBm @ MCS0/8

·-81 dBm @ MCS1/9

·-79 dBm @ MCS2/10

·-76 dBm @ MCS3/11

·-72 dBm @ MCS4/12

·-68 dBm @ MCS5/13

·-67 dBm @ MCS6/14

·-67 dBm @ MCS7/15

5 GHz

802.11n (HT40)

·-81 dBm @ MCS0/8

·-78 dBm @ MCS1/9

·-76 dBm @ MCS2/10

·-73 dBm @ MCS3/11

·-69 dBm @ MCS4/12

·-65 dBm @ MCS5/13

·-64 dBm @ MCS6/14

·-64 dBm @ MCS7/15
