Powering Wi Fi 7 PoE with Cisco Catalyst 9200L and 9300L

Powering Wi Fi 7 PoE with Cisco Catalyst 9200L and 9300L
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

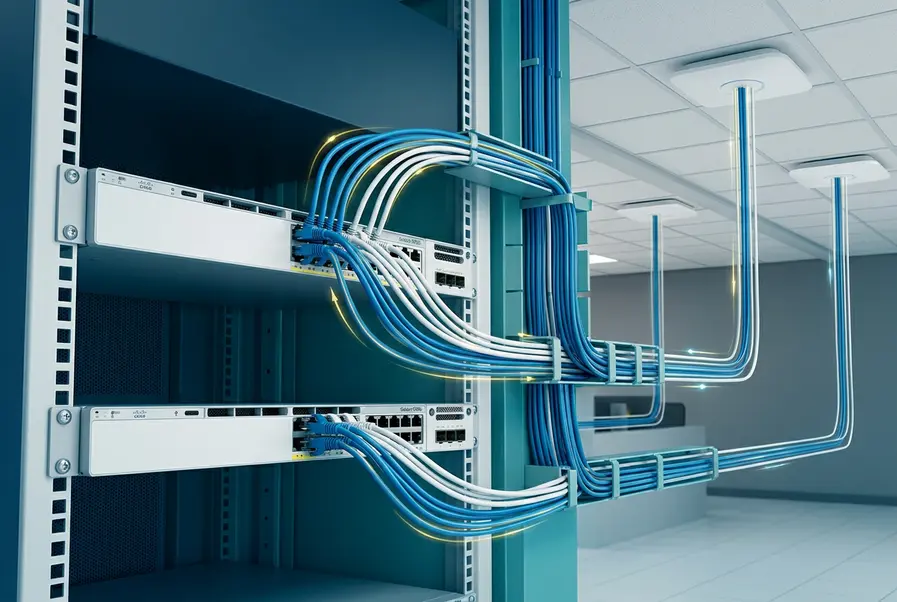

PoE Design for Wi‑Fi 7 Access

PoE Design for Wi‑Fi 7 Access

  • Wi‑Fi 7 access points change the calculus of access switching: higher per‑AP power draw, denser AP footprints, and longer refresh cycles make Power over Ethernet planning a first‑order design constraint. Under‑sizing PoE budgets on Cisco Catalyst 9200L or 9300L can strand ports, force mid‑span injectors, or delay Wi‑Fi 7 rollouts, while over‑provisioning inflates CapEx with no real benefit.

    This section frames how to translate Wi‑Fi 7 AP counts, power classes, and growth assumptions into practical PoE budget decisions across Catalyst 9200L vs. 9300L families, including multigigabit mGig options. The following guidance helps you decide when a cost‑optimized 9200L chassis is sufficient, when to step up to 9300L, and where mGig SKUs are justified to future‑proof uplinks and power delivery.

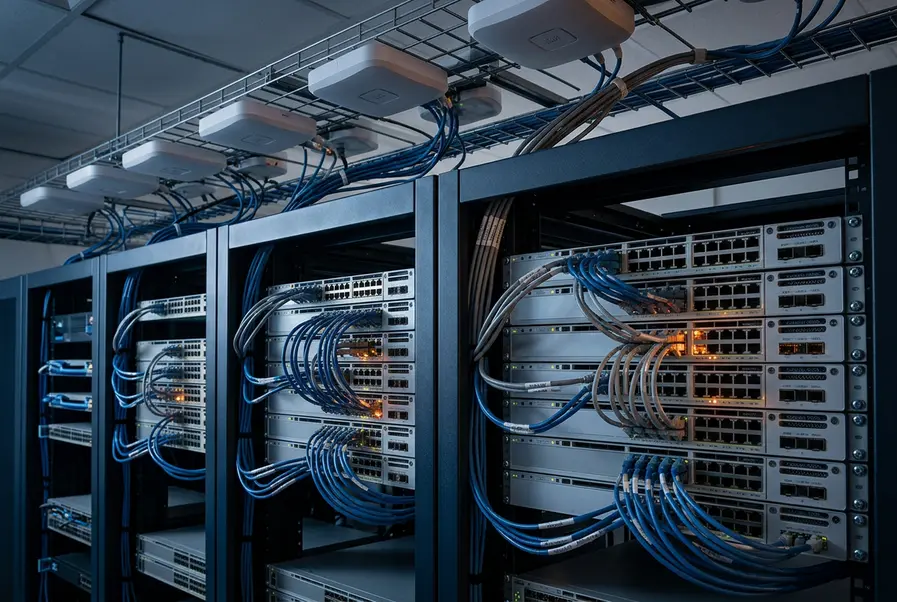

PoE Budget Trade-offs for Wi‑Fi 7 Edge

Balancing Wi‑Fi 7 AP power draw, mGig uplinks, and 9200L vs. 9300L PoE budgets is non-trivial as density, redundancy, and cost constraints collide.

PoE Budget Trade-offs for Wi‑Fi 7 Edge

  • Unclear PoE headroom for Wi‑Fi 7 AP loads

    Exact per-port and per-switch PoE headroom is hard to size as Wi‑Fi 7 APs mix 802.3af/at/bt, mGig, and future power profiles.

  • Cost vs. density across 9200L and 9300L

    Choosing between lower-cost 9200L and higher-density 9300L is complex when port counts, PoE classes, and uplink needs all scale differently.

  • Migration risk to mGig and new AP generations

    Deploying today without mGig and flexible PoE can lock you into bottlenecks or costly rip-and-replace when next-gen Wi‑Fi 7/8 APs arrive.

Cisco 9200L vs 9300L PoE Budget Comparison

Compare 9200L and 9300L PoE capabilities to right-size Wi-Fi 7 access, uplinks, and power budgets for your rollout.

Feature Cisco Catalyst 9200L PoE
Cisco Catalyst 9300L PoE (hot)
 Business Impact
Ideal deployment fit Cost-optimized edge access with basic PoE for small branches and low–mid Wi-Fi density. High-density enterprise access with stronger PoE and uplink capacity for Wi-Fi 6/6E/7 growth. Match platform to site size and Wi-Fi density to avoid overspending at the edge or underpowering APs.
PoE budget vs Wi-Fi 7 AP power draw Sufficient for powering a limited number of Wi-Fi 7 or mixed-generation APs when radios are not all driven at max power. Higher system PoE budgets and more flexible allocation for fully loaded Wi-Fi 7 APs, including future high-draw models. Reduce risk of AP throttling or disabling features when all radios and accessories are active at peak load.
Uplink scalability for Wi-Fi backhaul 1G/10G uplinks adequate for moderate AP counts and typical internet/MPLS edge traffic. More 10G options and better stack bandwidth to cope with dense Wi-Fi 7 cells and higher per-AP throughput. Ensure uplink is not the bottleneck when Wi-Fi 7 clients start consuming multi-gigabit throughput per AP.
mGig and Wi-Fi 7 readiness Limited mGig availability; generally best where APs stay at 1G and channel widths are modest. Broader mGig and higher-performance models in the family, better aligned with Wi-Fi 7 2.5G/5G access needs. Enable Wi-Fi 7 APs to exceed 1G without a full access-layer redesign, prolonging switch lifecycle.
Cost profile and TCO Lower hardware cost and PoE entry point; attractive for budget-constrained or gradual Wi-Fi upgrades. Higher initial spend, but better PoE headroom, port density, and longevity for aggressive Wi-Fi 7 adoption. Balance CapEx vs. future upgrades: 9200L for controlled growth, 9300L to avoid early forklift replacements.
Stacking, scale, and resilience Good fit for small stacks and sites where AP count and PoE draw are predictable and stable. Stronger stacking performance and scale for large floors/campuses with many PoE endpoints and APs. Design stack sizes around AP growth: 9300L fits “core access” roles, 9200L fits satellite or branch roles.
When to prioritize each Choose when most APs are Wi-Fi 6/6E, power draw is well-known, and budgets are tight. Choose when planning dense Wi-Fi 7, uncertain future AP power, or rapid user/device growth. Use 9200L where constraints are clear and stable; standardize on 9300L as the main Wi-Fi 7-ready access tier.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Ideal Deployment Scenarios for PoE Wi‑Fi 7

Where PoE budget planning for Cisco Catalyst 9200L vs 9300L matters most in Wi‑Fi 7 enterprise access designs.

Multi‑floor Enterprise Offices Upgrading to Wi‑Fi 7

Multi‑floor Enterprise Offices Upgrading to Wi‑Fi 7

  • Plan PoE budgets per floor to decide when Catalyst 9200L PoE models are sufficient for standard Wi‑Fi 7 AP densities versus where 9300L is required for higher draw APs and more ports.
  • Segment access switches by user group or wing, matching 24/48‑port 9200L or 9300L PoE SKUs to the number of Wi‑Fi 7 access points and wired devices that must be powered from each IDF.
  • Design uplink and power domains so that multigigabit Wi‑Fi 7 APs land on 9200L/9300L mGig PoE switches while legacy APs and low‑power endpoints are consolidated on traditional PoE 9200L stacks.
Higher‑Education and Campus Wi‑Fi 7 Rollouts

Higher‑Education and Campus Wi‑Fi 7 Rollouts

  • Right‑size PoE budgets across lecture halls, libraries, and dormitories, using 9300L PoE where high‑density Wi‑Fi 7 AP clusters and IoT sensors concentrate, and 9200L PoE in lighter‑load areas.
  • Deploy mGig 9200L/9300L PoE switches in high‑traffic study zones or labs to support multigigabit uplinks from Wi‑Fi 7 APs while reserving standard PoE 9200L for peripheral buildings.
  • Model worst‑case power draw during peak exam periods or events and map that to specific 9200L and 9300L SKUs so that stacked access switches can sustain full AP power without brownouts or mid‑semester upgrades.
Retail Chains and Hospitality Venues Modernizing Guest Wi‑Fi

Retail Chains and Hospitality Venues Modernizing Guest Wi‑Fi

  • Dimension PoE per store, restaurant, or floor to determine whether compact 9200L PoE switches can power Wi‑Fi 7 APs, cameras, and POS devices, or whether busier flagship sites justify 9300L PoE with more headroom.
  • Use multigigabit 9200L/9300L PoE SKUs selectively in conference rooms, event spaces, and lobbies where Wi‑Fi 7 throughput and AP power requirements are highest, keeping standard 9200L PoE for back‑of‑house areas.
  • Create standardized PoE budgets and switch templates per site type so that global rollouts can consistently choose between 9200L and 9300L families while ensuring enough PoE for future Wi‑Fi 7 AP refreshes.
Healthcare, Manufacturing and OT‑Heavy Environments

Healthcare, Manufacturing and OT‑Heavy Environments

  • Balance PoE allocations between Wi‑Fi 7 APs and critical OT endpoints such as medical devices, sensors, or handhelds, using 9300L PoE in zones with stringent uptime and power redundancy needs.
  • Deploy 9200L and 9300L multigigabit PoE switches in labs, production lines, and imaging areas where Wi‑Fi 7 APs must deliver low‑latency connectivity and may draw higher power under full radio utilization.
  • Segment critical and non‑critical loads across separate 9200L and 9300L stacks so that Wi‑Fi 7 AP PoE budgets can be guaranteed even when additional OT endpoints are added over time without re‑cabling.
Distributed Branch and Remote Office Networks

Distributed Branch and Remote Office Networks

  • Design standard PoE profiles per branch size, using 24‑port 9200L PoE models for small sites and 48‑port 9300L PoE where more Wi‑Fi 7 APs, phones, and cameras must be powered from a single closet.
  • Plan PoE margins so remote branches can later upgrade from Wi‑Fi 6 to Wi‑Fi 7 APs, choosing 9300L PoE or mGig variants in locations expected to grow user counts or bandwidth‑hungry applications.
  • Mix cost‑optimized 9200L PoE switches with select 9300L multigigabit PoE switches in regional hubs, ensuring that aggregation and high‑density AP areas have sufficient PoE and uplink capacity for Wi‑Fi 7 expansion.

Frequently Asked Questions

How do I decide between Cisco Catalyst 9200L and 9300L for powering Wi-Fi 7 access points?

  • If your Wi-Fi 7 rollout focuses on cost-efficient edge access with moderate AP density and mostly 1G uplinks, the Cisco Catalyst 9200L PoE models (such as C9200L-24P-4X-E or C9200L-48P-4X-A) are usually sufficient when sized with the proper PoE budget per port.
  • If you expect higher AP density, more uplink bandwidth, or need to aggregate multiple Wi-Fi 7 access switches, Catalyst 9300L PoE models (for example C9300L-48P-4X-E or C9300L-48P-4X-A) provide more scalability and stack bandwidth, which is critical when several Wi-Fi 7 APs run near their maximum throughput.
  • For mGig backhaul to Wi-Fi 7 APs (2.5G/5G/10G), consider the multigigabit series such as C9200L-24PXG-4X-E or C9300L-24UXG4X-10E as edge switches, then decide on 9200L vs. 9300L for aggregation based on your traffic growth and redundancy strategy.

What PoE budget factors should I check before ordering 9200L or 9300L switches for Wi-Fi 7 deployment?

  • Start from the per-AP maximum power requirement (for example 802.3at PoE+ vs. 802.3bt Type 3/4) and multiply by the number of APs per switch; add a margin for growth and non-Wi-Fi PoE devices such as IP phones or cameras.
  • Compare this total to the usable PoE budget of specific models (e.g., C9200L-48P-4X-E vs. C9300L-48P-4X-E) and verify that the power supply configuration can sustain full-load operation under worst-case conditions (high ambient temperature, all ports active).
  • For mixed generations of APs (Wi-Fi 6 and Wi-Fi 7), validate that the switch can prioritize PoE (such as allocating higher class power to Wi-Fi 7 APs if total draw approaches the limit) to avoid unexpected power negotiation or port shutdown during peak usage.

Are 9200L and 9300L PoE switches compatible with existing Wi-Fi 6/6E APs while preparing for Wi-Fi 7?

  • Yes, Catalyst 9200L and 9300L PoE switches are typically deployed in mixed environments where Wi-Fi 6/6E APs and early Wi-Fi 7 APs coexist, as long as the PoE standard (802.3af/at/bt) and cabling (Cat5e/Cat6/Cat6A) are respected.
  • You can connect Wi-Fi 6 APs on standard 1G PoE ports and reserve multigigabit ports (on models such as C9200L-24PXG-4X-E or C9300L-48UXG4X-10A) for Wi-Fi 7 APs that need 2.5G/5G/10G; this allows a phased migration without replacing the whole access layer.
  • Before purchasing, it is recommended to verify the exact AP model and its PoE class with our technical team; you can request design and validation help via free CCIE support. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

What deployment risks should I consider when powering Wi-Fi 7 APs via 9200L/9300L multigigabit switches?

  • Oversubscribing the PoE budget is a common risk: if the cumulative draw of Wi-Fi 7 APs and other PoE devices exceeds the configured power pool, some ports may be denied power or experience brownout; always size the PoE budget with a safety margin and verify the actual load post-deployment.
  • Cable quality and length become more critical with 2.5G/5G/10G mGig; marginal Cat5e/Cat6 runs may negotiate only 1G or cause intermittent errors, so for designs using C9300L-24UXG4X-10E / C9300L-48UXG4X-10E, ensure structured cabling is properly certified for the targeted speed and distance.
  • Stacking and uplink design must match the aggregate throughput of all Wi-Fi 7 APs; when several multigigabit switches (such as C9300L-24UXG2Q-10A or C9300L-48UXG2Q-10E) are involved, under-sizing the uplink or stack bandwidth can starve AP traffic even when PoE power is adequate.

What should I know about lead time, shipping, and customs when purchasing 9200L/9300L PoE switches for a Wi-Fi 7 project?

  • Lead time and shipping duration are influenced by stock status, configuration (e.g., specific PoE power options), and destination country; timelines are indicative only and may change depending on product availability and logistics conditions at the time of order.
  • For in-stock items, dispatch and transit are generally faster, but final delivery still depends on carrier performance and customs clearance at your location; urgent Wi-Fi 7 rollouts should plan buffer time for unforeseen delays.
  • To understand shipping options and constraints for your region, please review our current methods via shipping methods, and for import-related costs, refer to taxes and customs duties.

How are warranty, returns, and lifecycle risks handled for 9200L/9300L PoE and multigigabit SKUs?

  • Before committing to a large Wi-Fi 7 deployment, it is advisable to confirm that the selected models (for example C9200L-24PXG-4X-E or C9300L-48P-4X-A) are not approaching end-of-sale or end-of-support; you can quickly validate the lifecycle status using our EOL / EOSL checker.
  • Our warranty handling and replacement process for PoE and multigigabit switches follows the policies described on warranty policy; if a unit fails, you can follow the step-by-step instructions in return instructions to minimize downtime in your Wi-Fi 7 network.
  • For design validation and risk mitigation (including redundancy and PoE capacity planning), you can also engage our engineers through free CCIE support before finalizing your bill of materials. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
