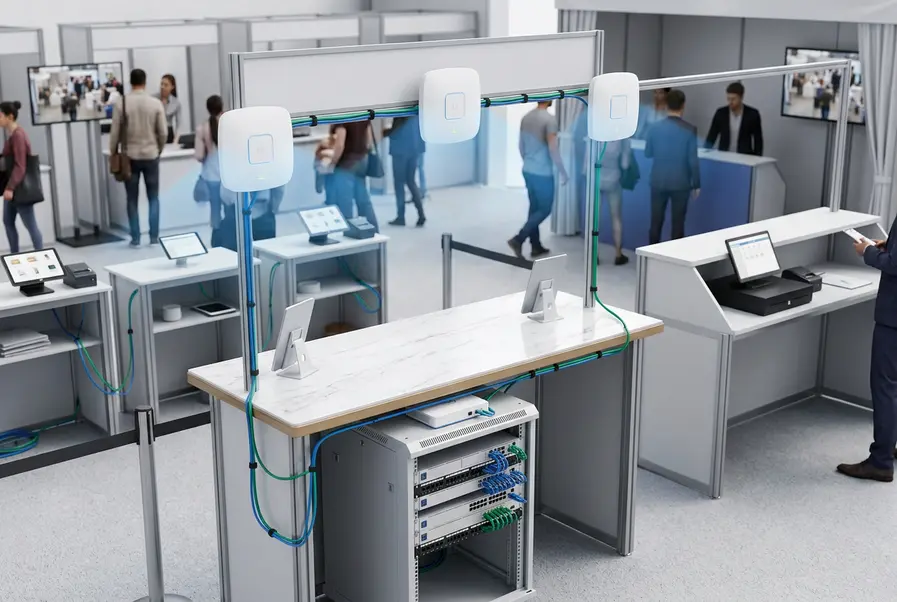

Designing Pop-Up Event Wi‑Fi

Designing Pop-Up Event Wi‑Fi
  • Temporary venues hosting 700 guests and 90 vendors need Wi‑Fi that behaves like a well-engineered campus network, but must be deployed and removed in days, often with no on-site IT staff. Ticketing, cashless payments, live streaming, and sponsor activations all depend on stable connectivity, while power, cabling, and RF conditions are improvised and constantly changing throughout the event lifecycle.

    This section frames how to architect a temporary Wi‑Fi 6 environment using embedded-controller access points and PoE access switches to minimize touch points, pre-stage configuration off-site, and keep support remote. The focus is on coverage and capacity planning, guest vs. vendor segmentation, resiliency without complex controllers, and SKU-level choices that balance simplicity, cost, and risk for short-lived but business-critical events.

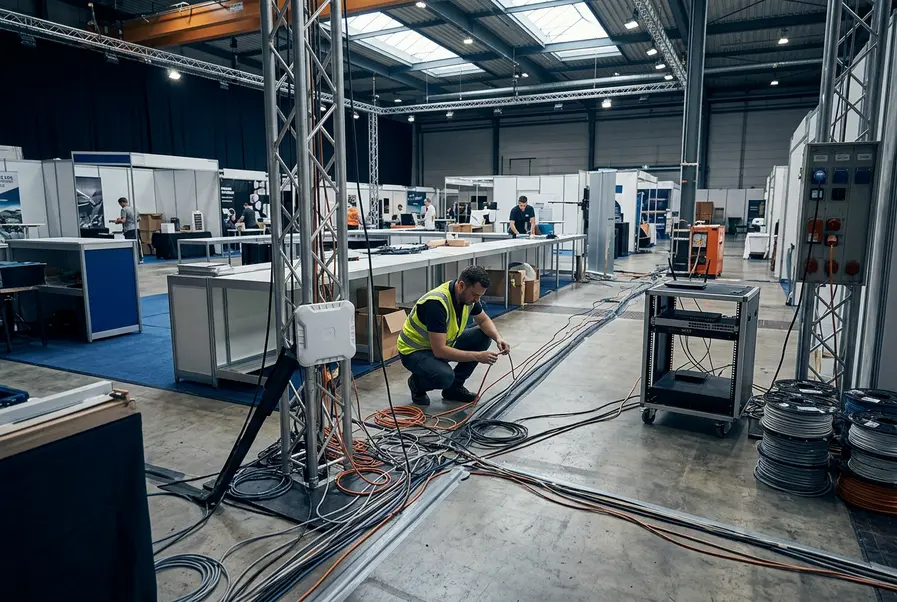

Designing Reliable Pop-Up Event Wi-Fi

Delivering stable Wi‑Fi for 700 guests and 90 vendors, in a temporary venue and without on‑site IT, demands careful capacity, design and risk trade‑offs.

Designing Reliable Pop-Up Event Wi-Fi
  • Sizing Wi‑Fi for Dense, Short-Lived Loads

    Uncertain guest and vendor usage makes it hard to right-size AP count, radio settings and PoE budget without overbuild or congestion risk.

  • Operating Without Local IT Staff

    No on‑site engineers means configuration, monitoring and incident response must be remotely manageable and resilient to human error.

  • Temporary Cabling and Power Constraints

    Ad‑hoc power and cabling at venues limit where APs and PoE switches can be placed, impacting coverage, redundancy and vendor SLA guarantees.

Event Wi‑Fi without On‑Site IT

Design a temporary Wi‑Fi architecture that is simple to deploy, stable under load, and easy to recover after the event.

High‑density guest access

Wi‑Fi 6 APs sized for 700 guests plus 90 vendors without slowdowns.

Controller in the AP

Embedded controller APs cut out external WLAN controllers and onsite IT.

Single‑cable AP rollout

PoE switches power and backhaul all APs from a compact temporary core.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Need Help? Technical Experts Available Now.

Use Cases & Deployment Scenarios

Designed for temporary venues that must deliver reliable Wi‑Fi to hundreds of guests and vendors without dedicated on‑site IT teams.

Pop-Up Conferences and Corporate Roadshows

Pop-Up Conferences and Corporate Roadshows

  • Provide high-density guest Wi‑Fi for keynote sessions, breakouts, and registration areas using Cisco Wi‑Fi 6 APs linked to temporary PoE access switches.
  • Segment sponsor booths and demo pods onto dedicated SSIDs and VLANs so exhibitors can securely run live product demos and payment terminals.
  • Use embedded controller access points to centrally apply captive portal, bandwidth limits, and content policies from a remote NOC without on-site engineers.
Trade Fairs, Pop-Up Retail and Vendor Markets

Trade Fairs, Pop-Up Retail and Vendor Markets

  • Deliver stable Wi‑Fi coverage across exhibition halls and open vendor areas so up to 90 stalls can run cloud POS, scanners, and inventory apps.
  • Isolate vendor, staff, and guest traffic using separate SSIDs on C9120/C9117 APs, aggregated by PoE switches like MS220 or S5720 series at the edge.
  • Enable fast day-1 turn-up and tear-down by using embedded wireless controller APs, allowing remote teams to push templates and monitor health centrally.
Outdoor Festivals, Sports and Community Events

Outdoor Festivals, Sports and Community Events

  • Cover outdoor seating, queuing lines, and concession zones with weather-appropriate Cisco Wi‑Fi 6 APs powered from temporary PoE switch racks.
  • Prioritize ticket scanning, emergency communications, and staff handheld radios over best-effort guest Wi‑Fi using SSID and QoS policies from embedded controllers.
  • Backhaul distributed PoE switches over fiber or wireless bridges to a mobile network core, keeping guest and vendor connectivity stable despite variable power and layout.
Hotel Ballrooms and Multi-Purpose Venues

Hotel Ballrooms and Multi-Purpose Venues

  • Extend or replace limited in-house Wi‑Fi with a self-contained event network using C9130AXI-EWC APs and PoE access switches staged in comms closets.
  • Quickly reconfigure SSIDs, captive portals, and bandwidth tiers per event without touching the venue’s production network, managed remotely by the organizer’s IT team.
  • Serve hybrid events by separating live-stream encoders, production teams, and AV gear from guest Wi‑Fi using VLANs anchored on MS120/MS210/MS220 switches.
Temporary Training Centers and Exam Halls

Temporary Training Centers and Exam Halls

  • Provide consistent low-latency Wi‑Fi for hundreds of trainees or test-takers accessing cloud learning platforms or proctoring systems via Cisco Wi‑Fi 6 APs.
  • Enforce per-user rate limits and client caps on exam SSIDs through embedded controllers, preventing a few heavy users from degrading overall experience.
  • Use stackable PoE switches like Huawei S5720 series to simplify cabling and provide resilient power to APs across classrooms and proctored exam zones.

Frequently Asked Questions

How many Cisco Wi‑Fi 6 access points do I need for 700 guests and 90 vendors at a temporary event?

  • For a 700‑guest event with 90 vendors, most organizers end up in the 12–20 AP range using models like C9120AXI-E, C9117AXI-K/C9117AXI-A, or C9130AXI-EWC-T, depending on venue size, construction, and how concentrated the crowd is.
  • As a decision rule: size for concurrent users, not total registrations. For example, if you expect ~400–500 concurrent devices in the main area, prioritize higher‑capacity APs (C9120AXI, C9130AX series) for that zone and use C9115AXE-I or C9120AXE-E to extend coverage where density is lower.
  • Because every hall, tent, or outdoor layout behaves differently in RF terms, we strongly recommend having your layout and expected client mix reviewed by an expert before ordering. You can submit your floor plan, photos, and user estimates to our free CCIE support team for a concrete AP count and placement proposal.

Should I choose embedded controller APs or controller-dependent APs if there is no on-site IT staff?

  • For events without on‑site IT, Cisco Embedded Wireless Controller (EWC) models such as C9115AXI-EWC-Q, C9117AXI-EWC-A/C9117AXI-EWC-S, C9120AXI-EWC-N, C9120AXE-EWC-A, or C9130AXI-EWC-Z are usually the safer choice because they integrate the controller into the AP itself.
  • EWC APs let you bring up a small temporary WLAN by configuring a single master AP and then having other APs join it automatically, reducing the need for dedicated controllers or CLI expertise during the event.
  • If you already operate Cisco controllers in your production network and want to extend that policy set to the event, standard AP SKUs (C9120AXI-E, C9117AXI-K/A, C9115AXE-I, C9120AXE-E, C9130AXI-EWC-T used in controller‑joined mode) might make sense, but they assume remote IT support is available and pre-staging is done before gear arrives on site.

What PoE switches do I need to power and aggregate these temporary event access points?

  • All listed Cisco Wi‑Fi 6 APs require PoE or PoE+; they cannot be powered directly from standard AC outlets without separate injectors. PoE access switches like MS220-24P-HW, MS120-48FP-HW, MS220-48FP-HW, MS210-24P-HW or Huawei S5720-28TP-PWR-LI-AC, S5720S-28X-PWR-LI-AC, S5720S-28TP-PWR-LI-AC, S5720-56C-PWR-EI-AC1 are typically used for temporary event builds.
  • As a rule, check three points before ordering: (1) total PoE power budget vs. number of APs; (2) whether each port supports the PoE class required by your chosen AP model; and (3) uplink capacity back to your event’s internet edge or core switch.
  • If you share your intended AP models and approximate cable distances, our engineers can validate PoE compatibility and port counts and recommend a concrete MS or S5720 series configuration via our free CCIE support.

How can I pre-stage and deploy this event Wi‑Fi if equipment ships directly to the venue and I have no local IT team?

  • For temporary events, we recommend a pre‑staging workflow: (1) define SSIDs, VLANs, guest vs. vendor segregation, and bandwidth limits; (2) have configurations preloaded on EWC APs or switches; (3) label each AP and cable for its target location; and (4) include a simple, diagram‑based installation guide for non‑technical staff.
  • EWC APs (e.g., C9115AXI-EWC-Q, C9120AXI-EWC-N, C9130AXI-EWC-Z) are advantageous here, as they can be pre‑configured off‑site so that on‑site staff only need to mount APs, plug them into the marked PoE ports on switches like MS220-24P-HW or S5720-28TP-PWR-LI-AC, and power on.
  • If you need help designing a zero‑touch or near‑zero‑touch process suitable for volunteers or event contractors, you can submit your requirements and receive configuration guidance through our free CCIE support.

What about product lifecycle, EOL risk, and warranty for short-term event Wi‑Fi gear?

  • When procuring APs and PoE switches for recurring events, it is important to avoid models that are close to end‑of‑sale or end‑of‑support, as that could limit software updates and vendor assistance over the next few years.
  • Before finalizing SKUs such as C9120/C9130 series APs or S5720/MS series switches, we recommend running a quick lifecycle check with our EOL / EOSL checker to confirm long‑term viability.
  • For warranty coverage and any extended service options relevant to your event schedule or rental model, please review our current terms at warranty policy and confirm alignment with your risk tolerance and event calendar. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

How are shipping, customs, and potential returns handled for time-sensitive event deployments?

  • For time‑critical events, the realistic lead time will depend on stock status of specific SKUs (for example, C9130AXI-EWC-T vs. C9115AXE-I, or MS120-48FP-HW vs. S5720-56C-PWR-EI-AC1), the shipping method chosen, and the destination country or region. For a current view of available logistics options, please refer to our shipping methods information.
  • Import taxes, VAT, and customs clearance rules vary significantly by country; organizers should budget for these and confirm who is the importer of record. You can review general guidance at taxes and customs duties and then align with your local logistics partner or venue operator.
  • In the unlikely event that any item arrives faulty or is damaged in transit, you should follow our documented RMA flow at return instructions. Because event windows are tight, we recommend planning a small amount of hardware redundancy (spare APs, PoE ports, and optics) so that the event can proceed smoothly while any RMA is being processed.
