Designing AI Clusters with Aligned Network Storage and Compute

Designing AI Clusters with Aligned Network Storage and Compute
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

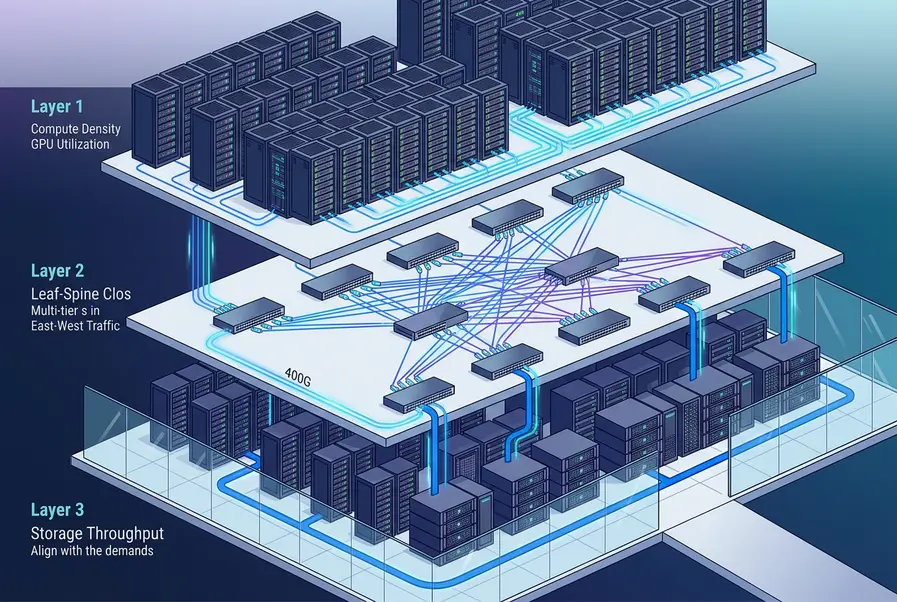

Aligning AI Fabric Decisions

Aligning AI Fabric Decisions

  • As GPU clusters scale into hundreds or thousands of accelerators, misalignment between network fabric, storage throughput, and compute density becomes the primary barrier to usable AI performance. Bottlenecks in east–west traffic, suboptimal leaf–spine design, or under-provisioned storage nodes quickly erode GPU utilization and drive up training costs, even when premium switches, optics, and storage hardware are in place.

    This section frames how to think about end-to-end AI cluster design: how to size and place data center switches for leaf–spine GPU fabrics, how to align scale-out storage nodes with training and inference workloads, and how to decide on 400G optics and cables for intra-cluster links. The following guidance helps translate performance, scalability, and TCO targets into concrete topology, node, and interconnect choices.

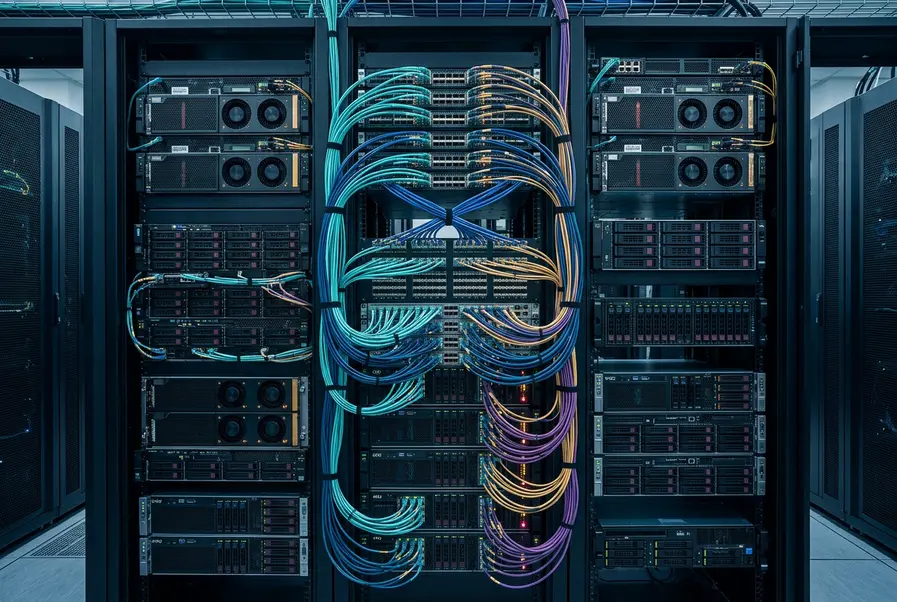

Aligning Network, Storage and GPU at Scale

Mapping GPUs, spine-leaf fabrics and storage nodes into one balanced AI cluster is hard when bandwidth, latency, cost and growth constraints collide.

Aligning Network, Storage and GPU at Scale

  • Balancing east-west traffic and GPU throughput

    Mismatch between GPU count, leaf-spine fabric and 400G links causes hotspots, underused GPUs and unpredictable training times.

  • Right-sizing storage IOPS and capacity tiers

    Choosing storage node counts, media mix and network attach for data-heavy training is complex and easily leads to I/O bottlenecks.

  • Designing for evolution, not one-off builds

    Locking into fixed switch, optic and storage choices risks painful upgrades, stranded ports and disruptive cluster expansion.

Aligning Network, Storage and GPUs

Understand how to co-design fabric, storage, and compute so AI clusters scale predictably and efficiently.

Deterministic AI Fabric

Design leaf-spine GPU fabrics with 100/400G NDR-ready switching and low-latency paths.

Storage Feeds the GPUs

Size scale-out storage so GPUs are never starved, from training data lakes to checkpoints.

Optics for Lifecycle Growth

Use 400G optics and DAC/AOC to balance reach, power, and upgrade paths across phases.

AI Cluster Fabric Design Options Comparison

Compare RoCE over Ethernet vs InfiniBand-style lossless Ethernet when aligning GPU, storage and spine-leaf design.

Feature Standard RoCE Leaf-Spine Ethernet
AI-Optimized Lossless Ethernet Fabric (hot)
 Outcome for You
Deployment fit General-purpose DC fabric using switches like N9K-C9336C-FX2-B2 or DCS-7050SX3-48YC12-F, mixed workloads, partial GPU nodes. Purpose-built AI cluster fabric using CE8851-32CQ8DQ-KB0, 7260CX3-64-F and 400G DR4/FR4 optics for dense GPU + storage pods. Decide whether your cluster is a multi-tenant data center first, or an AI training/inference platform first.
East-west throughput & oversubscription Higher oversubscription ratios; 100/200G links, selective use of 400G, suitable for moderate-scale training and general traffic. Aggressive 400G spine-leaf with QDD-400G-DR4-S/FR4-S and QSFP-DD-400G-DR4; low oversubscription aligned to GPU job sizes. You can right-size bandwidth: standard RoCE for cost; AI-optimized lossless Ethernet for sustained GPU utilization.
Latency & congestion control Standard ECN/PFC tuning; good enough for mixed workloads but more sensitive to microbursts and tail latency under load. Tightly engineered lossless Ethernet (fine-tuned PFC, ECN, buffer configs) to keep GPU-to-storage and GPU-to-GPU latency predictable. Better tail latency directly improves training step time and inference jitter for latency-sensitive models.
Storage alignment Works with scale-out nodes like 90004U-C-AC and N8500-ENT-N2M96G-G8-AC-1 but may share bandwidth with non-AI applications. Storage paths explicitly sized for AI (e.g., dedicated 100/200/400G uplinks for 90002U-I-M96G-AC and N8500-EHS-N2M384G-DC-1). Choosing AI-aware storage wiring reduces I/O stalls, improving end-to-end pipeline from data ingest to GPU memory.
Scalability & lifecycle Easier incremental growth; flexible mix of ToR models (CE6863-48S6CQ-B, 6865-48S8CQ-SI-B) as clusters evolve. Fabric blueprinting per pod/rack and lifecycle planning around GPU generations and optics (AOC, DR4, FR4, CU2M5). AI-optimized design scales predictably in racks and pods, simplifying future GPU and storage expansion planning.
Cost & TCO profile Lower upfront cost; can reuse existing Ethernet, 100G optics, and more diverse switch SKUs; higher risk of hidden GPU idle cost. Higher CapEx (400G optics, premium spines) but optimized for maximizing GPU utilization and power efficiency over time. Weigh hardware savings vs GPU-hour efficiency; for sizable clusters, AI-focused lossless Ethernet usually wins on TCO.
Operational complexity Simpler day-2 ops; standard monitoring and QoS; easier for teams already running generic data center networks. Requires disciplined templates for QoS, PFC and routing; closer coordination between network, storage and AI platform teams. If you can invest in design and automation, AI-optimized fabrics unlock better performance without sacrificing reliability.
Best use cases Small to mid-size AI pilots, mixed virtualization + AI, edge or branch data centers consolidating several workloads. Dedicated AI training clusters, shared enterprise AI platforms, GPU farms where job throughput and SLA are primary goals. Pick this when AI is strategic: it aligns compute, storage nodes and 400G optics into a coherent, high-return cluster fabric.
