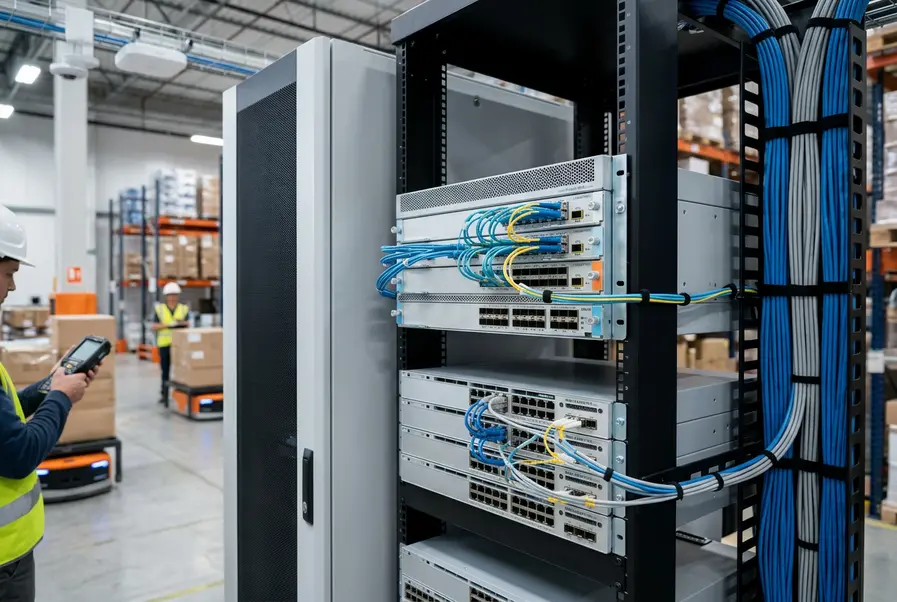

Campus Uplinks That Fit Reality

Campus Uplinks That Fit Reality

  • In small warehouses and distribution centers, the campus core uplink is often a bottleneck between busy access switches, wireless controllers, and upstream data center or internet edges. Peaks from scanners, handhelds, robotics, cameras, and Wi‑Fi 6/6E access points can easily overwhelm under-sized uplinks, yet overbuilding the core adds cost, complexity, and power draw that these facilities rarely justify.

    This section focuses on how to right-size Cisco campus core and aggregation uplinks for these environments—balancing 10G and 25G access, fiber aggregation, and collapsed core designs using Cisco Catalyst 9500 and 9300 families. The following guidance helps you choose practical uplink capacities, port mixes, and form factors that align with current site demands while leaving headroom for phased growth and modernization.

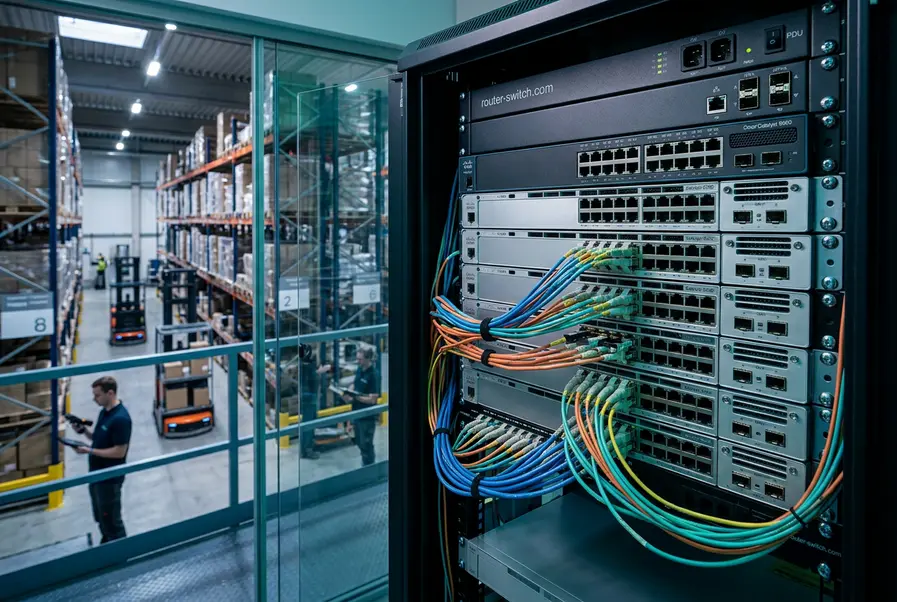

Balancing Core Uplinks in Small Warehouses

Designing campus core uplinks for small warehouses is a trade-off between oversubscription, cost, resiliency, and future growth headroom.

Balancing Core Uplinks in Small Warehouses

  • Sizing uplinks vs. real traffic patterns

    Hard to choose between 10G, 25G and port counts when scanner, WMS and Wi-Fi bursts create uneven and time-bound traffic peaks.

  • Cost and footprint of core versus access

    Limited rack space and budget make it difficult to justify higher-end core uplinks without underutilizing C9500 and C9300X capacities.

  • Migration path and resiliency constraints

    Mixing fiber, copper and legacy access while adding redundancy risks complex designs and unclear upgrade paths for future 25G/40G needs.

Designing Warehouse Core Uplinks

Clarify how much uplink capacity, redundancy, and fiber design your warehouse core really needs.

Right-size core bandwidth

Match 10/25G Cisco core uplinks to scanner, AP, and camera demand.

Resilient fiber topology

Use aggregation and dual-homing to keep warehouse operations online during faults.

Clear SKU selection path

Map traffic patterns to the right C9500 and C9300X/LM models and optics.

Cisco Core vs Aggregation vs Access Uplinks

Compare campus core, aggregation, and access uplink roles to right-size Cisco designs for small warehouse networks.

Feature Access Uplink Switches Aggregation / Fiber Switches
Campus Core / Collapsed Core (hot)
 Operational Impact
Deployment fit Best for connecting scanners, APs, cameras on each floor or zone with local PoE and a few 10/25G uplinks. Ideal to aggregate multiple access closets and fiber runs within the warehouse distribution campus. Designed as central core or collapsed core for site-wide switching and routing between segments. Clarifies which layer each switch family should serve, avoiding overspending or under-sizing at a given tier.
Uplink scale & density Limited 10G/25G uplinks, fine for 1–4 uplinks per stack back to aggregation or core. Higher 10G density; suits many access stacks converging to a few fiber trunks. High 10G/25G/40G options and larger switch fabric for multiple aggregation blocks. Ensures there are enough uplinks where fan-in occurs, preventing oversubscription bottlenecks at peak shifts.
Performance & feature set Access-optimized throughput; basic QoS and policy; no dedicated core-scale routing or services. Stronger feature set for QoS, segmentation, and policy at aggregation; still not the main routing engine. Core-optimized performance, advanced routing, redundancy, and policy enforcement for the whole campus. Aligns performance and feature depth with role: simple at edge, rich at core, avoiding unnecessary complexity at access.
Resiliency model Stacking HA at the edge; failure impact is limited to a small zone or aisle. Redundant links to core and optional stack/VS configuration; failure affects a building area, not entire site. Redundant core pair with multi-homed aggregation and access; failures are isolated and fast to recover. Improves uptime of business-critical systems (WMS, voice, automation) while containing failure domains.
Cost profile Lowest cost per user/port; ideal where many endpoints need PoE and modest uplink bandwidth. Mid-range cost; shared across many access switches; good balance between spend and flexibility. Highest cost per chassis/port; justified when aggregating many links and running core services. Helps place most budget at core/aggregation while keeping access affordable, meeting project CAPEX constraints.
Growth & scalability Limited headroom; adding more uplinks usually means adding more access stacks. Good step-up path; can absorb more access switches and new zones as warehouse operations expand. Scales with additional line-rate links and advanced routing as new buildings and DC links are added. Supports incremental growth from single small warehouse to multi-building distribution campus without redesign.
Typical Cisco SKUs C9300L-24UXG/48UXG models and C9300LM-24U-4Y for PoE-heavy, uplink-ready access. C9300-24S/48S series for fiber aggregation and uplink concentration from multiple access zones. C9500-48X and C9300X-12Y/24Y as resilient core or collapsed core platforms for the site. Maps concrete Cisco options to each design tier, making it easier to right-size BOMs for the warehouse edge-to-core.
When to prioritize Use when primary need is PoE and simple connectivity to a small number of upstream links. Use when multiple access closets or long fiber runs must be consolidated before the core. Use as first design priority when routing, redundancy, and site-wide throughput are key. Guides design sequencing: lock in core/collapsed core first, then size aggregation and access accordingly.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Ideal Applications for Warehouse Campus Uplinks

Designed for small warehouse and distribution center networks that need right-sized Cisco core, aggregation, and access uplinks without overbuilding.

Small Single-Warehouse Core or Collapsed Core

Small Single-Warehouse Core or Collapsed Core

  • Deploy a compact Cisco C9500 or C9300X collapsed core to aggregate all access uplinks for a single small warehouse with limited racks and aisles.
  • Right-size 10G/25G uplinks from C9300L access switches to the core to handle barcode scanners, handheld terminals, and a modest number of Wi‑Fi 6/6E APs.
  • Use fiber-based uplinks from remote corners of the warehouse back to the core to maintain performance while keeping copper runs within distance limits.
Distribution Center with Multiple Access Zones

Distribution Center with Multiple Access Zones

  • Build a two-tier design using C9300 aggregation switches to terminate fiber from different picking, staging, and packing zones before handing off to a C9500 or C9300X core.
  • Right-size uplinks by combining 10G links from legacy zones and 25G from newer high-density zones instead of standardizing on over‑provisioned 40G/100G.
  • Aggregate uplinks from dock doors, conveyor areas, and mezzanines into a small aggregation ring to simplify fiber plant and minimize core port consumption.
High-Density Wireless and Scanner Environments

High-Density Wireless and Scanner Environments

  • Connect high-density Wi‑Fi 6/6E AP clusters and roaming RF scanners to C9300L multi‑gig access switches with 10G/25G uplinks sized for actual RF and client load.
  • Design separate uplink groups for office, break room, and warehouse floor SSIDs to keep business-critical picking traffic from contending with guest and staff traffic.
  • Use C9300LM PoE access with right-sized uplinks for APs and BLE tags in cold storage or RF-challenged aisles where extra APs are required for coverage.
Video Surveillance, Safety, and OT Network Uplinks

Video Surveillance, Safety, and OT Network Uplinks

  • Aggregate IP camera and safety sensor traffic from C9300L/C9300LM access switches into C9300 fiber aggregation with sufficient but not oversized 10G/25G uplinks.
  • Separate OT VLANs and camera streams from office and warehouse user traffic at the aggregation layer to avoid oversizing core uplinks for bursty video workloads.
  • Right-size fiber uplinks from remote electrical rooms, security cages, and perimeter fences to core or aggregation switches while maintaining redundancy for critical monitoring.
Connected Warehouse to HQ or Data Center Edge

Connected Warehouse to HQ or Data Center Edge

  • Use C9500 or C9300X at the warehouse core as the aggregation point for WAN, SD‑WAN, or MPLS edge devices with appropriately sized 10G or 25G handoffs.
  • Dimension core uplinks to support ERP, WMS, and inventory applications hosted at HQ or data center without overbuilding for rare peak traffic events.
  • Provide segmented uplinks from the warehouse core to internet breakout or cloud on‑ramp devices, balancing security inspection capacity with realistic warehouse traffic volumes.

Frequently Asked Questions

How do I decide between Cisco C9500 core and C9300X collapsed core for a small warehouse?

  • For small warehouse or distribution centers with modest growth and limited uplink counts, C9300X models (such as CIS:C9300X-12Y-A / CIS:C9300X-12Y-E / CIS:C9300X-24Y-A) are often sufficient as a collapsed core, especially where you only need a handful of 10/25G uplinks to aggregation or access switches.
  • You should consider C9500-48X-A when you expect higher east–west traffic between zones, multiple 10G/25G uplink bundles from different warehouse halls, or future migration toward higher-density aggregation (for example multiple C9300-24S / C9300-48S access aggregation blocks). Using the higher-performance core early can reduce the risk of having to re-architect the network when more scanners, APs, cameras, and autonomous systems are added.

Can I mix 10G and 25G uplinks between C9300X core and C9300L/C9300LM access switches?

  • Yes, these families are designed to interoperate, but you must align uplink port capabilities and optics. C9300X 25G ports can usually run at 10G when using compatible 10G optics and appropriate configuration, allowing you to connect to 10G uplinks on switches like C9300L-24UXG-4X-A or C9300L-48UXG-4X-A.
  • When planning mixed 10G/25G links, check SFP/SFP28 module compatibility, supported breakouts, and any licensing or software feature requirements on both ends. For risk mitigation, validate exact part numbers, software train, and interoperability before bulk procurement; if needed, you can use our engineering help via free CCIE support to review your uplink design and optics bill-of-materials. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

What are the key oversubscription and throughput risks when sizing campus core uplinks for a small warehouse?

  • In small warehouses, oversubscription issues often appear when many high-throughput APs, scanners, cameras, and IoT devices aggregate into a small number of 10G uplinks. If multiple C9300L access switches (e.g., C9300L-24UXG-2Q-A / C9300L-48UXG-2Q-A) uplink via only one or two 10G links, peak picking or shipping windows can congest those cores, causing latency for WMS, handheld scanners, and voice over Wi‑Fi.
  • When right-sizing, consider not only the port count on C9500-48X-A or C9300X but the total expected traffic during peaks (e.g., simultaneous RF scans, camera streams, AGV telemetry). Use additional 10G/25G uplinks, link aggregation, and possibly separate VLANs for video vs. transactional traffic to avoid contention. Also remember that upgrading from 10G to 25G on the core is far easier when the chassis and optics plan are prepared in advance.

How should I stage and deploy Cisco core and aggregation switches to minimize warehouse downtime?

  • For a live warehouse, pre-staging is critical. First, rack and cable the core (C9500-48X-A or C9300X) and aggregation switches (C9300-24S / C9300-48S) in a lab or staging area, load a tested software release, and pre-configure routing, VLANs, and uplink port-channels. Validate with a limited set of C9300L / C9300LM access switches before going on-site.
  • During cutover, use a phased approach: migrate one distribution/aisle at a time, keep old and new cores temporarily connected if feasible, and maintain out-of-band management. Pay special attention to warehouse Wi‑Fi coverage and scanner roaming; stagger AP migration to avoid coverage holes. If you need a configuration or migration review, you can request design assistance from free CCIE support. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

What procurement and lifecycle risks should I watch for when selecting these Cisco campus core and uplink switches?

  • Before you lock in the design, verify that your selected SKUs (such as CIS:C9300X-12Y-A, C9300-24S-E, C9300L-24UXG-2Q-E, CIS:C9300LM-24U-4Y-E) are not near end-of-sale or end-of-support; otherwise you may face earlier-than-expected refresh costs and limited software updates. You can check current lifecycle status using our EOL / EOSL checker before issuing a purchase order.
  • From a risk perspective, also consider aligning all core and aggregation switches on a consistent software train and feature set (e.g., -A vs -E licenses), so future expansions and replacements don’t require re-qualification. This reduces operational complexity and avoids mixing different policy or routing feature capabilities across warehouse sites.

How are delivery, customs, and after-sales issues handled for these Cisco core and uplink platforms?

  • Shipping options and lead times for Cisco campus core and aggregation switches may vary by stock level, configuration, and destination; for in-stock items, shipping is typically arranged based on the chosen carrier and your region. You can review available methods and conditions via our shipping methods guidance. Stock and ETA for specific SKUs like C9500-48X-A or C9300L-48UXG-2Q-E should be confirmed with our sales team at the time of quotation.
  • For international deployments, local taxes and import duties are usually the customer’s responsibility and may depend on your country’s regulations; see our taxes and customs duties notes for typical handling options. After delivery, warranty handling and returns of faulty goods follow our documented procedures, including RMA initiation and logistics steps, which you can review in warranty policy and return instructions. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
