Cisco Dual Gateway SMB Event Network with CBS Switches

Cisco Dual Gateway SMB Event Network with CBS Switches
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

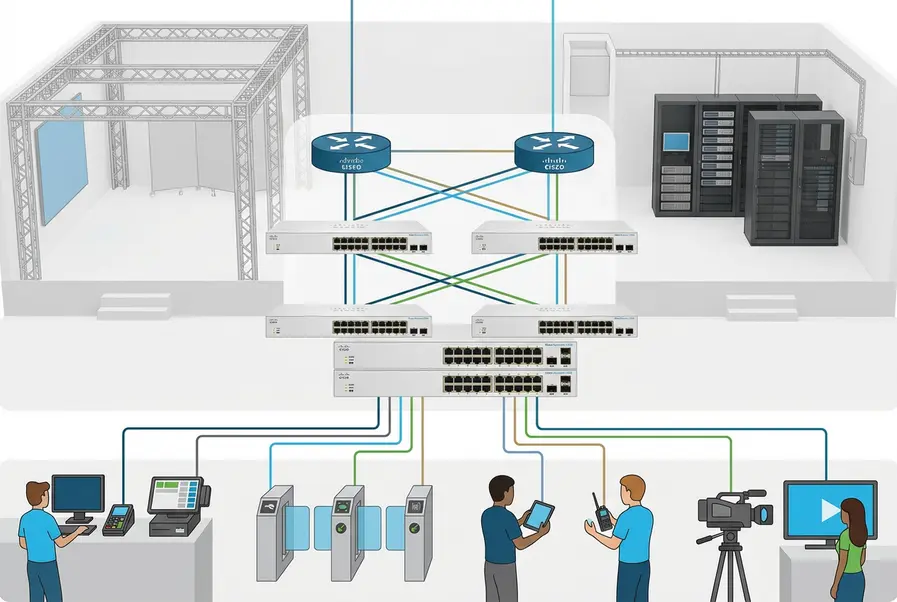

Dual-Gateway Event Fabrics

Dual-Gateway Event Fabrics

  • Small and mid-sized events increasingly rely on IP networks for ticketing, POS, staff communications, and AV streaming, yet are often built under tight time, budget, and space constraints. A single edge or gateway failure can stall payments, disrupt production, or disconnect critical users. SMB operators need a VLAN-based fabric that can be deployed quickly, stay simple to run, and still survive device or uplink outages.

    The following sections focus on how Cisco CBS access and aggregation switches, combined with compact Cisco branch routers, can form a dual-gateway design tailored to these temporary or semi-permanent venues. Emphasis is placed on where to place VLAN gateways, how to separate user, staff, POS, and AV traffic, and how to choose resilient yet cost-conscious uplink and redundancy options for small event networks.

Dual-Gateway VLAN Fabrics for Small Events

Designing redundant VLAN fabrics for small event sites is difficult when budgets, legacy routers, and compact Cisco CBS stacks must all align.

Dual-Gateway VLAN Fabrics for Small Events

  • Balancing redundancy with small-site budgets

    Adding dual gateways and L3 aggregation for a small venue easily overshoots budget and power limits while still needing enterprise-grade uptime.

  • Complex VLAN and routing design at the edge

    Distributing user, POS, and AV VLANs across CBS access and L3 switches while avoiding loops, asymmetry, and broadcast issues is non-trivial.

  • Integrating legacy branch routers as gateways

    Using older branch routers in HA roles with modern CBS fabrics raises concerns around throughput, failover behavior, and feature interoperability.

Resilient dual-gateway SMB fabrics

Prioritize the network design choices that keep small event VLAN fabrics resilient, simple, and easy to operate.

Dual WAN resilience

Pair Cisco routers as primary and backup gateways for uninterrupted event access.

Layered VLAN fabric

Use CBS access and L3 switches to segment users, POS, and AV without chassis complexity.

Compact, high-throughput

Right-size ports and uplinks so small venues get reliable gigabit performance end to end.

Dual-Gateway SMB Event Network Design Comparison

Compare single vs dual-gateway Cisco SMB designs to choose the right resilience and VLAN fabric for small event networks.

Feature Single-Gateway SMB Event Network
Dual-Gateway Cisco CBS Fabric (hot)
 Outcome for You
Deployment fit One router handles all WAN and VLAN default gateways; simpler but with a single fault domain for event staff, POS, and AV traffic. Two Cisco branch routers (e.g., CISCO892-K9 plus C28xx series) share WAN and gateway roles, anchored by CBS220/CBS250/CBS350 aggregation. Aligns network design to event criticality: dual-gateway ensures continuity for ticketing, payments, and production AV even during failures.
Resilience and failover Loss of the router or its uplink drops all VLANs; switch redundancy helps only inside the LAN, not at the gateway edge. Primary and backup routers with redundant uplinks and L3 CBS switches provide gateway and path diversity for all VLANs. Reduces risk of show-stopping outages; a single router or uplink failure has minimal impact on attendee experience and revenue.
VLAN segmentation and scale Basic VLANs terminated on access or a single L3 device; limited headroom as more staff, user Wi-Fi, and POS segments are added. CBS350/SX550X aggregation delivers richer inter-VLAN policies, more routing capacity, and clearer separation for guest, staff, and AV. Keeps growth options open for more stages, pop-up POS, and temporary staff networks without redesigning the entire fabric.
Operational complexity Simpler to configure and monitor but couples all services to one configuration set, making changes riskier during live events. Dual-gateway with structured CBS fabric requires initial planning but allows staged changes and clear roles for each router and switch. Improves change safety during events, letting you adjust VLANs or policies with lower risk of bringing down the full network.
Cost profile Lower upfront CAPEX with a single router and fewer L3 features; acceptable where downtime costs are limited. Additional router and L3 CBS aggregation add modest CAPEX but remove single points of failure and extend platform life. Balances budget against lost revenue risk, making it easier to justify spend for ticketed events and card-only concessions.
Management and monitoring Single edge node simplifies visibility but can create blind spots between access, aggregation, and WAN performance. Structured layers (access CBS220/250, aggregation CBS350/SX550X, dual routers) allow clearer telemetry and fault isolation. Speeds up troubleshooting and escalation, helping on-site teams pinpoint whether issues are WAN, gateway, or access-related.
Future readiness (AI/AV and services) Limited headroom for higher bit-rate AV, IP intercom, or analytics; upgrades may require a forklift replacement of the router. CBS350/SX550X with dual routers leaves room for higher throughput, additional VLANs, and service chains to future AI/AV tools. Protects your investment by accommodating richer production, analytics, and guest services without disruptive re-architecting.
Best use case Small, low-risk events where brief outages are tolerable and budgets are very constrained. Ticketed or revenue-critical events needing continuous POS, access control, and AV delivery over a resilient VLAN fabric. Helps decide when to upgrade from basic connectivity to a dual-gateway CBS design based on event scale and risk tolerance.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Ideal Use Cases & Applications

Best suited for small and mid-sized event networks needing resilient dual-gateway VLAN fabrics with Cisco CBS switches and branch routers.

Pop-Up Retail & Ticketing at Small Events

Pop-Up Retail & Ticketing at Small Events

  • Build segmented VLANs for POS, ticketing kiosks, and staff Wi-Fi using Cisco CBS220/CBS250 access switches with compact aggregation in small halls or expo foyers.
  • Deploy dual branch routers such as CISCO892-K9 and C2801-VSEC-SRST/K9 as primary and backup gateways to keep card payments and barcode scanning online even during WAN failures.
  • Use CBS350 or SX550X aggregation to centralize uplinks from multiple retail islands and enforce inter-VLAN policies between payment, guest, and back-office networks.
Corporate Offsite, Training, and Workshop Venues

Corporate Offsite, Training, and Workshop Venues

  • Create separate VLAN fabrics for employees, trainers, AV control, and contractor access using CBS220-16T-2G and CBS250-24T-4G at the edge for clean, policy-driven segmentation.
  • Terminate inter-VLAN routing and policy at CBS350-24XS-EU or CIS:SX550X-16FT-K9 to provide resilient Layer 3 core services without needing a chassis switch in temporary venues.
  • Leverage dual-gateway designs with C2811-VSEC-SRST/K9 and C2821-VSEC-SRST/K9 to sustain VPN access, Webex, and collaboration tools when one WAN circuit or router is down.
Community Festivals, Fairs, and Outdoor Events

Community Festivals, Fairs, and Outdoor Events

  • Extend VLAN-based fabrics from CBS220-24T-4X-EU aggregation to weatherproof access pods using CBS220-8T-E-2G-EU for food vendors, ticket booths, and security teams across the venue.
  • Anchor primary and backup WAN gateways in a compact control cabin using C2821-VSEC-CUBE/K9 or C2821-VSEC-CCME/K9 to support voice, ticketing, and streaming needs with failover.
  • Use dual-uplink designs from each access node to the aggregation CBS350-12XT or CBS350-24S-4G-EU to maintain connectivity when a fiber run or uplink port fails during the event.
Small Performance Theaters and Houses of Worship

Small Performance Theaters and Houses of Worship

  • Segment production AV, lighting control, office staff, and guest Wi-Fi into dedicated VLANs using CBS220-48T-4G and CBS250-48T-4G at the edge to avoid interference and broadcast storms.
  • Run redundant uplinks from stage racks and control rooms into CBS220-48T-4X or CBS350 aggregation switches to provide resilient backbone connectivity for audio, video, and lighting traffic.
  • Combine dual WAN routers such as C2851-VSEC-SRST/K9 with CBS350 Layer 3 switches to maintain streaming, ticketing, and IP intercom services if a gateway or ISP link fails mid-show.
Temporary Command Posts and Incident Response Centers

Temporary Command Posts and Incident Response Centers

  • Stand up a secure VLAN fabric for incident command, field staff, surveillance cameras, and guest access using compact CBS220-8T-E-2G and CBS220-16T-2G switches in mobile racks.
  • Use CBS350-24XS-EU or CIS:SX550X-16FT-K9 as the resilient Layer 3 hub to route between operational, admin, and guest VLANs while enforcing ACLs and QoS for critical traffic.
  • Deploy dual branch routers such as C2801-VSEC-SRST/K9 and C2821-VSEC-SRST/K9 to support redundant VPNs back to headquarters, ensuring continuity of voice, telemetry, and reporting links.

Frequently Asked Questions

How do I choose between CBS220, CBS250, and CBS350 for a small event VLAN fabric with dual gateways?

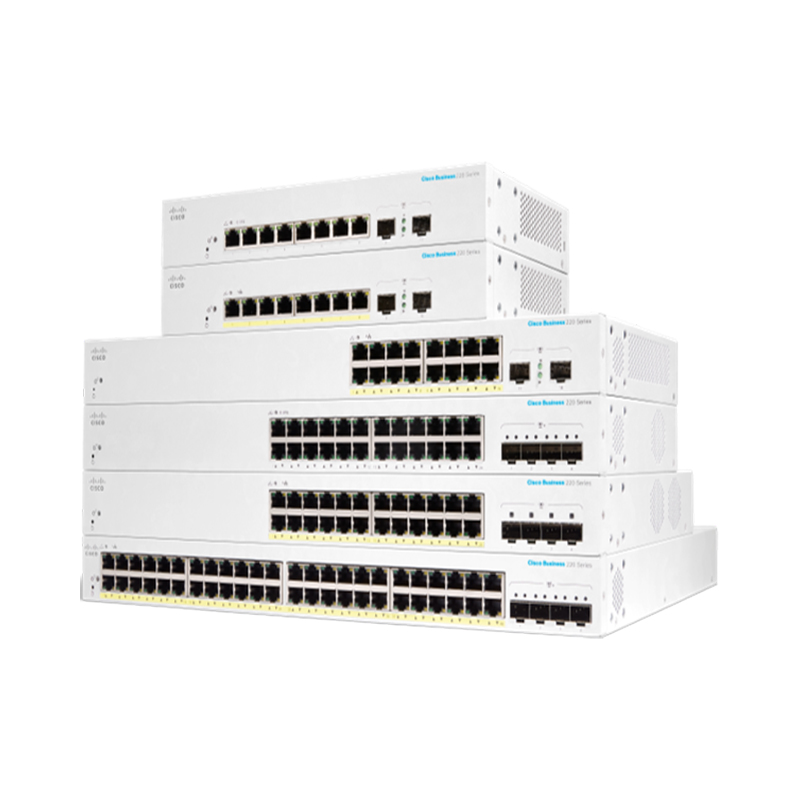

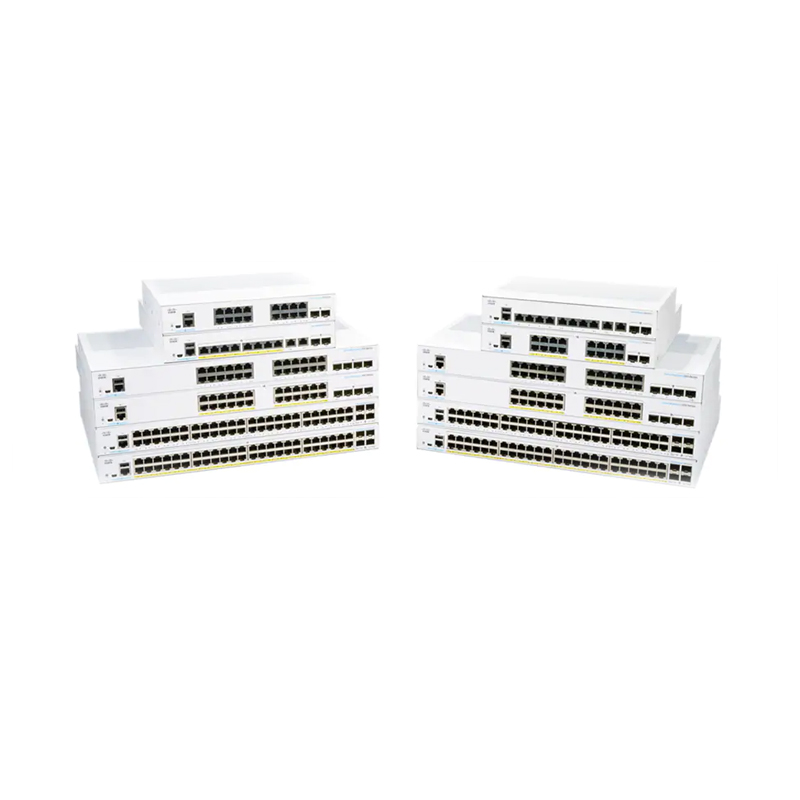

  • Use Cisco CBS220 or CBS250 access switches (such as CBS220-8T-E-2G, CBS220-16T-2G, CBS250-24T-4G, CBS250-48T-4G) when your primary need is VLAN-based edge access for staff, POS, and AV endpoints with basic Layer 3 at the aggregation layer rather than at the edge.

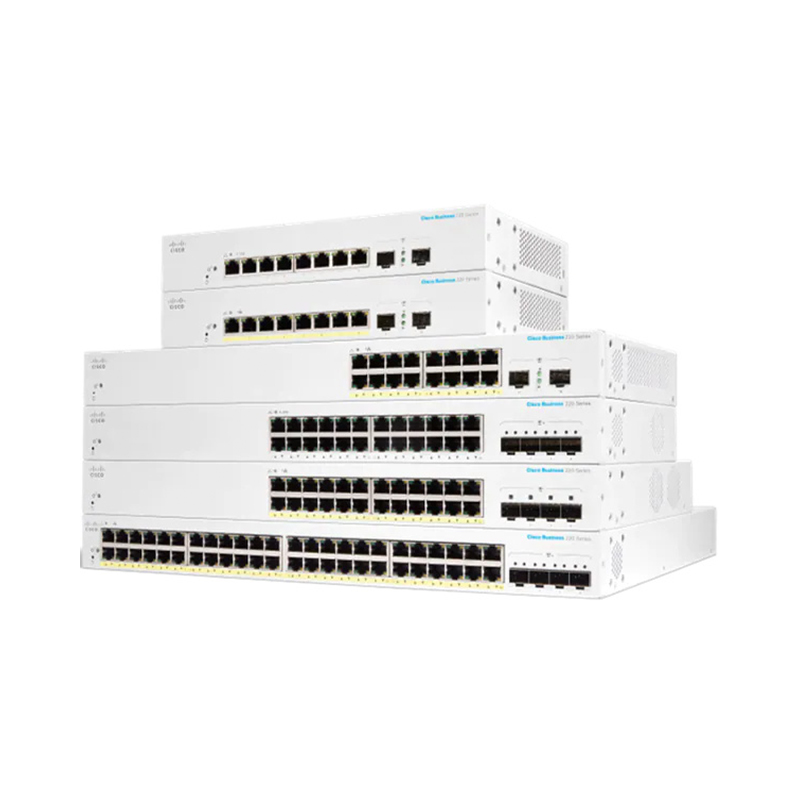

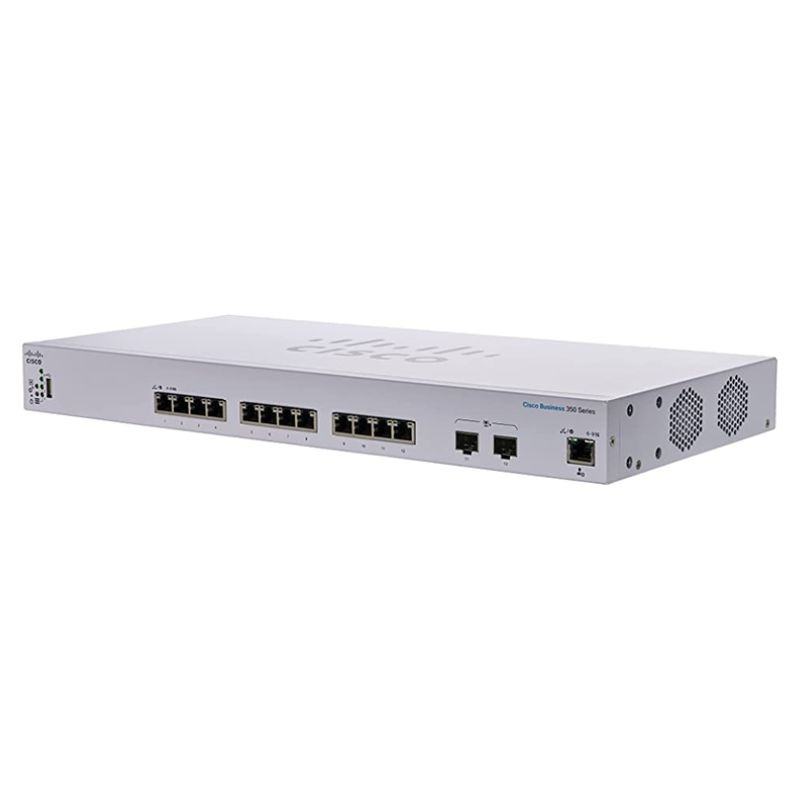

  • Select CBS220-24T-4X / CBS220-48T-4X or CBS350-12XT / CBS350-24XS as aggregation switches when you need more 10G uplinks, inter-VLAN routing, and resilient uplink concentration for two Cisco branch routers acting as dual gateways.

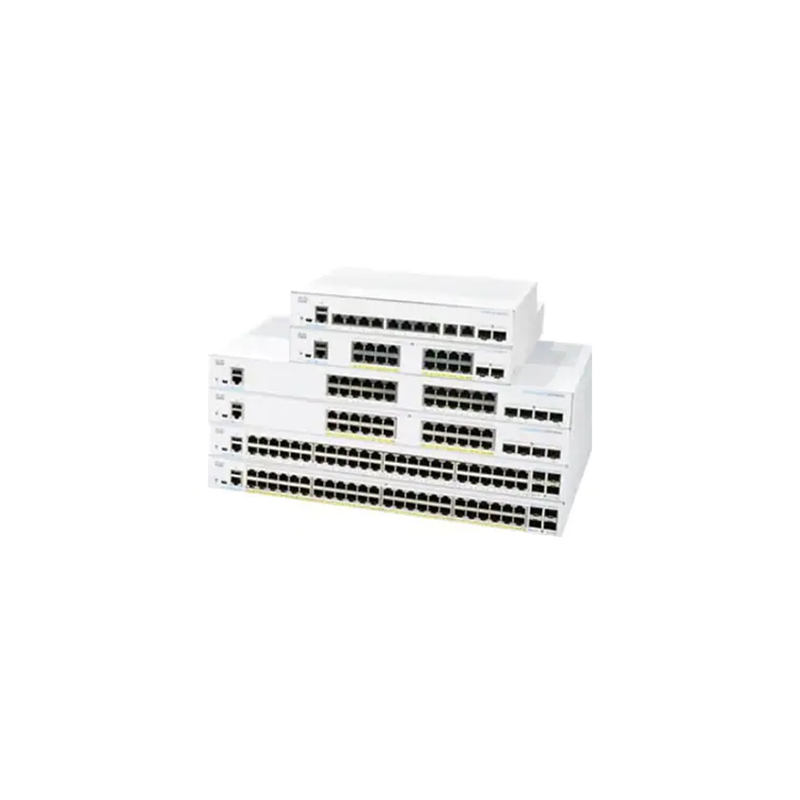

  • Reserve higher-end aggregation SKUs like CBS350-24XS-EU or SX550X-16FT-K9 for events that require greater east–west bandwidth (e.g., media production, IP intercom, or concurrent streaming) and future expansion to more VLANs and additional WAN circuits.
  • If you are unsure which combination best matches your scale, power, and port-density constraints, you can request presales design assistance through our free CCIE support. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

Can legacy Cisco branch routers safely act as dual gateways with new CBS220/CBS350 switches?

  • Yes, Cisco branch routers such as CISCO892-K9 and the C2801/C2811/C2821/C2851 VSEC series can typically operate as primary and backup WAN gateways for a modern CBS220/CBS250/CBS350 switching fabric, as long as you align interface types (Fast/Gigabit Ethernet) and confirm supported routing features (static routes, VRRP/HSRP equivalents, or policy-based routing).
  • For small event networks, a common pattern is to home all VLANs on the CBS350/SX550X aggregation layer and use the routers for WAN termination, security policies, and dynamic routing, while dual-homing the aggregation switches to each router to avoid a single failure domain.
  • Because some of these router SKUs are older and may be in different lifecycle phases, you should always verify software availability, feature sets, and lifecycle state via the EOL / EOSL checker before relying on them in a new deployment.
  • When mixing old routers with new switches, plan lab testing before the live event to validate failover behavior, throughput limits, and any QoS or NAT constraints under realistic traffic patterns. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

What deployment risks should I watch for when building a dual-gateway SMB VLAN fabric for events?

  • A key risk is misaligned Layer 3 responsibilities. Decide clearly whether inter-VLAN routing resides on the CBS350/SX550X aggregation switches (e.g., CBS350-24XS-EU, SX550X-16FT-K9) or on the branch routers, and design default gateways and redundancy protocols accordingly to avoid routing loops and asymmetric paths.
  • Another risk is underestimating uplink capacity. In small event networks, multiple AV streams, POS backhauls, and staff Wi-Fi traffic may saturate 1G uplinks; consider 10G-capable uplinks on CBS220-24T-4X / CBS220-48T-4X or CBS350-12XT when you expect bursty media traffic or concurrent HD streams.
  • Power and physical layout also introduce risk. Dual-gateway designs only provide real resilience if each router and aggregation switch has independent power, cabling paths, and, where possible, separate upstream providers; otherwise, a single rack or power issue can take down the entire event.
  • To reduce change risk, build and validate the full VLAN, routing, and failover design in a staging environment before the event, including POS failover tests and synthetic AV traffic to ensure gateway switchover times meet your operational tolerance.

How do stock availability, shipping, and customs affect planning for event-focused CBS deployments?

  • Lead time for Cisco CBS220/CBS250/CBS350 switches and branch routers can vary and is influenced by stock levels, specific SKUs (for example EU vs global variants), and logistics constraints; for in-stock items, depending on product availability and destination, shipping can generally be aligned to your event date if you plan sufficient buffer.
  • Because event dates are often fixed and non-negotiable, we strongly recommend confirming stock status and indicative dispatch windows early in the design phase, especially for critical aggregation devices like CBS350-24XS-EU or SX550X-16FT-K9 and key routers such as CISCO892-K9.
  • International shipments may be subject to additional taxes, duties, and import procedures; you can review typical scenarios and best practices via our taxes and customs duties information and align your schedule with local customs clearance timelines.
  • For an overview of available logistics options and how they might affect your deployment schedule, refer to the shipping methods page and build in contingency time for unforeseen delays.

What warranty and after-sales considerations apply to CBS switches and branch routers in temporary event use?

  • Even though small event networks are often temporary, you should treat CBS switches and routers as long-lived assets; confirm hardware warranty coverage and any available extended services before the first deployment to avoid surprises if a failure occurs during an event series.
  • Different SKUs (for example CBS220 vs CBS350 vs legacy C2800 series routers) can have distinct warranty options and service coverage levels, especially across regions; reviewing our warranty policy helps you align replacement expectations with the criticality of your primary/backup gateway pair.
  • For event-heavy calendars, consider keeping at least one preconfigured spare CBS access switch and, where budget allows, a spare router or standby configuration image so you can swap devices quickly while preserving your VLAN and routing design.
  • If a device fails, especially under dual-gateway designs where stateful features like NAT or firewalling are in play, ensure your runbooks include clear steps for RMA, configuration restoration, and rollback. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

What support and return options do I have if a device fails before or during an event?

  • If a CBS220/CBS250/CBS350 switch or Cisco branch router shows issues in pre-event testing, you should first open a technical case so that configuration, software, and compatibility can be validated; our free CCIE support can help you quickly assess whether the problem is design-related or hardware-related.
  • When a hardware fault is confirmed, follow the documented return instructions to avoid delays in processing and to ensure serial numbers and failure details are captured for the RMA process.
  • For time-sensitive events, we recommend maintaining detailed diagrams and configuration backups for your dual-gateway design so that, if you need to replace a unit, you can restore services quickly while the formal return process is underway.
  • Service levels and replacement timelines can vary by product and geography; when planning your event network, factor in the potential impact of shipping, customs, and vendor processing when sizing your on-site spares and backup options. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
