Cisco DMVPN to SD WAN Migration under CGNAT and Starlink

Cisco DMVPN to SD WAN Migration under CGNAT and Starlink
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

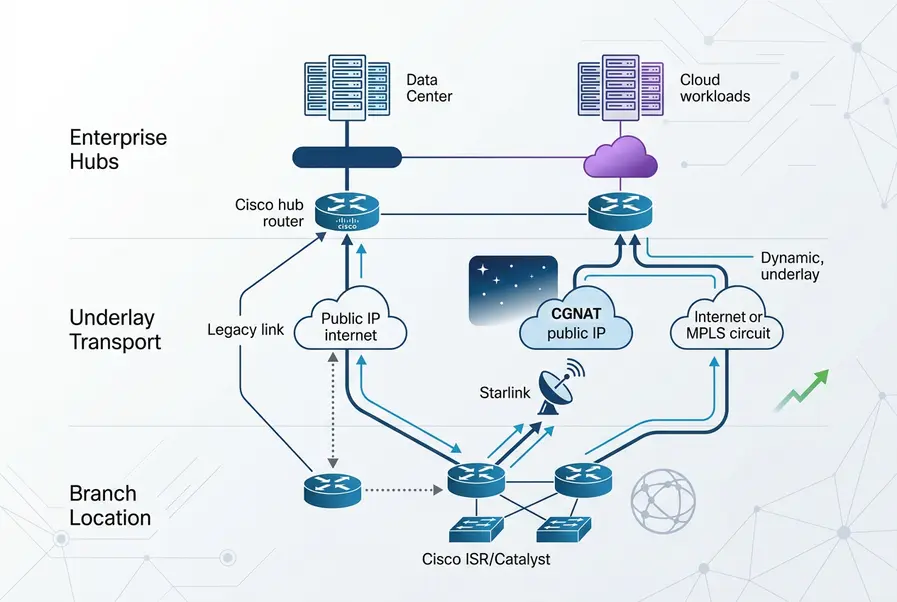

Branch Underlay Migration Context

Branch Underlay Migration Context

  • Many enterprises are modernizing branch connectivity from legacy Cisco DMVPN hubs to SD-WAN fabrics, but real-world underlays often sit behind CGNAT, single public IP allocations, or new transports like Starlink. These constraints complicate dual-WAN failover, VPN continuity, and policy consistency, especially when branches still depend on existing Cisco branch routers for secure access to data centers and cloud workloads.

    The following sections focus on how to design a practical migration path across mixed DMVPN and SD-WAN domains when only a single routable IP or CGNAT-based Starlink link is available. Key decision points include underlay topology choices, dual-WAN handoff, router role placement, and which Cisco branch VPN and integrated services routers best align with each stage of transition, from coexistence to full SD-WAN adoption.

DMVPN-to-SD-WAN Under CGNAT Constraints

Designing DMVPN-to-SD-WAN migration over single-IP and Starlink links is constrained by CGNAT, routing scale, and operational risk.

DMVPN-to-SD-WAN Under CGNAT Constraints

  • CGNAT and Single-IP Underlay Limit Flexibility

    Carrier CGNAT and a single public IP restrict tunnel models, complicate failover, and impact DMVPN-to-SD-WAN coexistence.

  • Mixed WAN Media and Starlink Add Design Risk

    Combining broadband, LTE, and Starlink under one edge raises QoS, MTU, and path control issues for business traffic and voice.

  • Legacy Routers vs. SD-WAN Feature Requirements

    Existing branch routers may lack resources or features for phased SD-WAN, making hardware choices and timelines hard to align.

Branch DMVPN-to-SD-WAN Pivot

Key design choices to keep branch VPNs online while moving from DMVPN to SD-WAN over CGNAT and Starlink.

Preserve VPN While Migrating

Maintain DMVPN reachability while introducing SD-WAN over single-IP and CGNAT links.

Design for CGNAT & Starlink

Use dual-WAN and satellite-friendly underlay patterns to stabilize latency and failover paths.

Right-Size Branch Routers

Match RV and ISR platforms to scale, crypto, and wireless WAN needs for each site.

DMVPN vs SD-WAN vs Starlink CGNAT Migration

Compare classic DMVPN, overlay SD-WAN, and Starlink/WWAN branches to choose the best CGNAT-friendly migration path.

Feature Cisco DMVPN Branch (Legacy) Hybrid DMVPN + Starlink WWAN
SD-WAN Branch over CGNAT (Recommended)
 Operational Impact
Deployment fit Single/dual-WAN ISR branches with public/static IPs; predictable MPLS/Internet underlay. Mix of wired underlay plus Starlink or 3G/LTE on C1921 or RV345 for remote sites. Dual-WAN RV345/ISR WAN edge with SD-WAN overlays that tolerate CGNAT and dynamic Starlink IPs. Clarifies which pattern fits your branch reality: fixed underlay, mixed transports, or fully CGNAT-constrained.
NAT & CGNAT handling Sensitive to symmetric NAT and CGNAT; often needs hub public IPs and careful NAT exemptions. Adds complexity: Starlink CGNAT and wireless NAT often break DMVPN unless heavily tuned. Built for NAT/CGNAT with controller-based tunnels and cloud on-ramps, minimizing per-site NAT tweaking. Reduces time spent troubleshooting random tunnel drops and NAT idiosyncrasies at remote branches.
Resiliency on Starlink/WWAN DMVPN over Starlink is fragile: higher jitter, path changes, and UDP timeouts impact stability. Improved reach via secondary Starlink/WWAN but still inherits DMVPN’s sensitivity and manual failover logic. SD-WAN steers flows across wired + Starlink/WWAN dynamically using SLA, with brownout-aware failover. Keeps critical apps online even when Starlink flaps or primary broadband performance degrades.
Operational complexity Relies on CLI templates and manual NHRP, IPsec, QoS tuning per ISR or RV router. Hybrid DMVPN + WWAN means more policy combinations and troubleshooting scenarios per branch. Central SD-WAN policy, templates, and analytics; RV/ISR act as managed WAN edges, not snowflakes. Improves scale: same operations team can manage more branches without per-site customization overhead.
Security & segmentation Static crypto maps and DMVPN phases; micro-segmentation is manual and coarse-grained. Adds wireless attack surface; segmentation and guest/IoT separation mainly done on each router. SD-WAN fabric supports app-aware security, VPN segmentation, and easier Internet breakout control. Aligns WAN security posture with zero-trust and segmented access requirements at modern branches.
Cost and hardware lifecycle Leverages existing ISR4331/C1921 routers but may require more truck rolls and support time. Requires extra WWAN-capable SKUs and antennas; OPEX rises as complexity and troubleshooting grow. Uses RV345/ISR4k as SD-WAN edges, extending life via software-defined overlays and centralized ops. Balances CAPEX reuse of current routers with lower OPEX through automation and fewer on-site visits.
Migration path Best for branches not yet impacted by CGNAT; DMVPN-to-DMVPN changes are incremental but limited. Transitional option: keep DMVPN while testing Starlink/WWAN at a subset of sites. Phased migration: onboard branches into SD-WAN fabric while old DMVPN hubs run in parallel. Gives a structured roadmap from legacy DMVPN to SD-WAN without big-bang cutovers or downtime.
Best use case Stable, public-IP sites with minimal CGNAT, where DMVPN investments must be sweated. Hard-to-reach branches where connectivity is priority over elegance, and DMVPN is already entrenched. Branches under CGNAT, single-IP broadband, or Starlink where policy-based SD-WAN adds maximum value. Helps prioritize SD-WAN first for CGNAT/Starlink sites, keeping DMVPN only where it still makes sense.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Ideal Use Cases

Best suited for branches moving from Cisco DMVPN to SD-WAN over single-IP and Starlink-style CGNAT underlays.

Retail and SMB Branches Migrating DMVPN to SD-WAN

Retail and SMB Branches Migrating DMVPN to SD-WAN

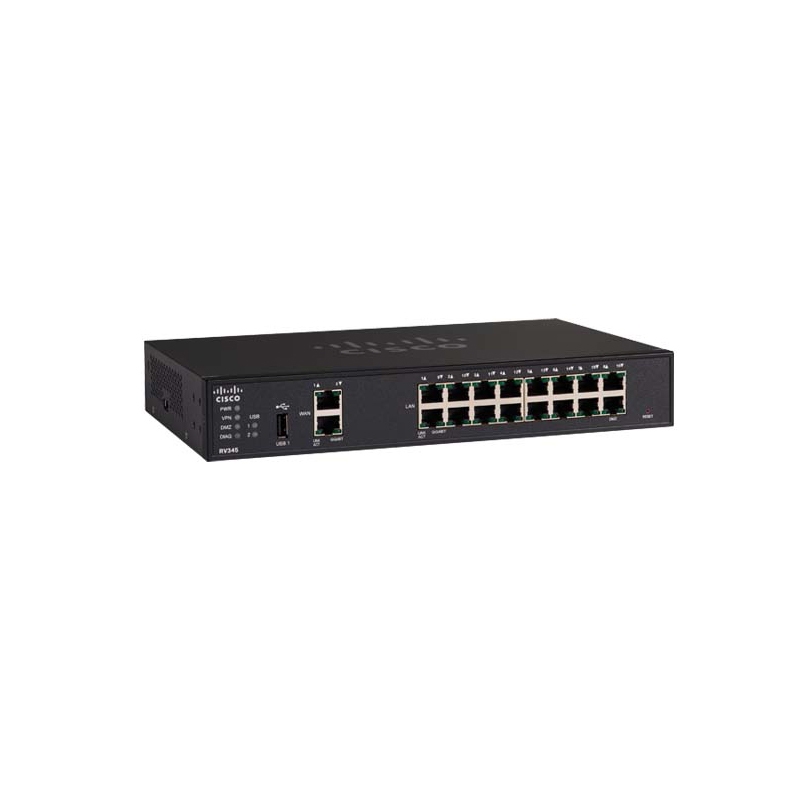

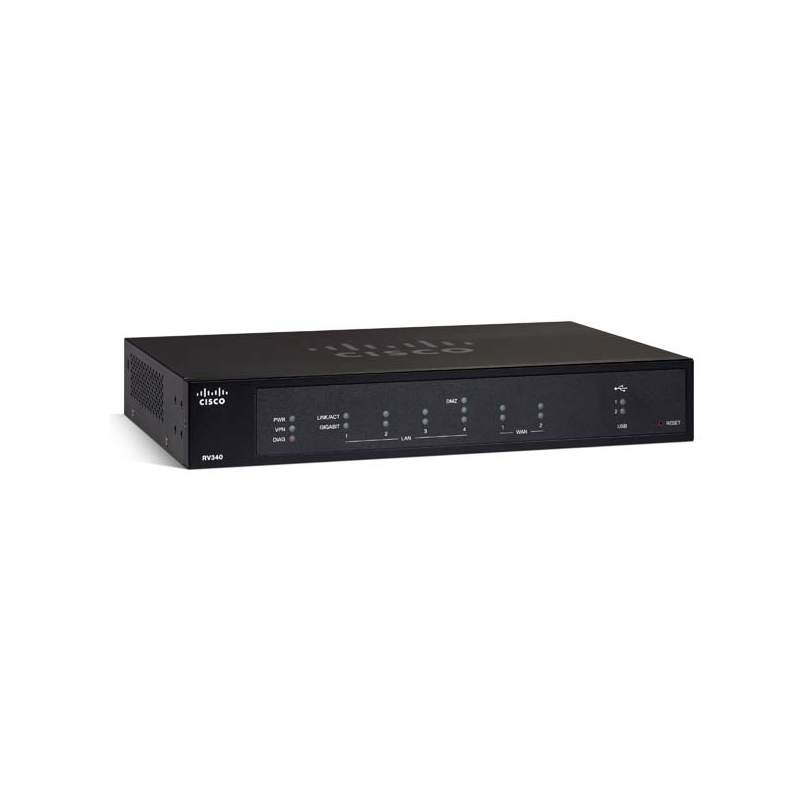

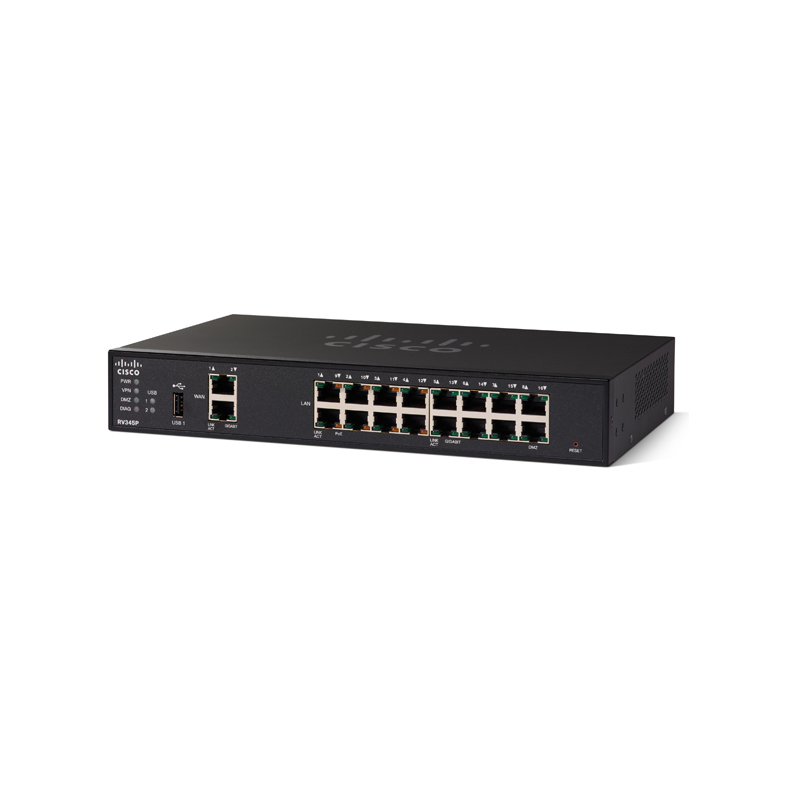

  • Connect small retail or professional branches using dual-WAN RV340/RV345 routers to maintain DMVPN while onboarding a new SD-WAN edge.
  • Keep card payment, inventory, and POS traffic online during underlay changes by running DMVPN and SD-WAN side by side on a single public IP.
  • Use policy-based failover between ISP broadband and backup links while central IT gradually moves sites from legacy hub-and-spoke to SD-WAN fabric.
Distributed Enterprises Under CGNAT Constraints

Distributed Enterprises Under CGNAT Constraints

  • Support branches that only receive CGNAT or single public IP from local ISPs by tunneling DMVPN and SD-WAN through RV340/RV345 WAN interfaces.
  • Maintain centralized security inspection and policy enforcement on ISR4300/4400 hubs while branches stay reachable despite overlapping RFC1918 and CGNAT.
  • Enable phased migration of hundreds of legacy DMVPN spokes to SD-WAN while preserving reachability for ERP, VoIP, and monitoring tools during cutovers.
Remote and Pop-Up Sites Using Starlink or Wireless WAN

Remote and Pop-Up Sites Using Starlink or Wireless WAN

  • Terminate Starlink or 3G/4G WAN on Cisco 1900 series wireless routers, then hand off to SD-WAN or DMVPN headends without requiring static IP addresses.
  • Use satellite or cellular links as primary or backup transport for construction sites, mining camps, or events while still integrating into corporate WAN policies.
  • Bridge temporary Starlink-connected branches into existing DMVPN hubs, then transition them to SD-WAN overlays once terrestrial links become available.
Hybrid WAN Edges in Regional Data Centers

Hybrid WAN Edges in Regional Data Centers

  • Deploy ISR4331/ISR4431 as aggregation hubs that terminate both legacy DMVPN and new SD-WAN overlays for branches using single-IP WAN circuits.
  • Segment critical traffic such as voice, video, and SCADA into separate VRFs while DMVPN and SD-WAN overlays coexist over shared underlay bandwidth.
  • Leverage dual-WAN designs to steer branch traffic between MPLS, broadband, and satellite while maintaining central control during migration waves.
Service Provider and MSP-Managed Branch Connectivity

Service Provider and MSP-Managed Branch Connectivity

  • Offer managed DMVPN-to-SD-WAN transition services for multi-tenant SMB customers that only receive CGNAT or dynamic IP broadband access.
  • Standardize on RV340/RV345 and ISR4300 platforms to deliver SLA-backed branch VPN services with flexible underlays including Starlink and 3G/4G.
  • Run co-managed designs where MSP hubs host both customer legacy DMVPN and new SD-WAN instances, simplifying phased migration without truck rolls.

Frequently Asked Questions

How do I choose between Cisco RV340/RV345 and ISR 4300 for a DMVPN-to-SD-WAN branch under CGNAT?

  • Use RV340/RV345 when the branch has relatively simple dual-WAN internet access, needs basic DMVPN or IPsec VPN continuity, and runs single-IP underlay (e.g., CGNAT broadband or Starlink handoff) with modest throughput demands.
  • Choose ISR4331/K9 or ISR4431-SEC/K9 when you need higher VPN scale, more complex policy-based routing, deeper QoS, or when the branch will later onboard into a full Cisco SD-WAN fabric with more advanced security services.
  • For cellular or satellite-adjacent WAN at remote sites, consider C1921 3G variants as the WAN edge or backup underlay, especially when Starlink is handed off via a separate CPE and you just need a stable routed or NATed interface.
  • If you are uncertain which series fits your migration roadmap, you can request architecture review and bill-of-materials validation via our free CCIE support. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

Can these Cisco branch routers maintain VPN continuity when the ISP uses CGNAT or Starlink changes the public IP frequently?

  • Yes, RV340/RV345 and ISR 4000/1900 series can be designed to maintain VPN continuity even when your underlay is behind CGNAT or when Starlink assigns changing public IPs, by using DMVPN/IPsec with hub-initiated tunnels, dynamic peers, and proper keepalive and NAT-traversal tuning.
  • The key practical consideration is that the headquarters or regional hub should have a stable, routable address (or FQDN) and be configured to accept dynamic branch peers; branch devices usually cannot rely on inbound connections when behind CGNAT or Starlink CPE NAT.
  • In mixed environments where some branches remain on DMVPN and others move to SD-WAN, you may need dual-stack configurations on ISR routers so both fabrics coexist during cutover. We can help you validate migration steps and avoid outages via our free CCIE support. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

Are the C1921 3G and Starlink-based branches still viable, or are these routers end-of-life for new deployments?

  • Many C1921 3G variants (such as C1921-3G-G-SEC/K9 and related SKUs) have entered Cisco’s end-of-life or end-of-support timelines, which means they may be better suited for brownfield extensions, spares, or temporary migration roles rather than brand-new long-term deployments.
  • Before committing to these platforms for a DMVPN-to-SD-WAN migration, you should check each exact SKU in Cisco’s lifecycle database to understand software support, security fixes, and hardware RMA windows.
  • To verify lifecycle status, you can use our EOL / EOSL checker alongside Cisco’s own announcements, then decide whether to standardize on RV340/RV345 or ISR 4300 series instead for a longer runway.
  • If your design relies on older platforms, factor in a future refresh path so your CGNAT or Starlink-based branches can be rehomed to newer SD-WAN-ready routers without a disruptive rearchitecture.

What deployment caveats should I consider when using dual-WAN (broadband + Starlink) on RV340/RV345 for DMVPN and future SD-WAN?

  • When using RV340/RV345 for dual-WAN, you should clarify whether both links will carry production VPN traffic or if one is a pure failover; misaligned expectations can lead to oversubscription or unexpected performance drops, especially with Starlink’s variable latency and CGNAT behavior.
  • In a DMVPN-to-SD-WAN migration, ensure you have a clear plan for IP addressing and NAT on each WAN, so your future SD-WAN overlay can re-use or gracefully migrate from the same underlay without renumbering branch LANs or breaking existing tunnels.
  • Be mindful that Starlink or similar satellite links may impose their own Fair Use or session behavior; test failover events and tunnel re-establishment to confirm that RV340/RV345 or ISR routers can recover within acceptable downtime windows for your applications.
  • For complex dual-WAN policies (e.g., sending critical traffic over terrestrial broadband and bulk traffic over Starlink), an ISR4331/K9 or ISR4431-SEC/K9 may provide more granular QoS, route-maps, and policy-based routing than an RV-series router.

What should I know about purchasing, shipping, and customs for these branch routers in a global deployment?

  • For multi-country rollouts using RV340/RV345, ISR 4300, and C1921 3G routers, stock availability, lead time, and shipping options may vary by region and specific SKU; actual dispatch time will depend on product availability, regional warehouses, and import regulations for in-stock items, depending on product availability and destination.
  • When planning phased DMVPN-to-SD-WAN migrations, it is advisable to validate your logistics plan alongside your technical design so critical hub routers and branch devices arrive in the required sequence, especially where Starlink-based branches are in hard-to-reach locations.
  • You can review our typical logistics options in the shipping methods page and check regional duties and taxes guidance via taxes and customs duties, then align your project timelines accordingly.
  • We recommend leaving schedule buffers and not committing to rigid cutover dates until tracking details and customs clearance status are confirmed, particularly for international shipments.

How are warranty, returns, and post-deployment support handled for these DMVPN-to-SD-WAN branch routers?

  • Different router families (RV series vs. ISR series) may carry different hardware warranty durations, RMA procedures, and software entitlement requirements; always confirm your exact SKU’s coverage before finalizing your branch migration plan.
  • If a device fails or exhibits issues after a Starlink or CGNAT migration, you should first collect logs and configuration information, then proceed according to our return instructions and the applicable vendor warranty process.
  • For ongoing design health checks and change reviews (for example, phased DMVPN decommissioning, SD-WAN onboarding, or dual-WAN retuning), you can engage our free CCIE support to reduce the risk of misconfiguration or avoidable downtime.
  • For a more detailed overview of coverage options, you may also refer to our warranty policy before deciding which product families to standardize on for your branches. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
