Aruba AOS CX Boot Time IGMP Leakage Mitigation Design

Aruba AOS CX Boot Time IGMP Leakage Mitigation Design
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

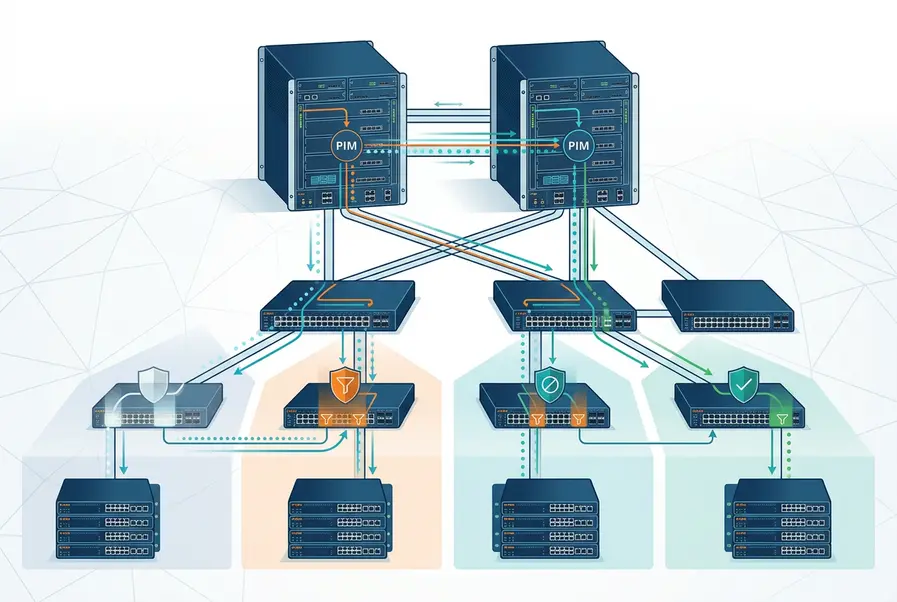

Boot-Time Multicast Stability

Boot-Time Multicast Stability

  • In multicast-heavy enterprise networks, even a brief loss of IGMP control during switch boot or reload can leak traffic across VLANs, flood campus cores, and disrupt latency-sensitive applications such as IPTV, UC, and real-time analytics. As Aruba AOS-CX switches come online in core, aggregation, and access roles, uncontrolled join states or transient flooding can easily consume uplink bandwidth and expose unintended receivers to high-volume streams.

    This section frames how to design boot-time IGMP leakage mitigation as a deliberate control-plane strategy across Aruba AOS-CX campus core, data center aggregation, and access switches. The focus is on where to enforce containment, how to stage multicast activation during reload events, and which switch tiers and models should承担 PIM, IGMP snooping, or policy roles to keep multicast stable while the fabric is converging.

Boot-time multicast leakage risks

Designing AOS-CX networks to avoid IGMP leakage during boot and convergence is complex across core, aggregation and access tiers.

Boot-time multicast leakage risks

  • Transient multicast floods at startup

    During boot and topology changes, IGMP state is incomplete, risking campus-wide multicast floods that impact critical services.

  • Inconsistent behavior across switch tiers

    Core, aggregation and access platforms may handle boot-time IGMP differently, complicating policy design and validation at scale.

  • Balancing containment and service continuity

    Tight leakage control can delay multicast availability, while looser policies risk leaks—forcing trade-offs for latency and user impact.

Boot-time multicast containment

Prioritize design choices that prevent IGMP leakage and protect critical multicast services from switch reboots.

Deterministic boot behavior

Eliminate transient IGMP flooding during AOS-CX reloads to keep video and voice stable.

End-to-end multicast hygiene

Apply leakage controls from access to core so campus and data center trees stay constrained.

Design-ready platform choices

Align Aruba AOS-CX switch SKUs with multicast scale, role, and resiliency requirements.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Ideal Use Cases & Deployment Scenarios

Best suited for enterprises needing deterministic multicast behavior during Aruba AOS-CX switch boot, upgrades, and recovery windows.

Campus Core Multicast Stability for Enterprise Video

Campus Core Multicast Stability for Enterprise Video

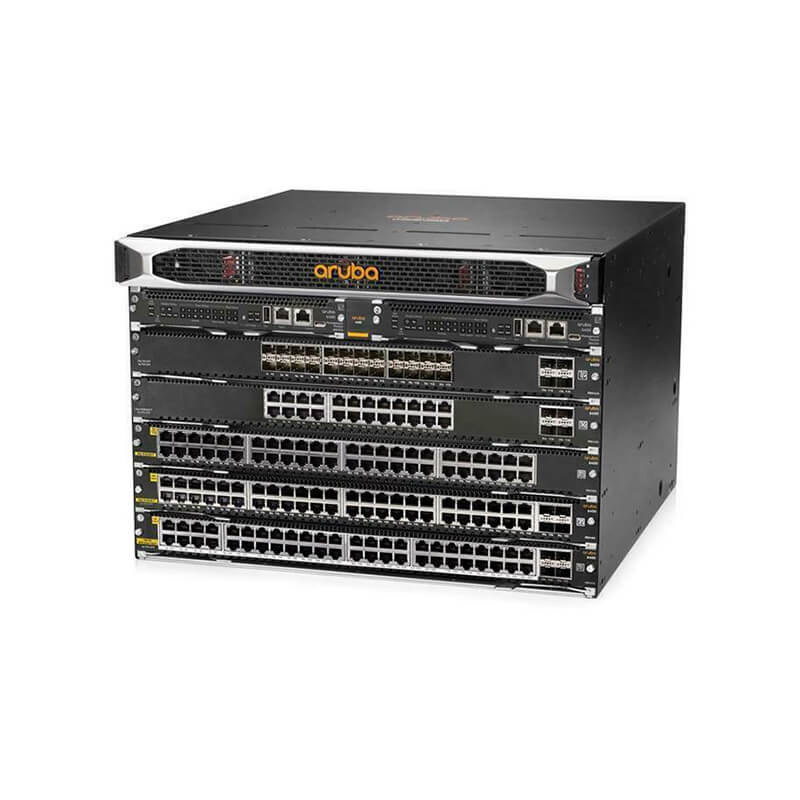

  • Deploy Aruba AOS-CX campus core switches like R0X26A and R0X27A to keep IPTV and enterprise video distribution stable while core or aggregation nodes reboot.
  • Use boot-time IGMP leakage mitigation at the core to prevent unwanted multicast flooding into non-subscriber VLANs during maintenance or power recovery events.
  • Coordinate scheduled firmware upgrades on core pairs so multicast endpoints experience seamless channel changes and stream continuity even when a chassis reloads.
Data Center and L3 Aggregation Multicast Containment

Data Center and L3 Aggregation Multicast Containment

  • Run AOS-CX data center switches such as JL708C and JL860A as multicast rendezvous or L3 aggregation nodes while using boot-time controls to contain IGMP leakage between tenant networks.
  • Protect east–west multicast services for applications like market data, HPC clusters, or telemetry when spine or aggregation switches restart or failover.
  • Leverage resilient L3 aggregation with IGMP state protection so multicast routing tables rebuild predictably after boot without temporarily flooding ToR access or server segments.
Campus Access Edge Control for IP Surveillance and Signage

Campus Access Edge Control for IP Surveillance and Signage

  • Use Aruba campus access switches such as JL728B and R8Q71A at wiring closets to stop boot-time multicast leakage from IP cameras or digital signage into user VLANs.
  • Maintain clean IGMP snooping state when access stacks reboot so dense video surveillance streams do not overwhelm Wi-Fi, VoIP, or office access ports.
  • Apply per-VLAN multicast containment policies at the edge so new or rebooted access switches rejoin the campus multicast fabric safely without transient broadcast-like behavior.
High-Density Multicast for Trading Floors and Control Rooms

High-Density Multicast for Trading Floors and Control Rooms

  • Support latency-sensitive multicast feeds for trading floors or command centers on AOS-CX cores while ensuring boot-time IGMP leakage does not spike traffic on trader desks.
  • Combine data center aggregation switches such as S0F84A and S0F96A with campus cores to keep market data or SCADA multicast groups constrained during controller failover or reload.
  • Design deterministic failback behavior so when multicast gateways and PIM routers come back from reboot, only explicitly joined receivers in critical segments resume high-rate streams.
Multicast-Safe Network Upgrades in Large Enterprises

Multicast-Safe Network Upgrades in Large Enterprises

  • Plan rolling AOS-CX software upgrades across large enterprise cores and aggregation layers without allowing transient multicast leakage into guest or unmanaged networks.
  • Use boot-time IGMP controls to protect WAN and data center links from temporary multicast storms when remote campus cores and access layers reboot after maintenance windows.
  • Standardize multicast containment templates across core, aggregation, and access SKUs so every newly deployed switch enforces safe behavior from first boot through full production.

Frequently Asked Questions

How do I choose between Aruba AOS-CX campus core and data center switches for boot-time IGMP leakage mitigation?

  • Use Aruba AOS-CX Campus Core Switches (R0X26A, HPE:R0X27A, ARB:R0X40C, ARB:JL365A) when your multicast domain is primarily campus-based (Wi-Fi controllers, IPTV, digital signage, multicast voice/video) and you need deterministic IGMP control at aggregation/core with VRF-based segmentation.
  • Choose Aruba AOS-CX Data Center and Aggregation Switches (ARB:JL708C, ARB:JL860A, ARB:S0F84A, ARB:S0F96A) when you run dense multicast in leaf–spine fabrics or high-bandwidth L3 aggregation and must coordinate IGMP behavior with EVPN/VXLAN or data center overlays.
  • In many enterprises a mixed design is optimal: campus cores (R0X26A / R0X27A) terminate access VLANs and IGMP queriers, while data center/aggregation SKUs handle high-volume multicast replication toward application clusters.
  • If you share your current topology and multicast scale, our engineers can help map specific SKUs to core, aggregation, and edge roles via free CCIE design support.
  • Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.

Can Aruba AOS-CX boot-time IGMP leakage controls coexist with legacy switches that do not support AOS-CX?

  • Yes. Aruba AOS-CX switches implementing boot-time IGMP leakage mitigation can interoperate with legacy L2/L3 domains, but you should keep IGMP control as close as possible to the AOS-CX boundaries.
  • Place the AOS-CX campus core or aggregation SKUs (R0X26A, HPE:R0X27A, ARB:JL708C, ARB:JL860A) as the default IGMP queriers and PIM routers, and treat legacy switches as simple multicast transit where possible.
  • When legacy switches must run IGMP snooping, ensure their default behavior during boot (for example, whether they flood or drop multicast without an active querier) is understood, and document this in your change plan to avoid unexpected multicast leakage when either side reboots.
  • If you are unsure how your legacy vendor handles IGMP at boot time, we can help you review release notes and design the boundary behavior through our free CCIE support.

What are the practical limits and performance considerations for IGMP and multicast on these Aruba AOS-CX SKUs?

  • All listed AOS-CX switches are hardware-based forwarding platforms; however, their scalability targets differ: campus access switches (ARB:JL728B, ARB:R8Q71A, JG963A, JG962A) are sized for many edge ports with moderate multicast groups, while data center SKUs (ARB:S0F84A, ARB:S0F96A, ARB:JL708C) are designed for higher group counts and replication throughput.
  • When planning boot-time IGMP leakage mitigation, factor in group count, number of receivers per VLAN, and whether multicast replication occurs at the access or aggregation layer. Heavy replication at access may favor higher-end access models (ARB:R8Q71A) and tighter containment policies at the core (R0X26A / JL365A).
  • To avoid CPU impact, keep IGMP control-plane features aligned with recommended Aruba best practices (querier placement, IGMP report limiting, and storm-control thresholds) and validate them in a small pilot VLAN before rolling out globally.
  • If you require validation against a specific scale target (for example, thousands of STBs or cameras), share your figures and we can help stress-check your design choices using expert multicast sizing guidance.

How should I deploy Aruba campus access switches to contain multicast leakage right from the edge?

  • Use Aruba Campus Access Switches (ARB:JL728B, ARB:R8Q71A, JG963A, JG962A) to implement first-hop IGMP snooping and strict VLAN segmentation so that any temporary boot-time flooding is limited to the smallest possible broadcast domain.
  • Where possible, place IGMP queriers at the campus core (R0X26A, HPE:R0X27A, ARB:JL365A) and enable consistent snooping and flood-control policies across all access switches, so edge devices never see cross-VLAN or cross-tenant multicast leakage during switch or supervisor restarts.
  • In high-risk environments such as financial trading floors, healthcare imaging networks, or exam/testing centers, consider dedicated multicast VLANs per service and use access-port templates on the JL728B / R8Q71A for deterministic behavior when ports or switches reboot.
  • Before production rollout, test boot and recovery scenarios (access-only reboot vs. core reboot vs. both sides) with a few access switches to validate that IGMP leakage remains contained under real-world restart conditions.

What should I consider for lifecycle, EOS/EOSL, and long-term multicast stability on these AOS-CX switches?

  • When building a multicast-heavy design that relies on specific boot-time IGMP behaviors, avoid basing the architecture on SKUs that are near end-of-sale or end-of-support to reduce the risk of mid-life redesign.
  • Use the EOL / EOSL checker to verify the lifecycle status of part numbers like R0X26A, JL365A, JL708C, JL860A, S0F84A, and campus access models (JL728B, R8Q71A, JG963A, JG962A) before finalizing your bill of materials.
  • Plan for code alignment across the fleet: mixing very old and very recent AOS-CX releases can lead to differences in IGMP boot-time defaults, which may reintroduce leakage in specific corner cases.
  • If you must use a mix of lifecycle stages (for example, adding newer S0F96A into an existing JL708C fabric), define a clear upgrade path and maintenance windows where multicast services can be closely monitored after software or hardware changes.

What are the procurement, shipping, and risk considerations when ordering these Aruba AOS-CX switches for multicast projects?

  • Lead time and stock for SKUs such as R0X26A, ARB:R0X40C, ARB:JL708C, ARB:S0F84A, and ARB:JL728B can vary by region and demand; in practice, delivery schedules will depend on real-time availability, selected configuration options, and your destination country.
  • For in-stock items, shipping options and approximate transit times are outlined in our shipping methods guide; however, actual delivery dates will still depend on carrier performance, customs clearance, and local regulations.
  • Taxes, import duties, and brokerage fees for Aruba hardware can differ significantly by country. You can prepare budgeting and risk assessments in advance using our taxes and customs duties information.
  • If a device arrives damaged or experiences early-life failure that impacts your multicast deployment timeline, please follow the documented return instructions so we can coordinate inspection, repair, or replacement with minimal disruption.
