AI Data Center Power and Cooling Considerations

AI Data Center Power and Cooling Considerations
  • Intro
  • Challenges
  • Recommended Products
  • Compare
  • Use Cases
Get Expert Help

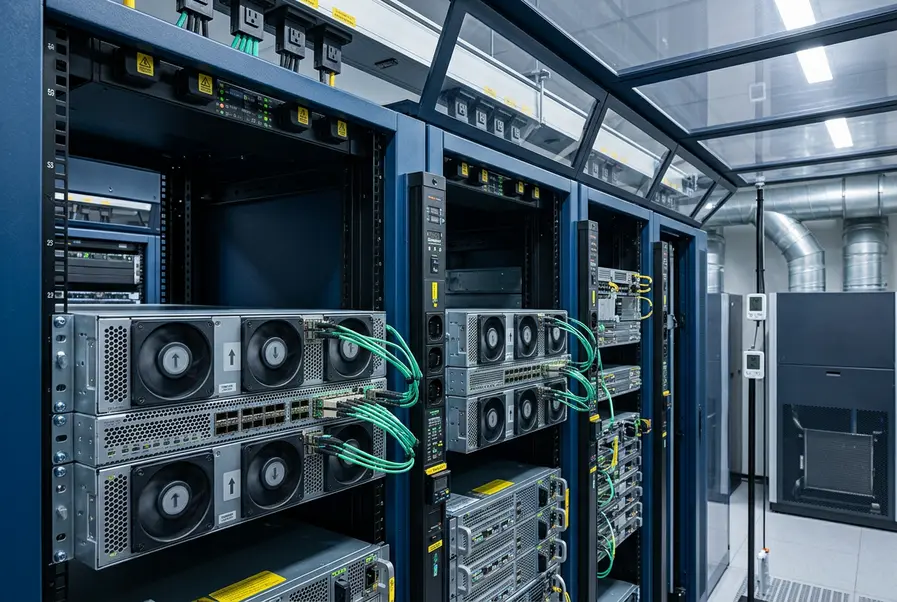

Designing Power-Aware AI Fabrics

Designing Power-Aware AI Fabrics

  • AI data centers push power and cooling systems to their limits, especially when dense GPU clusters demand predictable low-latency fabrics and sustained high throughput. As rack densities climb and hot-aisle temperatures rise, network layers can quickly become thermal bottlenecks, undermining both AI training performance and facility efficiency. Power envelopes, airflow direction, and cooling compatibility now matter as much as port speeds and buffer design.

    This section focuses on how to align network design choices with power and cooling strategies across AI leaf-spine and 400G aggregation layers. It highlights key decision points such as airflow-aware switch selection, rack-level power planning, and thermal zoning for high-density AI clusters, helping you evaluate which switching platforms and software capabilities best fit your existing cooling topology and future AI growth curve.

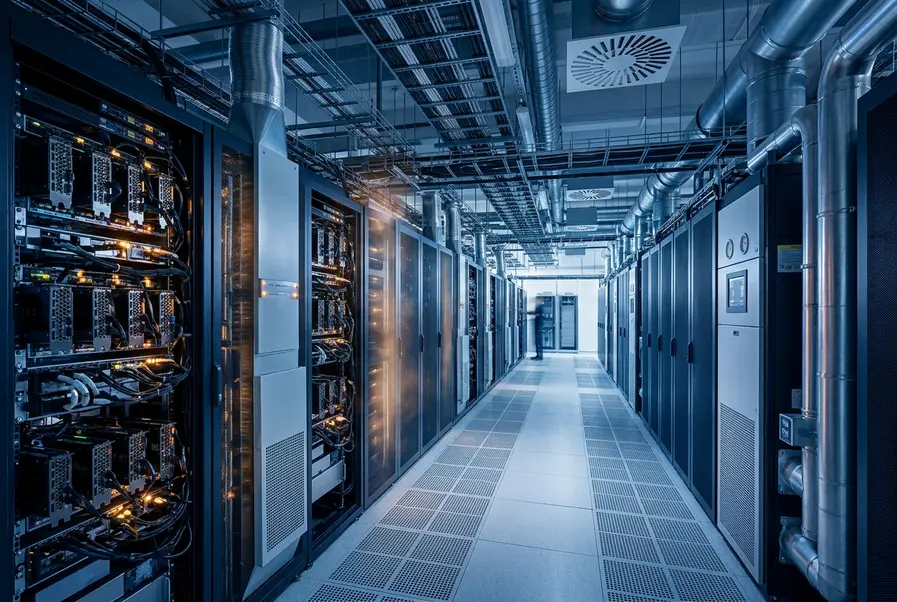

Balancing AI Data Center Power and Cooling

Designing AI clusters that meet GPU density targets without exceeding power, cooling, and facility limits is a non-trivial planning challenge.

Balancing AI Data Center Power and Cooling

  • Power density vs. facility limits

    High-density AI fabrics can exceed rack and row power budgets, forcing trade-offs in switch selection, placement, and GPU scale-out.

  • Airflow and thermal integration

    Mixed front-to-back and back-to-front airflow, hot spots, and 400G optics heat make it hard to align switches with containment and cooling design.

  • Efficiency, redundancy and TCO

    Balancing N+1 resilience, oversubscription, and energy efficiency for AI-ready switches and licenses is complex and impacts long-term TCO.

Designing AI Data Center Power & Cooling

Prioritize power density, cooling strategy, and switch selection to keep AI clusters efficient and reliable.

Right-size power for AI loads

Model rack power for GPUs and 400G fabrics, then design scalable power paths.

Airflow-aware cooling design

Align switch airflow and thermal zones to support dense leaf-spine AI clusters safely.

Fabric efficiency at 400G

Use efficient 400G spine and AI-optimized software to reduce watts per Gbps delivered.

AI Data Center Power & Cooling Options Comparison

Compare traditional vs AI-optimized power and cooling designs to select the right approach for dense GPU fabrics and 400G cores.

Feature Conventional DC Power & Cooling
AI-Optimized Power & Cooling Fabric (hot)
 Operational Impact
Deployment fit Designed around mixed CPU workloads, lower rack densities and non-uniform airflow; limited awareness of switch airflow direction and GPU hot spots. Built for high-density AI racks with predictable hot/cold aisles, front-to-back or back-to-front airflow, and GPU pod zoning aligned to fabrics like DCS-7060/7050 and 7280/7388 series. You minimize stranded capacity and avoid thermal throttling when scaling GPU clusters and 400G spines.
Power architecture Single or limited power feeds, moderate rack power (5–10 kW), less focus on AI training peaks or PSU redundancy at fabric layer. Dual-fed high-capacity racks (20–60 kW+), power budgeting for bursty AI loads, redundant feeds and PSUs sized for dense leaf–spine AI fabrics and 400G aggregation. You can support more GPUs per rack with stable power, improving AI cluster utilization and resilience.
Cooling strategy Primarily air-cooled with raised floor or perimeter CRAC units; not optimized for high kW per rack or localized hotspot mitigation. High-efficiency containment, in-row/overhead cooling, liquid-assist or DLC-ready design where AI switches and GPU trays are co-engineered into thermal zones. You reduce cooling overheads and avoid performance drops as AI clusters scale in density and number of pods.
Network fabric integration Network chosen largely independently of power and cooling; airflow direction and switch placement treated as afterthoughts. Switch selection (e.g., airflow-aware Arista 7050/7060, 400G 7280/7388) aligned with cold/hot aisle design, rack-level power and cooling models. You de-risk deployment by ensuring fabric, power, and cooling scale together without constant redesign.
Energy efficiency & TCO Higher PUE, less granular power monitoring; difficulty correlating AI workload behavior with energy use and cooling cost. Holistic PUE optimization, per-rack metering and fabric telemetry; power-efficient 400G cores plus HPC fabric software to tune AI job placement. You lower $/training-hour and $/inference by aligning network efficiency with power and cooling capacity.
Scalability path Incremental, ad-hoc upgrades; adding new AI racks may require disruptive power and cooling retrofits or patchwork fixes. Planned scale-out for additional AI clusters, pods, and 400G spines, with room for higher rack densities and software-defined fabric optimization (e.g., HPC license). You can grow from pilot AI projects to large-scale clusters without major rework of the physical plant.
Risk & reliability Greater risk of overheating, tripped circuits, and inconsistent performance under peak AI loads; harder to maintain SLAs. Engineered redundancy, thermal headroom, and coordinated maintenance windows across fabric, power, and cooling infrastructure. You maintain predictable SLAs for AI workloads, avoiding downtime and variability in model training or inference.
Best use case Brownfield sites with modest AI usage, low to medium GPU density, and limited willingness to re-architect facilities. New AI data centers or major upgrades targeting dense GPU clusters, 400G fabrics, and long-term AI/HPC growth plans. You choose an architecture aligned to your AI roadmap instead of outgrowing conventional facilities in 12–24 months.

Need Help? Technical Experts Available Now.

  • +1-626-655-0998 (USA)
    UTC 15:00-00:00
  • +852-2592-5389 (HK)
    UTC 00:00-09:00
  • +852-2592-5411 (HK)
    UTC 06:00-15:00
Get a Quote
Live Chat
Need Help? Technical Experts Available Now.

Ideal Power & Cooling Use Cases

Where AI data centers must balance extreme compute density with reliable, efficient power and thermal design.

Hyperscale AI Training Clusters

Hyperscale AI Training Clusters

  • Design power and cooling for GPU-dense leaf-spine fabrics interconnecting thousands of accelerators in large AI training pods.
  • Implement hot-aisle/cold-aisle containment and front-to-back or back-to-front airflow paths for high-port-density AI data center switches.
  • Plan redundant power feeds and rack-level power budgeting to keep large AI training clusters within facility power and cooling envelopes.
Enterprise AI Private Clouds

Enterprise AI Private Clouds

  • Deploy power-efficient 400G spine and aggregation layers to support mixed AI workloads in enterprise private cloud environments.
  • Align switch airflow SKUs with server rack layouts in retrofit enterprise data centers that have constrained cooling capacity.
  • Right-size UPS, PDUs, and branch circuits to handle incremental AI power growth while maintaining business continuity SLAs.
Colocation-Based AI Hosting

Colocation-Based AI Hosting

  • Optimize rack density and thermal load when hosting AI clusters in third-party colocation facilities with fixed power caps.
  • Mix front-to-back and back-to-front airflow switch options to match diverse colocation cage layouts and containment designs.
  • Coordinate with colo operators on power redundancy tiers and cooling capacity before scaling AI fabrics beyond initial racks.
Latency-Sensitive AI Inference Edge

Latency-Sensitive AI Inference Edge

  • Engineer compact, power-aware network fabrics for AI inference nodes deployed in metro or edge data centers with limited cooling.
  • Use appropriate airflow directions and temperature derating to ensure reliable switch performance in high-ambient edge locations.
  • Balance power draw between AI accelerators and network switches to stay within edge site electrical and thermal constraints.
HPC & Research AI Data Centers

HPC & Research AI Data Centers

  • Coordinate HPC-oriented switching software with facility teams to model power and cooling impact of large-scale AI fabrics.
  • Support mixed HPC and AI workloads by zoning racks with different power densities and tailored airflow strategies.
  • Apply granular monitoring of switch and GPU power usage to refine cooling setpoints and maximize energy efficiency in research centers.

Frequently Asked Questions

How do I choose between Arista 7050/7060 leaf switches and 7280/7388 400G spines for an AI power- and cooling-aware design?

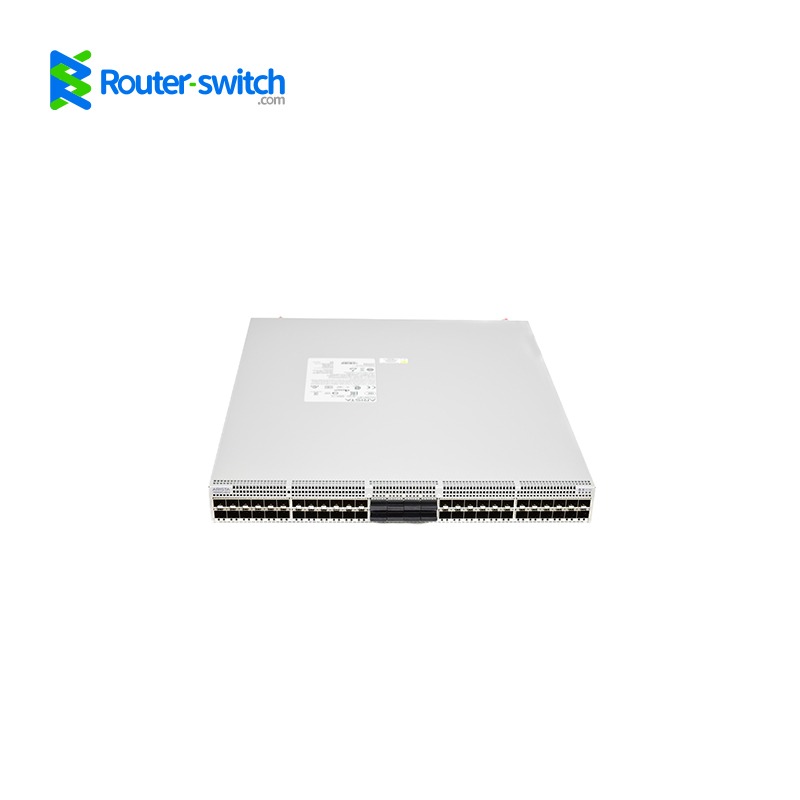

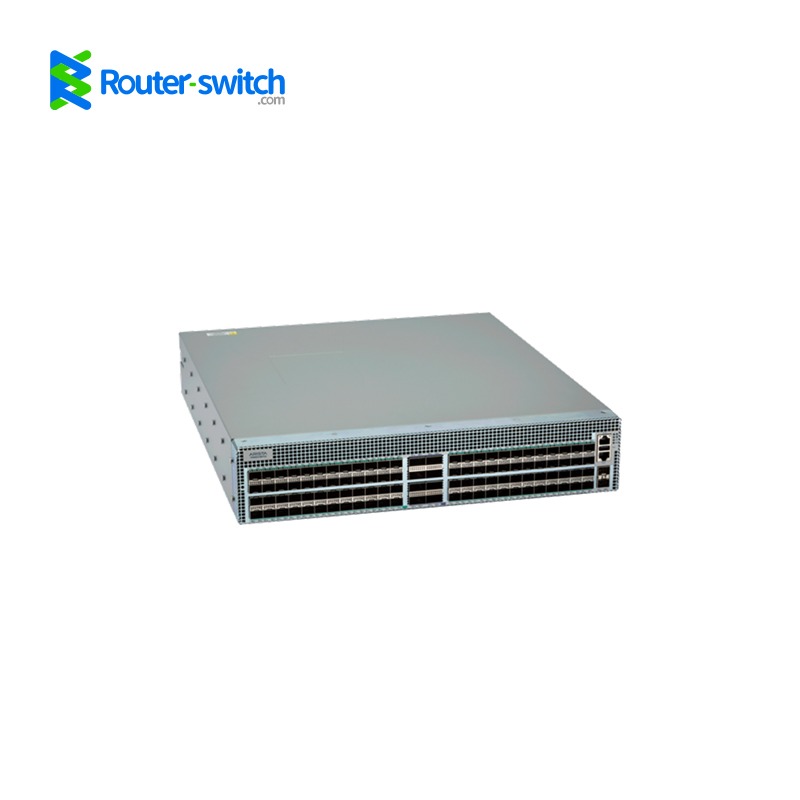

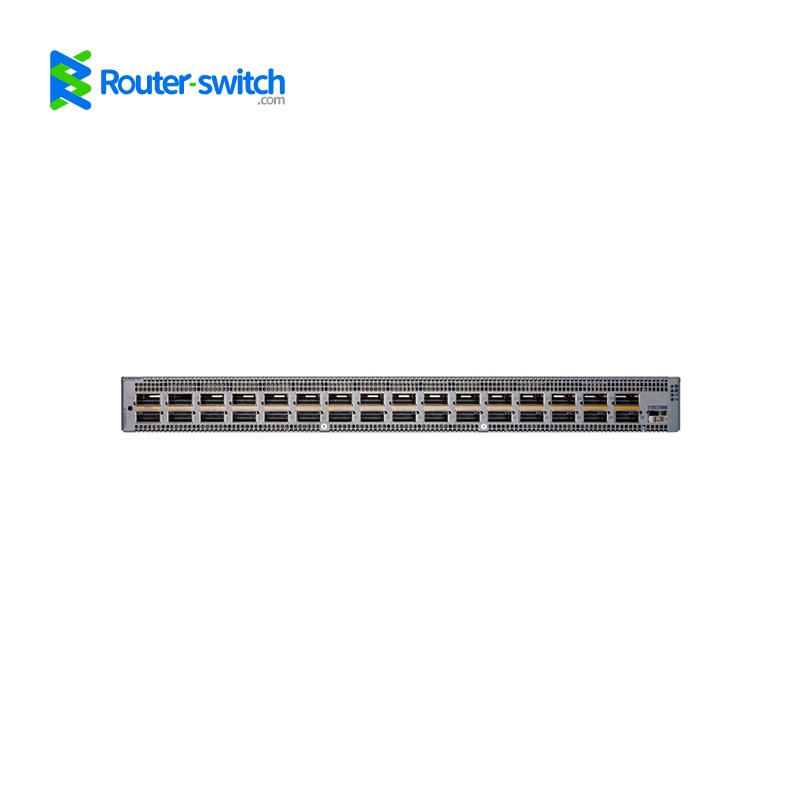

  • A common design is to use Arista 7050/7060 series (for example ARI:DCS-7060DX5-32-R, ARI:DCS-7050SX3-96YC8-R, ARI:DCS-7050SX3-48YC8-R, ARI:DCS-7050SX3-48YC12-F, ARI:DCS-7050SX3-48C8-F, ARI:DCS-7050CX3-32S-D-R, ARI:DCS-7050CX3-32C-R, ARI:DCS-7050CX4-24D8-F) as ToR/leaf, and Arista 7280/7388 400G (e.g. ARI:DCS-7280CR3A-32S-F, ARI:DCS-7280CR3K-32P4A-R, ARI:DCS-7280SR3AK-48YC8-F, ARI:DCS-7280DR3-24-F, ARI:DCS-7280PR3-24-F, ARI:DCS-7388X5-32C-48DR-F) as spine/aggregation where higher radix and 400G uplinks consolidate power and cooling loads.
  • A practical decision rule is: size your GPU/rack thermal budget first, then back-calculate how many 100G/200G/400G ports you need per rack and per row; if oversubscription or east–west latency becomes tight at current power/cooling density, move more bandwidth to the 400G spine tier rather than increasing leaf switch count per rack to avoid hot spots and higher rack power density.

What airflow direction and placement rules should I follow when deploying these switches in a high-density AI cold-aisle/hot-aisle layout?

  • Match airflow direction with your rack/row design: -R SKUs (e.g. ARI:DCS-7060DX5-32-R, ARI:DCS-7050SX3-96YC8-R, ARI:DCS-7050CX3-32C-R, ARI:DCS-7050CX3-32S-D-R, ARI:DCS-7280CR3K-32P4A-R) are typically rear-to-front, and -F SKUs (e.g. ARI:DCS-7050SX3-48YC12-F, ARI:DCS-7050SX3-48C8-F, ARI:DCS-7050CX4-24D8-F, ARI:DCS-7280CR3A-32S-F, ARI:DCS-7280SR3AK-48YC8-F, ARI:DCS-7280DR3-24-F, ARI:DCS-7280PR3-24-F, ARI:DCS-7388X5-32C-48DR-F) are front-to-rear, but always confirm against the latest datasheet before ordering.
  • For dense AI racks, keep the switch airflow direction aligned with the GPU servers in the same rack, reserve blanking panels above/below switch positions, and account for total switch heat load in your rack-level CFD or thermal planning to avoid recirculation when you scale the AI cluster.

Are these Arista AI and 400G switches compatible with my existing non-Arista fabric and what should I check from a power and cooling perspective?

  • In most cases, these platforms can interoperate at Layer 2/Layer 3 with non-Arista switches as long as you match optical standards, breakout modes, and link speeds; however, power and cooling planning should treat them as new heat sources and may require separate racks or rows in legacy facilities that were not designed for AI densities.
  • Before purchasing, validate: (1) the existing facility power per rack versus the maximum switch draw at worst-case conditions, (2) available cooling capacity and hot-aisle containment effectiveness, and (3) whether your current fabric can support AI-specific software features (e.g. congestion management with HW:DCS-LIC-F-HPC) end-to-end without causing asymmetric load and thermal hotspots.

How does the HPC/AI switch license HW:DCS-LIC-F-HPC affect my network design, and are there power or cooling side effects?

  • HW:DCS-LIC-F-HPC enables AI/HPC fabric capabilities (such as congestion control behaviours and collective-optimized forwarding) on supported switches; it does not materially change the power consumption profile of the hardware itself, but it can influence how traffic is distributed and thus where in the fabric packets (and therefore active ports/ASICs) concentrate.
  • From a design standpoint, assume hardware power is driven mainly by port count, speed, and optic type, not by the license; you should still factor in worst-case power draw for the switch platform and optics and design your rack PDUs, in-row cooling, and power redundancy for the fully populated licensed feature set to avoid unexpected derating when the AI fabric is fully utilized.

What should I know about delivery times, shipping, and customs risks for AI data center switches and optics-heavy builds?

  • Lead time, shipping method, and stock availability for AI-oriented switches and optics can vary significantly with market demand; for in-stock items, actual delivery time will still depend on product availability, chosen carrier, and destination country, so timelines should always be treated as planning estimates rather than guarantees.
  • To reduce project risk, factor in buffer time for exporting/importing networking hardware, especially high-value 400G optics and AI switches, and clarify Incoterms, duties, and VAT handling in advance; you can review typical logistics options under shipping methods and regional tax and duty practices under taxes and customs duties.

What support, warranty, and RMA considerations are specific to AI data center power and cooling deployments?

  • Dense AI environments typically run switches near their thermal and power design envelope, so you should pay attention to warranty conditions related to operating temperature, airflow obstruction, non-compliant power feeds, and unauthorized modifications; failure to maintain recommended environmental limits may affect eligibility for standard RMA handling.
  • Before rollout, align your operations team on escalation paths and confirm how advanced replacement, diagnostics, and return processes work for these switches; you can review general warranty terms under warranty policy, RMA steps under return instructions, and leverage design-stage consultation through free CCIE support to minimize environment-related issues. Please note: Specific warranty terms and support services may vary by product and region. For accurate details, please refer to the official information. For further inquiries, please contact: router-switch.com.
