Название:	TOM1000-C12F4080P
Модель:	MRD TOM1000-C12F4080P
Бренд:	MRD
Detail:	TOM1000 Series 4 1000BaseX SFP Ports (SFP module not included), 8 802.3af/ at PoE 10/100/1000BaseT Ports. 1 Management Serial CLI Port
	Рейтинг: 100% 5/5.0 1 Отзыв
Цена:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED 2 000,00 US$
Купон	Up to $80 Coupons Получить сейчас $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TOM1000-C12F4080P

TOM1000 Series 4 1000BaseX SFP Ports (SFP module not included), 8 802.3af/ at PoE 10/100/1000BaseT Ports. 1 Management Serial CLI Port

Цена: 2 000,00 US$

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TOM1000-C12F4080P Обзор

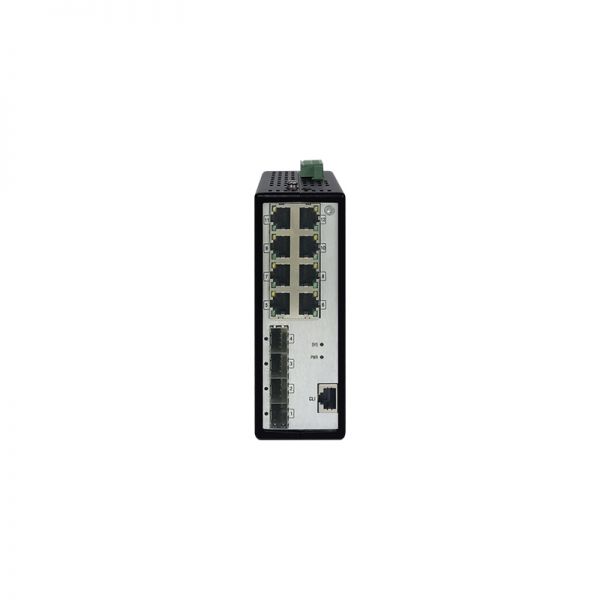

TOM1000 Layer2+ Industrial Switch made from Anti-Corrosion Casting Alu- minum Alloy. 4 1000BaseX SFP Ports (SFP module not included), 8 802.3af/ at PoE 10/100/1000BaseT Ports. 1 Management Serial CLI Port, IP30 Protec- tion Class, Operating Temperature from -40°C to +75°C, and MTBF over 400K hours. Dual 48-57VDC Power Inputs. CLI and Power Cable Order Sepa- rately.

Quick Spec

Table 1 shows the quick spec of the TOM1000-C12F4080P

Model	TOM1000-C12F4080P
Interface Configuration	4 x 100/1000BaseX SFP Ports 8 x 10/100/1000BaseT Ports
Input Voltage	Dual 48-57VDC Power Inputs
Fansless	Yes
Backplane Bandwidth	40 Gbps
Installasion	DIN-Rail
IP Rating	IP30;
Conformal Coated	Optional
Dimensions (W x H x D)	52mm x 140mm x 110mm
Dimensions (W x H x D)	2.05 inch x 5.51 inch x 4.34inch
Weight	0.7 kg
Weight	1.54 lb
MTBF	≥400,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A IEC/EN55022 Class A IEC60825-1
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)

Product Features

● Easy network management by web browser, CLI, Telnet, serial console
● IGMP snooping and GRMP for filtering multicast traffic
● Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
● QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism
● SNMPv1/v2c/v3 for different levels of network management
● Support IEEE 802.3af/at compliant PoE
● Each PoE port provides up to 30W output power
● PoE management: PoE device detection, PoE power management
● Dual redundant power inputs design for DC models
● Die-casting aluminum alloy housing
● Fanless, -40 to 75°C wide operating temperature range
● MTBF≥400, 000H

Supported Options

Table 2 shows the supported options of the TOM1000-C12F4080P

MDP-IE150P-54	150W Industrial DIN-Rail Power Supply for PoE/PoE+ (2250V Isolation) Input: 110/220 VAC/VDC (90~264VAC/88~300VDC) Output: 54VDC/2.78A Operating Temperature from -40°C to +75°C with conventional cooling
MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850	Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX	Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TOM1000-C12F4080P

Product number	Product description
EDS-G512E-8PoE-4GSFP	8 x GE(POE) + 4 x GX SFP -40 to 75°C (MOXA)

Get More Information

Do you have any questions about the TOM1000-C12F4080P price?

Сертификаты качества

Спецификация

TOM1000-C12F4080P Спецификация

TOM1000-C12F4080P Specification
Backplane Bandwidth	40 Gbps
Processing Type	Store-and-Forward
MAC Table Size	8K
Packet Buffer Size	512Kb
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M;
Management Mode	Browser, Serial Port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	RSTP, STP, MSTP, MRD-Ring®, port trunking
Time Synchronization	NTP
Others	4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame
Connection	1 removable 5-contact terminal block
Input Voltage	48-57VDC
Power Consumption	15W（without POE）
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	DIN-Rail
Housing	Aluminum Alloy Housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	52mm x 140mm x 110mm
Dimensions (W x H x D)	2.05 inch x 5.51 inch x 4.34inch
Weight	0.7 kg
Weight	1.54 lb
MTBF	≥400,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN55022 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-4, Class 2 IEC (EN )61000-4-5, Class 2 IEC (EN )61000-4-11, Class 4 IEC (EN )61000-4-12, Class 4
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A IEC/EN55022 Class A IEC60825-1
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011(pending)
Rail Industry	EN50155; IEC/EN61373; EN50121
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010(pending)
Shipbuilding Industry	DNV-GL (pending)
