Название:	TOM1000-BHTB12R4080
Модель:	MRD TOM1000-BHTB12R4080
Бренд:	MRD
Detail:	TOM1000 Series 4 100/1000BaseX SFP ports (SFP module not included) + 8 10/100/1000BaseT ports
	Рейтинг: 80% 4/5.0 1 Отзыв
Цена:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED 322,41 US$
Купон	Up to $80 Coupons Получить сейчас $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Наличие:	In Stock at Global Warehouses. United States United Kingdom Germany United Arab Emirates Singapore India Hong Kong
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TOM1000-BHTB12R4080

TOM1000 Series 4 100/1000BaseX SFP ports (SFP module not included) + 8 10/100/1000BaseT ports

Цена: 322,41 US$

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TOM1000-BHTB12R4080 Обзор

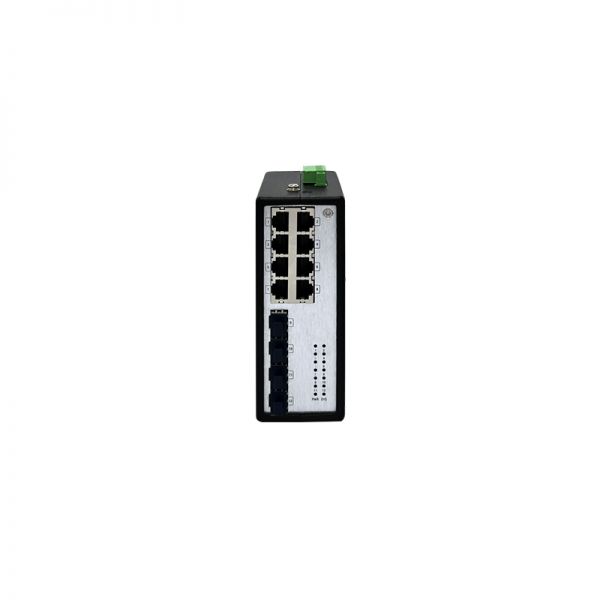

12-Port Layer 2 Industrial Switch made from aluminum alloy, support 4 100/1000BaseX SFP ports (SFP module not included) + 8 10/100/1000BaseT ports, DIN-Rail mounted. IP40 Protection Class. Operating temperature -40°C ~ +75°C. Dual 9.6 ~ 60VDC & 18 ~ 30VAC redundant power inputs.

Quick Spec

Table 1 shows the quick spec of the TOM1000-BHTB12R4080.

Model	TOM1000-BHTB12R4080
Interface Configuration	2 x 100/1000BaseX SFP 8 x 10/100/1000BaseT
Input Voltage	9.6 ~ 60VDC & 18 ~ 30VAC, dual inputs
Fansless	Yes
Backplane Bandwidth	56 Gbps
Installasion	DIN-rail mounting
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	52mm x 140mm x 110mm
Dimensions (W x H x D)	2.05 inch x 5.51 inch x 4.33 inch
Weight	0.4 kg
Weight	0.89 lb
MTBF	≥300,000H
Operating Temperature	-40 °C~ 75 °C
Operating Temperature	-40°F ~ 167°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A

Product Features

● Up to 56Gbps backplane bandwidth
● Wide and varied power supply range
● Non-rust aluminum alloy and torx screws
● Support network management
● All ports support line speed forwarding and automatic turnover, supporting long distance transmission
● Support uploading and downloading configuring files
● PoE models support IEEE 802.3af/at compliant PoE
● Each PoE port support IEEE 802.1af and 802.1at
● Lightning protection: power supply port ±4KV, RJ45 port ±4KV
● Small and easy to install, plug and play without configuration
● Fanless design, wide working temperature and quiet operation
● MTBF ≥ 300,000 hours

Supported Options

Table 2 shows the supported options of the TOM1000-BHTB12R4080.

MDP-IE50W-24	50W Industrial DIN-Rail Power Supply. Input: 110/220 VAC/VDC (90~264VAC/88~300VDC) Output: 24VDC/2.08A Operating Temperature from -40°C to +75°C with conventional cooling Class 2 Power Supply
MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850	Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX	Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Get More Information

Do you have any questions about the TOM1000-BHTB12R4080 price?

Сертификаты качества

Спецификация

TOM1000-BHTB12R4080 Спецификация

TOM1000-BHTB12R4080 Specification
Backplane Bandwidth	56 Gbps
Processing Type	Store-and-Forward
MAC Table Size	8K
Packet Buffer Size	4.1Mbti
Exchange Rate	148,800 pps/100M ports; 1,488,000 pps/1000M ports
Management Mode	Browser, Console, Telnet, SSH 2.0, Syslog, NTP/SNTP, STD-62 SNMPv3, SNMPv1, SNMPv2, FTP/TFTP
Management Mode	Diagnosis Mode
Redundancy	RSTP, STP, MSTP, Port Trunking, MRD-Ring
Time Synchronization	NTP
Others	4K VLANS, IPv4/IPv6 Multicast, storm control, support Jumbo Frame
Connection	1 removable 5-contact terminal block
Input Voltage	9.6 ~ 60VDC & 18 ~ 30VAC, dual inputs
Power Consumption	10W（without POE）
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	DIN-rail mounting
Housing	Aluminum Alloy Housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	52mm x 140mm x 110mm
Dimensions (W x H x D)	2.05 inch x 5.51 inch x 4.33 inch
Weight	0.4 kg
Weight	0.89 lb
MTBF	≥300,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃~ 75 ℃
Operating Temperature	-40℉ ~ 167℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A
EMS	IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5
Product Safety	EN/IEC62368-1
EMC	EN 55032 EN 55035 EN IEC61000-3-2 EN61000-3-3 FCC Part 15 Subpart B Class A
Others	Test Report from Ministry of Public Security, Network Access License, RoHS
