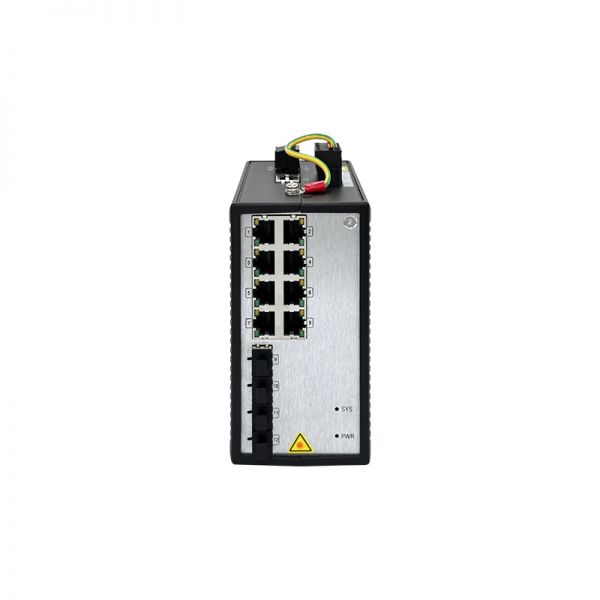

Название:	TCC4100-FAB12U4080
Модель:	MRD TCC4100-FAB12U4080
Бренд:	MRD
Detail:	TCC4100 Series 4 100/1000BaseX SFP Ports and 8 10/100/1000BaseT Ports. 1 Management Serial CLI port With CENTAURI
	Рейтинг: 80% 4/5.0 2 Отзывы
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TCC4100-FAB12U4080

TCC4100 Series 4 100/1000BaseX SFP Ports and 8 10/100/1000BaseT Ports. 1 Management Serial CLI port With CENTAURI

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TCC4100-FAB12U4080 Обзор

Layer 2, 4 100/1000BaseX SFP Ports and 8 10/100/1000BaseT Ports. 1 Management Serial CLI port, 1 Alarm Relay port (250VAC, 2A@250VDC or 125VDC, 2A@30VDC). Isolated Dual Universal Power Inputs 18 ~ 300VDC or 90 ~ 264VAC. Working temperature -40°C ~ +85°C. IP40 Protection Class. CENTAURI enabled.

Quick Spec

Table 1 shows the quick spec of the TCC4100-FAB12U4080

Model	TCC4100-FAB12U4080
Interface Configuration	4 x 100/1000BaseX SFP Ports 8 x 10/100/1000BaseT Ports
Input Voltage	18~300VDC or 90~264VAC
Fansless	Yes
Backplane Bandwidth	56 Gbps
Installasion	DIN-Rail
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	72mm×140mm×110mm
Dimensions (W x H x D)	2.84 inch x 5.51 inch x 4.34inch
Weight	1.0 kg
Weight	2.21 lb
MTBF	≥400,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)

Product Features

 Linearswitcheswithhighperformanceandflexibleconfiguration
 Thebackplanebandwidth:56Gbps
 SupportMRD-Ring®networkredundancyfor<50msrecoverytime
 Configurablebywebbrowser,CLI,Telnet
 SupportQoS(IEEE802.1P/1QandTOS/DiffServ)
 Built-inunifiedMicOSreal-timeoperatingsystemsforallMRDTMswitches  Isolatedredundantpowerinputs
 Die-castingaluminumalloyhousing
 Fanless,-40°Cto85°Coperatingtemperaturerange
 MTBF≥600,000h

Supported Options

Table 2 shows the supported options of the TCC4100-FAB12U4080

MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850	Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX	Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Get More Information

Do you have any questions about the TCC4100-FAB12U4080 price?

Сертификаты качества

Спецификация

TCC4100-FAB12U4080 Спецификация

TCC4100-FAB12U4080 Specification
Backplane Bandwidth	56 Gbps
Switch Architecture	MIPS32
Processing Type	Store-and-Forward
MAC Table Size	8K
Packet Buffer Size	4Mbti
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M;
Management Mode	Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC3636 MAU, RFC2925 Ping MIB, MRD Private MIBs
Diagnosis Mode	Indicator light, journal file, Relay, port mirroring, TRAP
Redundancy	STP, MSTP, RSTP, port trunking
Time Synchronization	NTP
Others	4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame
Connection	1 removable 5-contact terminal block
Input Voltage	18~300VDC or 90~264VAC
Power Consumption	15W（without POE）
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	DIN-Rail
Housing	Die-casting aluminum alloy housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	72mm×140mm×110mm
Dimensions (W x H x D)	2.84 inch x 5.51 inch x 4.34inch
Weight	1.0 kg
Weight	2.21 lb
MTBF	≥400,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-8, Class 5
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011(pending)
Rail Industry	EN50155; IEC/EN61373; EN50121
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010(pending)
Shipbuilding Industry	DNV-GL (pending)
