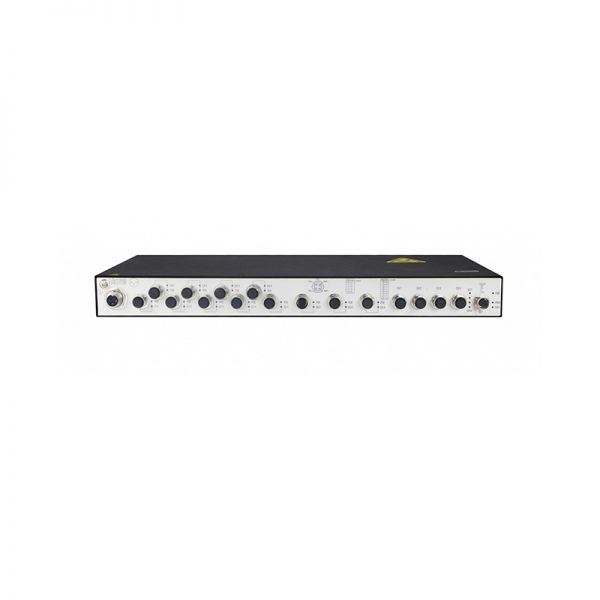

Название:	TCC4100-CRPISL3
Модель:	MRD TCC4100-CRPISL3
Бренд:	MRD
Detail:	TCC4100 Series 12M12 D-code 10/100BaseT POE ports +4 M12 X-code 10/100/1000BaseTports with BYPASs function
	Рейтинг: 100% 5/5.0 2 Отзывы
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TCC4100-CRPISL3

TCC4100 Series 12M12 D-code 10/100BaseT POE ports +4 M12 X-code 10/100/1000BaseTports with BYPASs function

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TCC4100-CRPISL3 Обзор

CRRC standardized 1U height Layer3 PlS driver's room industrial switch, 12M12 D-code 10/100BaseT POE ports+4 M12 X-code 10/100/1000BaseTports with BYPASS function

Quick Spec

Table 1 shows the quick spec of the TCC4100-CRPISL3

Model	TCC4100-CRPISL3
Interface Configuration	12 x M12 D-code 10/100BaseT POE ports 4 x M12 X-code 10/100/1000BaseT
Input Voltage
Fansless	Yes
Backplane Bandwidth	68 Gbps
Installasion	Rack-Mounted
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	440mm x 44.2mm x 200mm
Dimensions (W x H x D)	17.32 inch x 1.74 inch x 7.87 inch
Weight	4 kg
Weight	8.82 lb
MTBF	≥600,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011;
Rail Industry	EN50121, EN50155, IEC/EN61373
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010
Shipbuilding Industry	GL (pending)

Product Features

Linear switches with high performance and flexible configuration
Support power-over-ethernet (compliant with lEEE 802.3 af/at standards)
Each PoE port provides up to 30W output power
POE management: PoE device detection, PoE power management
Support MRD-Ring network redundancy for< 50 ms recovery time
Support Media Redundancy Protocol (compliant with lEC62439)
Any two ports can establish a self-recovery ring and support multiple independent self-recovery rings
Support Dying gasp function and initiatively report power-down state through SNMP protocol
Support MODBUS/UDP/SNMP remote monitoring and various mainstream OPc software
Built-in unified MicOS real-time operating systems for all MRD™m switches
MTBF >600, 000 hours

Get More Information

Do you have any questions about the TCC4100-CRPISL3 price?

Сертификаты качества

Спецификация

TCC4100-CRPISL3 Спецификация

TCC4100-CRPISL3 Specification
Backplane Bandwidth	68 Gbps
Processing Type	Store-and-Forward
MAC Table Size	16K
Packet Buffer Size
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M
Management Mode	Web, serial port, STD-17 MIB-II, STD-58 SMIV2, STD-59 RMON, STD-62SNMPV3,SNMPv2C,SNMPv1, RFC2925 Ping MIB, MRD Private MIBs
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	MRD-Ring ,MRP, RSTP, port trunking
Time Synchronization	SNTP
Others	4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame
Connection
Input Voltage
Power Consumption	35W
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	Rack-Mounted
Housing	Aluminum Alloy Housing
IP Rating	IP20;
Conformal Coated	Optional
Dimensions (W x H x D)	440mm x 44.2mm x 200mm
Dimensions (W x H x D)	17.32 inch x 1.74 inch x 7.87 inch
Weight	4 kg
Weight	8.82 lb
MTBF	≥600,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration and Shock	IEC 61373
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN55022 Class A
EMS	IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 4 IEC (EN )61000-4-9, Class 4
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011;
Rail Industry	EN50121, EN50155, IEC/EN61373
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010
Shipbuilding Industry	GL (pending)
