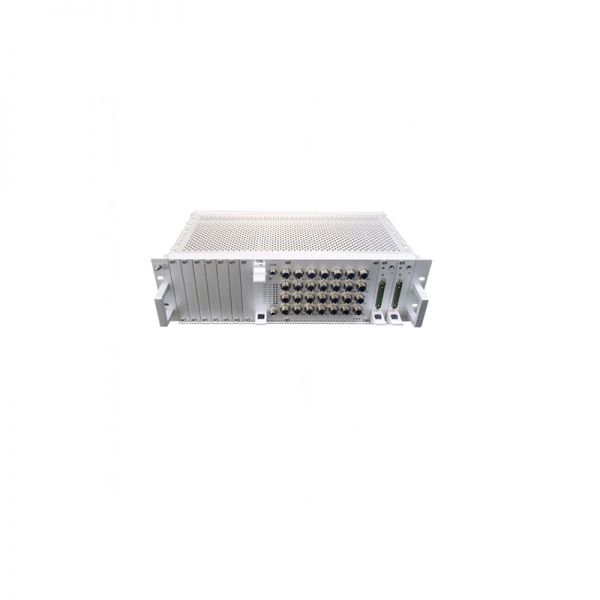

TCC4100-CRECNL2

CRRC standardized 3U high rack-mounted ETBN/ECN layer-2 ECNN-B switch, built-in dual switch module, each module supports 16 12 D-code 10/100BaseT ports and 4 M12 X-code 10/100/1000BaseT ports (support BY- PASS), hot swappable redundant dual power, meet the ETBN networking requirements of CRRC.

Quick Spec

Table 1 shows the quick spec of the TCC4100-CRECNL2

Product Features

● Conform to IEC61375-2-5 and IEC61375-2-3
● Starting-up time less than 1 minute
● Support BYPASS function, switching time less
than 160ms
● Support QoS, allowing real-time traffic classifi-
cation and priority
● Support LLDP, realized automatic topology dis-
● Support port mirroring and port filtering, real- ized data frame filtering based on MAC ad- dress
● Support port aggregation, bandwidth manage- ment, traffic control, dynamic multicast, IGMP -Snooping etc.
● Support link aggregation
covery, convenient for visual management
● Support summary statistics of interface mes- down
sage sending and receiving packets, and port
rate.
● Support loop detection, master node supports
dynamic election to prevent mis-operation from causing network loop and further causing network storm.
● Support file management, log management, port statistics, 802.1Q Vlan.
● Support RTC, clock keeps running a????er power failure
● The PCB adopts three-proof processed
● Fanless, -40 to 85°C wide operating tempera-
ture range
● MTBF >450, 000 hours
