Название:	TCC4100-BUC0C0
Модель:	MRD TCC4100-BUC0C0
Бренд:	MRD
Detail:	TCC4100 Series 12 100/1000BaseX SFP Ports and 12 10/100/1000BaseT Ports
	Рейтинг: 90% 4.5/5.0 2 Отзывы
Цена:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED 2 829,00 US$
Купон	Up to $80 Coupons Получить сейчас $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TCC4100-BUC0C0

TCC4100 Series 12 100/1000BaseX SFP Ports and 12 10/100/1000BaseT Ports

Цена: 2 829,00 US$

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TCC4100-BUC0C0 Обзор

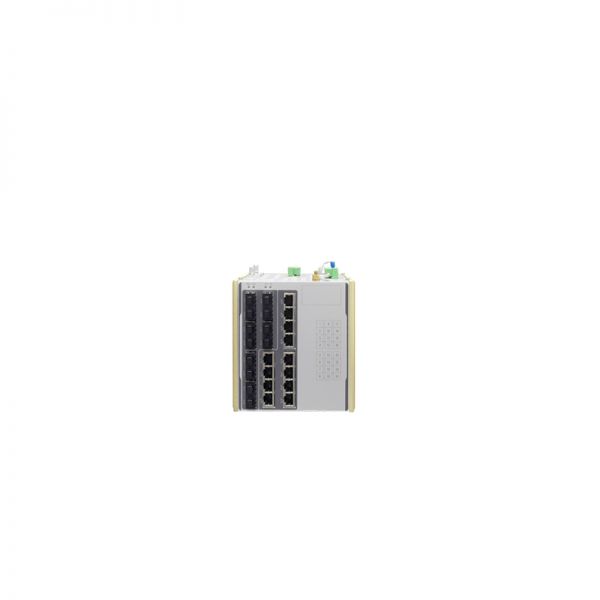

Layer2 industrial switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel, 12 100/1000BaseX SFP Ports (SFP module not included) and 12 10/100/1000BaseT Ports. 1 management serial CLI port, 1 alarm relay port (250VAC, 2A@250VAC or 125VDC, 2A@30VDC). Isolated Dual Univer- sal 18~300VDC or 90~264VAC Power Inputs. IP40 Protection Class. Working
temperature -40°C ~ +85°C.

Quick Spec

Table 1 shows the quick spec of the TCC4100-BUC0C0.

Model	TCC4100-BUC0C0
Interface Configuration	12 x 100/1000BaseX SFP Ports 12 x 10/100/1000BaseT Ports
Input Voltage	18 ~ 300VDC or 90 ~ 264VAC, dual inputs
Fansless	Yes
Backplane Bandwidth	52 Gbps
Installasion	DIN-Rail
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	130mm×140mm×110mm
Dimensions (W x H x D)	5.11 inch x 5.51 inch x 4.34inch
Weight	1.5 kg
Weight	3.15 lb
MTBF	≥600,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)

Product Features

● Support up to 12 10/100/1000BaseT Ports and 12 100/1000BaseX SFP Ports
● Configurable by web browser, Telnet, CLI
● With functions of data packet dropout protection and quick recovery from network failure
● Support various multicast protocols and strong safety protection mechanism
● IGMP snooping and GMRP for filtering traffic from industrial Ethernet protocols
● QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism
● SNMPv1/v2c/v3 for different levels of network management
● RMON for proactive and efficient network monitoring
● Bandwidth management to prevent unpredictable network status
● Port mirroring for online debugging
● Isolated redundant dual inputs power
● Fanless, -40°C to 85°C operating temperature range

Supported Options

Table 2 shows the supported options of the TCC4100-BUC0C0.

MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850	Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX	Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TCC4100-BUC0C0.

Product number	Product description
TCC4100-BEC0C0	Layer2 industrial switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel, 12 100/1000BaseX SFP Ports (SFP module not included) and 12 10/100/1000BaseT Ports. 1 management serial CLI port, 1 alarm relay port (250VAC, 2A@250VAC or 125VDC, 2A@30VDC). Isolated Dual 9.6- 60VDC Power Inputs. IP40 Protection Class. Working temperature -40°C ~ +85°C.
MDS-G4028-T	14 x GE + 14 x GX SFP (MOXA)
DS-3T2524TF	12 x GXSFP + 12 x GE

Get More Information

Do you have any questions about the TCC4100-BUC0C0 price?

Сертификаты качества

Спецификация

TCC4100-BUC0C0 Спецификация

TCC4100-BUC0C0 Specification
Backplane Bandwidth	52 Gbps
Processing Type	Store-and-Forward
MAC Table Size	8K
Packet Buffer Size	4Mbit
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M;
Management Mode	Web, Serial Port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs, SSH, HTTPs, Telnet
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	STP, MSTP, RSTP, port trunking
Time Synchronization	NTP
Others	4K VLANS, IPv4/IPv6 multi-cast, storm control, MC/BC protection, support Jumbo Frame
Connection	1 removable 5-contact terminal block
Input Voltage	18~300VDC or 90~264VAC
Power Consumption	28W
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	DIN-Rail
Housing	Aluminum Alloy Housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	130mm×140mm×110mm
Dimensions (W x H x D)	5.11 inch x 5.51 inch x 4.34inch
Weight	1.5 kg
Weight	3.15 lb
MTBF	≥600,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A
EMS	IEC (EN) 61000-4-2, Class 4 IEC (EN) 61000-4-3, Class 3 IEC (EN) 61000-4-4, Class 4 IEC (EN) 61000-4-5, Class 4 IEC (EN) 61000-4-6, Class 3 IEC (EN) 61000-4-9, Class 5
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011(pending)
Rail Industry	EN50155; IEC/EN61373; EN50121
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010(pending)
Shipbuilding Industry	DNV-GL (pending)
