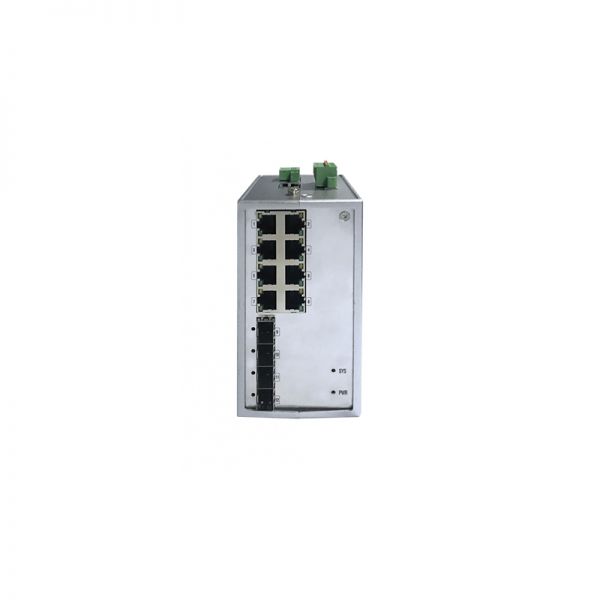

Название:	TCC4100-BU4080
Модель:	MRD TCC4100-BU4080
Бренд:	MRD
Detail:	TCC4100 Series 4 100/1000BaseX SFP Ports and 8 10/100/1000BaseT Ports. 1 Man- agement Serial CLI port
	Рейтинг: 80% 4/5.0 1 Отзыв
Цена:	USD AUD BRL GBP CAD CNY EUR HKD MXN RUB SGD CHF AED 2 258,00 US$
Купон	Up to $80 Coupons Получить сейчас $10.00 Order Over $100 RS10 $20.00 Order Over $2000 RSTW $50.00 Order Over $5000 RSFI $80.00 Order Over $8000 RSEI
Наличие:	Item Backordered
Условие:	New

Доставка:

Экспресс-доставка в Соединенные Штаты
2-6 Дней, via DHL, FedEx, UPS, etc.

Оплата:

Оплата банковским переводом.
Оплатите с помощью PayPal.
Оплачивайте своими вебмани.
Pay with your onafriq.
Оплата кредитной картой Visa.
Оплата кредитной картой Mastercard.
Платите картой Discover.
Оплатить Вестерн Юнион.

Поддержка:

TZS, XAF, TZS payment.

Safe, Fast, 100% Genuine. Your Reliable IT Partner.
Best Price Assurance, Bulk Savings, Trusted Worldwide.

TCC4100-BU4080

TCC4100 Series 4 100/1000BaseX SFP Ports and 8 10/100/1000BaseT Ports. 1 Man- agement Serial CLI port

Цена: 2 258,00 US$

Стабильная глобальная цепочка поставок для процветающего бизнеса.

Инвентарь на $4 000 000
500+ надежных поставщиков
Сертифицированное партнерство
Сотрудничество с FedEx, UPS, DHL

Более 100 000 разнообразных продуктов для любых нужд

Индивидуальная поддержка для ваших нужд с помощью CCIE, HCIE, HPE ASE и т. д.

Индивидуальное обслуживание, превосходное обслуживание продукта для максимального удовлетворения.

Проекты и техническая поддержка
Простая покупка
Защита жизненного цикла продукта
Эксклюзивная поддержка команды F4

Обзор

TCC4100-BU4080 Обзор

Layer 2, 4 100/1000BaseX SFP Ports and 8 10/100/1000BaseT Ports. 1 Man- agement Serial CLI port, 1 Alarm Relay port (250VAC, 2A@250VDC or 125VDC, 2A@30VDC). Isolated Dual Universal Power Inputs 18 ~ 300VDC or 90 ~ 264VAC. Working temperature -40°C ~ +85°C. IP40 Protection Class.

Quick Spec

Table 1 shows the quick spec of the TCC4100-BU4080

Model	TCC4100-BU4080
Interface Configuration	4 x 100/1000BaseX SFP Ports 8 x 10/100/1000BaseT Ports
Input Voltage	18 ~ 300VDC or 90 ~ 264VAC, dual inputs
Fansless	Yes
Backplane Bandwidth	56 Gbps
Installasion	DIN-Rail
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	72mm×140mm×110mm
Dimensions (W x H x D)	2.84 inch x 5.51 inch x 4.34inch
Weight	1.0 kg
Weight	2.21 lb
MTBF	≥600,000H
Operating Temperature	-40 °C~ 85 °C
Operating Temperature	-40°F ~ 185°F
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011; NEMA-TS2 (pending)
Rail Industry	EN50121-4
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010 (pending)
Shipbuilding Industry	GL (pending)

Product Features

● Linear switches with high performance and flexible configuration
● The backplane bandwidth: 56Gbps
● Support MRD-Ring® network redundancy for <50ms recovery time
● Configurable by web browser, CLI, Telnet
● Support QoS (IEEE 802.1P/1Q and TOS/DiffServ)
● Built-in unified MicOS real-time operating systems for all MRDTM switches
● Isolated redundant power inputs
● Die-casting aluminum alloy housing
● Fanless, -40°C to 85°C operating temperature range

Supported Options

Table 2 shows the supported options of the TCC4100-BU4080

MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
MRD-MGIGA-GSX-850	Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
MRD-MGIGA-GSX	Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

Compare to Similar Items

Table 3 shows the comparison to similar items of the TCC4100-BU4080

Product number	Product description
EDS-G4012-4GC-LV-T	4 x combo + 8 x GE (MOXA)

Get More Information

Do you have any questions about the TCC4100-BU4080 price?

Сертификаты качества

Спецификация

TCC4100-BU4080 Спецификация

TCC4100-BU4080 Specification
Backplane Bandwidth	56 Gbps
CPU	MIPS32
Processing Type	Store-and-Forward
MAC Table Size	8K
Packet Buffer Size	4Mbit
Exchange Rate	148,800 pps/100M; 1,488,000 pps/1000 M;
Management Mode	Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs
Diagnosis Mode	Indicator light, journal file, relay, RMON, port mirroring, TRAP
Redundancy	RSTP, STP, MSTP, MRD-Ring®, port trunking
Time Synchronization	NTP
Others	4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame
Connection	1 removable 5-contact terminal block
Input Voltage	100-240V & 18-60VDC, dual power inputs
Power Consumption	15W
Overload Current Protection	Supported
Reverse Polarity Protection	Supported
Installasion	DIN-Rail
Housing	Aluminum Alloy Housing
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	72mm×140mm×110mm
Dimensions (W x H x D)	2.84 inch x 5.51 inch x 4.34inch
Weight	1.0 kg
Weight	2.21 lb
MTBF	≥600,000H
Storage Temperature	-40 ℃ ~ 85 ℃
Storage Temperature	-40℉ ~ 185℉
Operating Temperature	-40 ℃ ~ 85 ℃
Operating Temperature	-40℉ ~ 185℉
Ambient Relative Humidity	5 % ~ 95% (non-condensing)
Vibration	IEC 60068-2-6
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-31
Circuit Board	Approved by IPC
EMI	FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A
EMS	IEC (EN) 61000-4-2, Class 4 IEC (EN) 61000-4-3, Class 3 IEC (EN) 61000-4-4, Class 4 IEC (EN) 61000-4-5, Class 4 IEC (EN) 61000-4-6, Class 3 IEC (EN) 61000-4-9, Class 5
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A
Hazardous Area	UL/cUL1604 Class 1 Div 2 (pending)
Transportaon Industry	JT/T817-2011(pending)
Rail Industry	EN50155; IEC/EN61373; EN50121
Power Industry	IEC61850-3 IEEE1613 (C37.90.x)
Industrial Control Industry	UL/cUL61010
Shipbuilding Industry	DNV-GL (pending)
