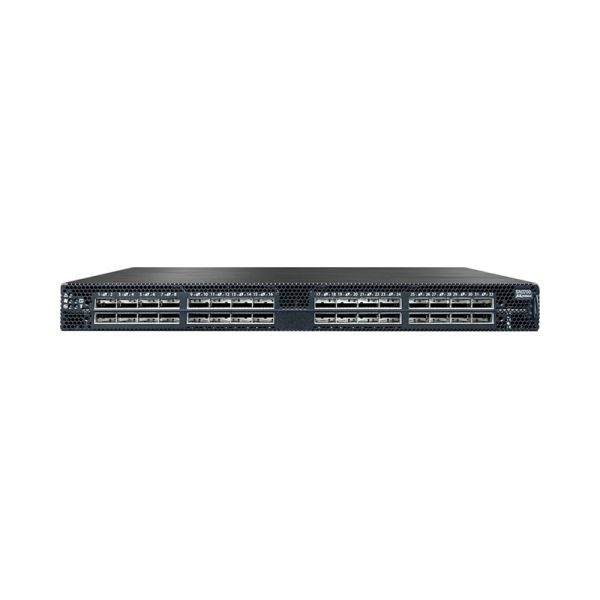

MSN3700-CS2RO, NVIDIA Mellanox Spectrum-2 Switch, 32x100GbE QSFP28/2xAC PSU/C2P airflow

Бренд: NVIDIA Mellanox
Модель: MSN3700-CS2RO
In Stock
- United States
- United Kingdom
- Germany
- United Arab Emirates
- Singapore
- India
- Hong Kong

Рейтинг:

100%

5/5.0

1 Отзыв

18 944,00 US$

Price Alert

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Экспресс-доставка в Соединенные Штаты
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Отследить ваш заказ

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

MSN3700-CS2RO, NVIDIA Mellanox Spectrum-2 Switch, 32x100GbE QSFP28/2xAC PSU/C2P airflow

100% Genuine Ready to Ship

18 944,00 US$

Обзор

NVIDIA Mellanox MSN3700-CS2RO Обзор

The Mellanox MSN3700-CS2RO is a 100GbE Open Ethernet switch for leaf, spine, and full-rack data-center connectivity, based on the NVIDIA Spectrum-2 family with an ONIE boot loader and C2P airflow.

Key Specifications

Network Type

Ethernet

Port Configuration

32 x QSFP28

Port Speed

100GbE QSFP28; breakout to 50GbE or 1/10/25GbE

Aggregate Throughput

3.2 Tb/s

Network OS / Software

ONIE

Airflow Direction

C2P

Best Fit Applications

100GbE Leaf-Spine Fabrics

Thirty-two QSFP28 ports and 3.2 Tb/s throughput support 100GbE leaf and spine networks.

Full-Rack Server Connectivity

QSFP28 breakout supports up to 128 x 10/25GbE connections for full-rack server connectivity.

ONIE-Based Network OS Deployment

The ONIE boot loader supports deployment of an ONIE-based network OS for cloud-scale data-center fabrics.

System Compatible Components

Explore validated products for common network connections.

Model	Connection Details
MCP1600-C001E30N	Ethernet 100GbE QSFP28 passive copper DAC, 1 m, 30 AWG, CA-N, for supported direct switch, server, NIC, or switch-to-switch links.
MFA1A00-C010	Ethernet 100GbE QSFP active fiber cable, 10 m, LSZH, for supported direct 100GbE links.
MMA1B00-C100D	Ethernet 100GbE QSFP28 optical transceiver, MPO, 850 nm, SR4, multimode fiber, up to 100 m.
MMS1C10-CM	Ethernet 100GbE QSFP optical module, MPO, 1310 nm, PSM4, single-mode fiber, up to 500 m.
MMA1L10-CR	Ethernet 100GbE QSFP28 optical transceiver, LC-LC, 1310 nm, LR4, single-mode fiber, up to 10 km.
MMA1L30-CM	Ethernet 100GbE QSFP28 optical module, LC-LC, 1310 nm, CWDM4, single-mode fiber, up to 2 km.
MCP7F00-A001R30N	Ethernet 100GbE QSFP28 to 4 × 25GbE SFP28 passive copper hybrid cable, 1 m, 30 AWG, CA-N, for supported QSFP28 breakout ports.
MFA7A50-C010	Ethernet 100GbE QSFP28 to 4 × 25GbE SFP28 active fiber hybrid cable, 10 m, for supported QSFP28 breakout ports.
MCP7H00-G001R30N	Ethernet 100GbE QSFP28 to 2 × 50GbE QSFP28 passive copper hybrid cable, 1 m, 30 AWG, CA-N.
MAM1Q00A-QSA28	Ethernet QSFP28-to-SFP28 QSA28 adapter for a supported 25GbE SFP28 server or NIC connection.
MCP2M00-A003E26N	Ethernet 25GbE SFP28 passive copper cable, 3 m, 26 AWG, CA-N, used through MAM1Q00A-QSA28.
MSN3700-CS2FO	Representative SN3700C-family 32-port 100GbE QSFP28 switch endpoint for supported QSFP28 interconnects.

Compare Related Models

	MSN3700-CS2RO	MSN3700-CS2FO	MSN2700-CS2RO	MSN2700-CS2FO
Network Type	Ethernet	Ethernet	Ethernet	Ethernet
Port Configuration	32 x QSFP28	32 x QSFP28	32 x QSFP28	32 x QSFP28
Port Speed	10/25/40/50/100GbE per port	10/25/40/50/100GbE per port	10/25/40/50/56/100GbE per port	10/25/40/50/56/100GbE per port
Switching Capacity	6.4 Tb/s	6.4 Tb/s	6.4 Tb/s	6.4 Tb/s
Wire Speed Switching	4.76 Bpps	4.76 Bpps	4.76 Bpps	4.76 Bpps
Network OS / Software	ONIE (bare-metal image; NOS not preinstalled)	ONIE (bare-metal image; NOS not preinstalled)	ONIE (bare-metal image; NOS not preinstalled)	ONIE (bare-metal image; NOS not preinstalled)
Airflow Direction	C2P	P2C	C2P	P2C
Form Factor	1U; standard depth	1U; standard depth	1U; standard depth	1U; standard depth
Power Supply	2 x AC power supplies	2 x AC power supplies	2 x AC power supplies	2 x AC power supplies

Сертификаты качества

Спецификация

NVIDIA Mellanox MSN3700-CS2RO Спецификация

Product Type	SN3700C NVIDIA Spectrum-2-based 100GbE Open Ethernet switch
Model / OPN	MSN3700-CS2RO
Network Type	Ethernet
Port Configuration	32 x QSFP28
Port Type / Connector	QSFP28
Port Speed	1/10/25/40/50/100GbE per port with supported breakout or adapters
Breakout Capability	All 32 QSFP28 ports support 4 x 10/25GbE or 2 x 50GbE breakout
Switching Capacity	6.4 Tb/s
Packet Processing Rate	4.76 Bpps
Wire-Speed Switching	Line-rate performance on all ports at all packet sizes
Latency	425 ns
Network OS / Software	ONIE / bare ONIE image
Switch ASIC	NVIDIA Spectrum-2
Packet Buffer	42 MB dynamically shared packet buffer
CPU	Intel x86 2.20 GHz dual-core
Memory / SSD	8 GB DDR4 RAM; 32 GB SSD
PCIe	4 x PCIe Gen 3.0
Management Ports	1 x 100/1000BASE-T RJ45 management port; 1 x RJ45 serial console; 1 x USB port
Form Factor	1U, full-width, standard-depth
Dimensions	44 x 428 x 559 mm (H x W x D)
Weight	11.1 kg (24.5 lb)
Rack Mounting	19-inch rack mount
Rail Kit	Included
Power Supply	2 x AC hot-swappable power supplies
Redundancy	1+1 power-supply redundancy
Input Voltage	100-264 VAC
Frequency	50-60 Hz
Power Consumption	242 W typical
Airflow Direction	C2P (connector-to-power)
Cooling	4 hot-swappable fans; N+1 fan redundancy
Operating Temperature	0°C to 40°C
Non-operating Temperature	-40°C to 70°C
Humidity	10% to 85% operational, non-condensing; 10% to 90% non-operational, non-condensing
Altitude	Up to 3,050 m
Supported Modules and Cables	QSFP28 100GbE short- and long-range optics QSFP28 DAC and AOC 100GbE-to-4x25GbE and 100GbE-to-2x50GbE passive or active optical breakout cables Supported 1GbE modules and QSFP28-to-SFP28 adapters
Safety / EMC / RoHS	CB, cTUVus, CE, CU, S-Mark, FCC, VCCI, ICES, RCM, BSMI, KCC and CCC; RoHS compliant
