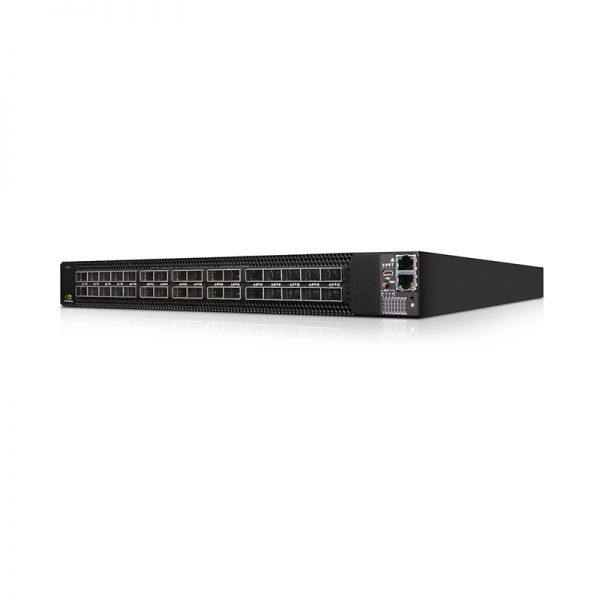

MSN3700-CS2F, NVIDIA Mellanox Spectrum-2 Switch, 32x100GbE QSFP28/2xAC PSU/P2C airflow

Бренд: NVIDIA Mellanox
Модель: MSN3700-CS2F
In Stock
- United States
- United Kingdom
- Germany
- United Arab Emirates
- Singapore
- India
- Hong Kong

Рейтинг:

100%

5/5.0

1 Отзыв

11 812,00 US$

Price Alert

100% Genuine

Original, factory-verified

3-Year Warranty

Extended, enterprise-grade

24 Years Expertise

Proven, deployment-focused

Condition

Original New

Экспресс-доставка в Соединенные Штаты
Estimated shipping time: 2–6 business days via DHL, FedEx, UPS and more

Certified Expertise Builds Trust

CCIE · JNCIE · NSE7 · ACDX · HPE Master ASE · Dell Server/AI Expert

Talk to an Expert

Faster Delivery, Globally Ready
20+ years of supply chain expertise for faster multi-stop delivery with smooth customs.
48H Worldwide Shipping
10+ Global Warehouses
Keep Projects On Time
Reliable availability and real-time shipment visibility to keep every critical IT project on schedule.
Отследить ваш заказ

Leading Global Distributor
Since 2002
A global ICT bridge delivering authentic hardware and trusted service for over 20 years.

Worry-Free Coverage with RSCare
3-Year warranty for enterprise hardware, including advanced RMA, diagnostics, spare parts support, and OEM service compatibility.
Cisco SmartNet
HPE Foundation Care
Dell ProSupport
Juniper Care
Fortinet Support
Your Trusted Genuine Source
Authorized partnerships with 30+ brands, including Cisco, HPE, Dell, Juniper, and Fortinet.
100% Authentic Products
100,000+ Multi-Brand SKUs Available

MSN3700-CS2F, NVIDIA Mellanox Spectrum-2 Switch, 32x100GbE QSFP28/2xAC PSU/P2C airflow

100% Genuine Ready to Ship

11 812,00 US$

Обзор

NVIDIA Mellanox MSN3700-CS2F Обзор

The Mellanox MSN3700-CS2F is a 100GbE Open Ethernet switch from the NVIDIA Spectrum-2 family for high-density leaf, spine, and top-of-rack data-center fabrics, with NVIDIA Onyx and P2C airflow.

Key Specifications

Network Type

Ethernet

Port Configuration

32 x QSFP28

Port Speed

10/25/40/50/100GbE per port

Aggregate Throughput

3.2 Tb/s

Network OS / Software

NVIDIA Onyx

Airflow Direction

P2C (power side inlet to connector side outlet)

Best Fit Applications

100GbE Leaf and Spine Fabrics

The 32 x QSFP28 configuration provides dense 100GbE connectivity for data-center leaf, spine, and top-of-rack roles.

Storage and Scale-Out Networks

QSFP28 DAC, AOC, optical, and breakout options support server, storage, and inter-switch connections.

Open Ethernet Data Centers

NVIDIA Onyx supports an open operating model for scalable Ethernet data-center networks.

System Compatible Components

Explore validated products for common network connections.

Model	Connection Details
MCP1600-C00AE30N	NVIDIA passive copper DAC, 100GbE QSFP28, 0.5m; for short-reach server-facing, storage, or switch connections.
MCP1600-C001E30N	NVIDIA passive copper DAC, 100GbE QSFP28, 1m; for compatible server, storage, or switch connections.
MCP1600-C002E30N	NVIDIA passive copper DAC, 100GbE QSFP28, 2m; for compatible in-rack connections.
MCP1600-C02AE30L	NVIDIA passive copper DAC, 100GbE QSFP28, 2.5m; for compatible extended in-rack connections.
MFA1A00-C003	NVIDIA active fiber cable, 100GbE QSFP, LSZH, 3m; for longer-reach server, storage, or switch connections.
MFA1A00-C020	NVIDIA active fiber cable, 100GbE QSFP, LSZH, 20m; for longer-reach Ethernet connections.
MFA1A00-C100	NVIDIA active fiber cable, 100GbE QSFP, LSZH, 100m; for longer-reach Ethernet connections.
MCP7F00-A001R30N	NVIDIA passive copper hybrid breakout cable, 100GbE QSFP28 to 4 x 25GbE SFP28, 1m; for compatible 25GbE server or storage endpoints.
MCP7F00-A003R26N	NVIDIA passive copper hybrid breakout cable, 100GbE QSFP28 to 4 x 25GbE SFP28, 3m; breakout mode required.
MFA7A50-C003	NVIDIA active fiber hybrid breakout solution, 100GbE QSFP28 to 4 x 25GbE SFP28, 3m; for longer-reach 25GbE endpoints.
MFA7A50-C030	NVIDIA active fiber hybrid breakout solution, 100GbE QSFP28 to 4 x 25GbE SFP28, 30m; for longer-reach 25GbE endpoints.
MCP7H00-G001R30N	NVIDIA passive copper hybrid cable, 100GbE QSFP28 to 2 x 50GbE QSFP28, 1m; breakout mode required.
MFA7A20-C003	NVIDIA active fiber hybrid solution, 100GbE QSFP28 to 2 x 50GbE QSFP28, 3m; for longer-reach 50GbE endpoints.
MFA7A20-C020	NVIDIA active fiber hybrid solution, 100GbE QSFP28 to 2 x 50GbE QSFP28, 20m; for longer-reach 50GbE endpoints.
MMA1B00-C100D	NVIDIA 100GbE QSFP28 SR4 transceiver, MPO, 850nm MMF, up to 100m; for compatible Ethernet switch, server, or storage links.
MMS1C10-CM	NVIDIA 100GbE QSFP28 PSM4 optical module, MPO, 1310nm SMF, up to 500m.
MMA1L10-CR	NVIDIA 100GbE QSFP28 LR4 optical transceiver, LC-LC, 1310nm SMF, up to 10km.
MMA1L30-CM	NVIDIA 100GbE QSFP28 CWDM4 optical module, LC-LC, 1310nm SMF, up to 2km.
SPQ-CE-ER-CDFL-M	100GbE optical transceiver, LC-LC, 1310nm SMF, up to 40km.
MMS1V70-CM	NVIDIA 100GbE QSFP28 DR1 transceiver, 1310nm SMF, up to 500m.
MAM1Q00A-QSA28	NVIDIA DynamiX QSA28 QSFP28-to-SFP28 adapter for compatible 25GbE Ethernet endpoints.
MSN3700-CS2FC	NVIDIA 100GbE QSFP28 Ethernet switch; for validated switch-to-switch connections with compatible 100GbE cables or optics.
MSN3700-CS2RC	NVIDIA 100GbE QSFP28 Ethernet switch; for validated switch-to-switch connections with compatible 100GbE cables or optics.
MSN2700-CSBFC	Mellanox 100GbE QSFP28 Ethernet switch; for validated switch-to-switch connections with compatible 100GbE cables or optics.

Compare Related Models

	MSN3700-CS2F	MSN3700-CS2RC	MSN3700-CS2R
Network Type	Ethernet	Ethernet	Ethernet
Port Configuration	32 x QSFP28	32 x QSFP28	32 x QSFP28
Port Speed	10/25/40/50/100GbE per port	10/25/40/50/100GbE per port	10/25/40/50/100GbE per port
Aggregate Throughput	3.2 Tb/s	3.2 Tb/s	3.2 Tb/s
Network OS / Software	NVIDIA Onyx	Cumulus Linux	NVIDIA Onyx
Airflow Direction	P2C (power-to-connector)	C2P (connector-to-power)	C2P (connector-to-power)

Сертификаты качества

Спецификация

NVIDIA Mellanox MSN3700-CS2F Спецификация

Product Type	1U Open Ethernet Switch
Model / OPN	MSN3700-CS2F
Network Type	Ethernet
Port Configuration	32 x QSFP28
Port Type / Connector	QSFP28
Port Speed	10/25/40/50/100GbE per port; supports 32 x 100/40GbE, 64 x 50GbE, or 128 x 1/10/25GbE configurations
Breakout Capability	Up to 64 x 50GbE or 128 x 1/10/25GbE using supported splitter cables, hybrid cables, or adapters
Aggregate / Max Throughput	3.2Tb/s
Packet Processing Rate	4.76Bpps
Wire Speed Switching	Full wire-speed forwarding; cut-through switching
Network OS / Software	NVIDIA Onyx
Switch ASIC	NVIDIA Spectrum-2
Packet Buffer	42MB fully shared packet buffer
CPU	Intel x86 2.20GHz Dual Core
Memory / SSD	8GB DDR4 RAM; 32G SSD
PCIe	4 x Gen 3.0
Management Ports	1 x 10/100/1000Mb Ethernet management port (RJ45); 1 x RS232 console port (RJ45); 1 x USB 2.0 uUSB port
Form Factor	1U; standard depth
Dimensions	1.72 in (H) x 16.84 in (W) x 22 in (D); 44 x 428 x 559mm
Weight	14kg
Rack Mounting	19-inch rack mount
Rail Kit	Fixed rail kit included by default; telescopic rail kit available separately
Power Supply	2 x AC power supplies; hot-swappable
Redundancy	1+1 hot-swappable power supplies; N+1 hot-swappable fans
Input Voltage	100-127VAC, 50/60Hz, 10A; 200-240VAC, 50/60Hz, 6A; 192-288VDC not certified
Frequency	50/60Hz
Power Consumption	Global power consumption: 242W (SN3700C 100GbE models)
Airflow Direction	P2C: power side inlet to connector side outlet
Cooling	Air cooled; 4 hot-swappable fans, N+1 redundant
Operating Temperature	Operational: 0°C to 40°C; non-operational: -40°C to 70°C
Humidity	Operational: 10%-85% non-condensing; non-operational: 10%-90% non-condensing
Altitude	3050m
Supported Modules and Cables	Supported QSFP28 100GbE DAC, AOC, and short-/long-range optics; 100GbE-to-2 x 50GbE and 100GbE-to-4 x 25GbE breakout cables; QSA28 adapters and qualified lower-rate interconnects
Safety / EMC / RoHS	CB, cTUVus, CE, CU, S_Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC; RoHS compliant
