SFP vs SFP+ vs SFP28 vs QSFP vs QSFP28: Choosing the Right Optical Transceiver for Data Centers

In modern enterprise networks and high-performance data centers, choosing the right optical transceiver is more than a technical formality—it directly affects port density, power budgets, network performance, and total cost of ownership (TCO).

Misunderstanding the differences between SFP, SFP+, SFP28, QSFP, and QSFP28 modules can lead to link instability, performance bottlenecks, and expensive hardware mismatches. This guide provides a clear, design-focused overview to help network engineers, IT managers, and data center architects make informed decisions.

Table of Contents

• Part 1: Optical Transceiver Family Overview
• Part 2: Technical Comparison Table
• Part 3: Compatibility and Interoperability
• Part 4: Deployment Considerations
• Part 5: Practical Use Cases
• Part 6: FAQ for Network Engineers

Part 1: Optical Transceiver Family Overview

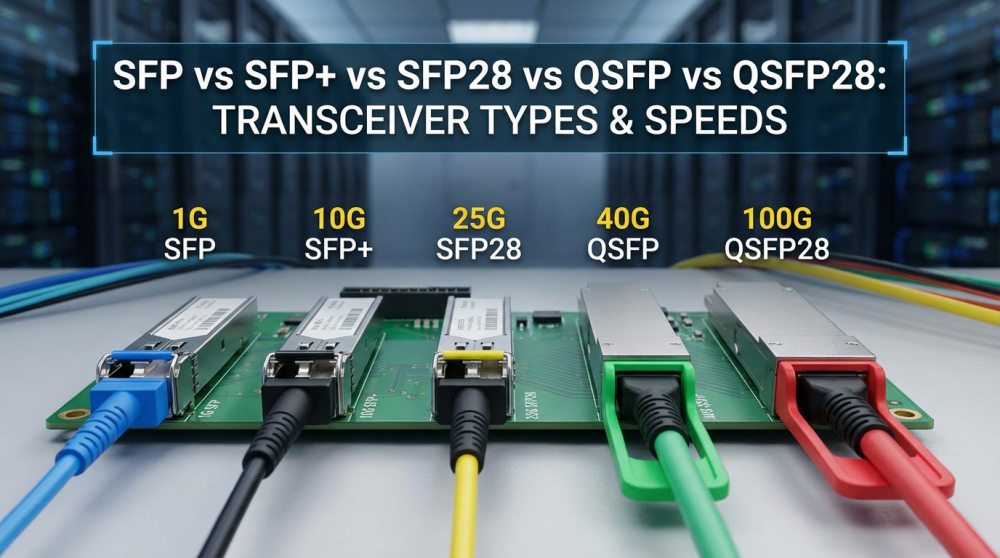

Optical transceivers are hot-pluggable modules that connect switches, routers, and servers to the network. Although SFP, SFP+, SFP28, QSFP, and QSFP28 modules may look similar, their capabilities and use cases differ significantly.

SFP (Small Form-factor Pluggable)

• Speed: Up to 1 Gbps (1000BASE)
• Typical Use: Legacy access layer, IP phones, basic servers
• Notes: Original workhorse; reliable for low-bandwidth connections

SFP+ (Enhanced SFP)

• Speed: 10 Gbps
• Typical Use: Enterprise server uplinks, edge switches
• Notes: Shares the same mechanical dimensions as SFP; backward-compatible with 1G SFP modules in most cases

SFP28

• Speed: 25 Gbps
• Typical Use: High-performance server-to-switch connections
• Notes: Single-lane module providing 2.5x bandwidth over 10G SFP+; emerging standard for 25G networks

QSFP+ (Quad SFP+)

• Speed: 40 Gbps (4 x 10G lanes)
• Typical Use: Aggregation switches, spine-leaf architectures
• Notes: Supports breakout cables to split 40G into four 10G connections

QSFP28

• Speed: 100 Gbps (4 x 25G lanes)
• Typical Use: Core and spine switches in modern data centers
• Notes: Supports breakout into four 25G SFP28 connections; standard for switch-to-switch high-speed links

Part 2: Technical Comparison Table

Below is a detailed comparison of key optical transceiver types:

Part 3: Compatibility and Interoperability

Understanding module compatibility is critical to avoid costly mistakes:

• SFP in SFP+ Ports: Usually compatible; link will operate at 1 Gbps.
• SFP+ in SFP Ports: Generally not supported; 10G SFP+ cannot run in 1G SFP port.
• SFP28 in SFP+ Ports: Supported but limited to 10G speeds.
• QSFP Breakout: 40G QSFP+ can split into 4 x 10G SFP+ links; 100G QSFP28 can split into 4 x 25G SFP28 links.

Always verify port firmware and switch breakout support. Using low-quality or third-party modules may trigger "Module Not Recognized" errors.

Part 4: Deployment Considerations

1. Port Density & Space

SFP/SFP+/SFP28 modules allow up to 48 ports per 1U switch. QSFP modules occupy more space; 1U switches typically max out at 32–36 ports.

2. Power & Cooling

SFP+ modules draw ~1W, while QSFP-DD (400G) can exceed 14W. Adequate airflow and thermal management are essential to prevent intermittent failures.

3. Cost Efficiency

For links ≤25G, SFP+ is cost-effective. For switch-to-switch backbones, QSFP28 reduces cabling complexity and saves rack space, improving TCO.

4. Hardware Reliability

Only use verified, original modules to ensure consistent link performance. Router-switch provides genuine transceivers, secondary inspection, and 3-year RS Care protection.

Part 5: Practical Use Cases

• Enterprise Servers / Access Layer: SFP+ (10G) or SFP28 (25G) for high-density, cost-efficient links.
• Data Center Backbone / Spine-Leaf: QSFP28 (100G) for high-bandwidth switch-to-switch connections.
• Short Distance Inside Rack: DAC cables minimize latency and power consumption for links <7m.
• High-Density Aggregation: QSFP+ or QSFP28 with single-mode fiber (SMF) supports distances up to 10 km or more.

Part 6: FAQ for Network Engineers

Q1.What is the difference between SFP+ and QSFP+?

SFP+ is a single-lane 10G module, whereas QSFP+ aggregates four 10G lanes into a 40G connection.

Q2.Are SFP and SFP+ the same?

No. They share the same physical size, but SFP supports 1G while SFP+ supports 10G.

Q3.What is the difference between SFP+ and DAC?

SFP+ is a transceiver that requires separate fiber/copper cabling. A DAC (Direct Attach Cable) is a fixed copper cable with SFP+ connectors permanently attached, suitable for very short distances (up to 7–10m).

Q4.Can SFP28 work in SFP+ ports?

Yes, but it will be limited to 10G speeds. SFP28 modules are primarily designed for 25G-capable ports.

Q5.What is the difference between SFP and QSFP?

SFP is a single-lane module (1G/10G/25G), whereas QSFP is a four-lane module (40G/100G). There is no "QFP" standard; QSFP is the correct terminology.

Q6.Can I use breakout cables on QSFP/QSFP28 ports?

Yes. A 40G QSFP+ port can split into four 10G SFP+ links, and a 100G QSFP28 port can split into four 25G SFP28 links, provided the switch supports breakout mode.

Conclusion:

Choosing the correct optical transceiver is critical for network reliability, scalability, and cost-efficiency. By understanding SFP, SFP+, SFP28, QSFP, and QSFP28 modules, network engineers can design optimized enterprise and data center networks, prevent compatibility pitfalls, and ensure long-term operational stability. Verified hardware from trusted suppliers like Router-switch helps engineers focus on design rather than troubleshooting.
