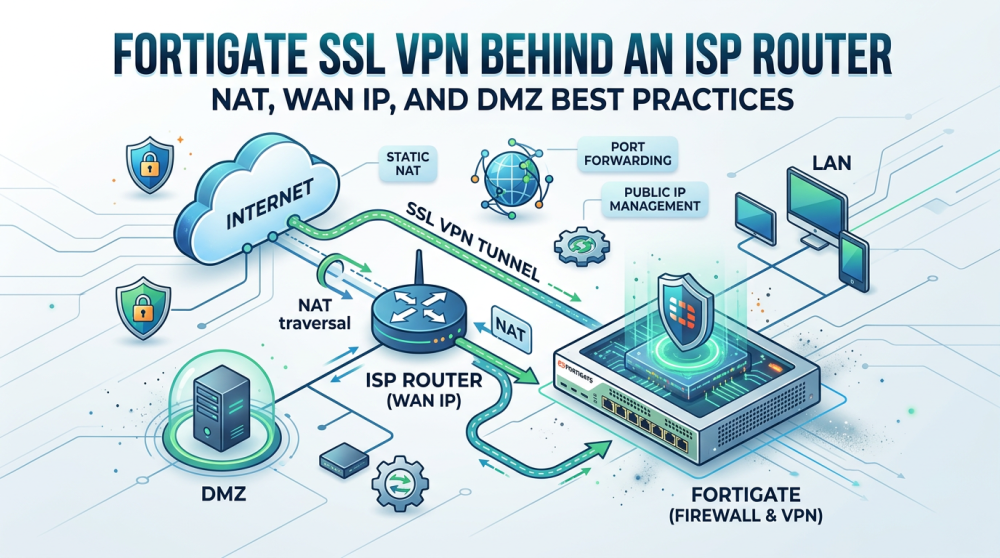

FortiGate SSL VPN Behind an ISP Router: NAT, WAN IP, and DMZ Best Practices

Remote access is a lifeline for modern enterprises, especially with FortiClient VPN enabling secure connectivity for distributed teams. However, deploying a FortiGate firewall behind an ISP-provided router can introduce complex challenges. Suddenly, VPNs fail to connect, remote users experience dropped sessions, and IT teams struggle to trace NAT and WAN IP issues.

This guide addresses the core technical pitfalls, explains WAN IP and NAT design for SSL VPN, and provides actionable steps to ensure uninterrupted remote access.

Table of Contents

• Part 1: The Core Challenge
• Part 2: WAN Primary IP vs. Additional Static IPs
• Part 3: DMZ, 1:1 NAT, and Port Forwarding
• Part 4: Validation Workflow & ISP Migration Considerations
• Part 5: Common Misconfigurations to Avoid
• Part 6: Router-Switch.com Support & Advantages
• Part 7: FAQ

Part 1: The Core Challenge: NAT, CGNAT, and ISP Barriers

When a FortiGate sits behind an ISP router:

• The firewall may not hold a public IP, making inbound VPN traffic unreachable.
• ISP NAT or CGNAT can prevent external VPN clients from reaching your FortiGate.
• Misconfigured WAN IP, DMZ, or port-forwarding rules often break connectivity.

Pro Tip: Before reconfiguring your network, check if your ISP uses CGNAT. If so, request a unique, dedicated static public IP to guarantee SSL VPN reachability.

Part 2: WAN Primary IP vs. Additional Static IPs

Correct WAN IP assignment is essential:

• Primary WAN IP: Must be publicly reachable and consistently mapped in the upstream router. This ensures SSL VPN endpoints are stable.
• Additional Static IPs: If you have a /29 public subnet, assign extra IPs for VIPs or DMZ services. This avoids conflicts and allows multiple services to operate without interfering with the primary VPN.

Best Practice: Avoid relying on dynamically assigned IPs for WAN; use static configuration or DHCP reservations to survive router reboots.

Optional: If a static IP isn’t available, FortiGuard DDNS can bind a dynamic public IP to a stable domain, allowing FortiClient users to connect reliably.

Part 3: DMZ, 1:1 NAT, and Port Forwarding

To make SSL VPN reachable behind an ISP NAT:

• 1:1 NAT: Map each public static IP from the ISP directly to the FortiGate WAN interface.
• Port Forwarding: Forward TCP 443 (or a custom port like 10443) to the FortiGate WAN IP for SSL VPN.
• DMZ Hosting: For complex setups with multiple inbound services, configure the ISP router’s DMZ to point to the FortiGate WAN IP, simplifying NAT management.

Example: Configure port forwarding for SSL VPN:

ISP_Router> set port-forward 10443 FortiGate_WAN_IP

Security Tip: Change the default SSL VPN listening port to reduce exposure and avoid conflicts with web management.

Part 4: Validation Workflow & ISP Migration Considerations

Step-by-step validation:

1. Confirm ISP-provided /29 subnet and primary IP.
2. Assign WAN IP(s) to FortiGate and configure NAT/port-forwarding.
3. Test external connectivity with FortiClient.
4. Use FortiOS CLI to troubleshoot:

   diagnose sniffer packet any 'host  and (port 443 or port 10443)' 4 0 a
   diagnose sys waninfo

5. Document configuration to streamline future ISP changes.

Tip: After an ISP migration, verify NAT paths and re-test SSL VPN. If dynamic IPs are used, update DDNS entries for uninterrupted access.

Part 5: Common Misconfigurations to Avoid

• Binding SSL VPN to an incorrect or dynamic WAN IP.
• Missing 1:1 NAT or port-forwarding rules.
• Failing to adjust firewall policies or routing entries after ISP changes.
• Overlooking CGNAT or ISP-modified upstream routing.

Awareness of these pitfalls prevents downtime and improves remote access reliability.

Part 6: Router-Switch Support & Advantages

• Extensive FortiGate Inventory: Quickly source models like 200E, 300E, and 400E.
• Expert CCIE Support: Free guidance for WAN IP planning, NAT, DMZ, and SSL VPN design.
• Global 1–5 Day Delivery: DDP shipping ensures rapid replacement without customs delays.
• Extended Warranty & RS Care: Long-term reliability for your network infrastructure.
• Flexible Procurement: Multiple payment options and real-time inventory checks simplify urgent projects.

Using Router-Switch services ensures that even complex SSL VPN deployments behind ISP NAT devices are secure, reliable, and scalable.

Part 7: FAQ

Can SSL VPN work behind double NAT?

Yes, with proper 1:1 NAT or port-forwarding. Without mapping, VPN traffic will be blocked.

How do I bind SSL VPN to a static IP?

Assign the static IP to the FortiGate WAN interface, configure NAT, and ensure SSL VPN listens on that IP.

What should I check after an ISP migration?

Validate WAN IP assignments, NAT/DMZ rules, firewall policies, and run external connectivity tests.
