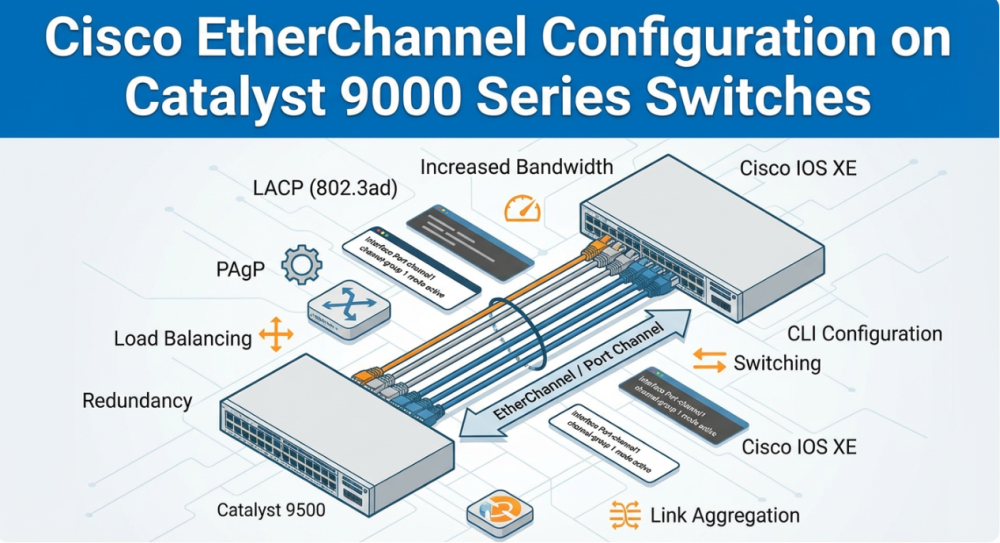

Cisco EtherChannel Configuration on Catalyst 9000 Series Switches

EtherChannel is a core link aggregation technology widely used on Cisco switches to increase bandwidth and provide link-level redundancy. On Cisco Catalyst 9000 series switches—including the 9200, 9300, and 9500—it is commonly deployed between access and distribution layers, as well as for high-availability uplinks.

This guide explains how EtherChannel works, how to configure it correctly using LACP, and how to avoid the most common misconfigurations seen in real enterprise networks. It also clarifies how EtherChannel relates to LACP and PAgP, which is a frequent source of confusion.

• Part 1: Understanding EtherChannel on Cisco Catalyst 9000 Switches
• Part 2: EtherChannel vs. LACP – Clarifying the Terminology
• Part 3: LACP, PAgP, and Static “On” Mode
• Part 4: Step-by-Step EtherChannel Configuration
• Part 5: Verifying EtherChannel Operation
• Part 6: Common Issues and Troubleshooting Tips
• Part 7: FAQ – EtherChannel on Catalyst 9000
• Part 8: Practical Takeaways

Part 1: Understanding EtherChannel on Cisco Catalyst 9000 Switches

EtherChannel bundles multiple physical Ethernet interfaces into a single logical interface known as a Port-channel. From the perspective of Spanning Tree Protocol, routing, and upper-layer features, the Port-channel is treated as one link rather than multiple independent interfaces.

On Catalyst 9000 switches, EtherChannel is typically used for:

• Switch-to-switch uplinks
• Access-to-distribution layer connections
• Redundant connections to servers or appliances (when supported by the peer)

Traffic is distributed across member links using a hashing algorithm based on fields such as source/destination MAC address, IP address, or Layer 4 ports. This improves aggregate throughput while maintaining deterministic forwarding behavior.

Part 2: EtherChannel vs. LACP – Clarifying the Terminology

EtherChannel and LACP are often used interchangeably, but they are not the same thing.

• EtherChannel is the Cisco term for the overall link aggregation mechanism.
• LACP (Link Aggregation Control Protocol) is an IEEE-standard protocol used to negotiate and manage EtherChannel membership.

EtherChannel can technically operate without LACP, but doing so removes important safety checks. On Catalyst 9000 series switches, LACP is the recommended and most commonly deployed option.

Part 3: LACP, PAgP, and Static “On” Mode

LACP (IEEE 802.3ad / 802.1AX)

LACP is the preferred choice for modern enterprise networks.

• active: Actively sends LACP packets to form the channel
• passive: Responds to LACP packets but does not initiate

At least one side must be in active mode for the channel to form. LACP also detects mismatches and prevents incompatible links from being bundled.

PAgP (Cisco Proprietary)

PAgP is Cisco-proprietary and largely considered legacy. It works only between Cisco devices and is rarely used on Catalyst 9000 deployments.

Static “On” Mode

In this mode, interfaces are forced into a channel without negotiation. This approach removes protocol validation and carries a high risk of loops or traffic loss, making it unsuitable for production environments.

Part 4: Step-by-Step EtherChannel Configuration

Pre-Configuration Checklist

Before entering any commands, verify that all member interfaces have identical settings:

• Same speed and duplex
• Same Layer 2 mode (access or trunk)
• Same allowed VLANs (for trunk ports)
• No conflicting Spanning Tree settings

Configuration mismatches are the most common reason EtherChannel fails to form.

Configuration Example

interface range GigabitEthernet1/0/1-2
 switchport
 switchport mode trunk
 switchport trunk allowed vlan 10,20
 channel-group 1 mode active

interface Port-channel1
 switchport
 switchport mode trunk
 switchport trunk allowed vlan 10,20

Part 5: Verifying EtherChannel Operation

After configuration, always verify the channel state.

• show etherchannel summary
• show lacp neighbor
• show interfaces port-channel 1

A healthy Layer 2 EtherChannel typically shows SU for the port-channel and P for bundled member interfaces.

Part 6: Common Issues and Troubleshooting Tips

Common causes of EtherChannel issues on Catalyst 9000 switches include:

• Suspended ports (s): VLAN or trunk mismatches
• Standalone interfaces (I): Protocol mismatch between peers
• Err-disabled interfaces: Loop or severe misconfiguration detection

Part 7: FAQ – EtherChannel on Cisco Catalyst 9000 Series Switches

Q1.How do you configure EtherChannel on a Cisco switch?

You configure EtherChannel by selecting multiple physical interfaces with interface range, ensuring they share identical settings, and assigning them to the same channel-group. On Catalyst 9000 switches, LACP in active mode is the recommended approach.

Q2.Is EtherChannel the same as LACP?

No. EtherChannel is the link aggregation technology itself, while LACP is a protocol used to negotiate and manage EtherChannel membership.

Q3.What are the key capabilities of Cisco Catalyst 9000 series switches?

Catalyst 9000 switches are designed for enterprise campus networks and support high-performance switching, modern IOS XE software, advanced security features, and scalable uplink options.

Q4.Which is better: LACP or PAgP?

LACP is generally better for modern deployments because it is an IEEE standard, supports multi-vendor environments, and prevents many common misconfigurations.

Part 8: Practical Takeaways

EtherChannel remains a foundational technology for building resilient and high-bandwidth links in enterprise networks. On Cisco Catalyst 9000 series switches, LACP in active mode provides the best balance of safety, interoperability, and operational clarity.

Always validate configuration consistency, verify channel status after deployment, and avoid force modes unless there is a controlled and well-understood reason. Exact behavior may vary by model and IOS XE version, so testing in a lab or maintenance window is strongly recommended.
